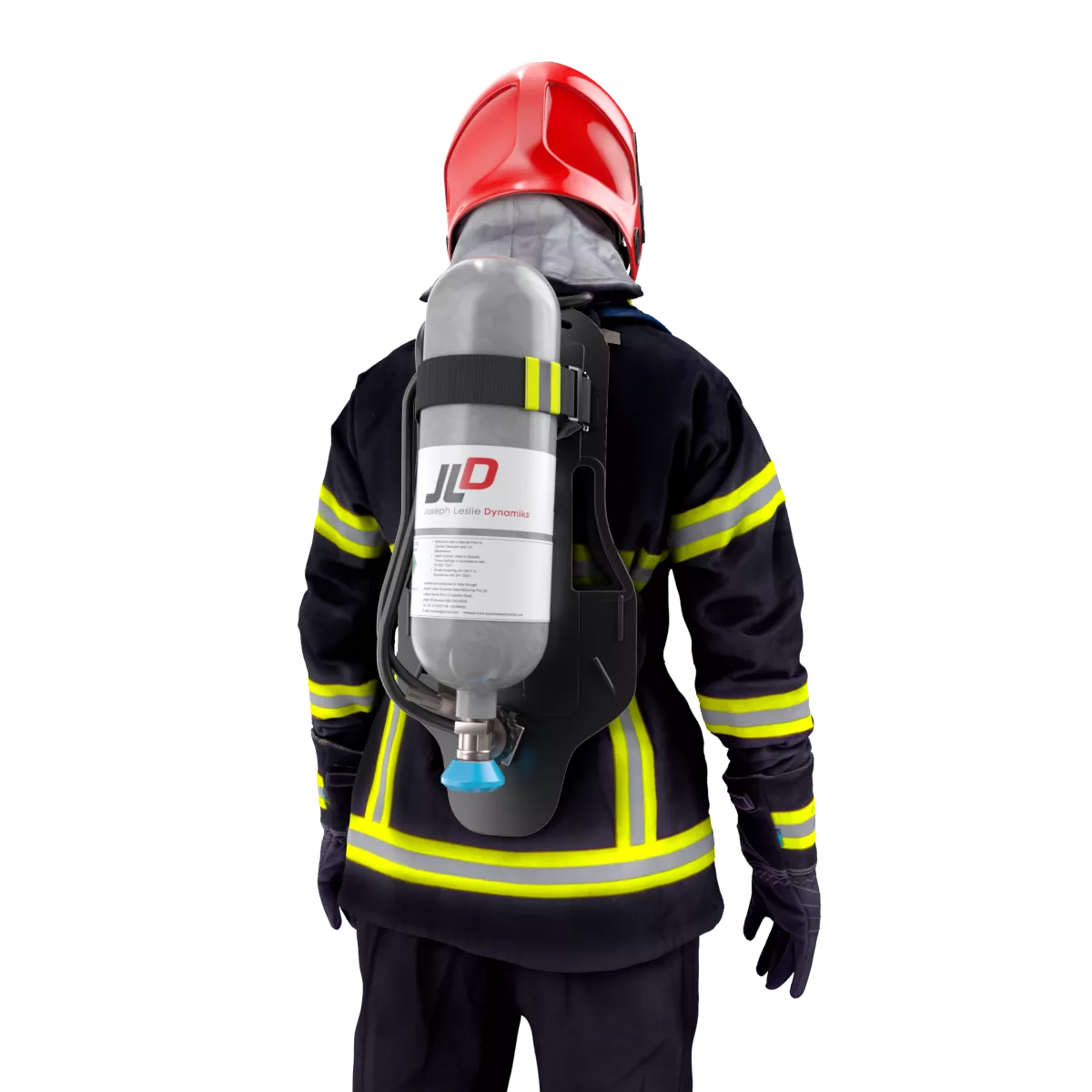

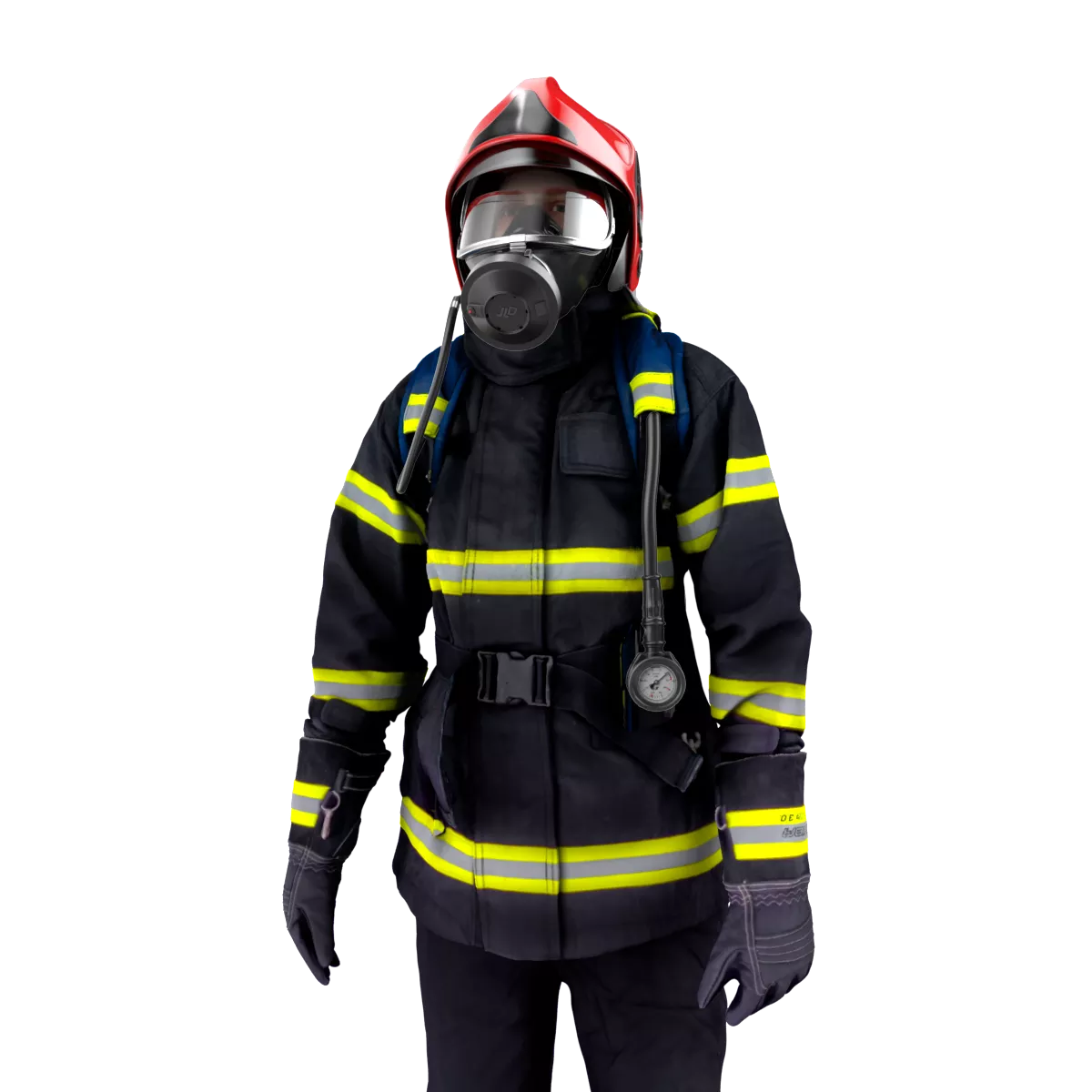

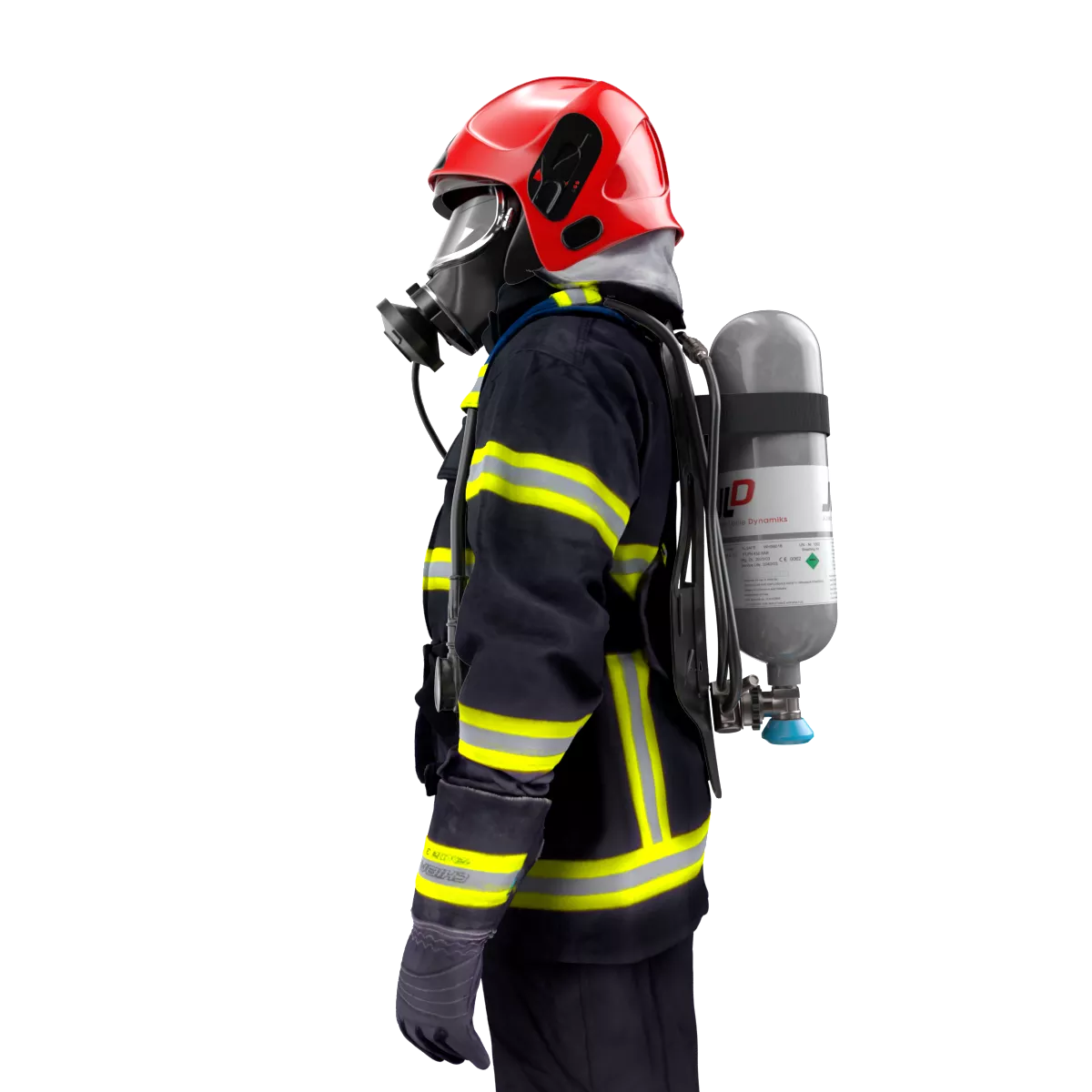

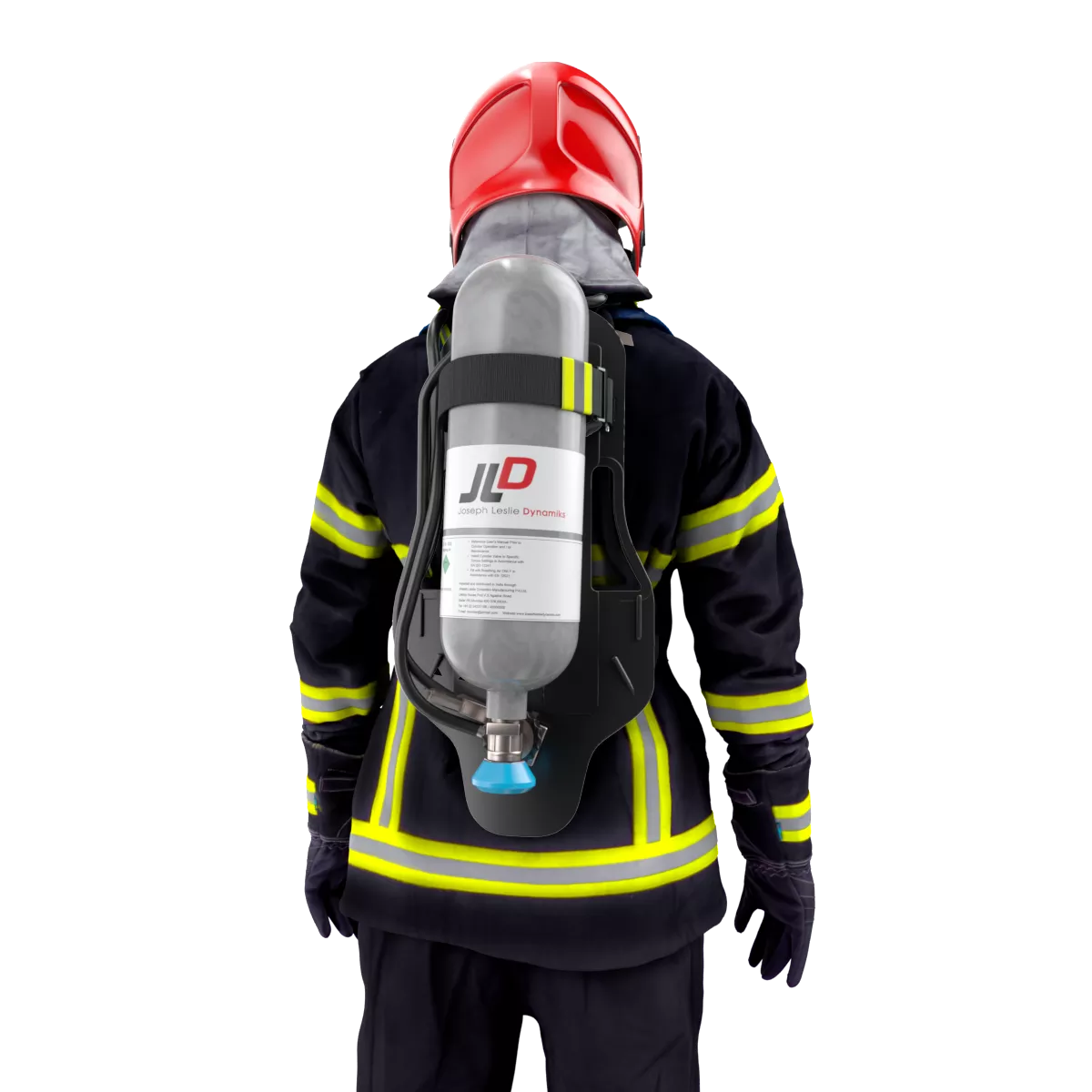

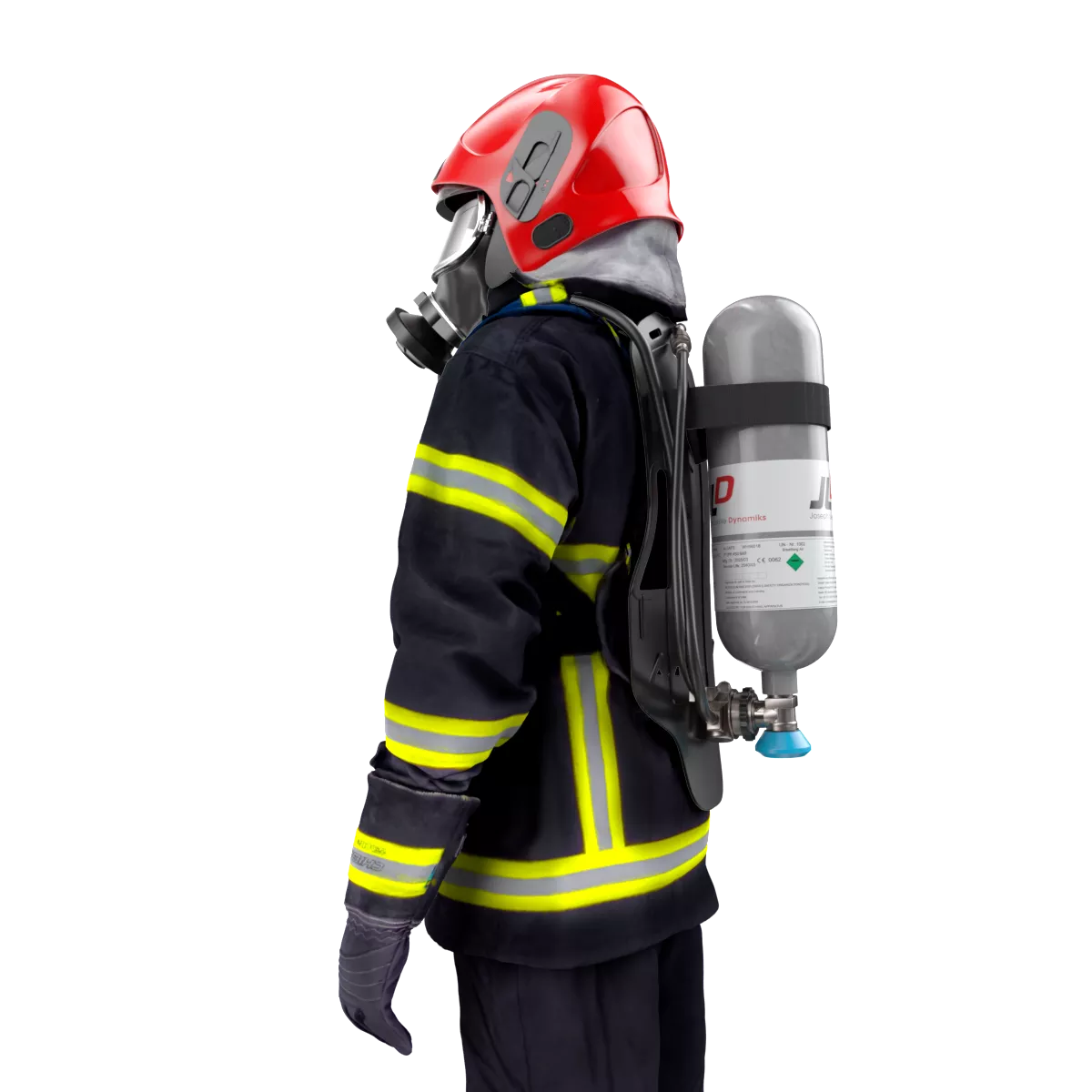

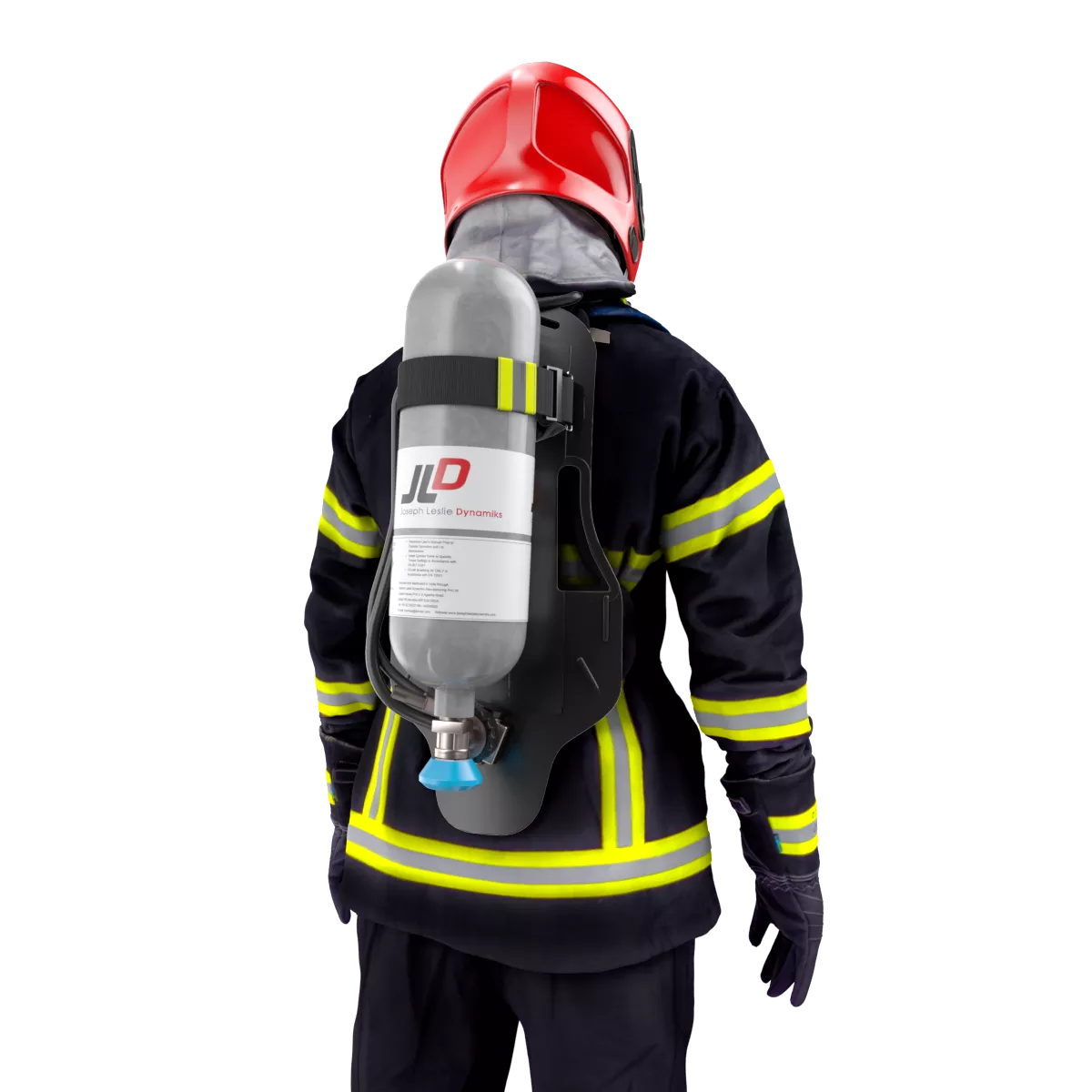

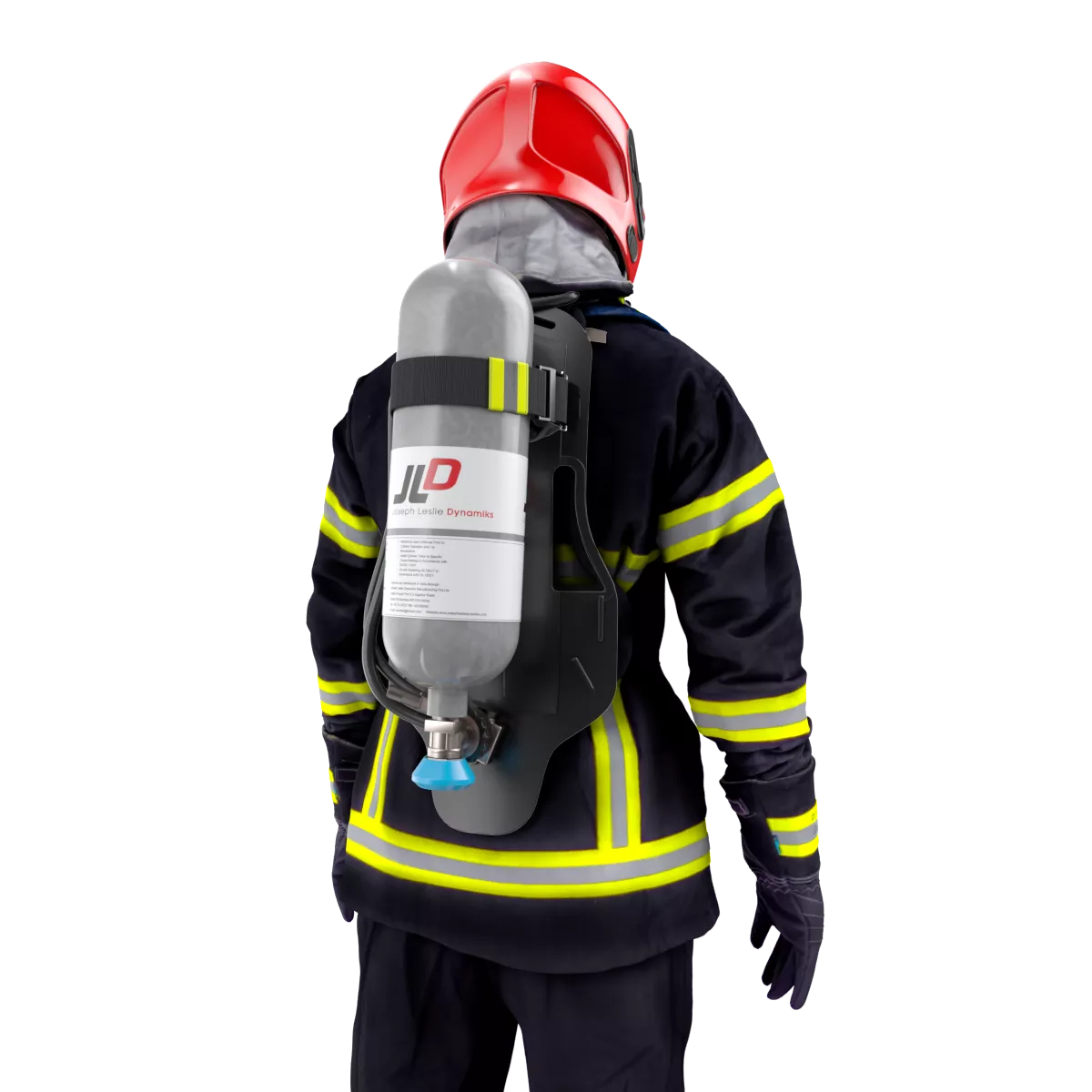

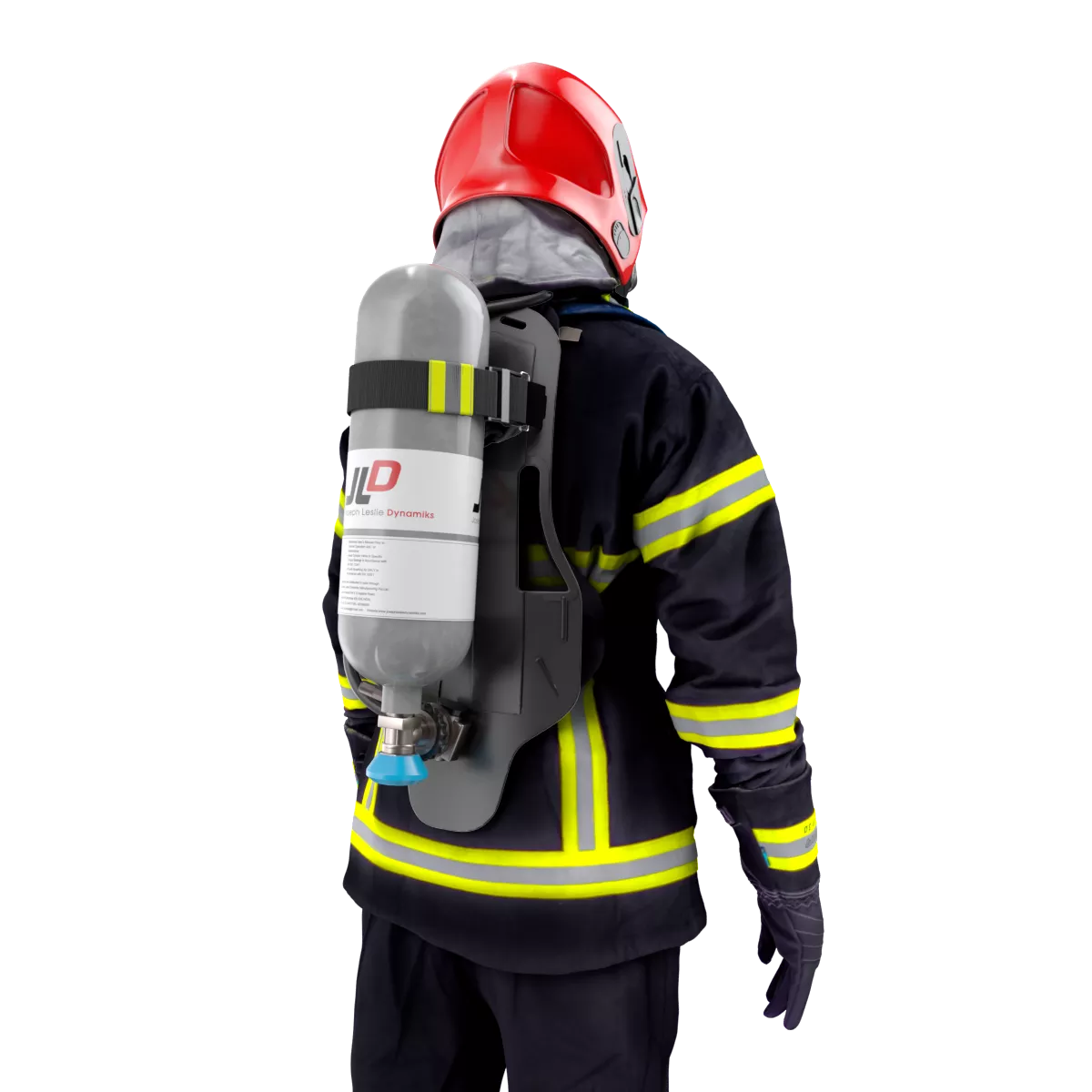

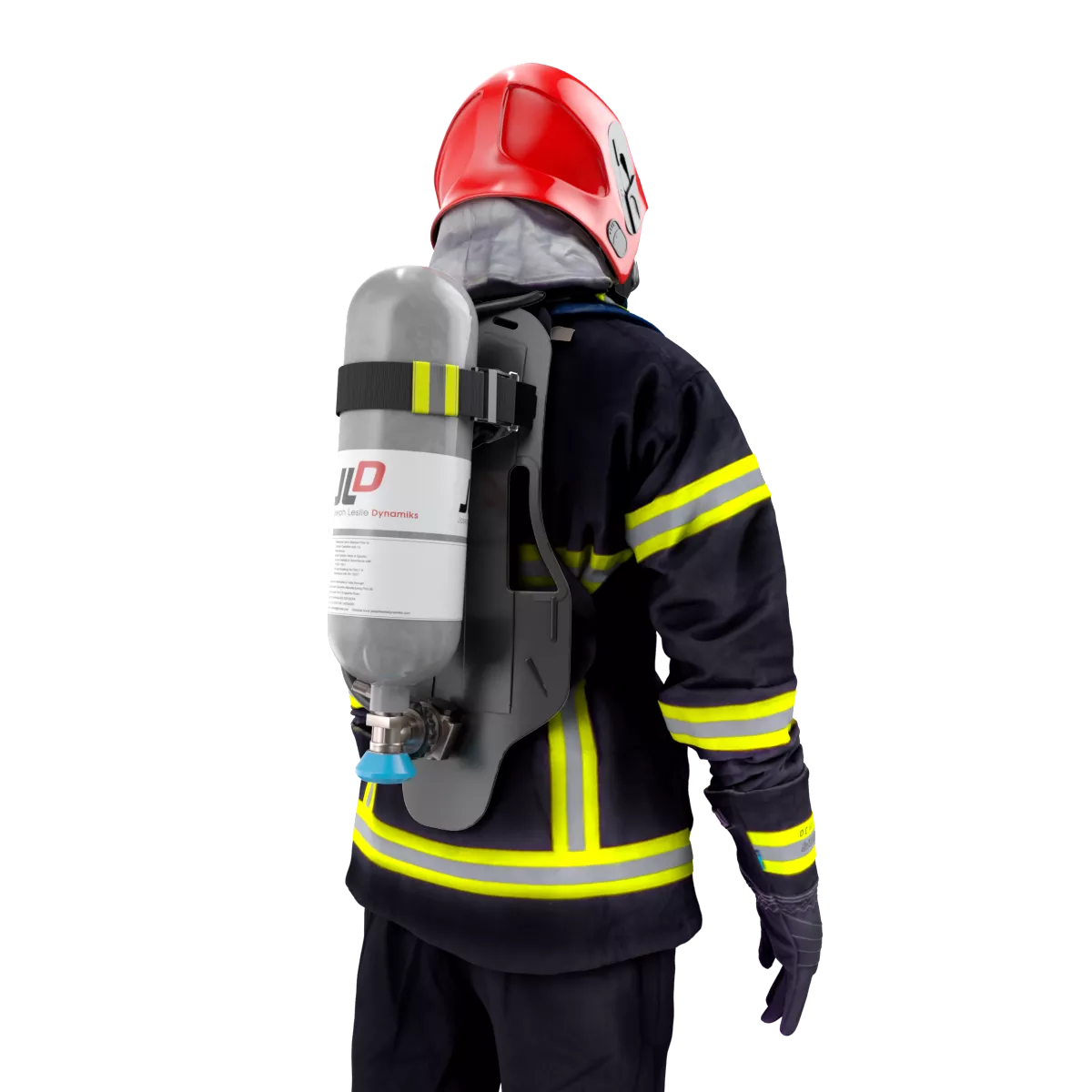

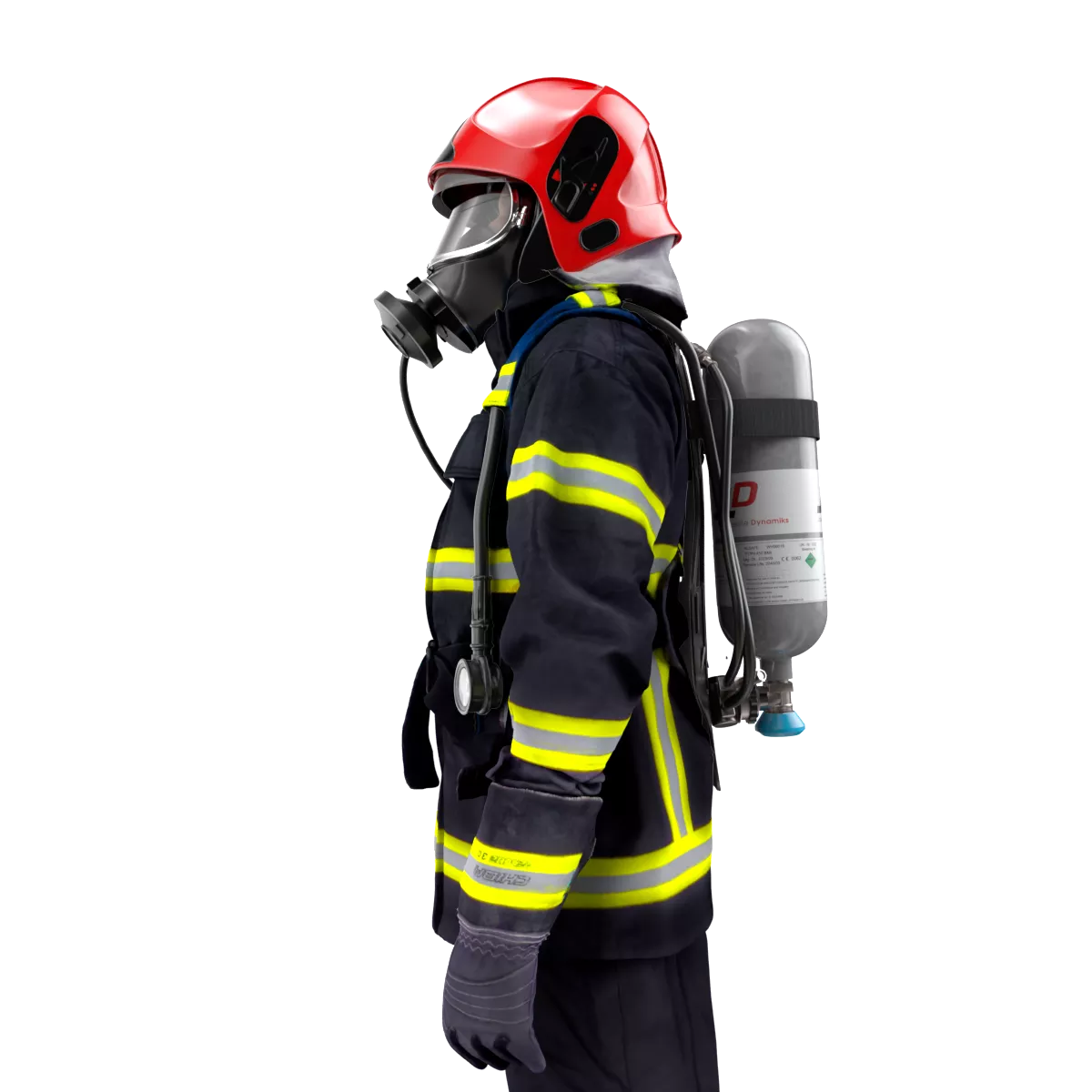

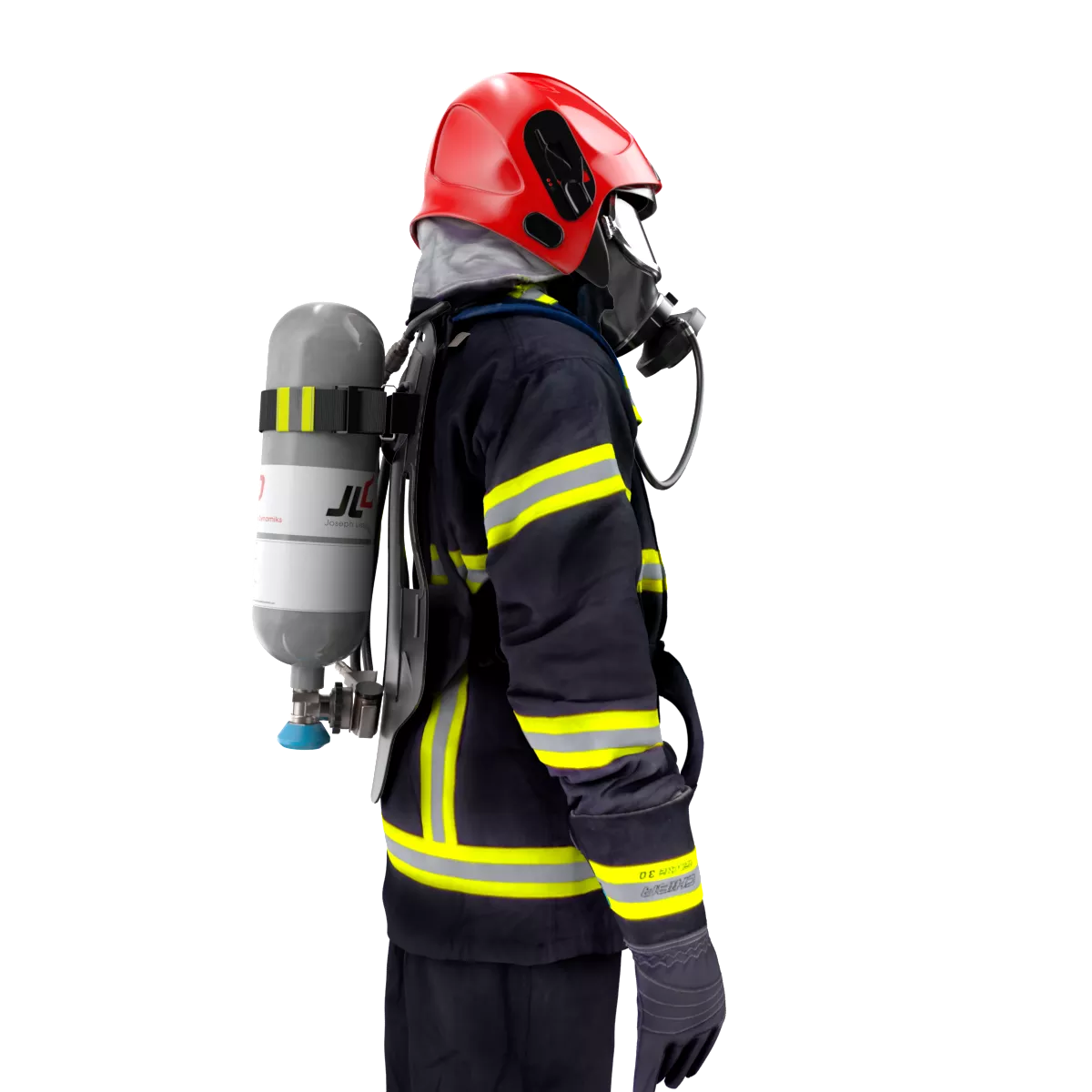

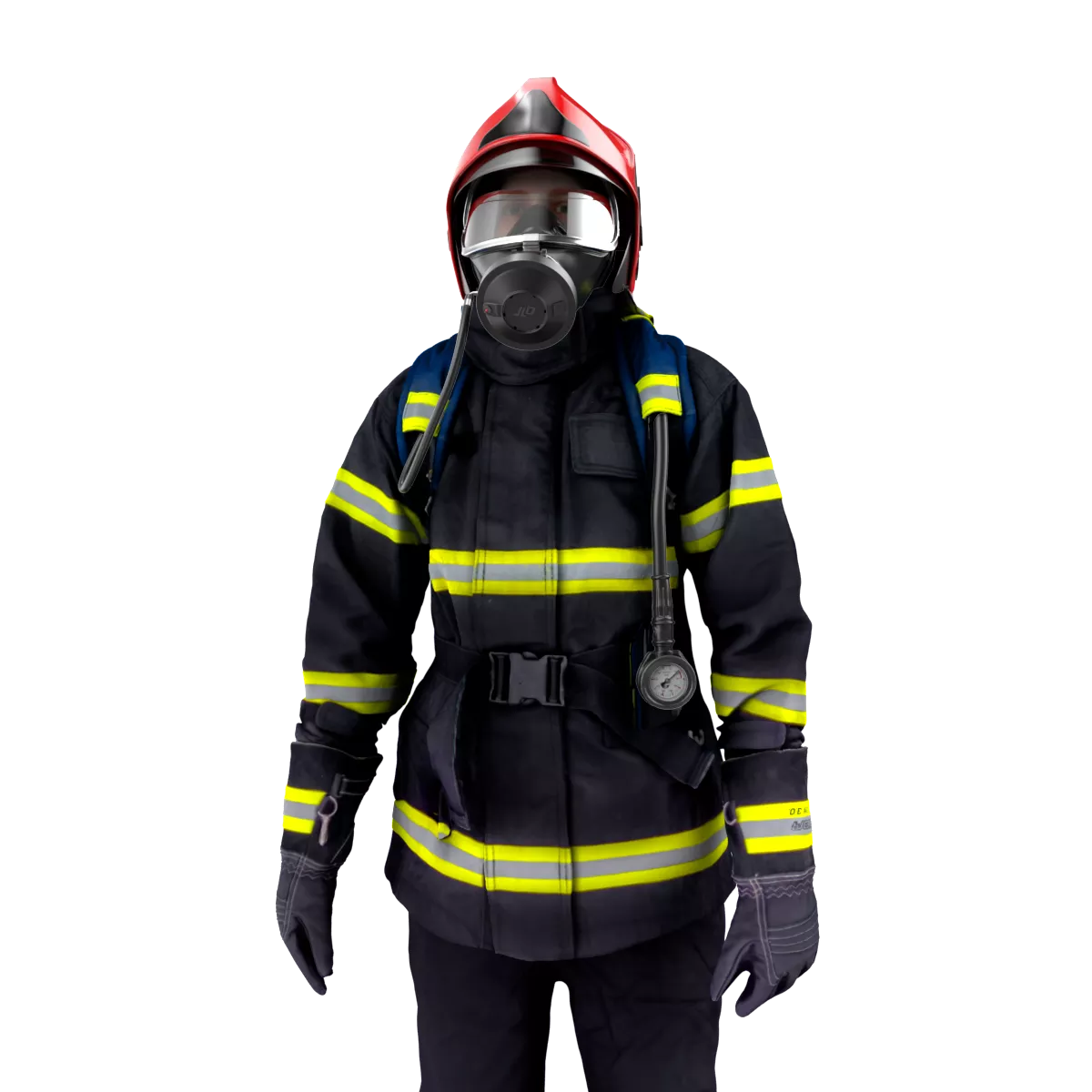

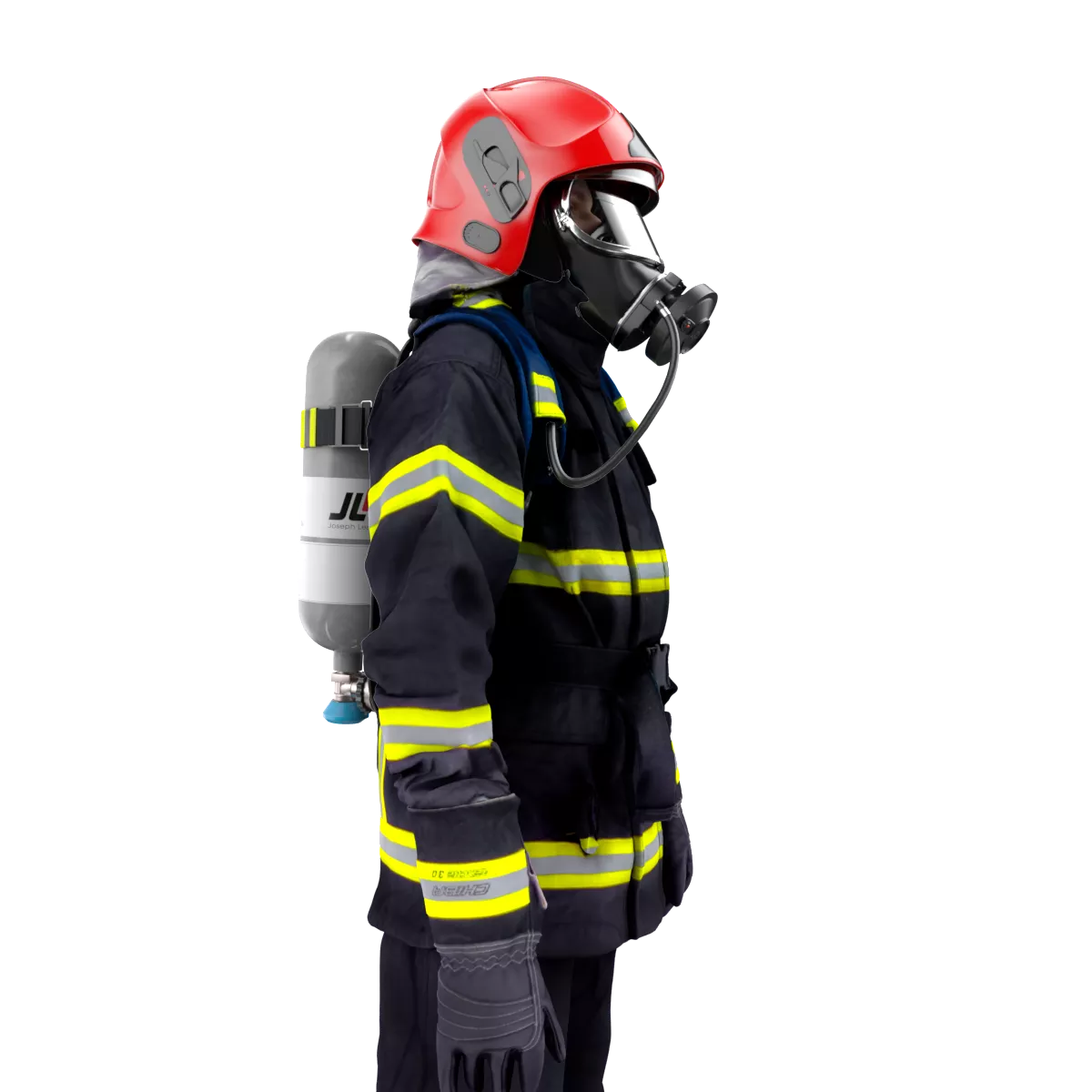

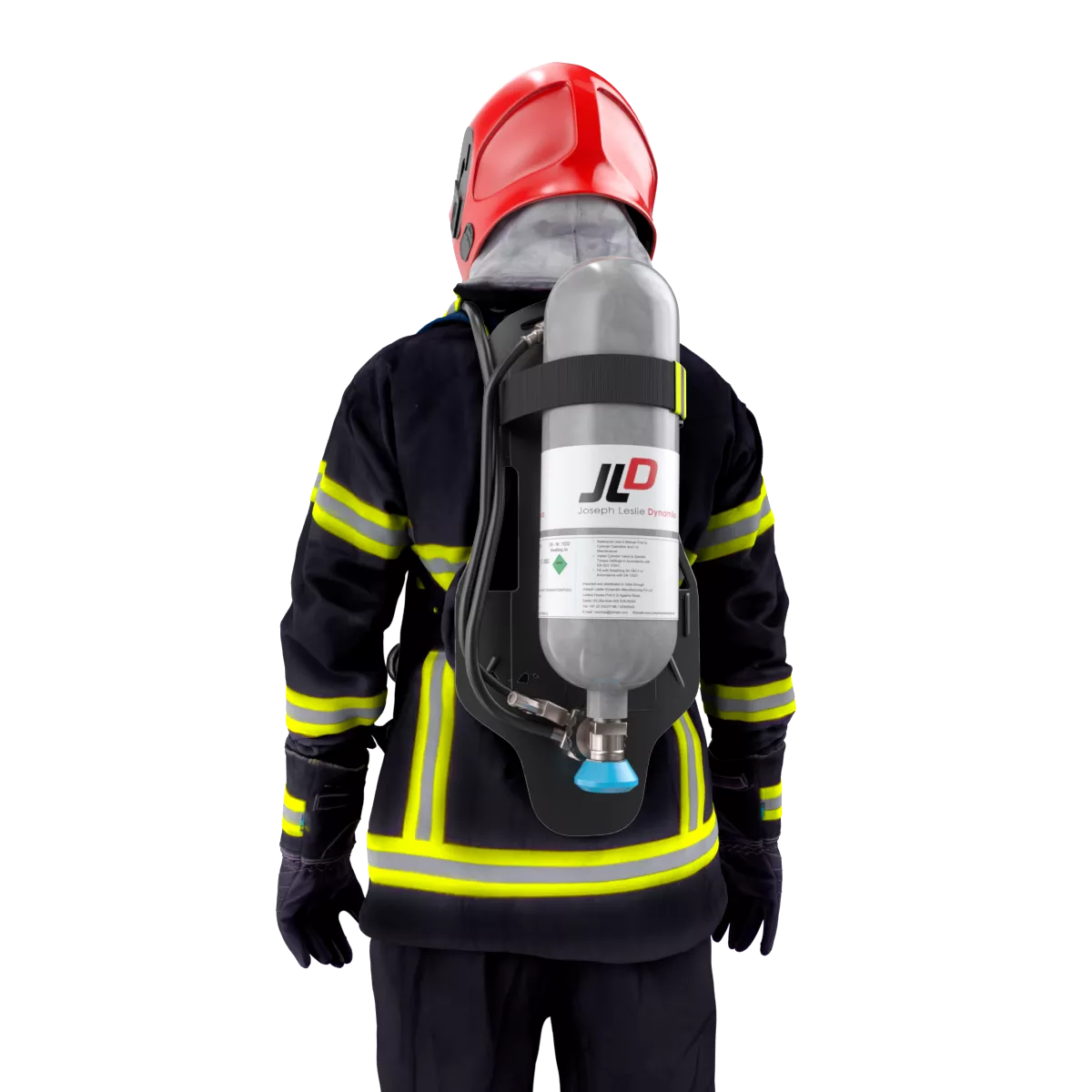

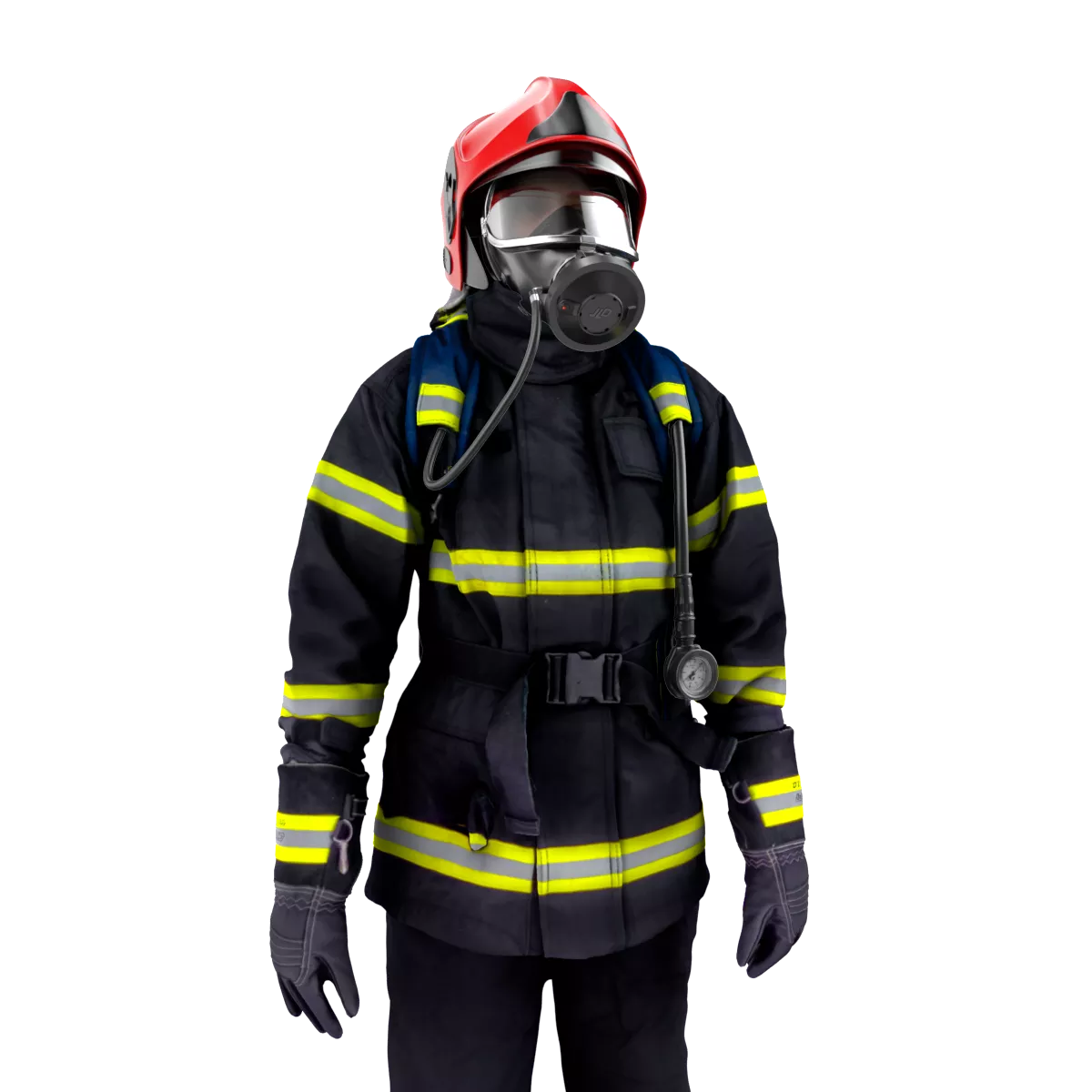

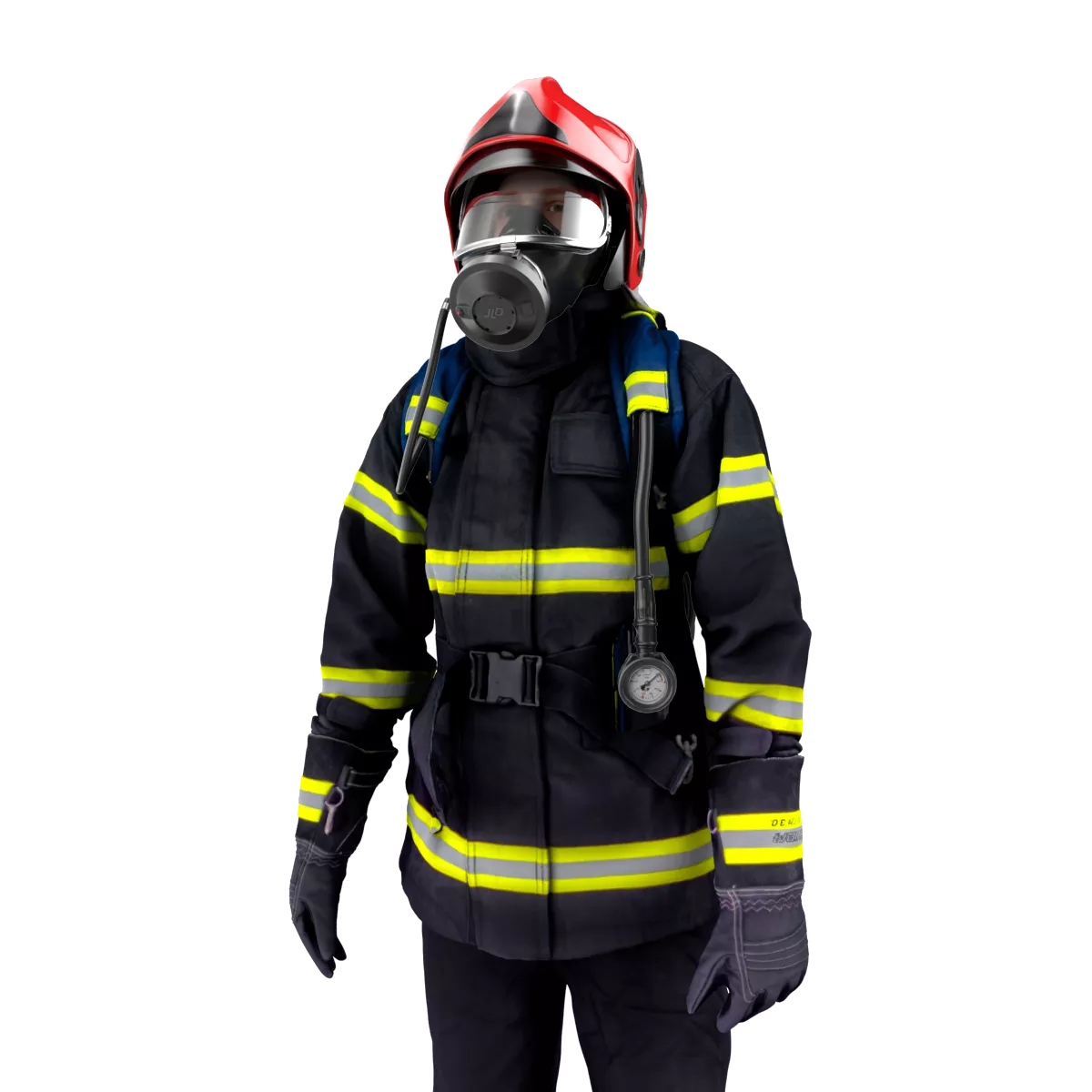

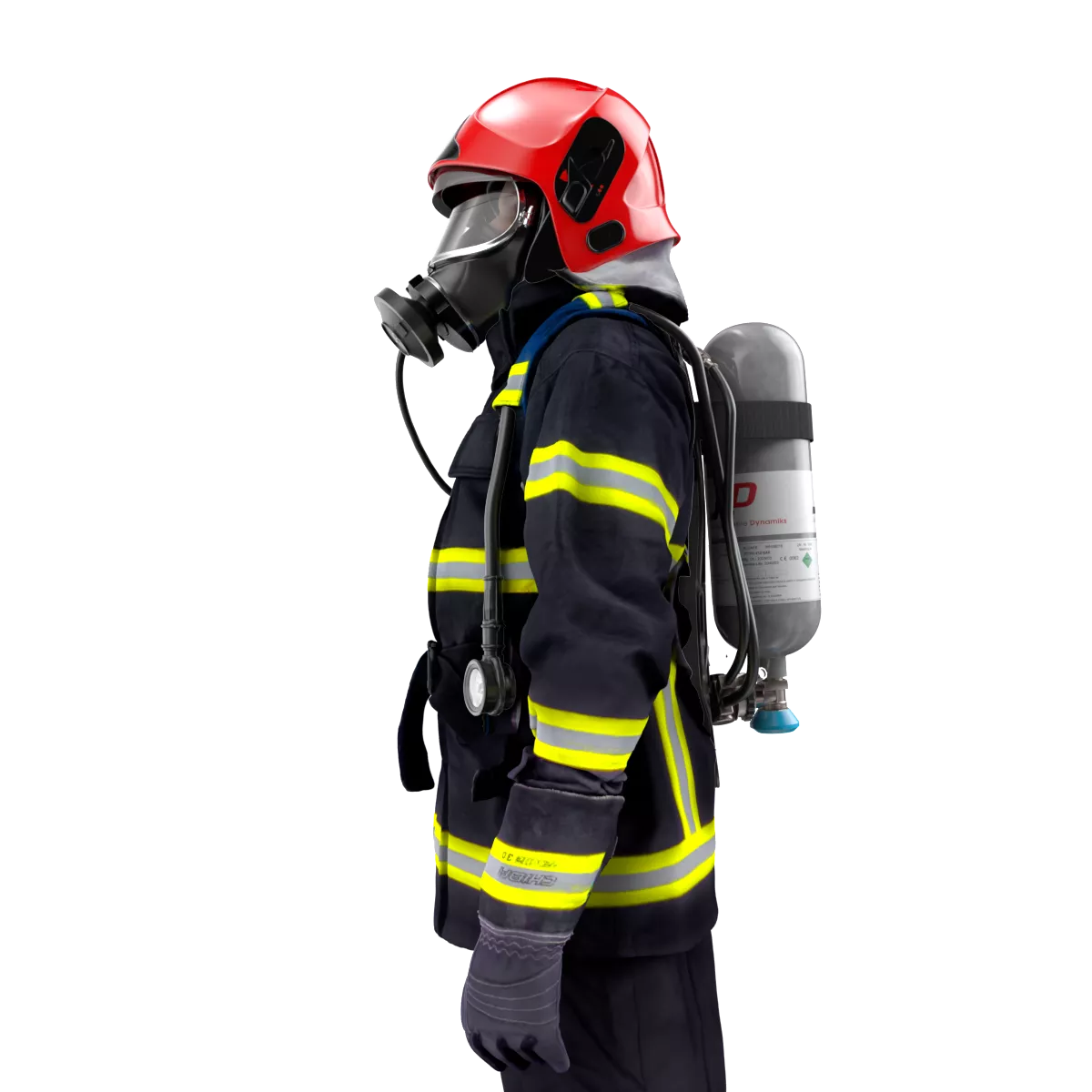

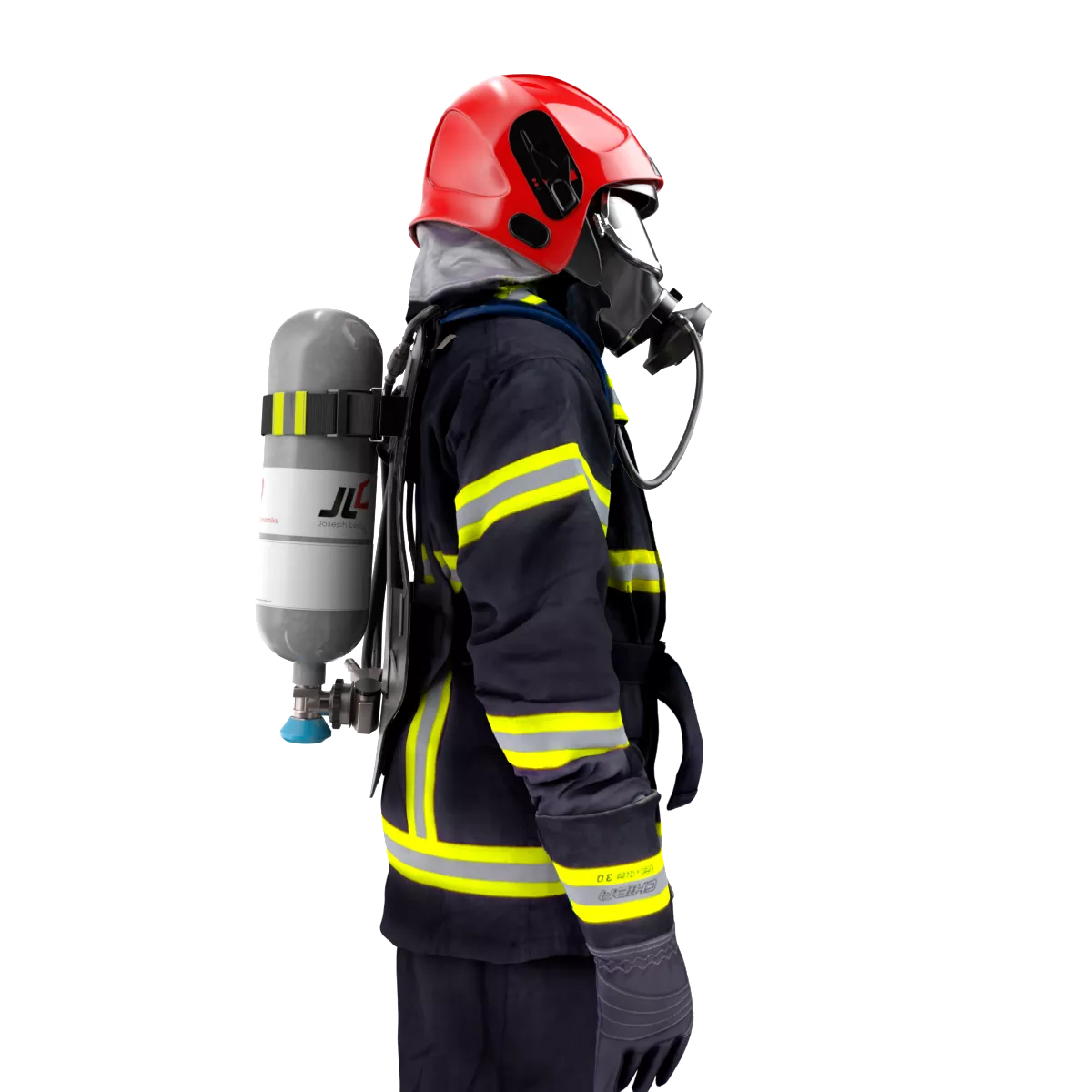

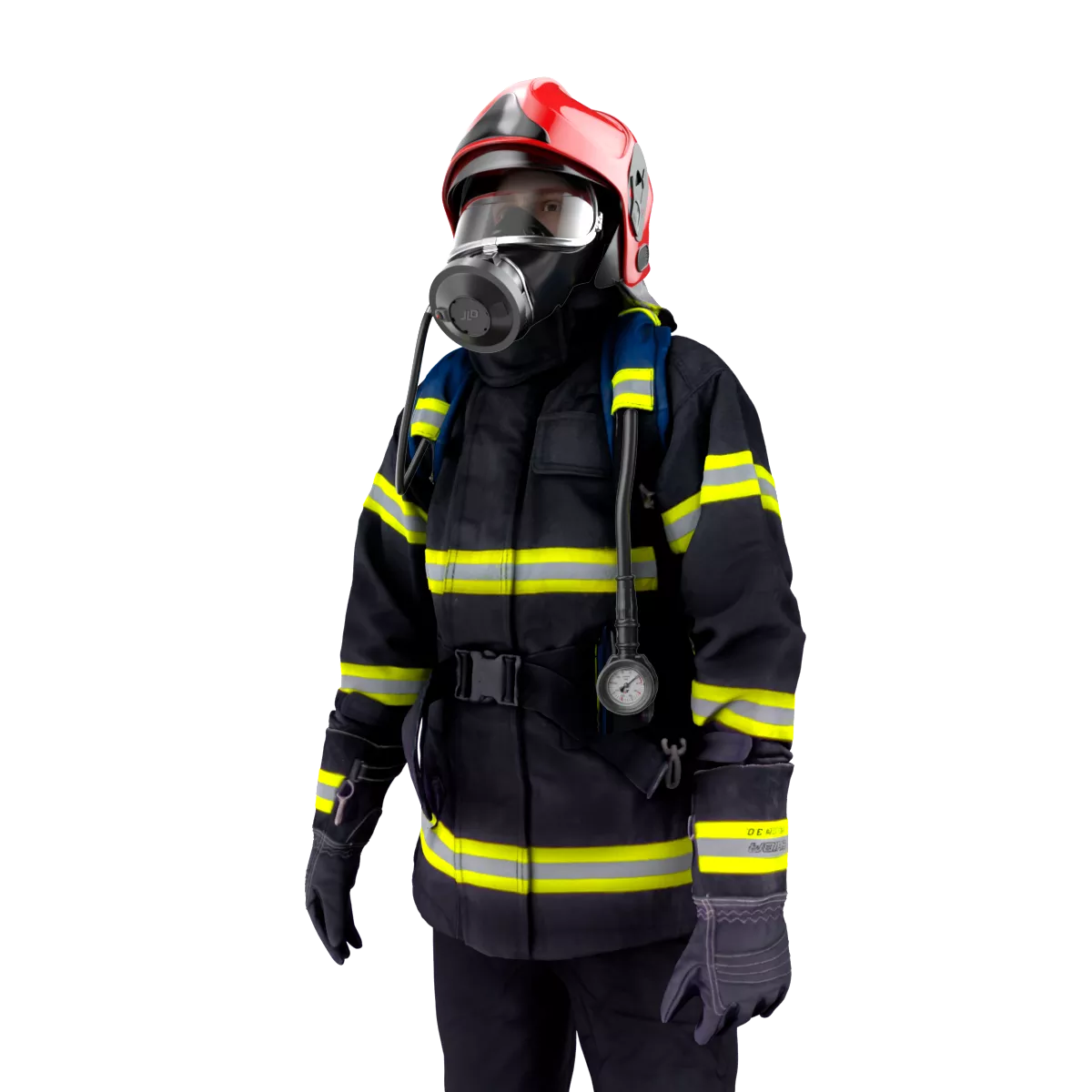

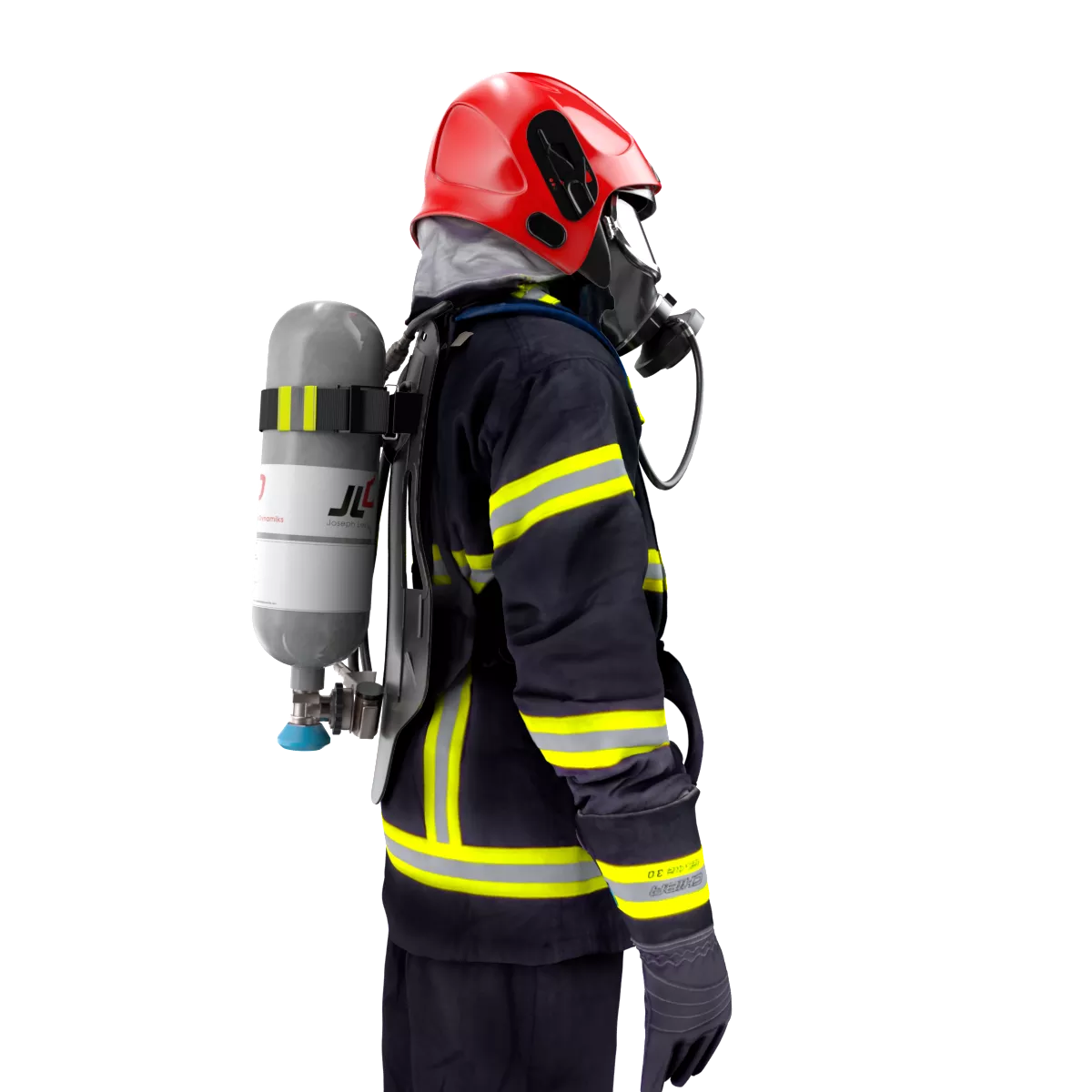

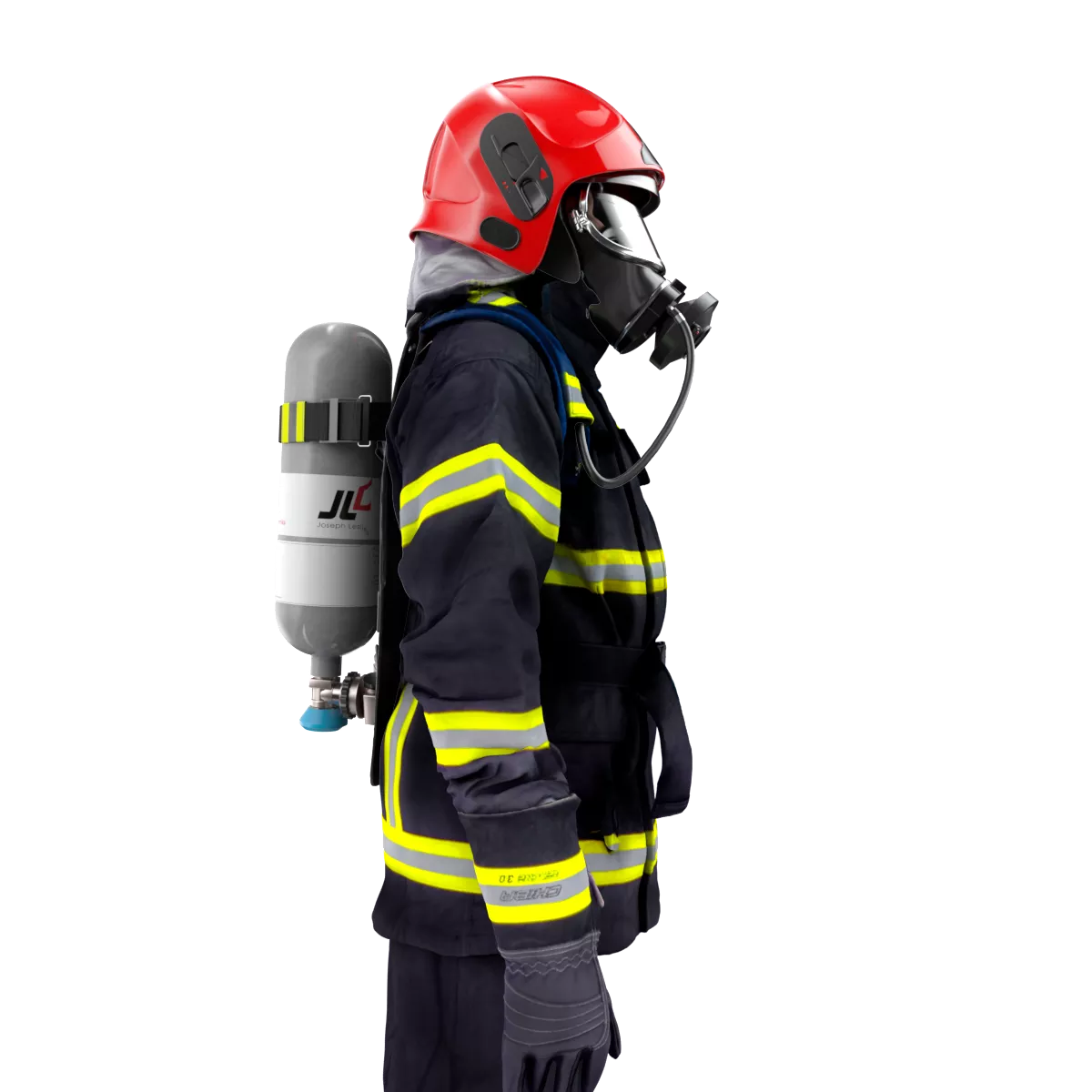

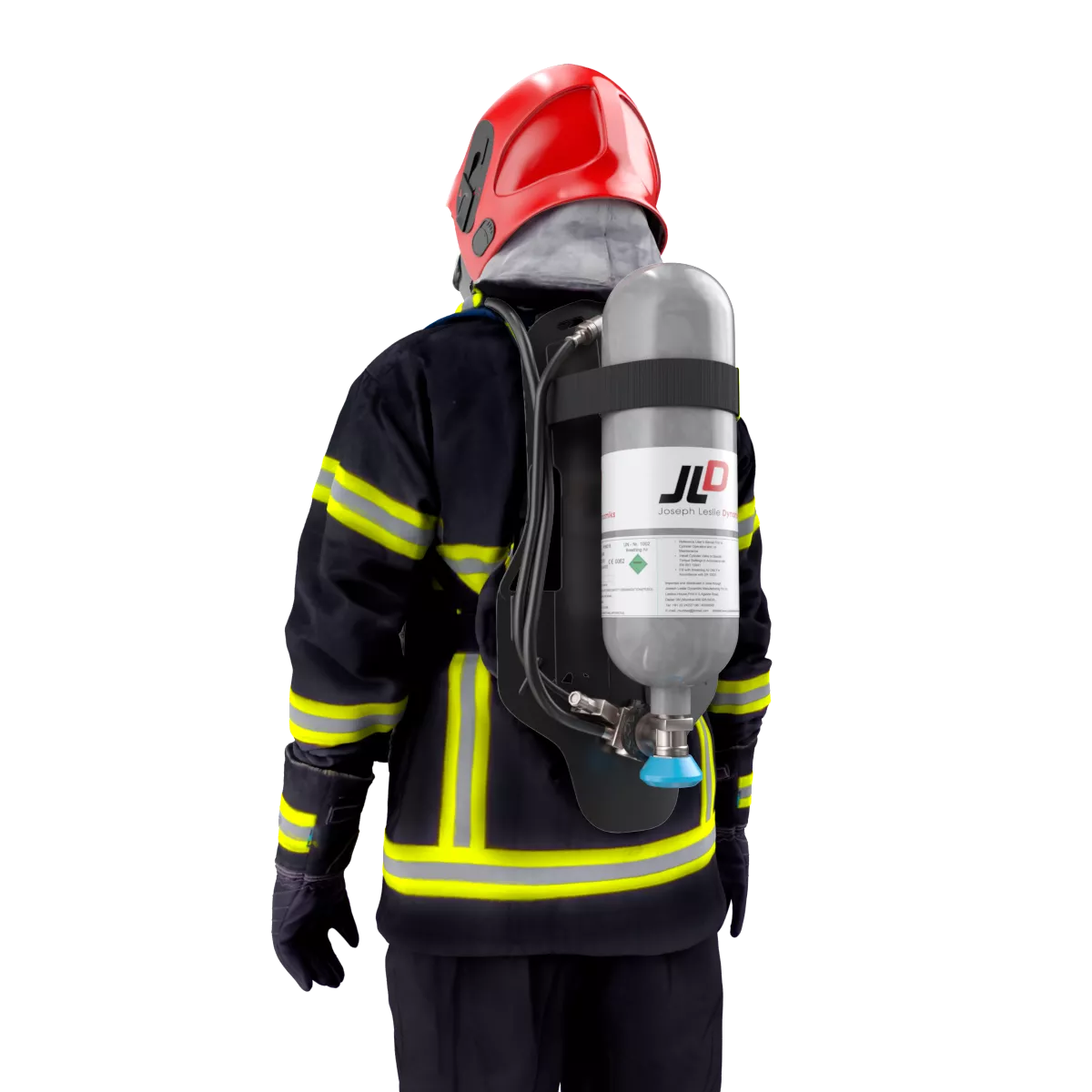

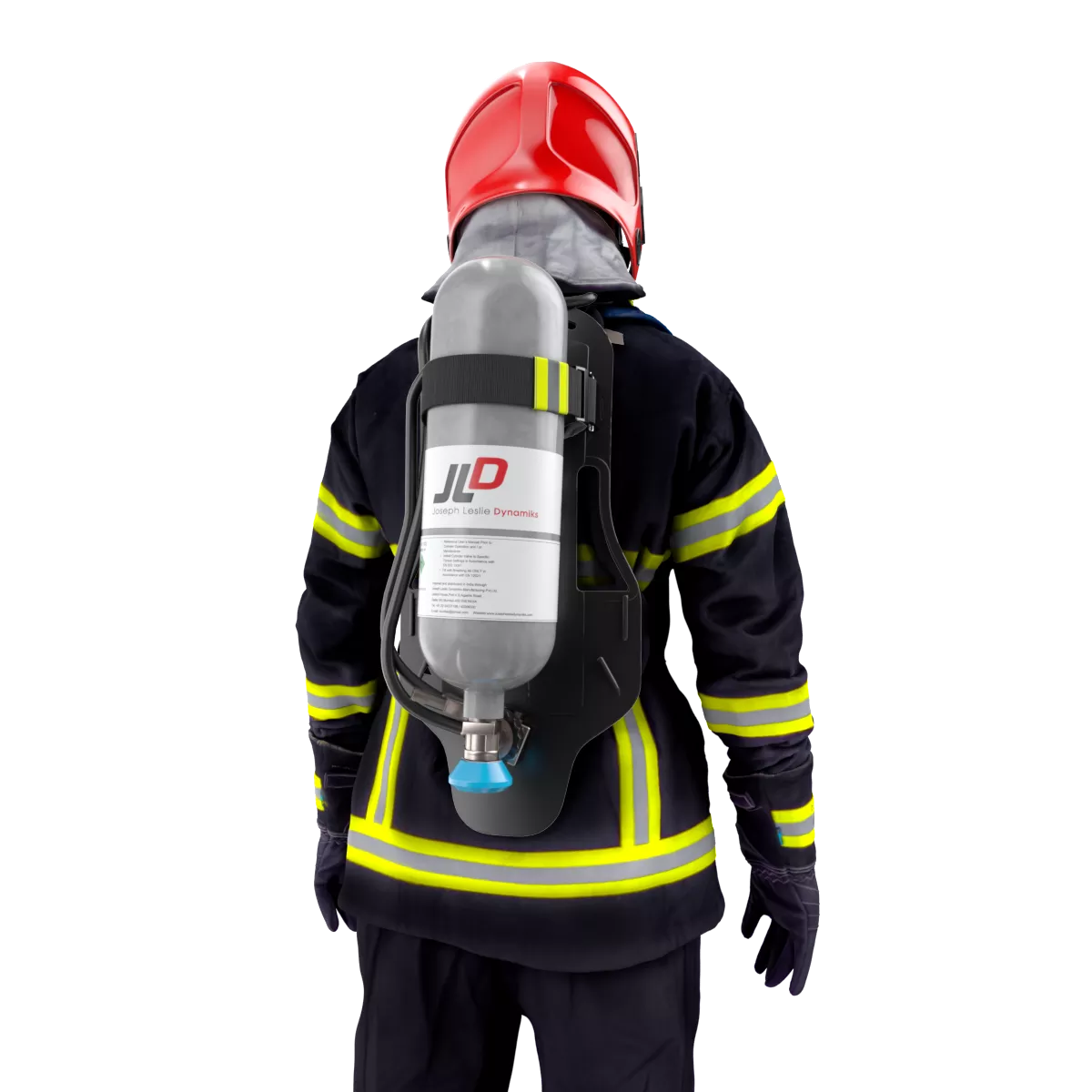

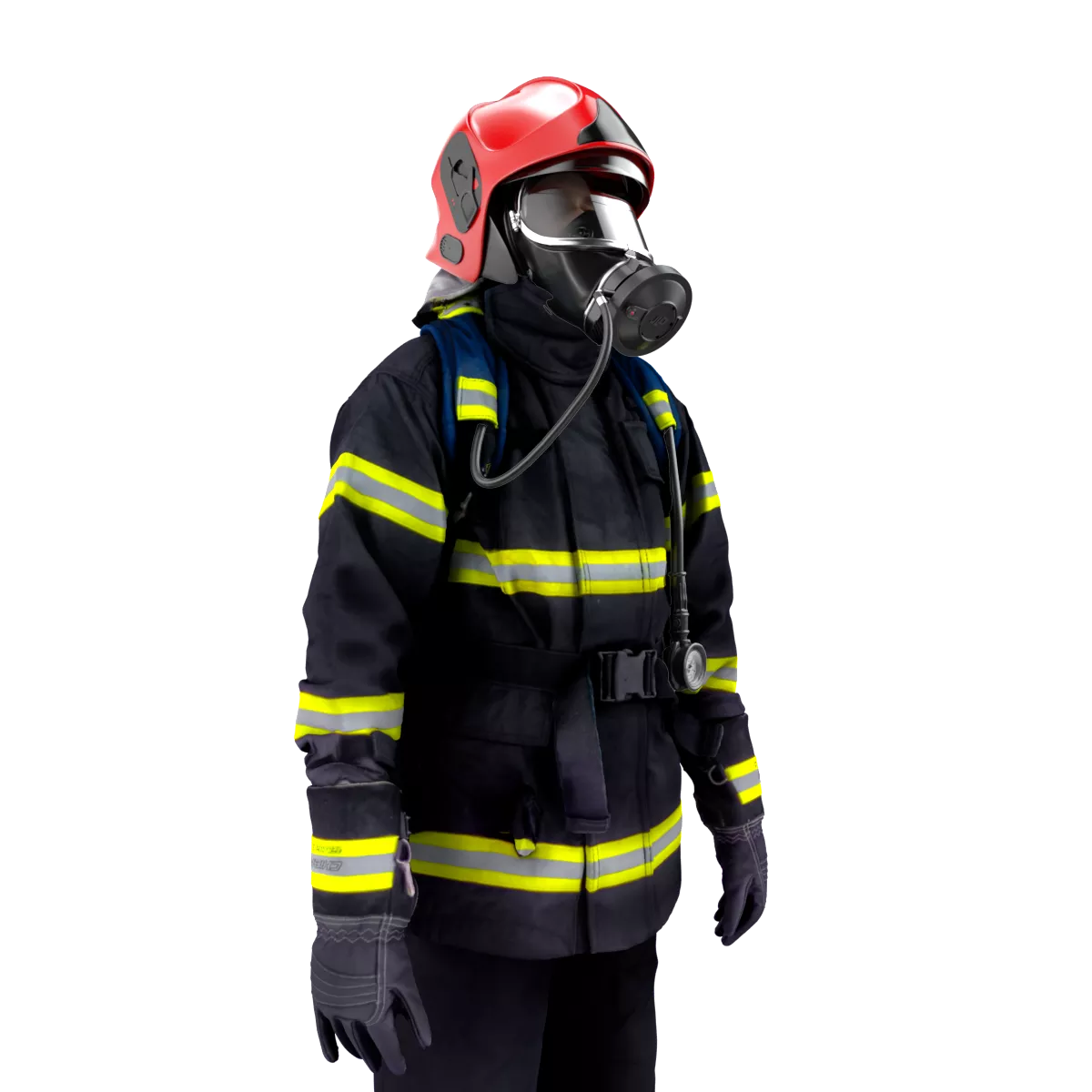

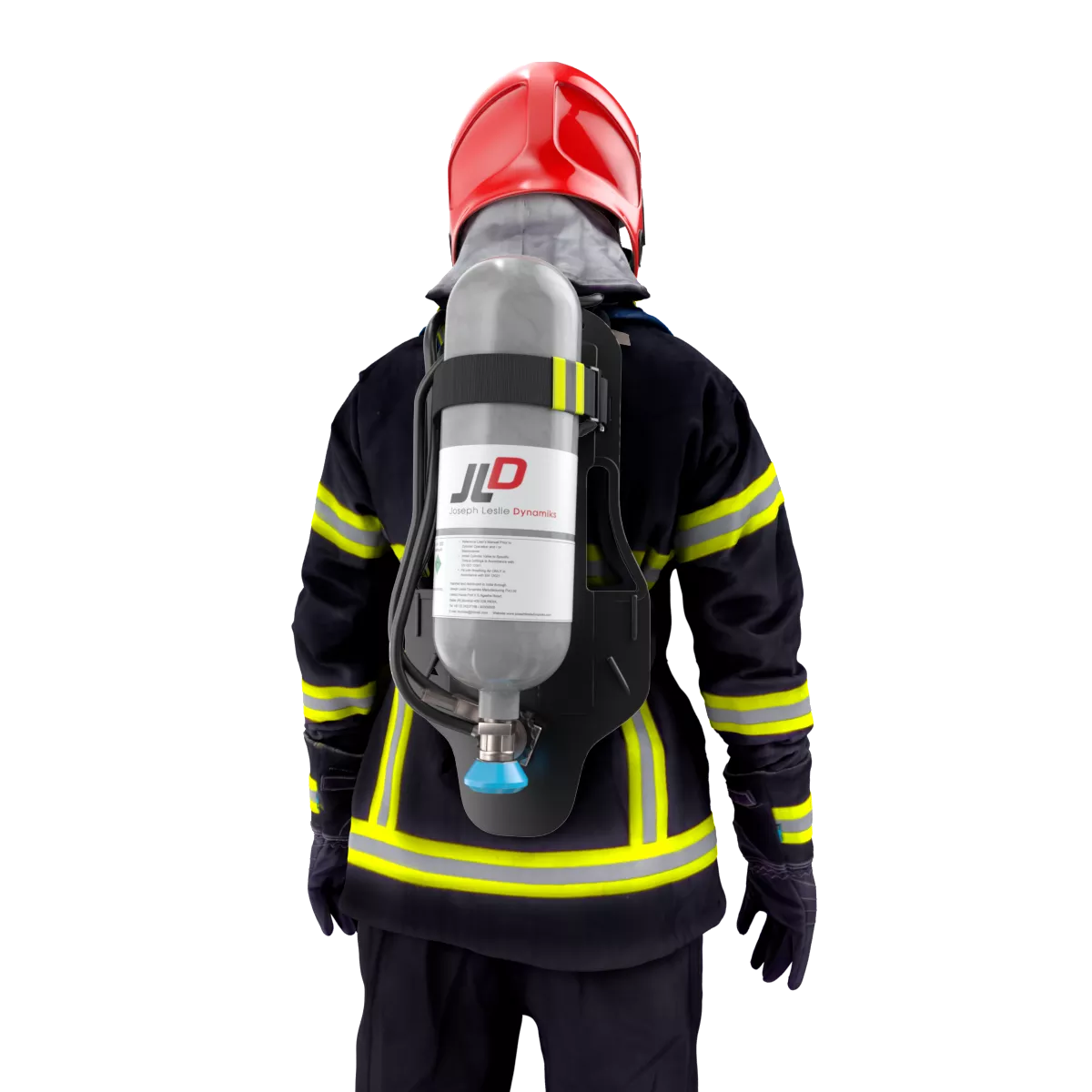

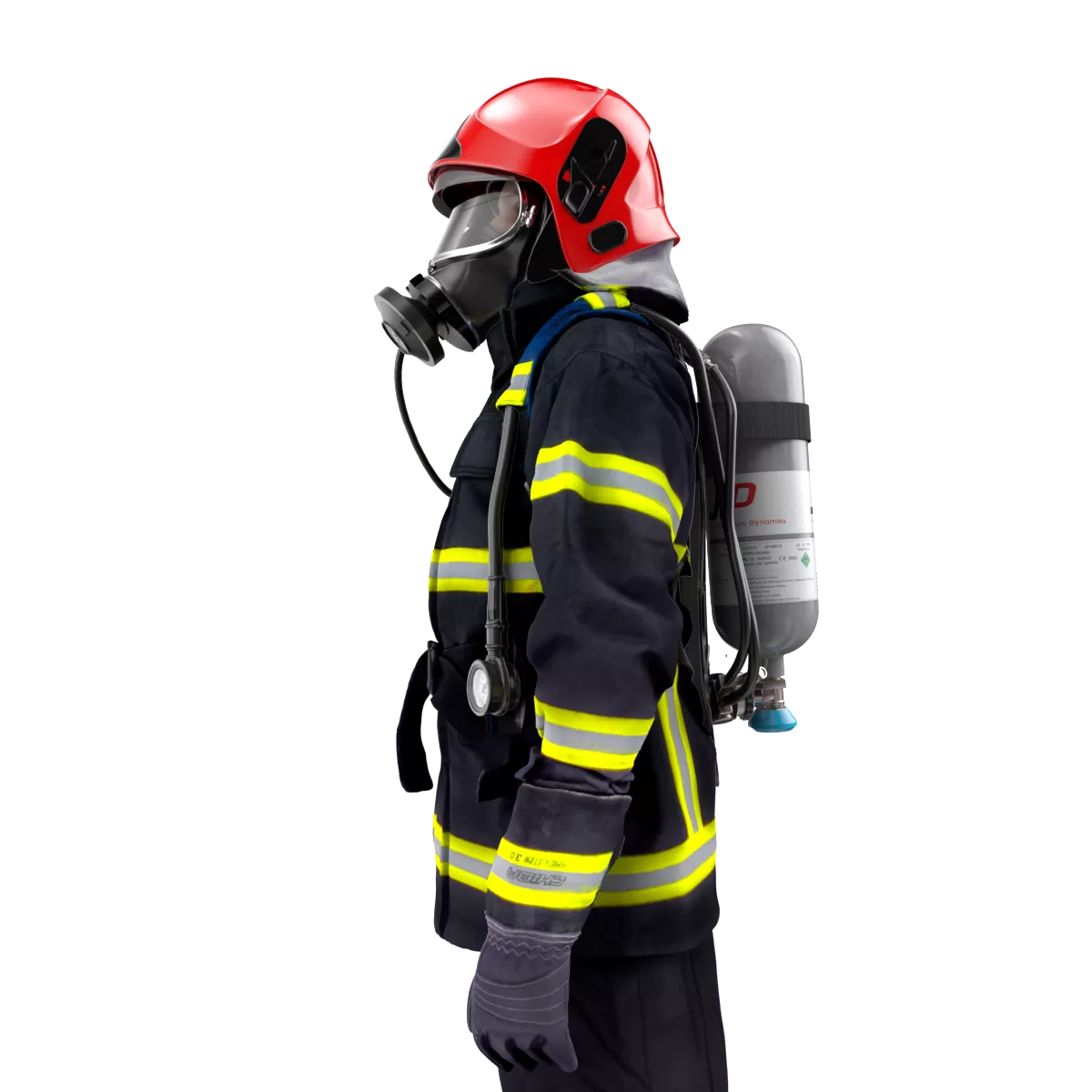

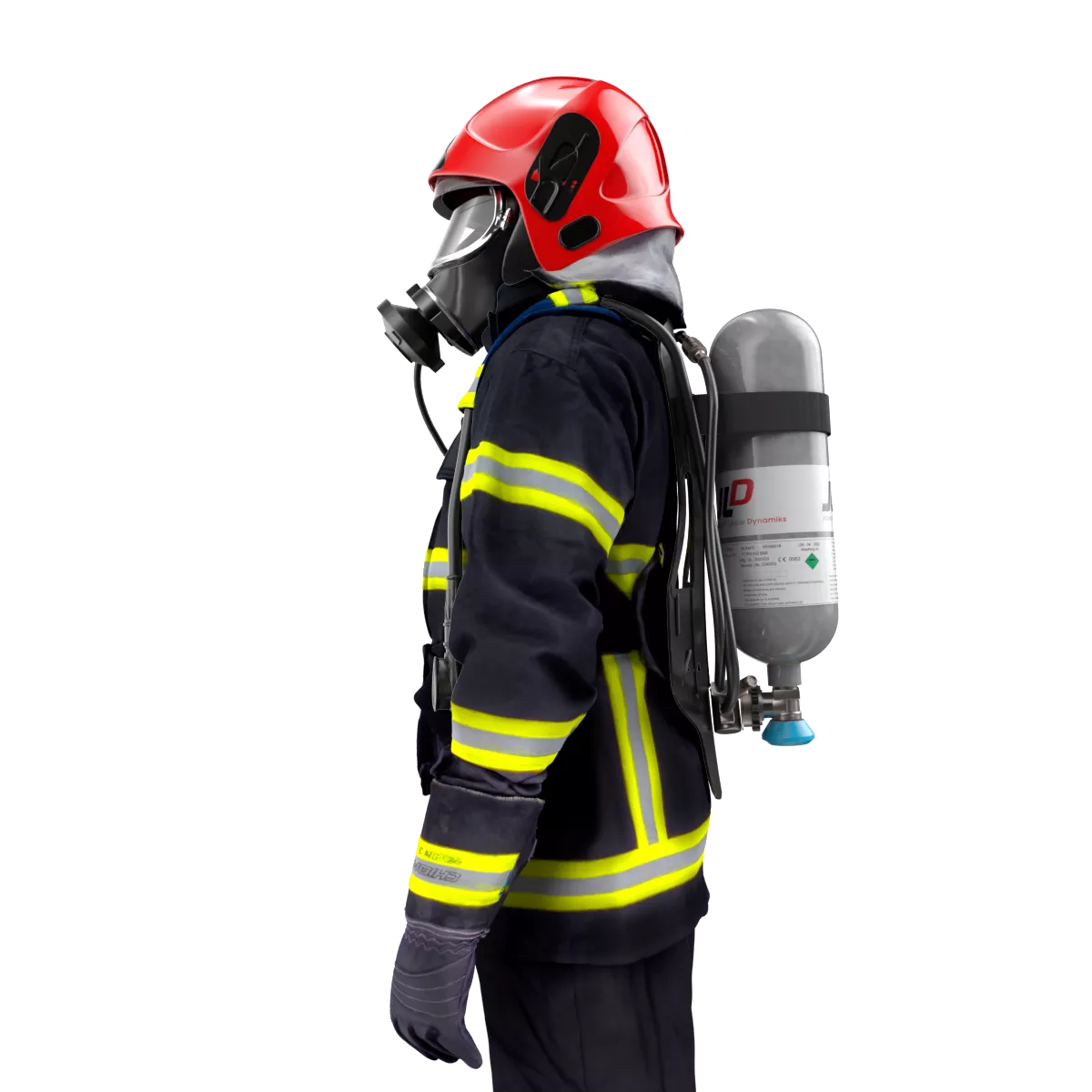

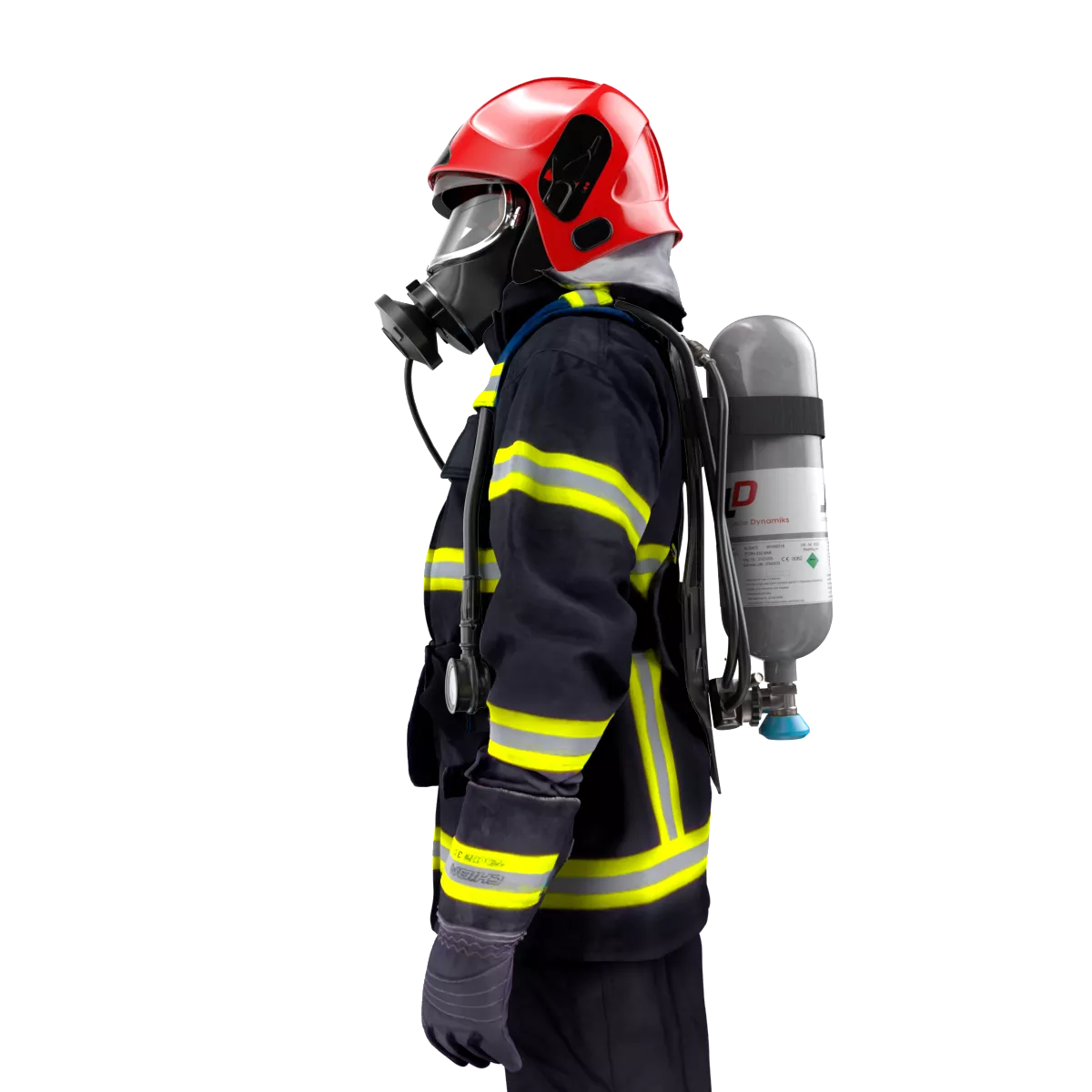

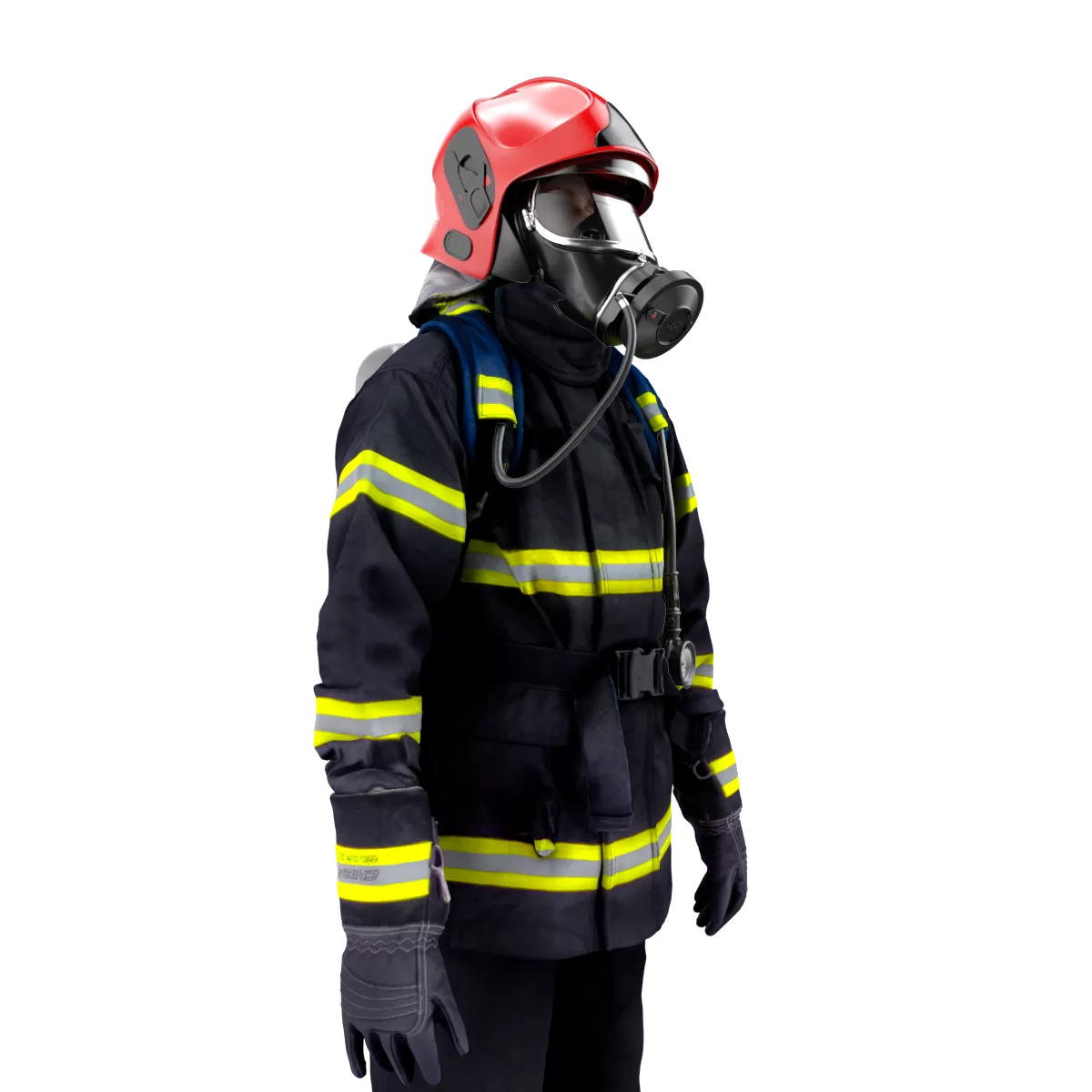

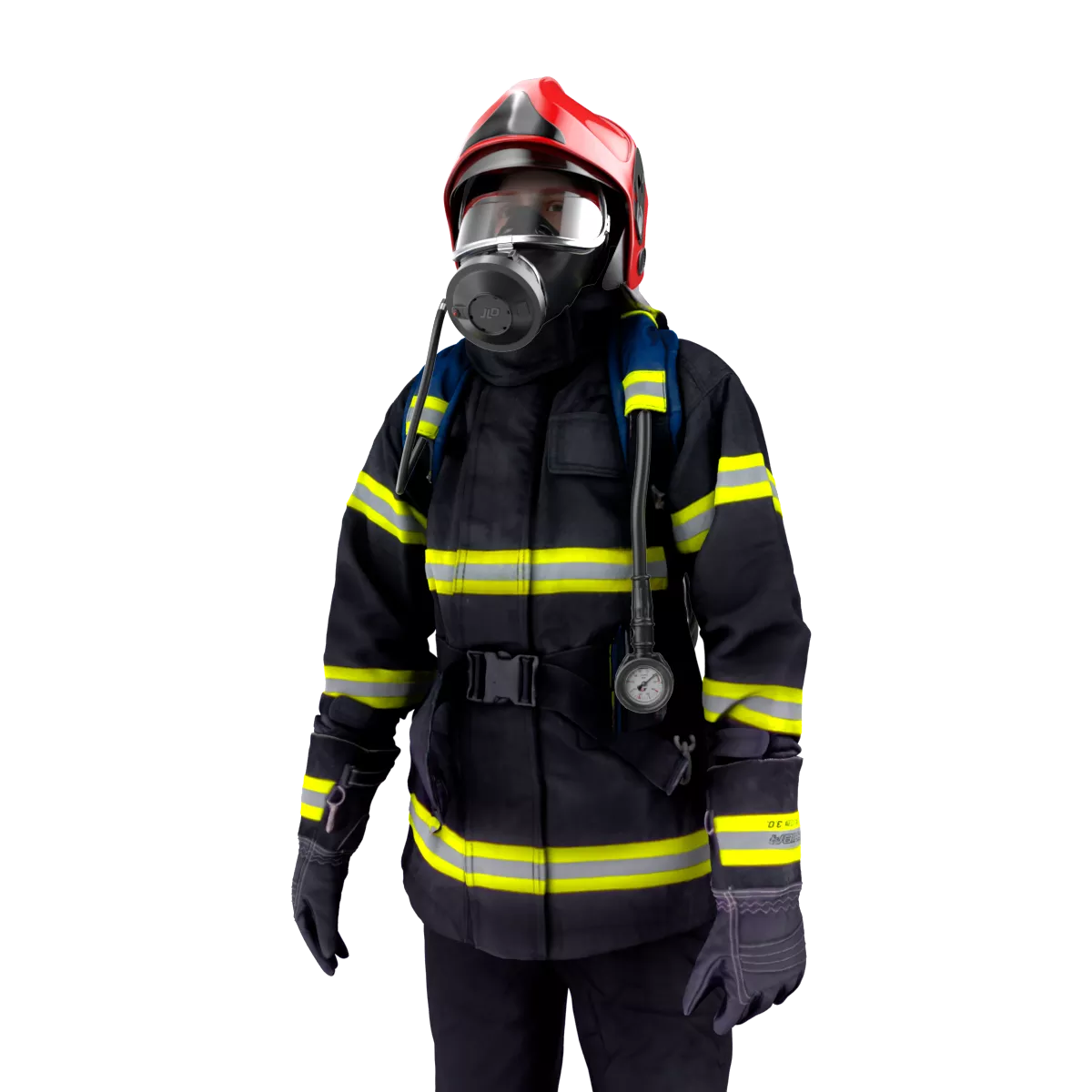

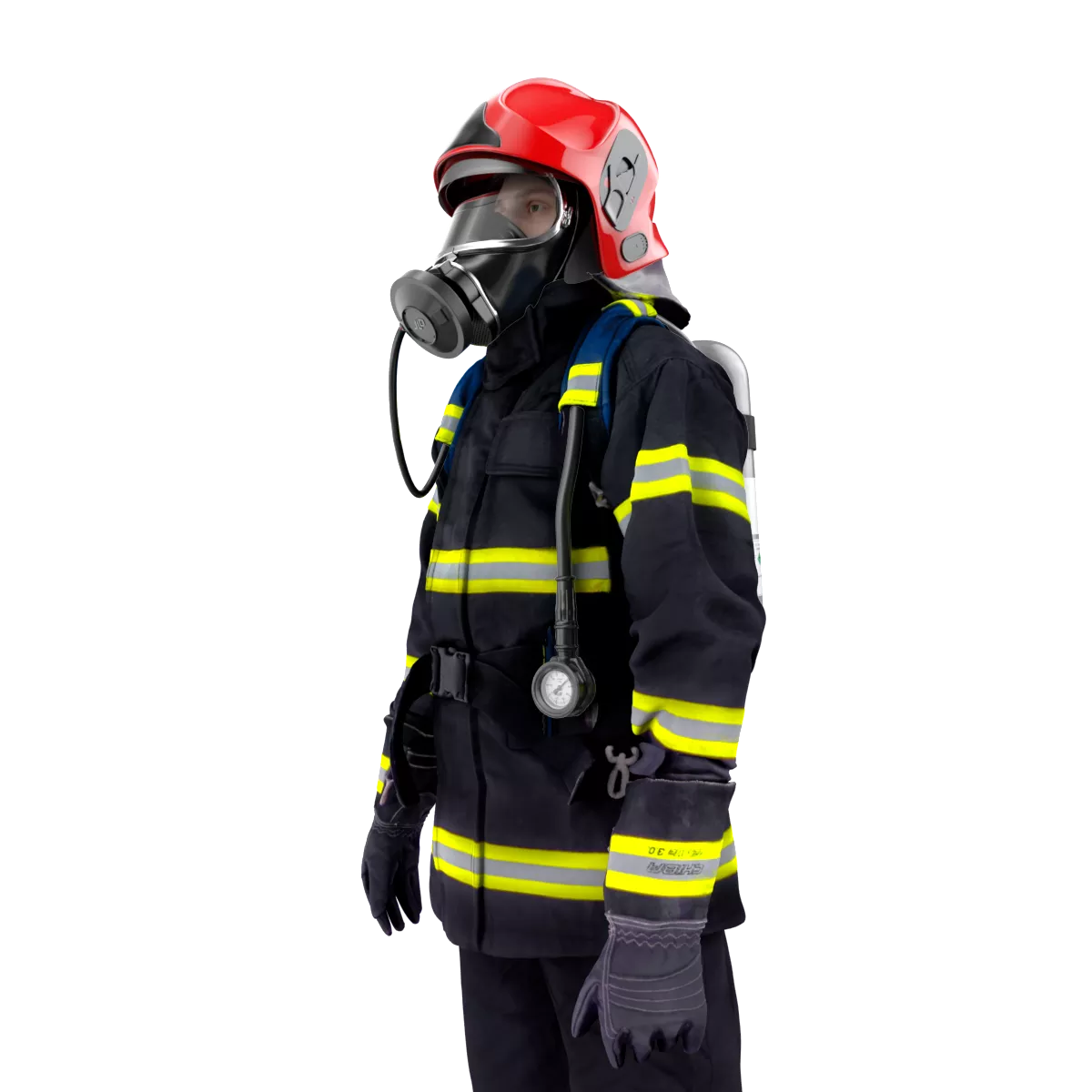

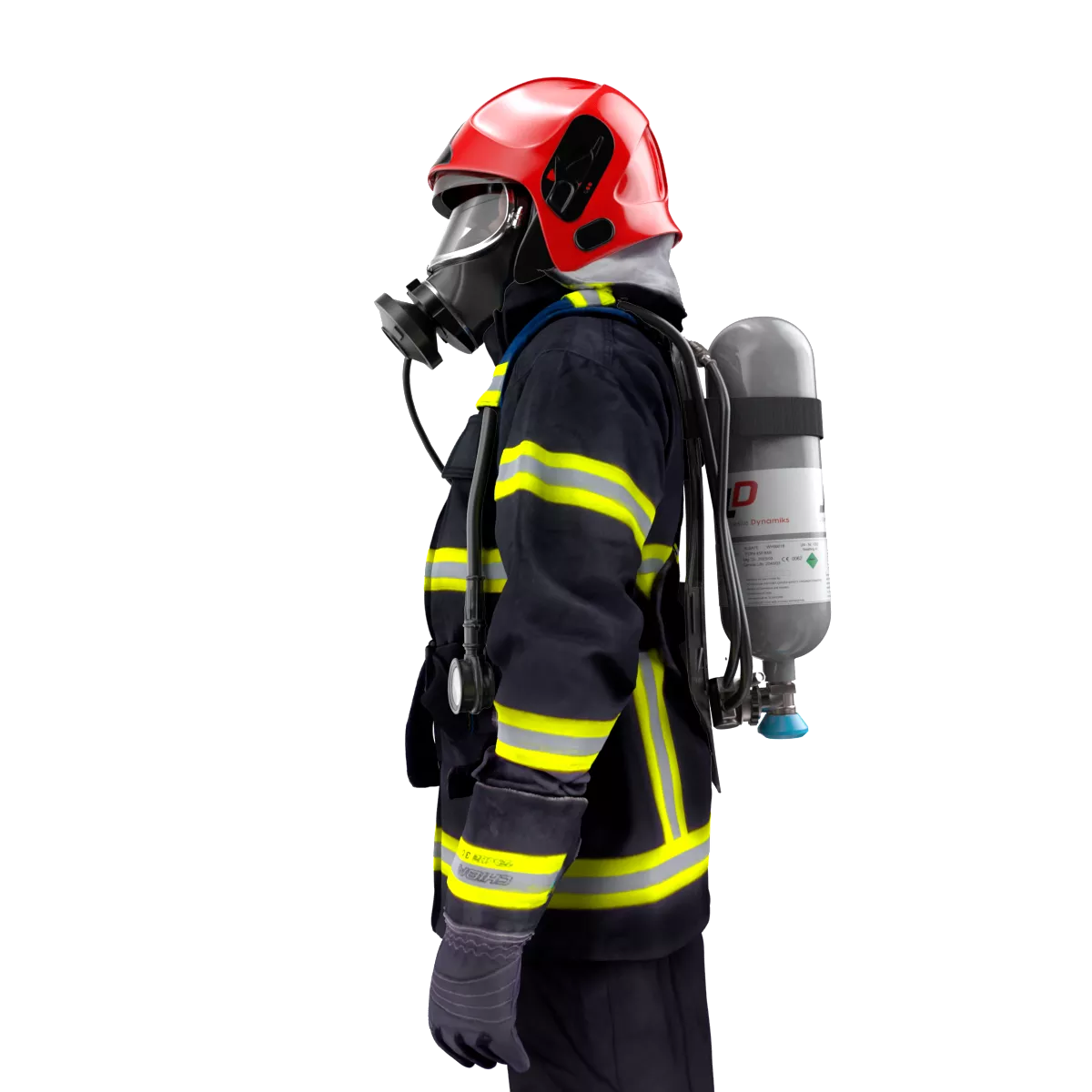

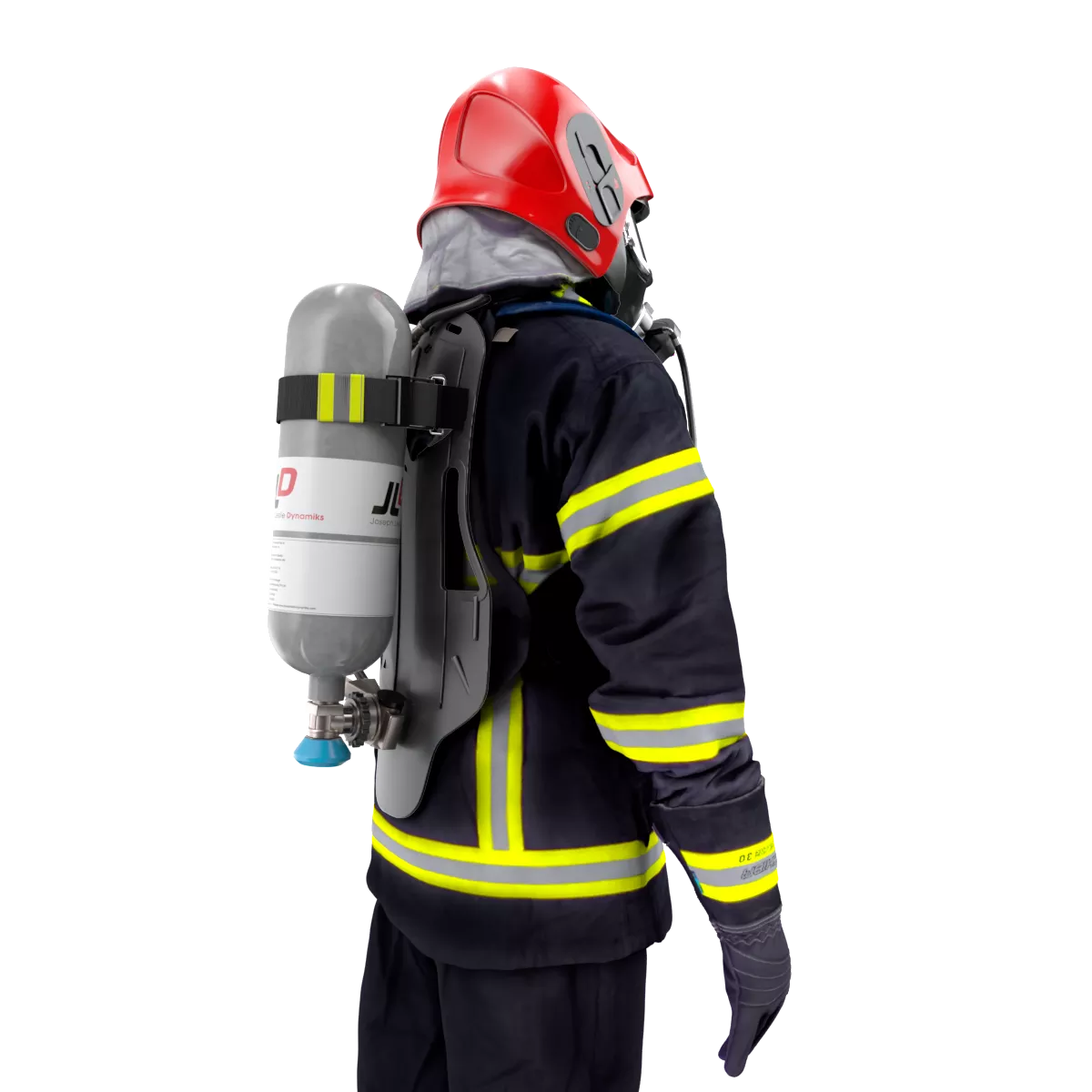

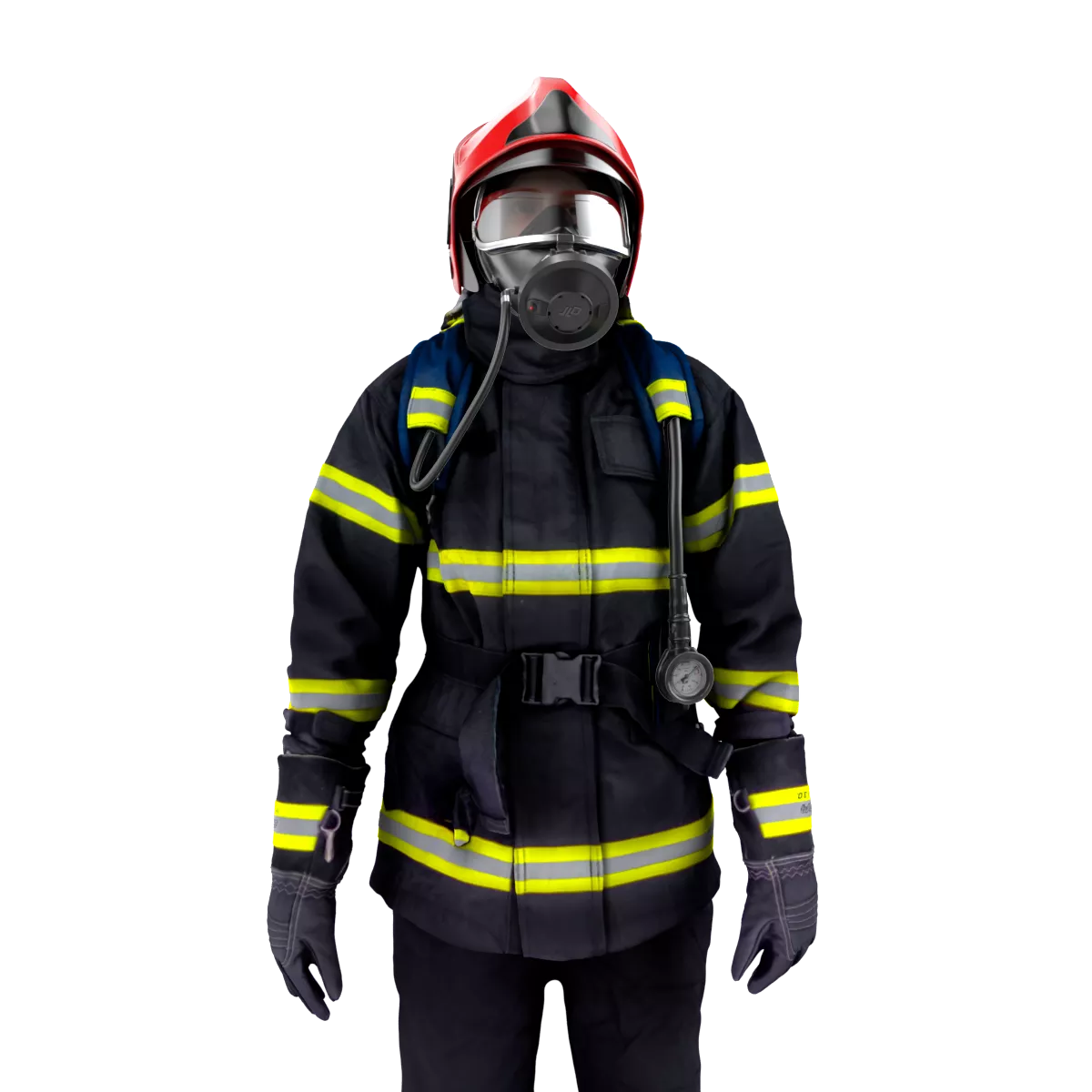

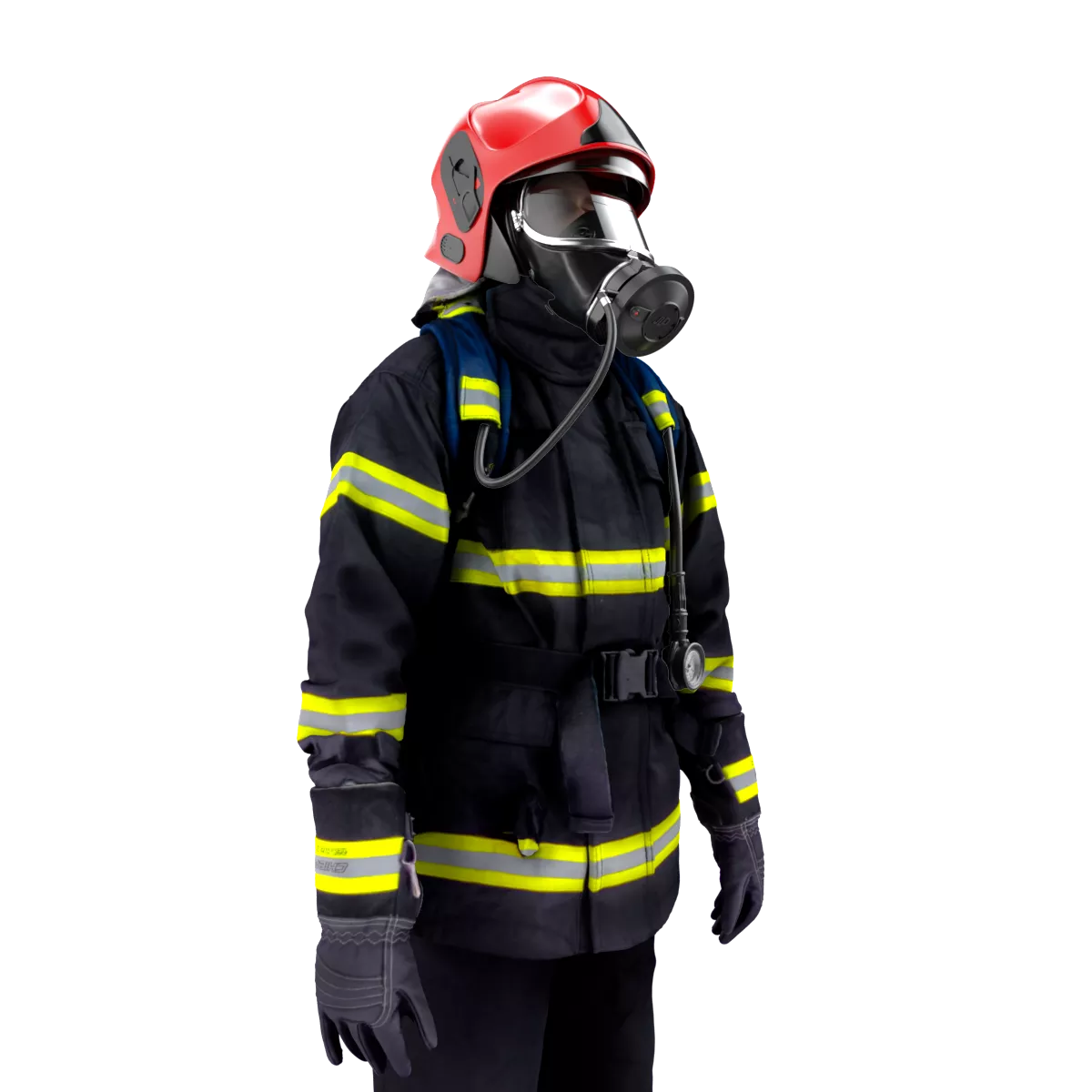

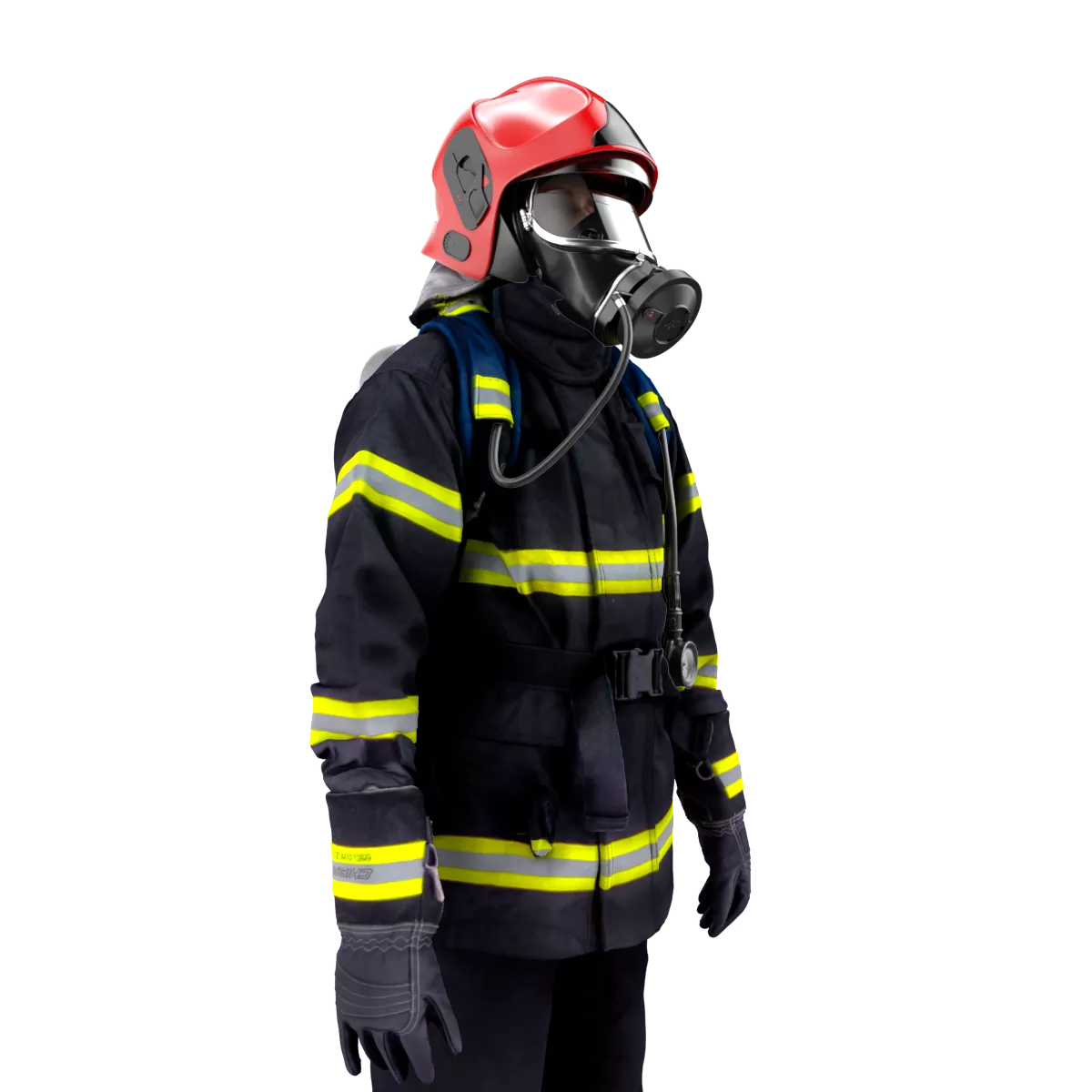

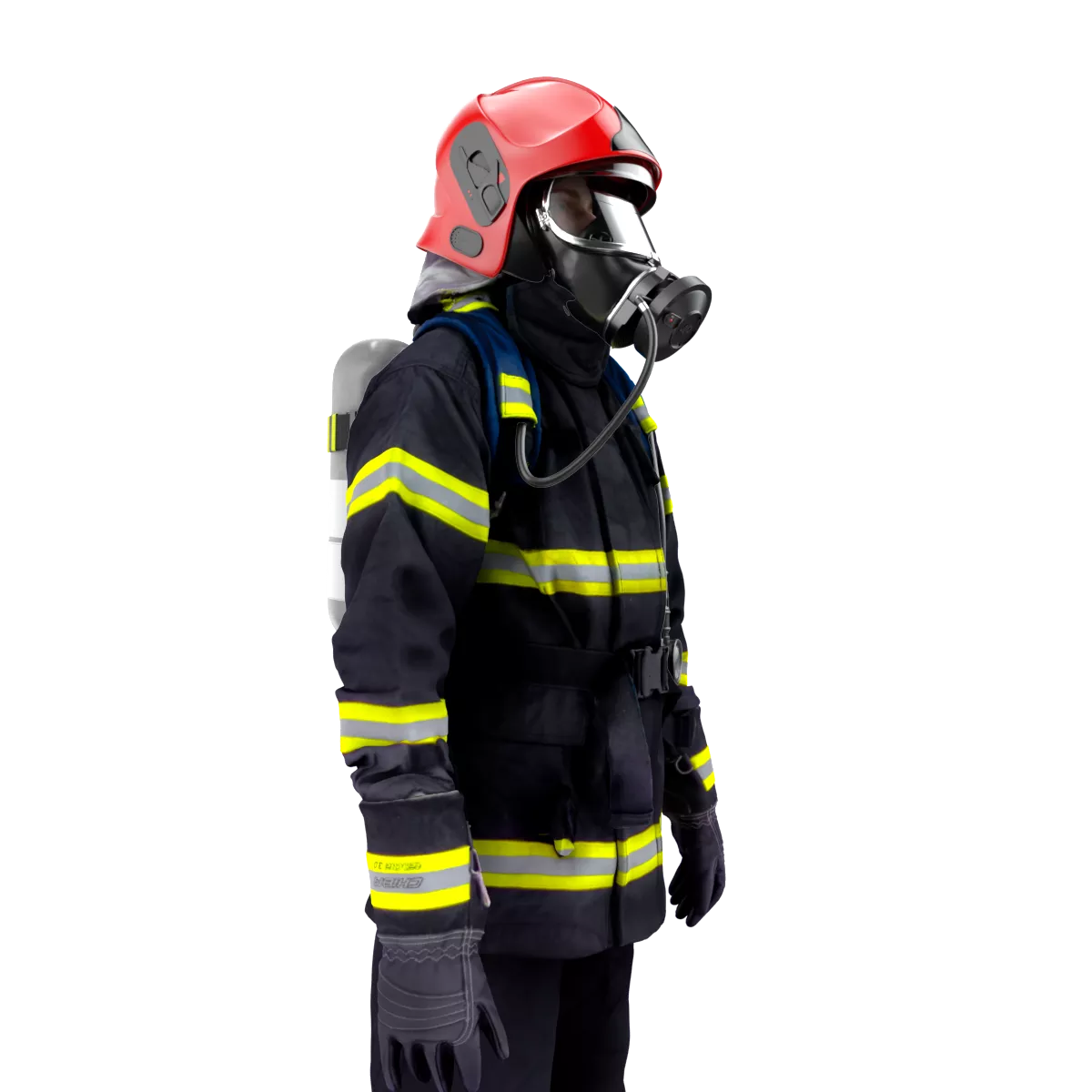

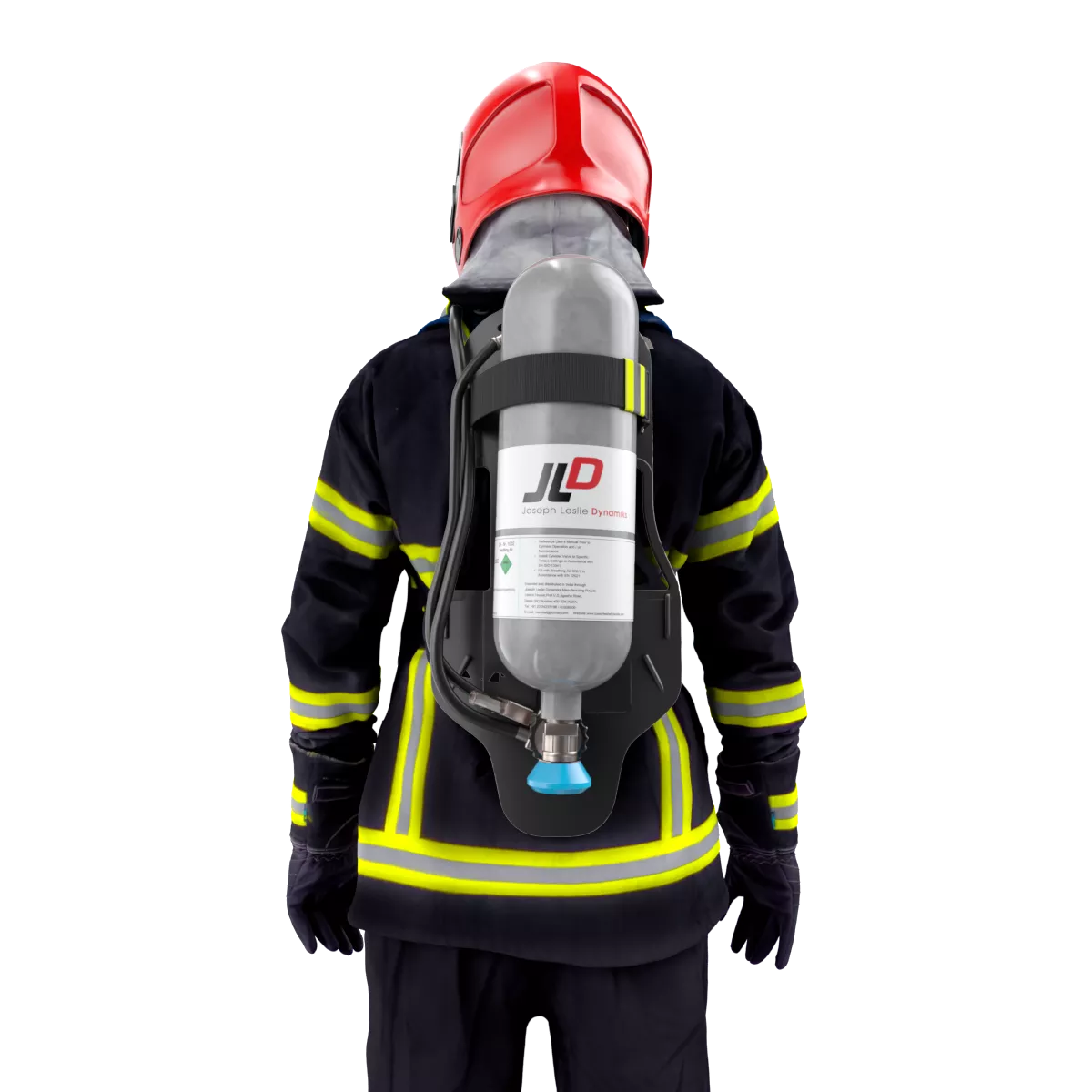

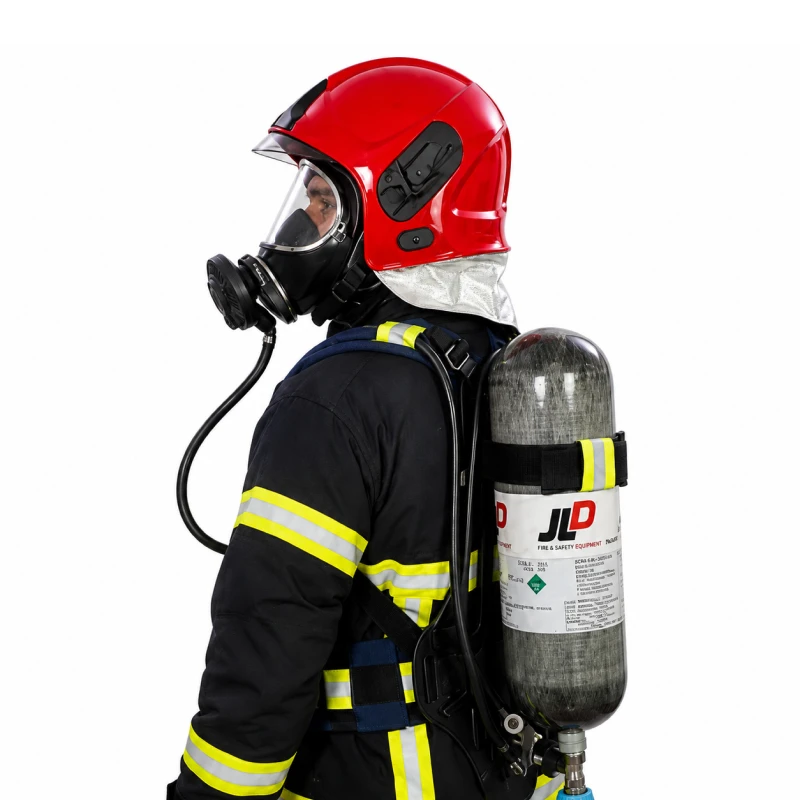

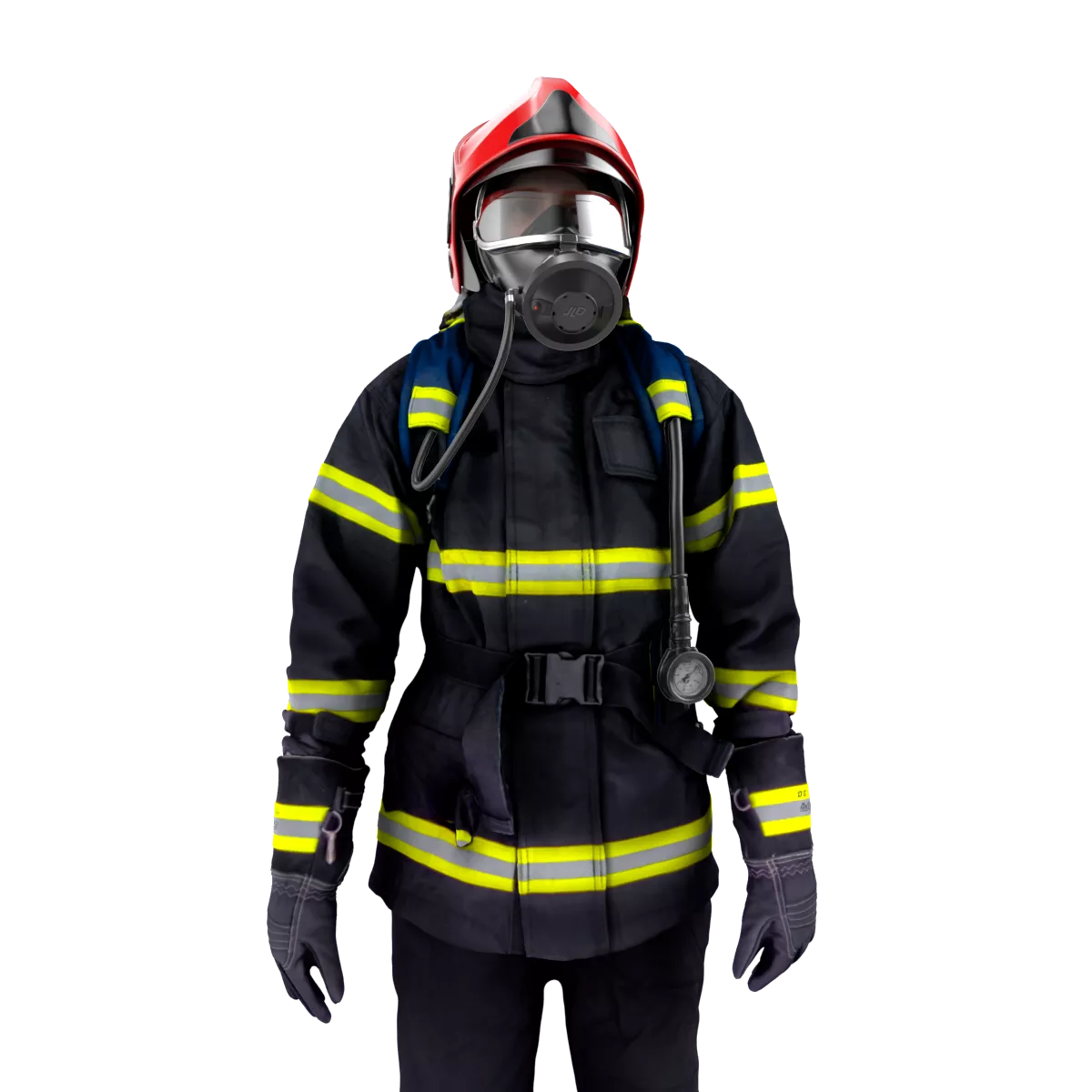

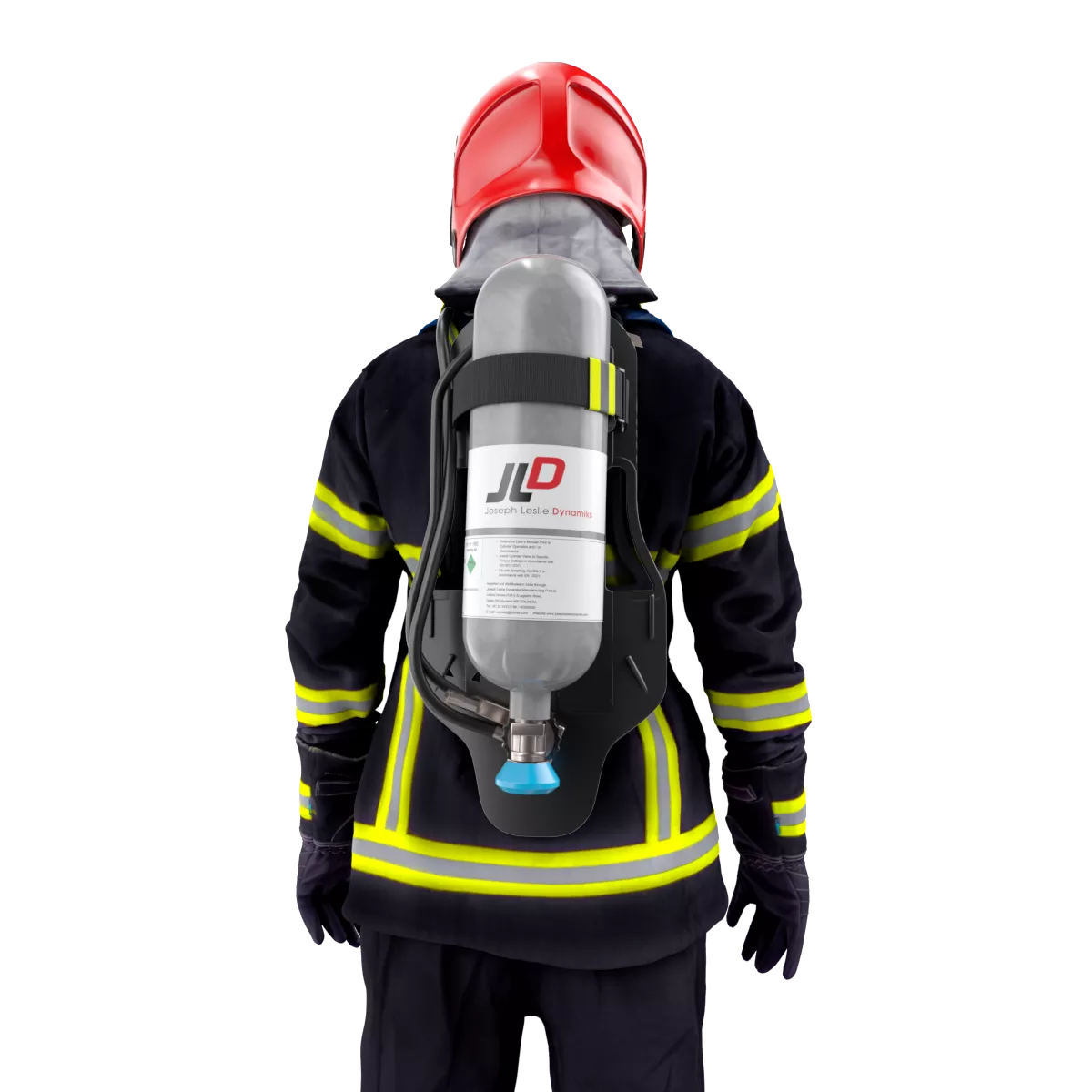

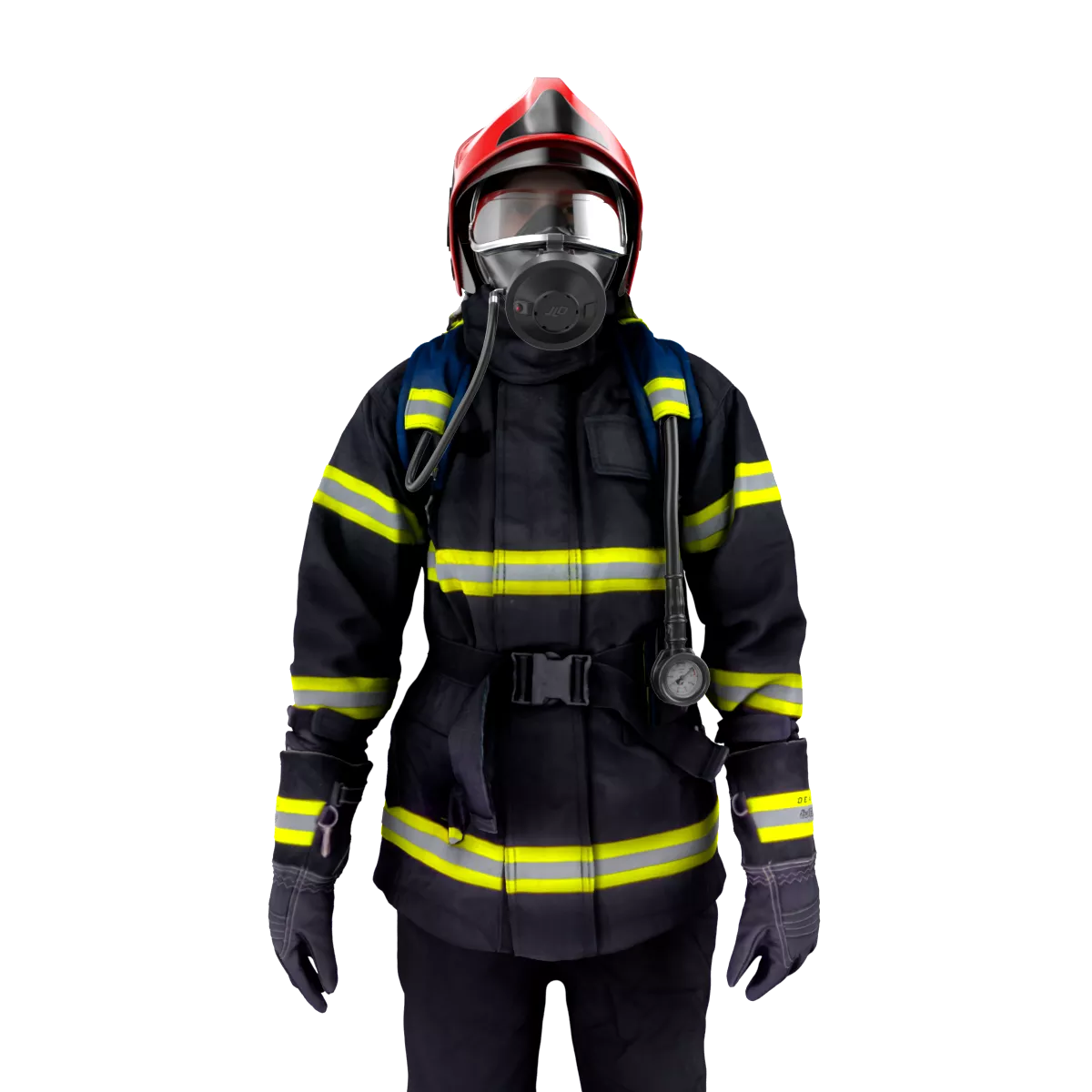

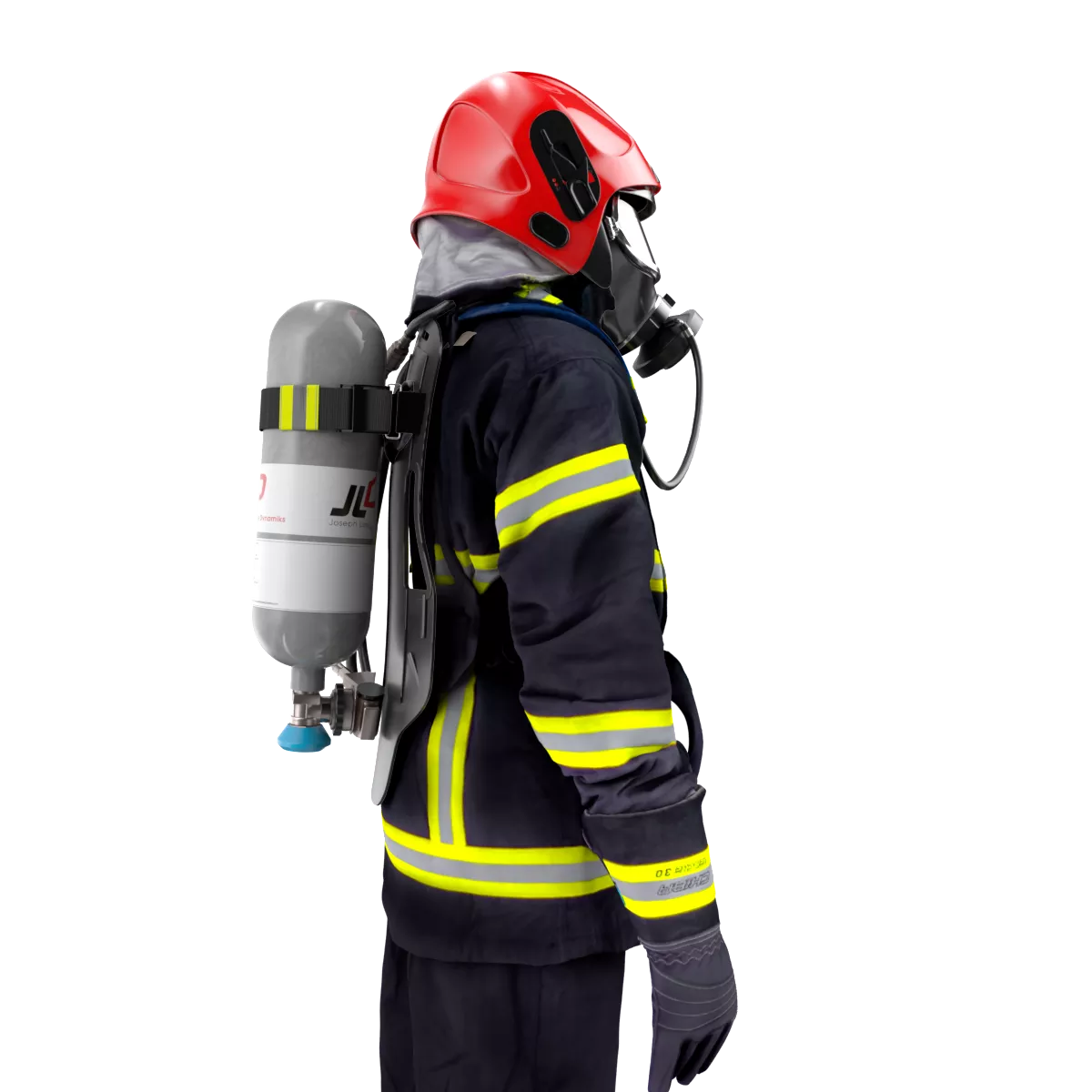

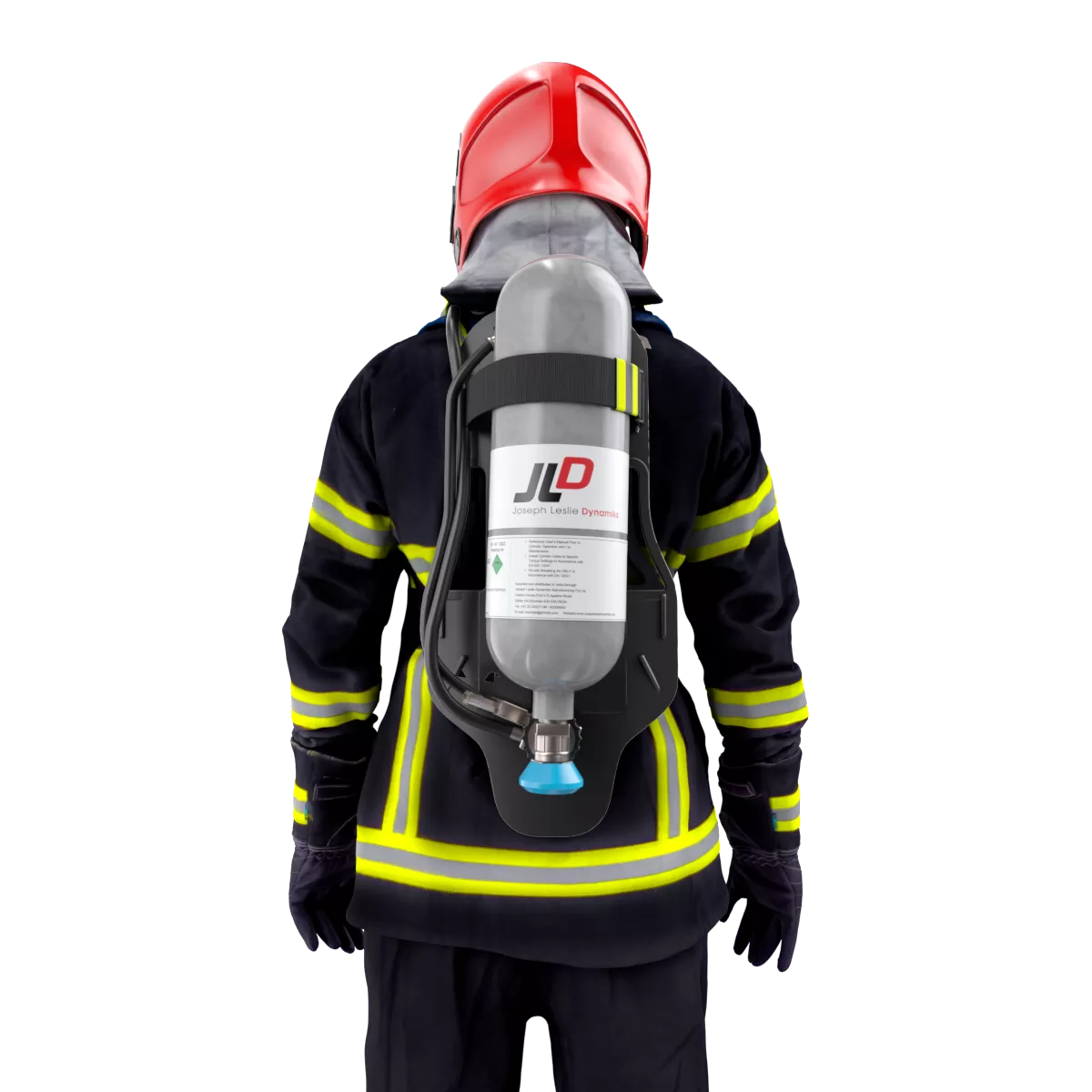

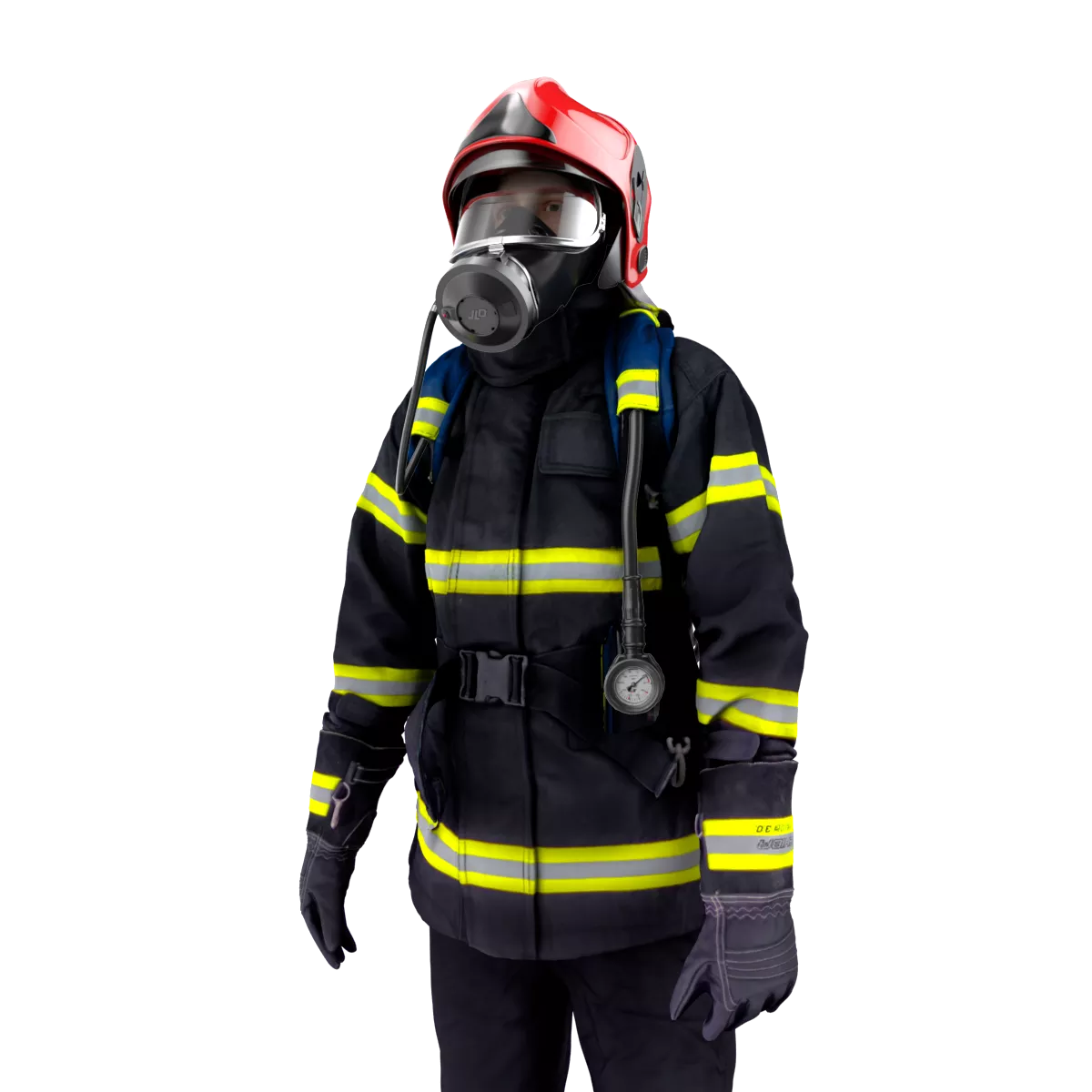

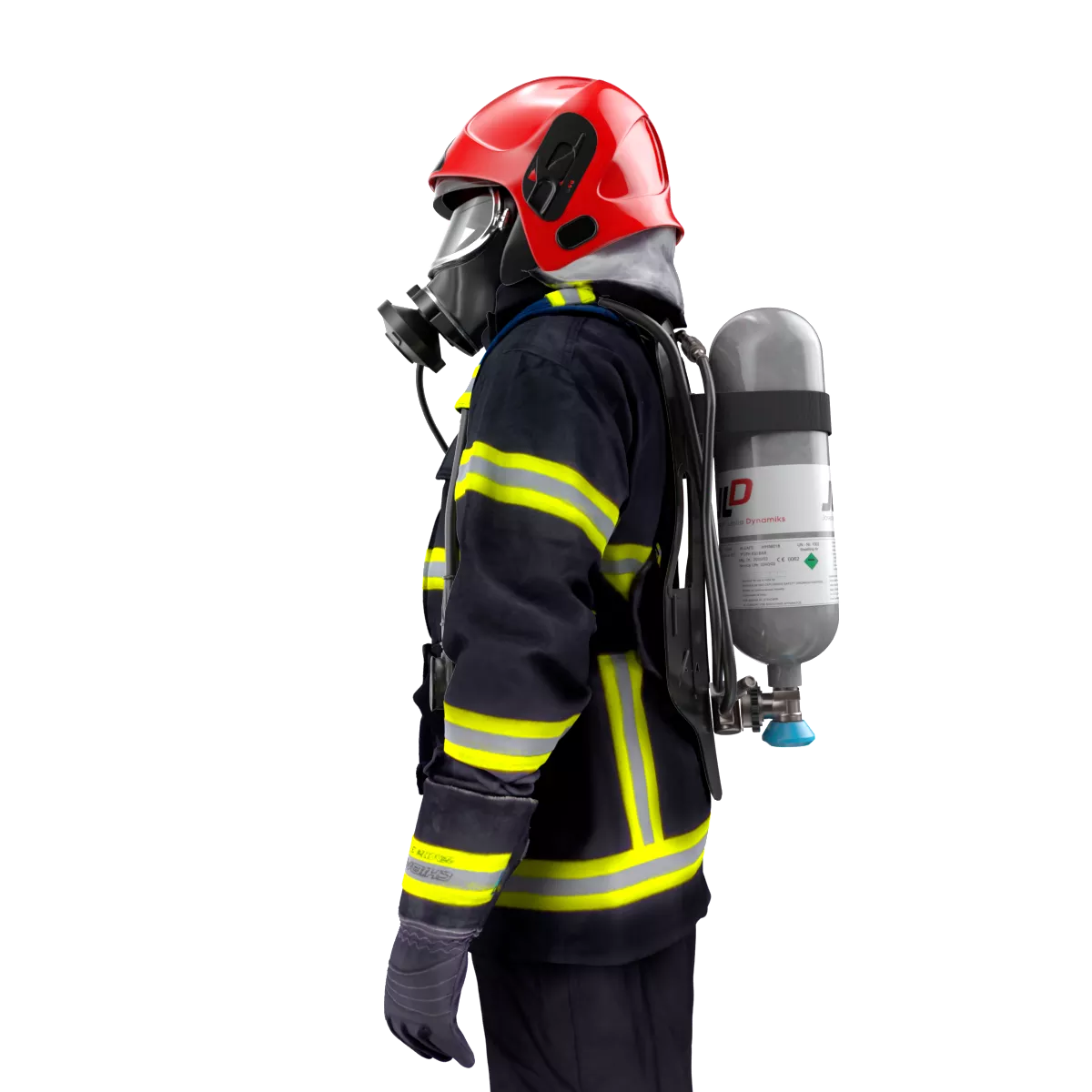

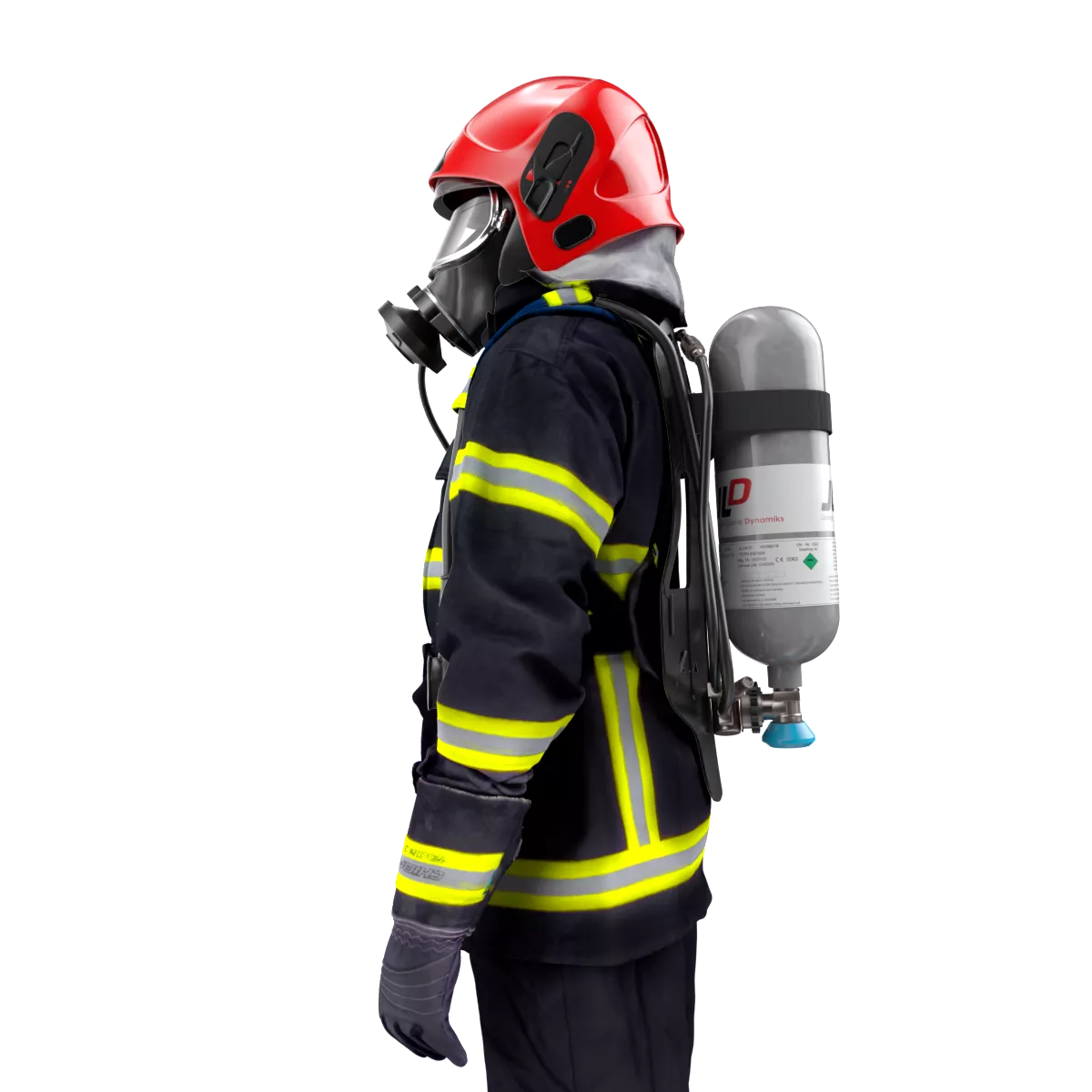

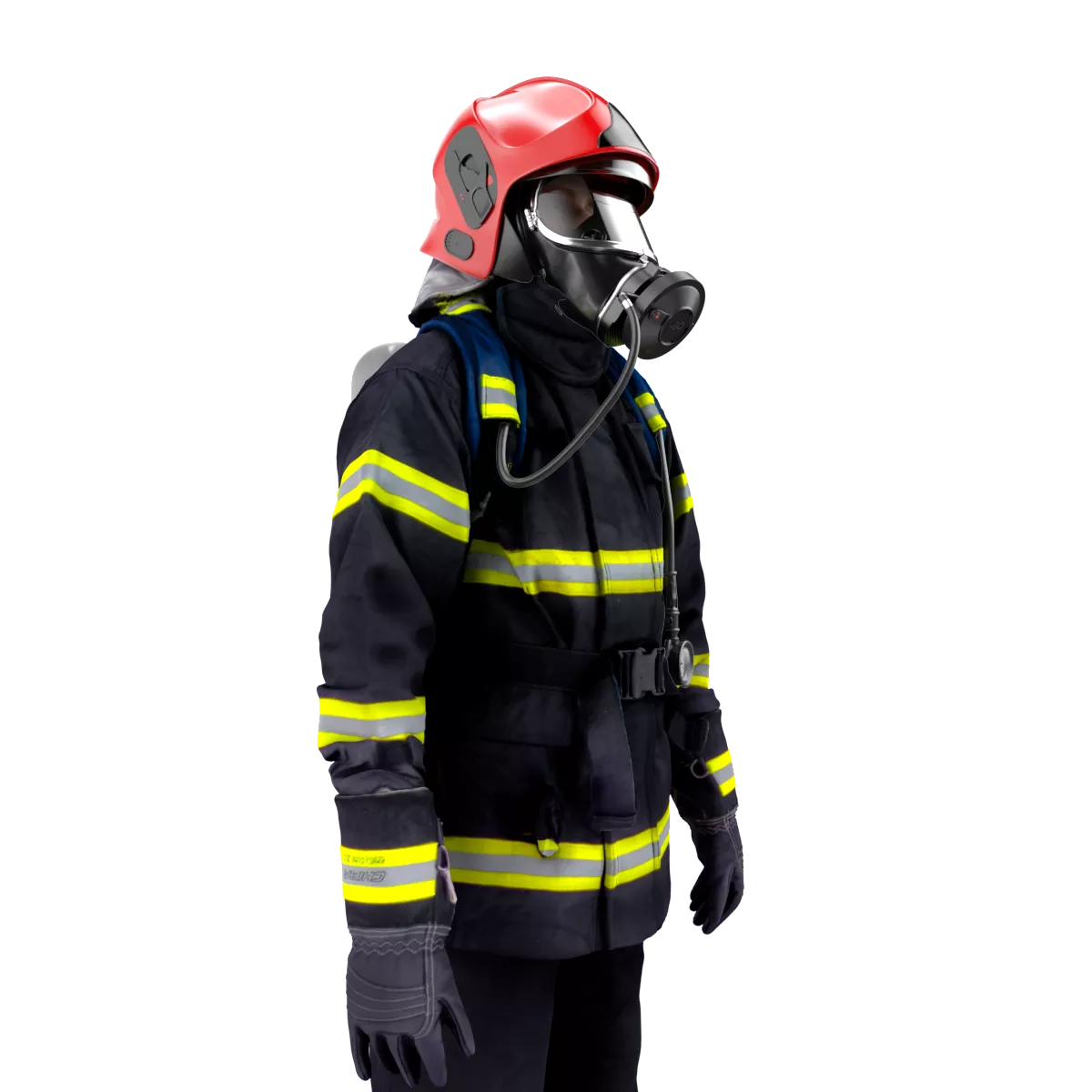

SCBA-CABA 9500 EN 137 : 2006,Type 2

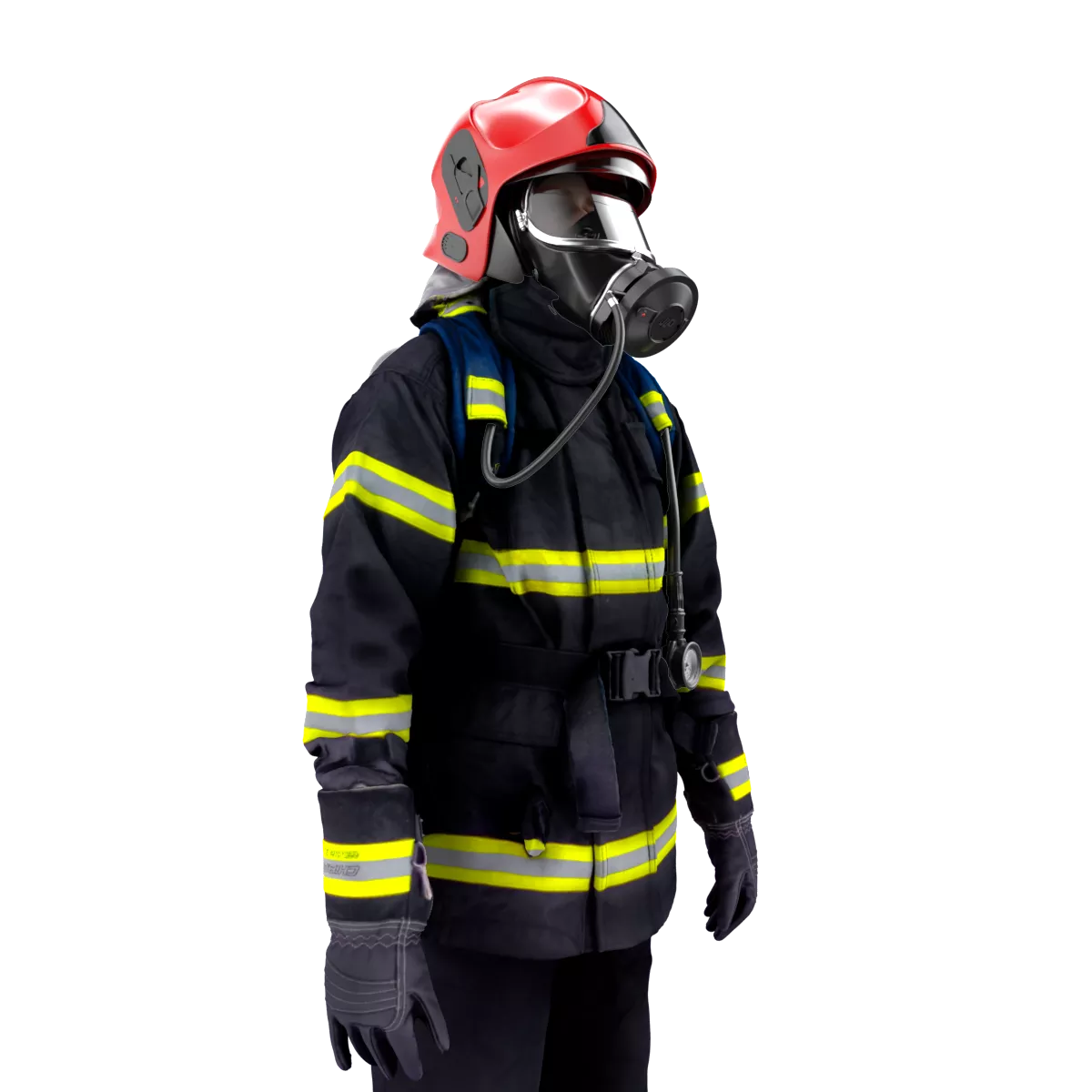

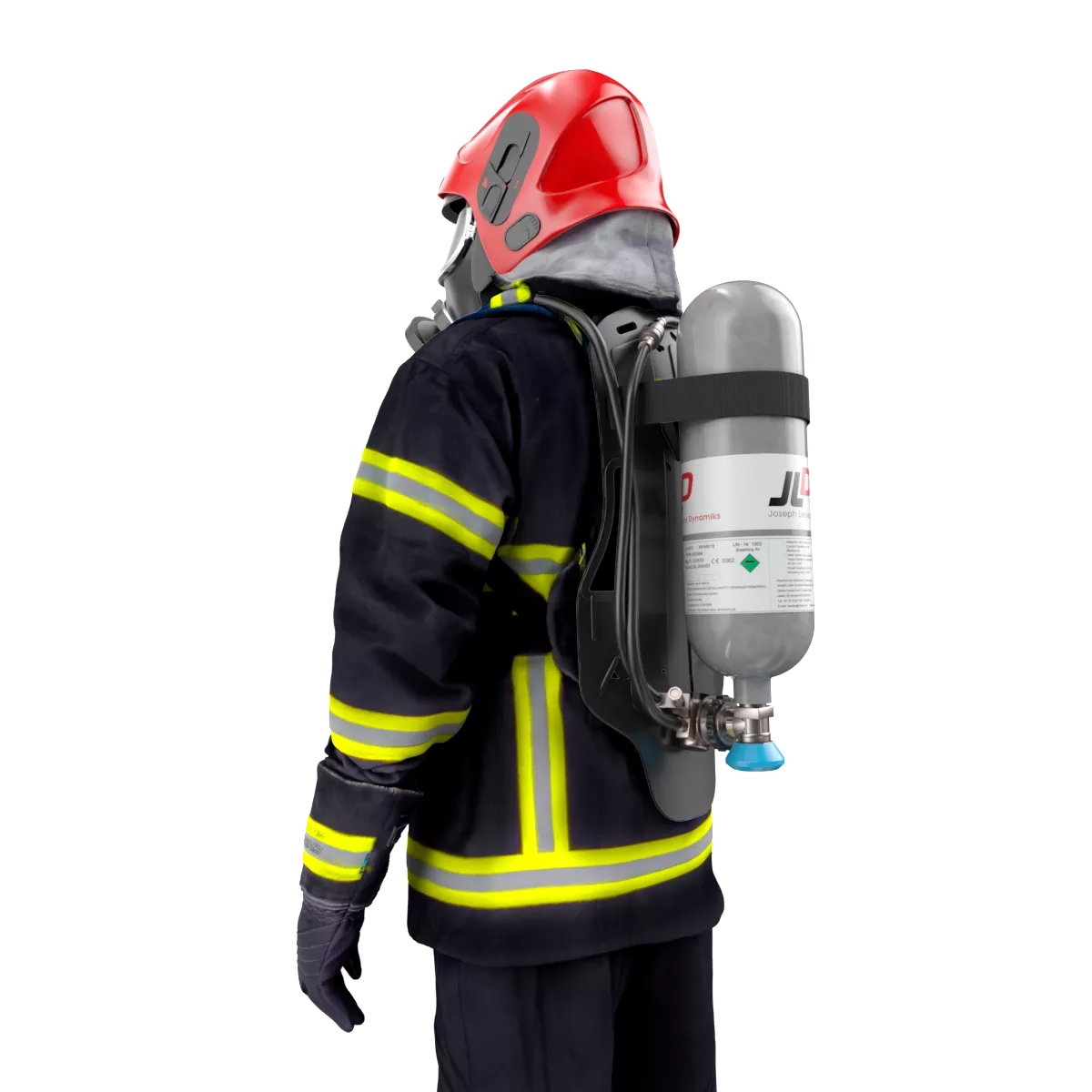

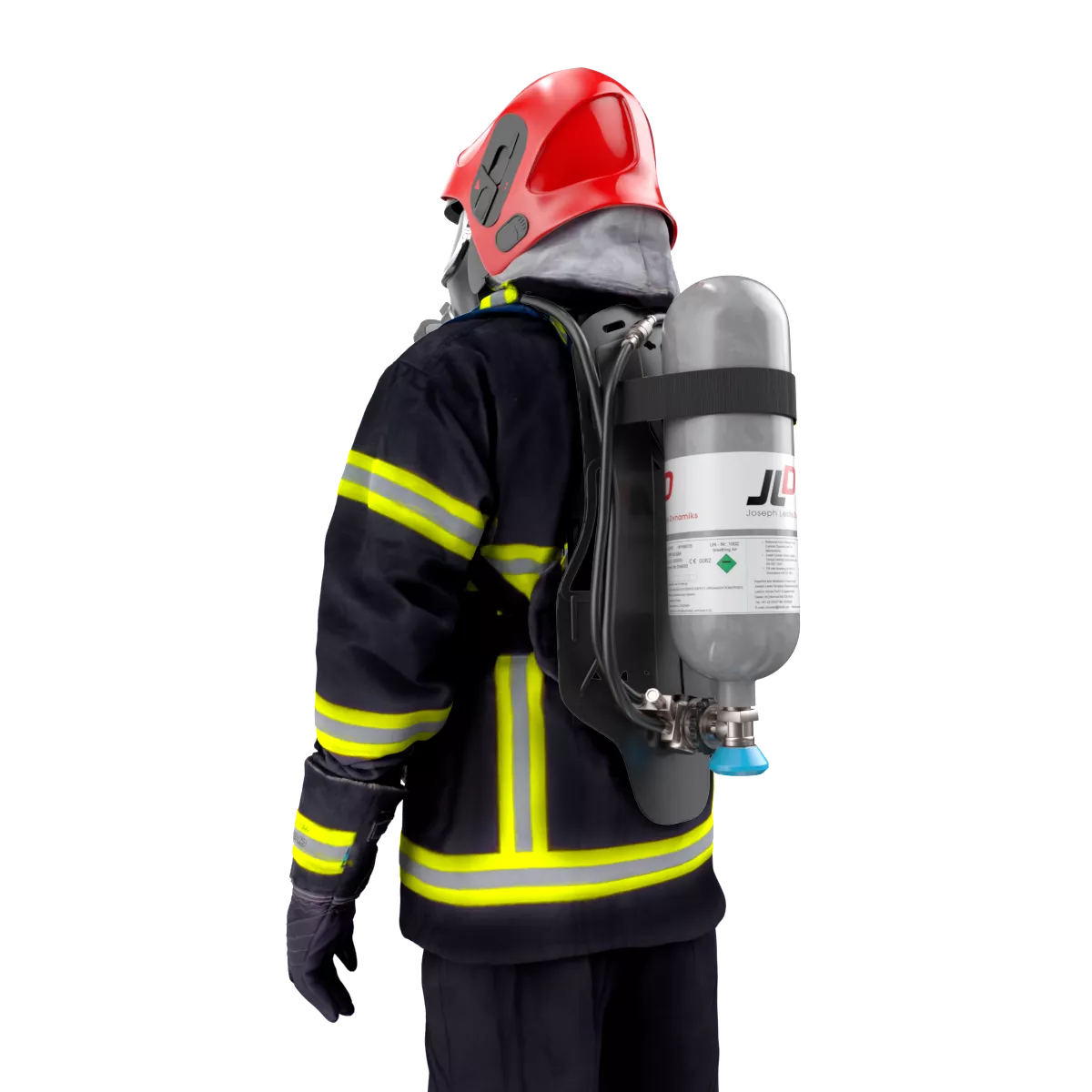

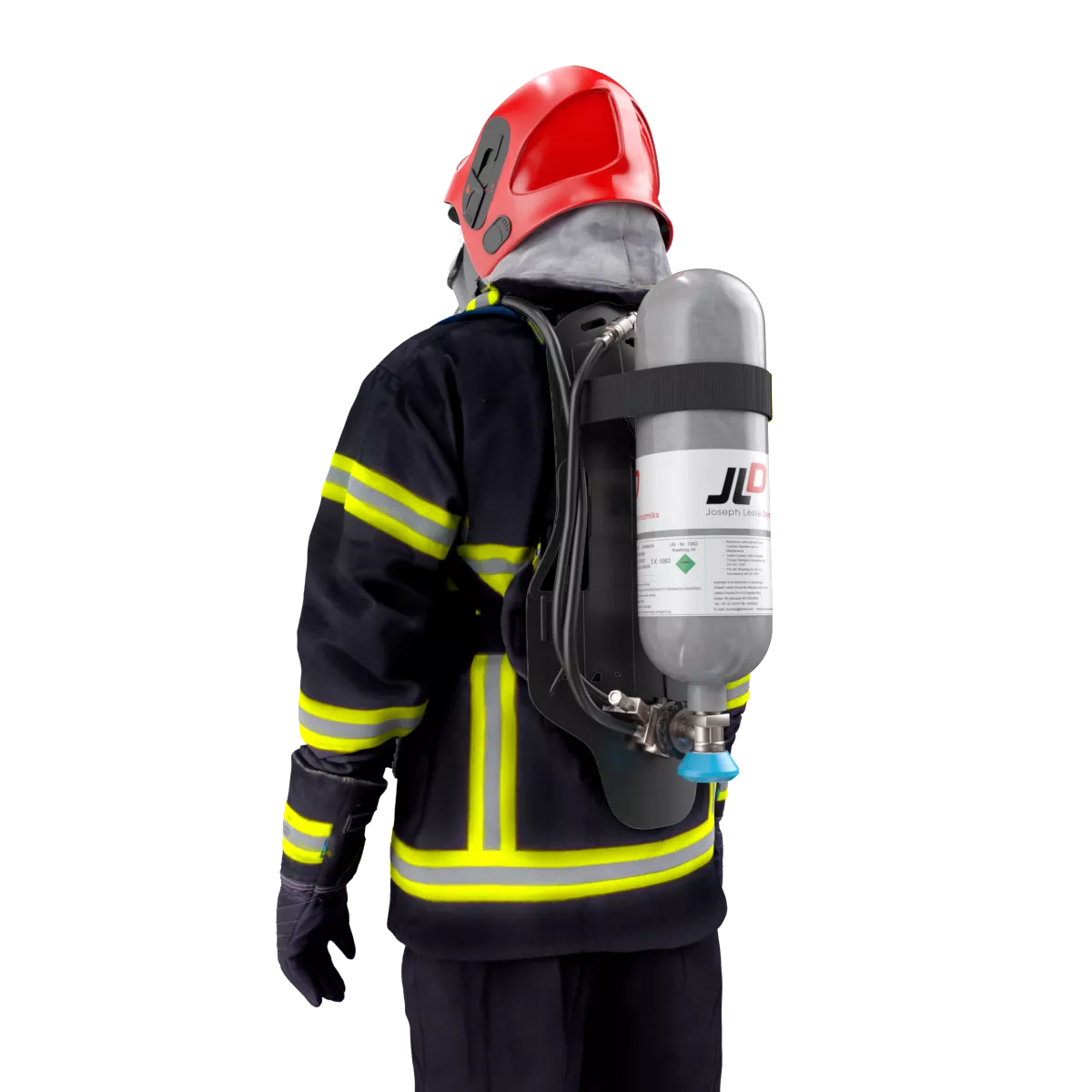

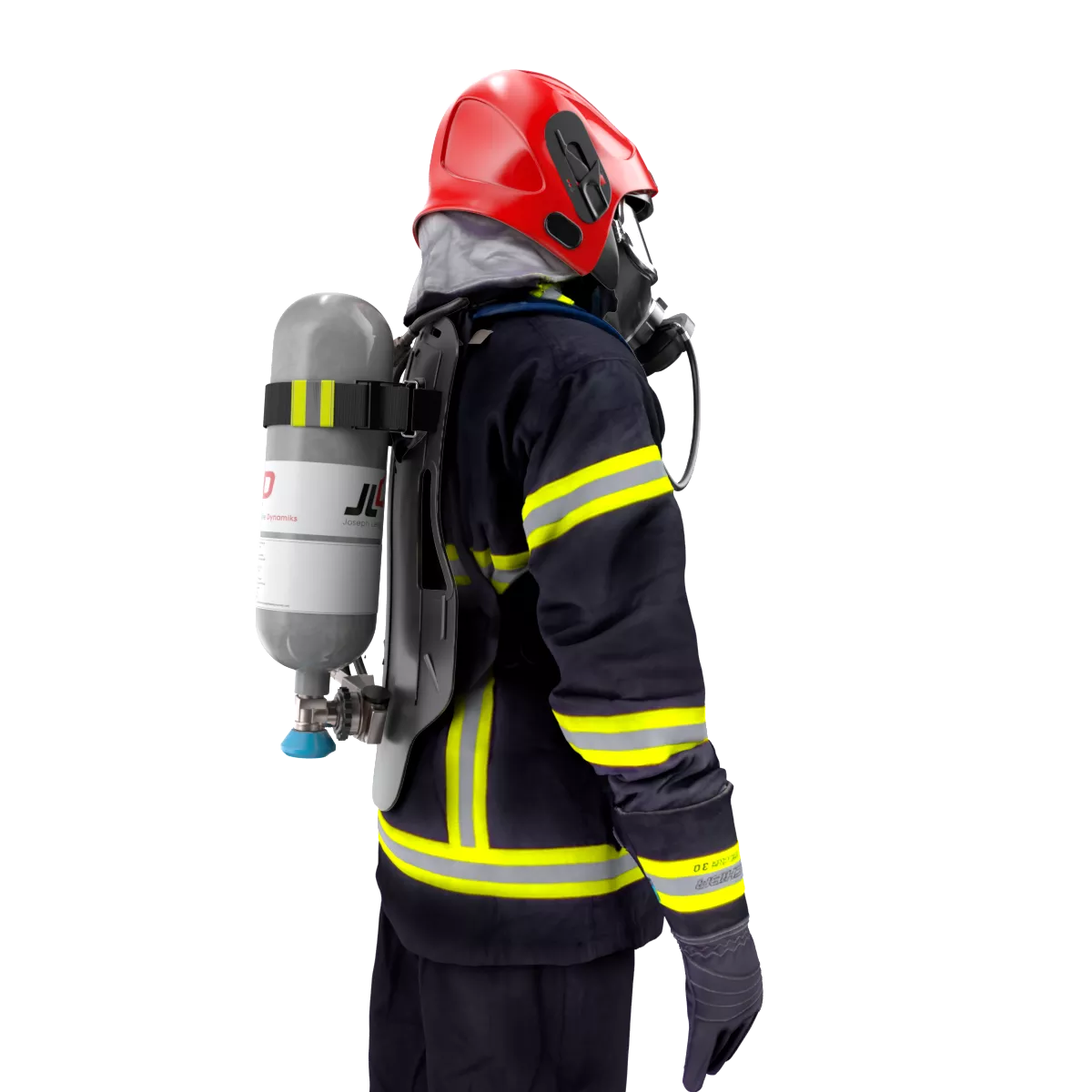

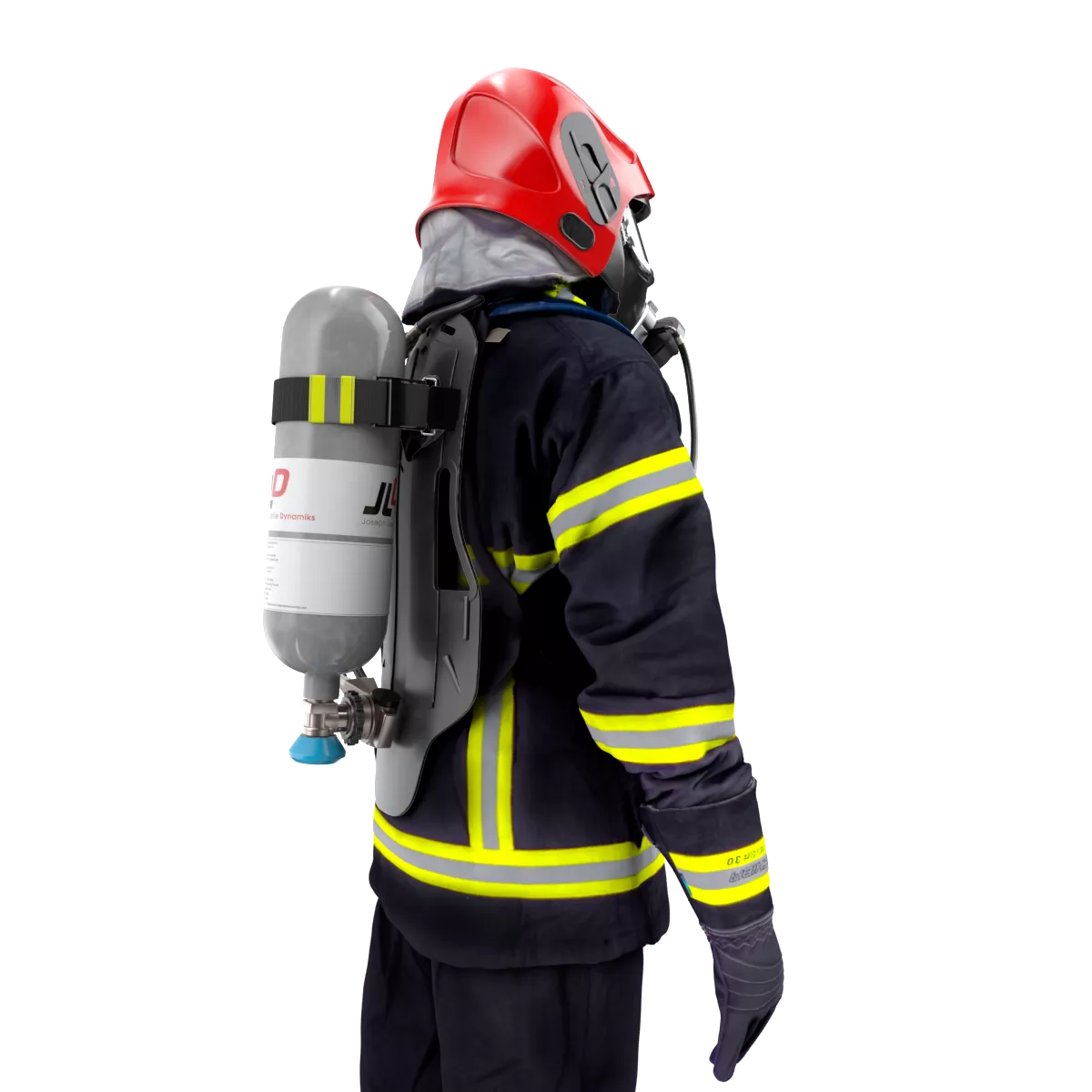

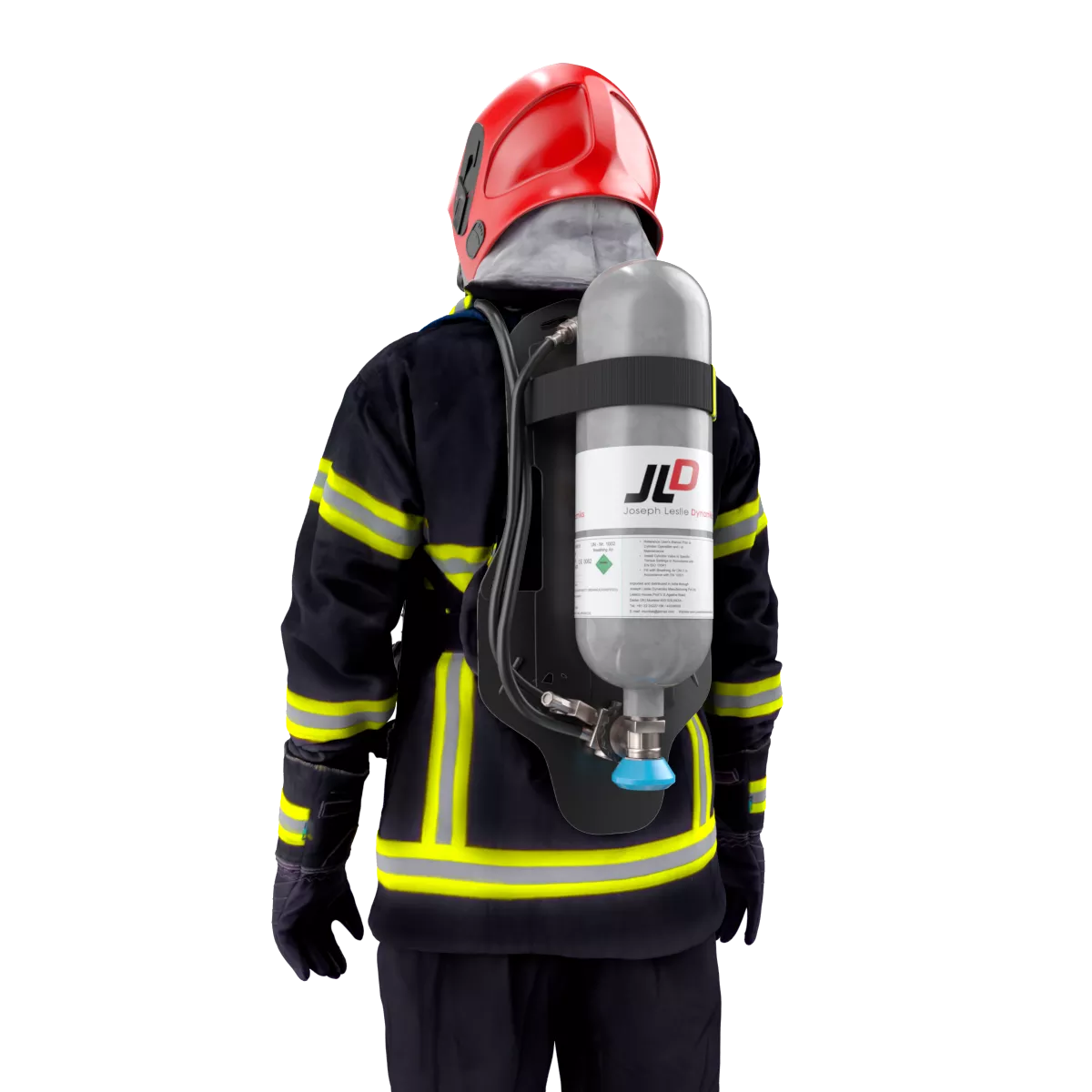

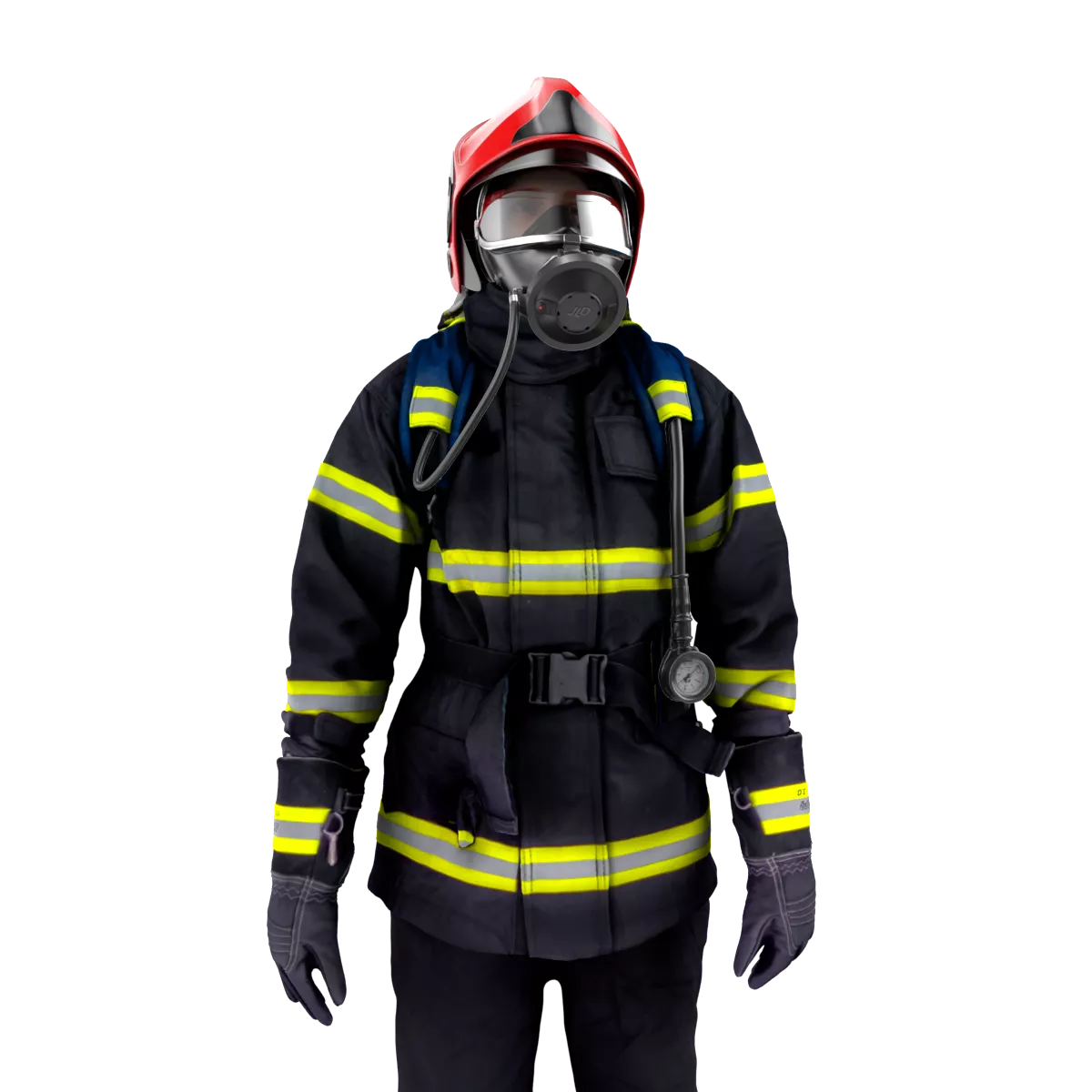

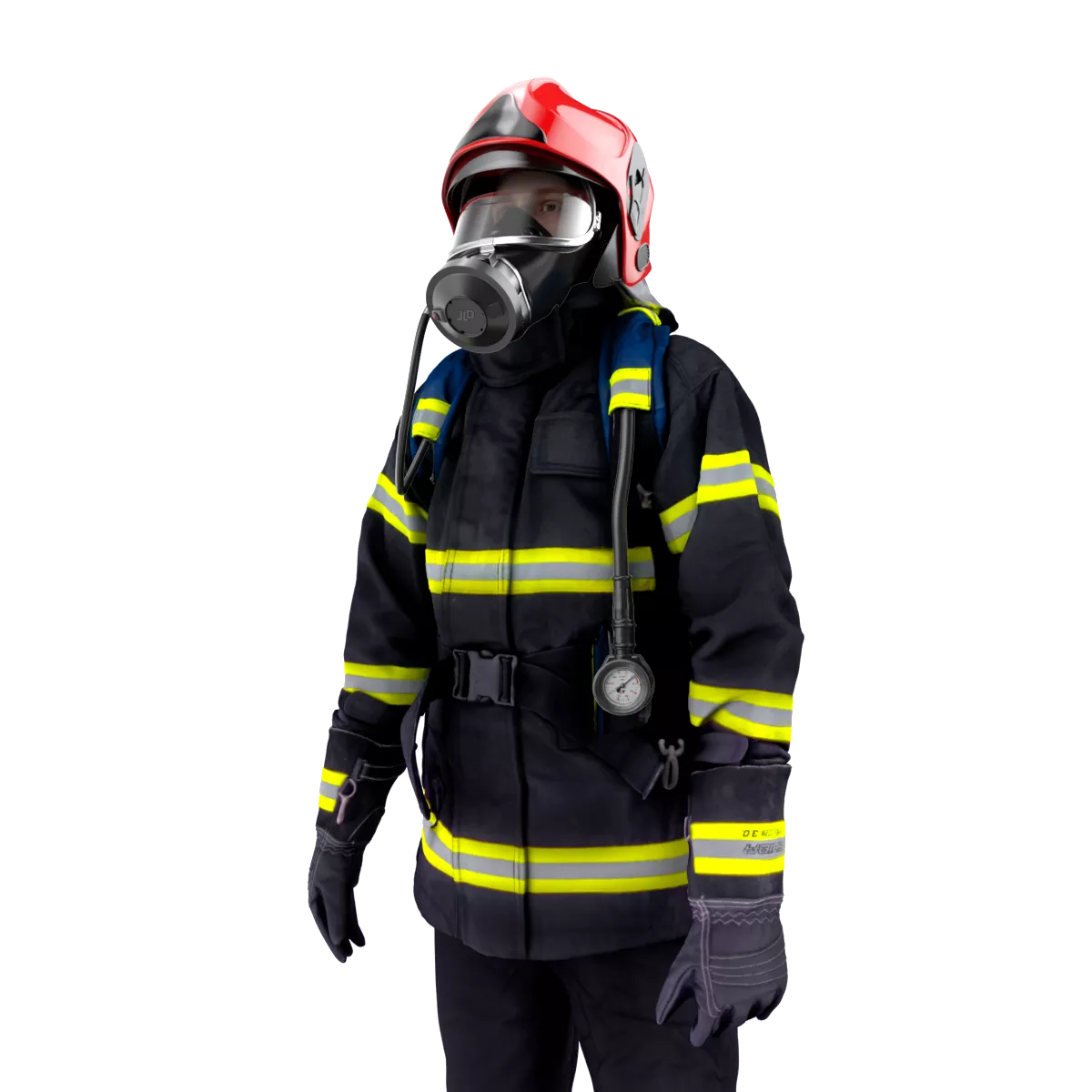

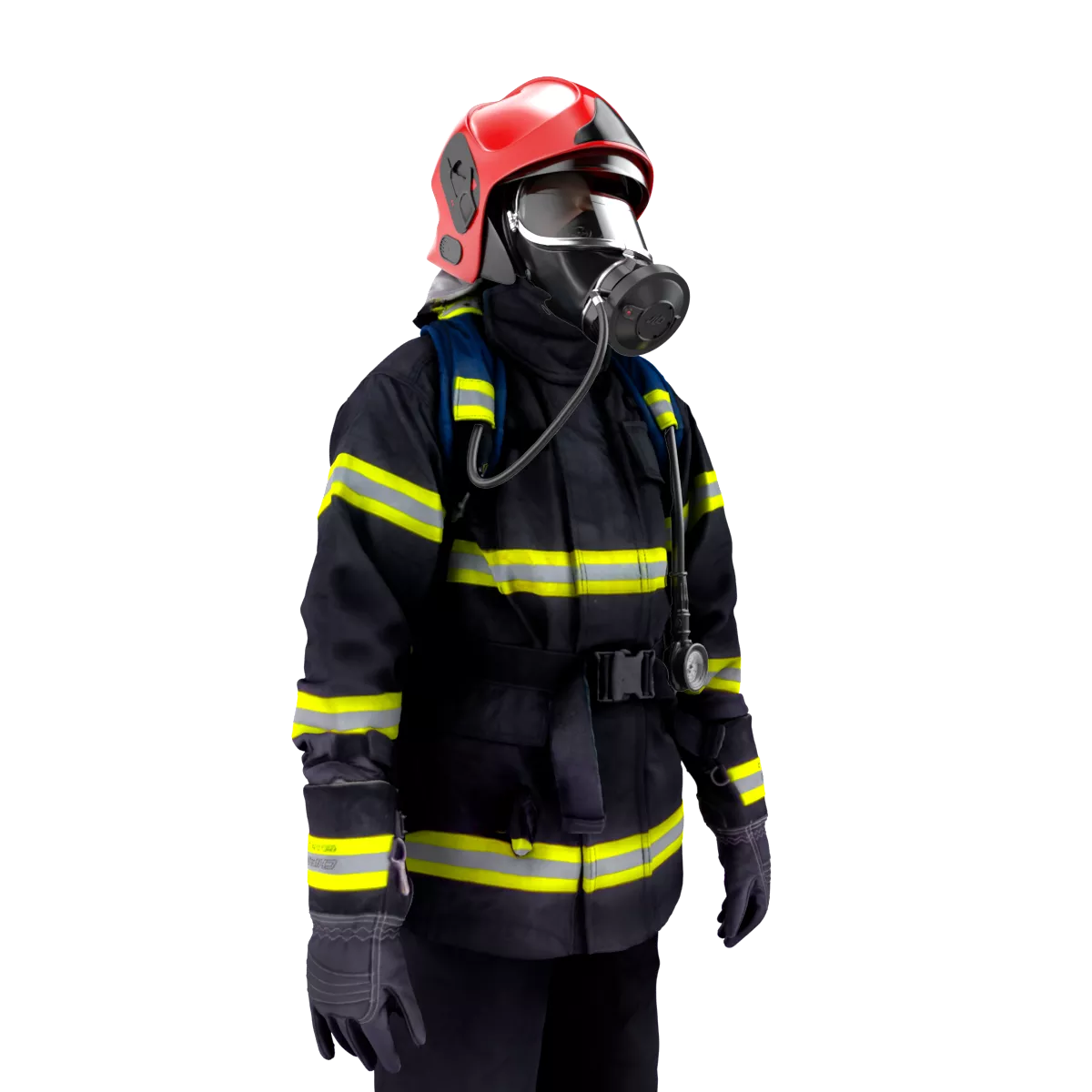

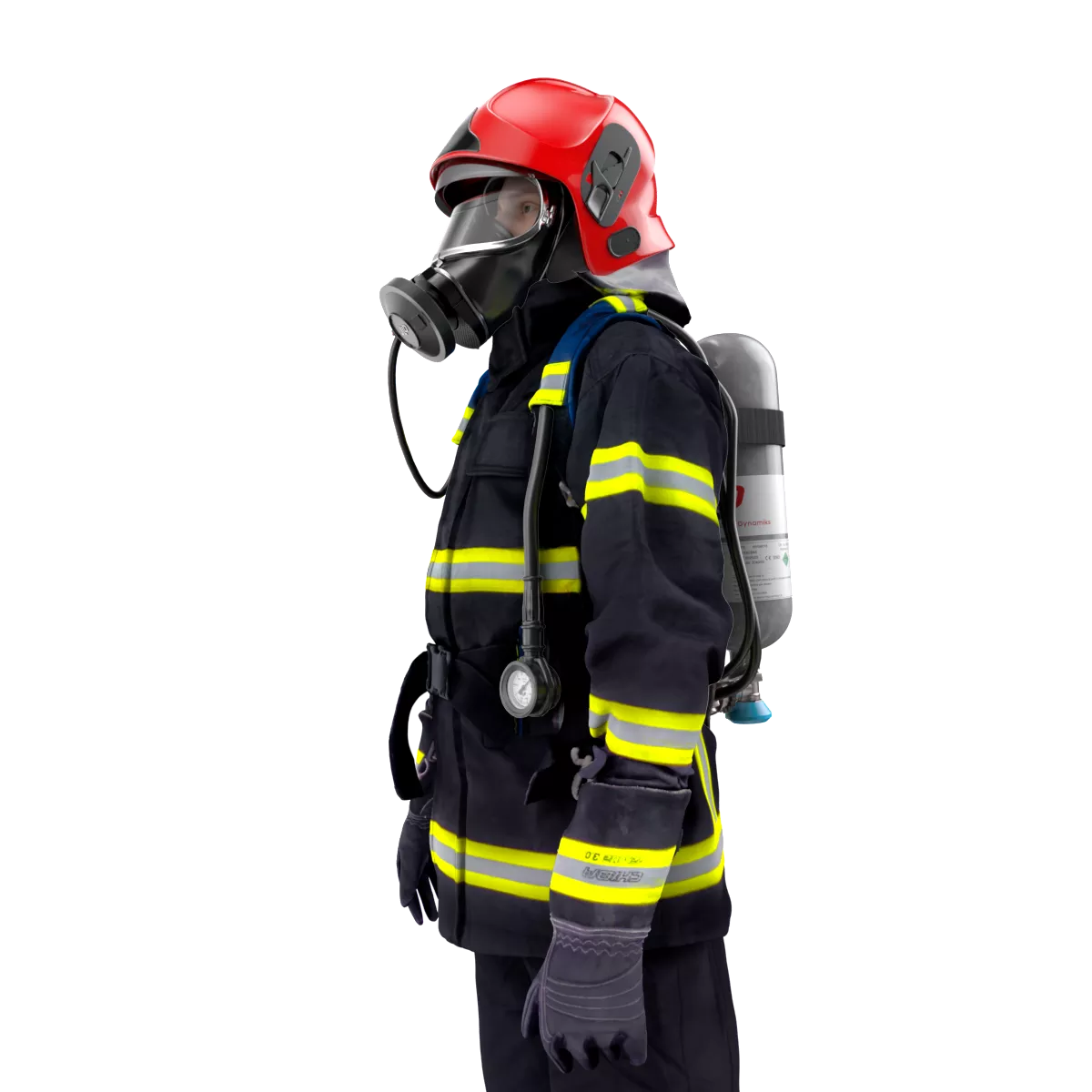

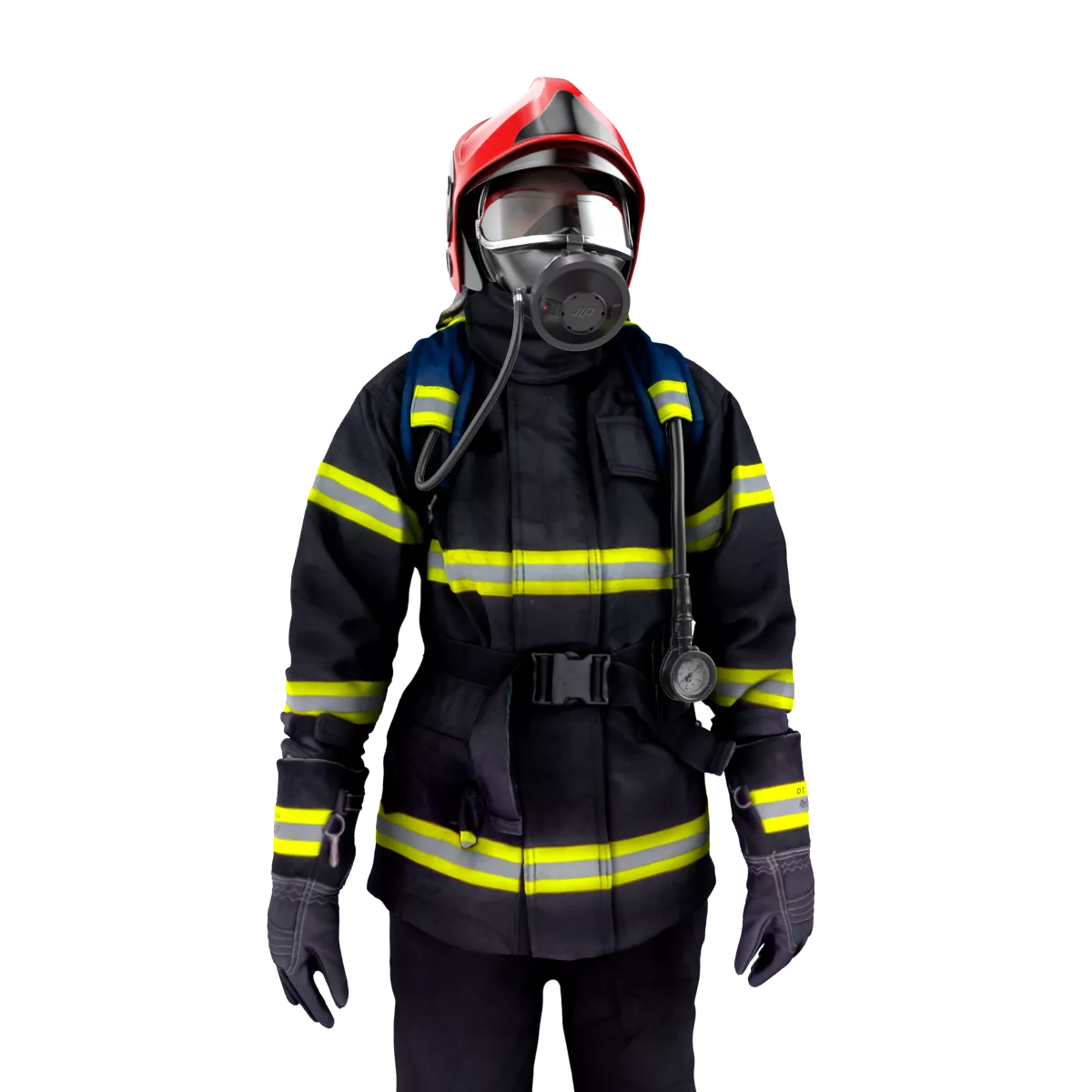

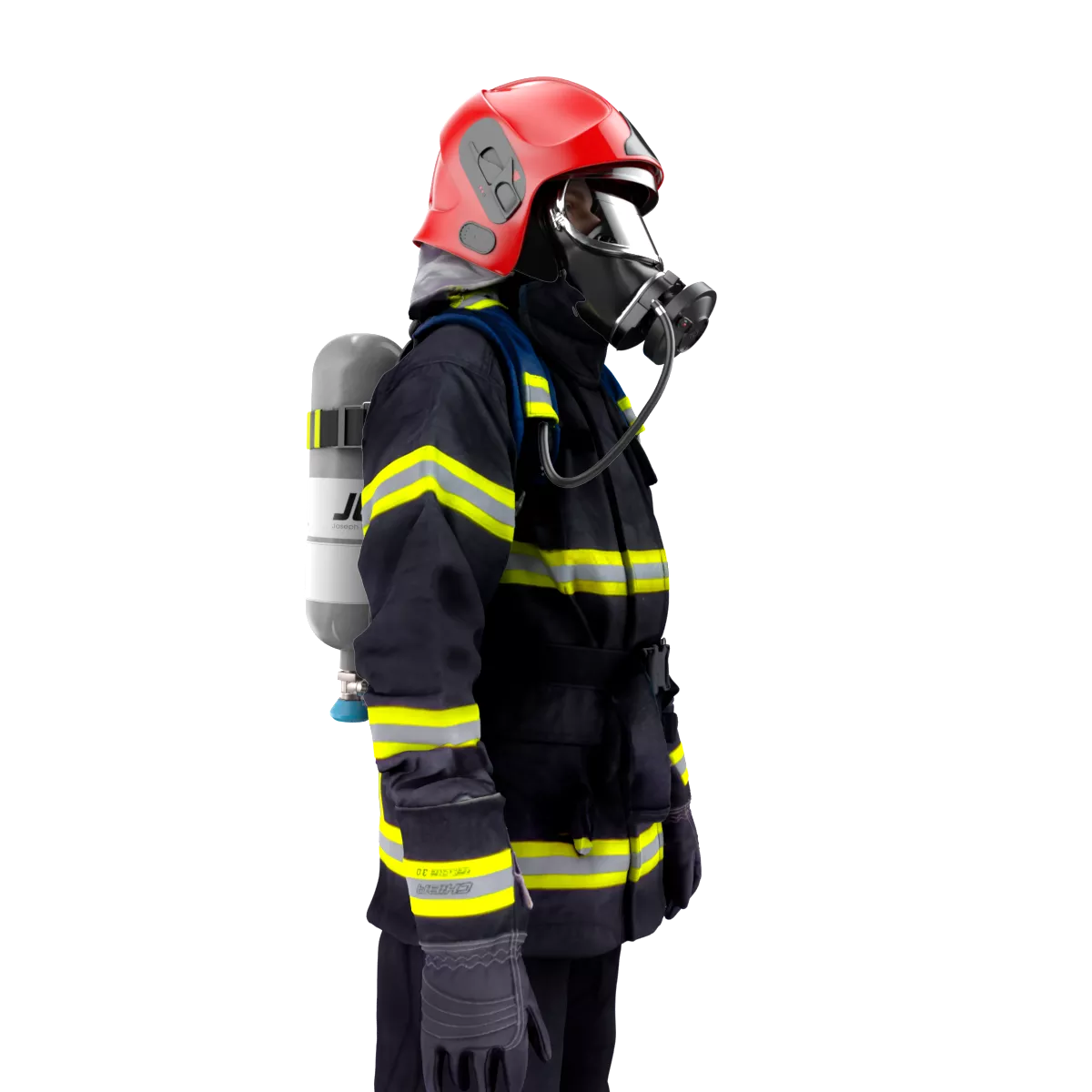

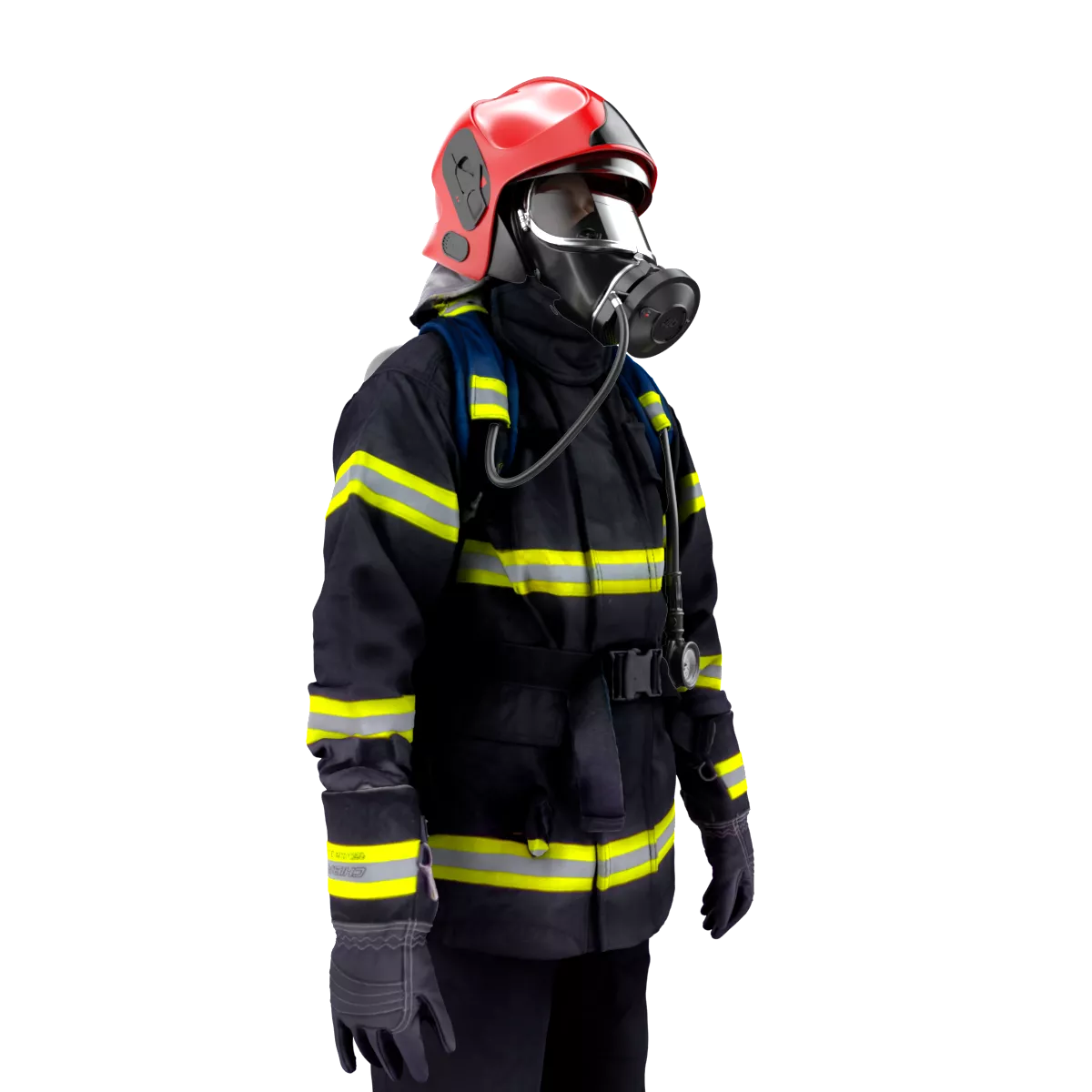

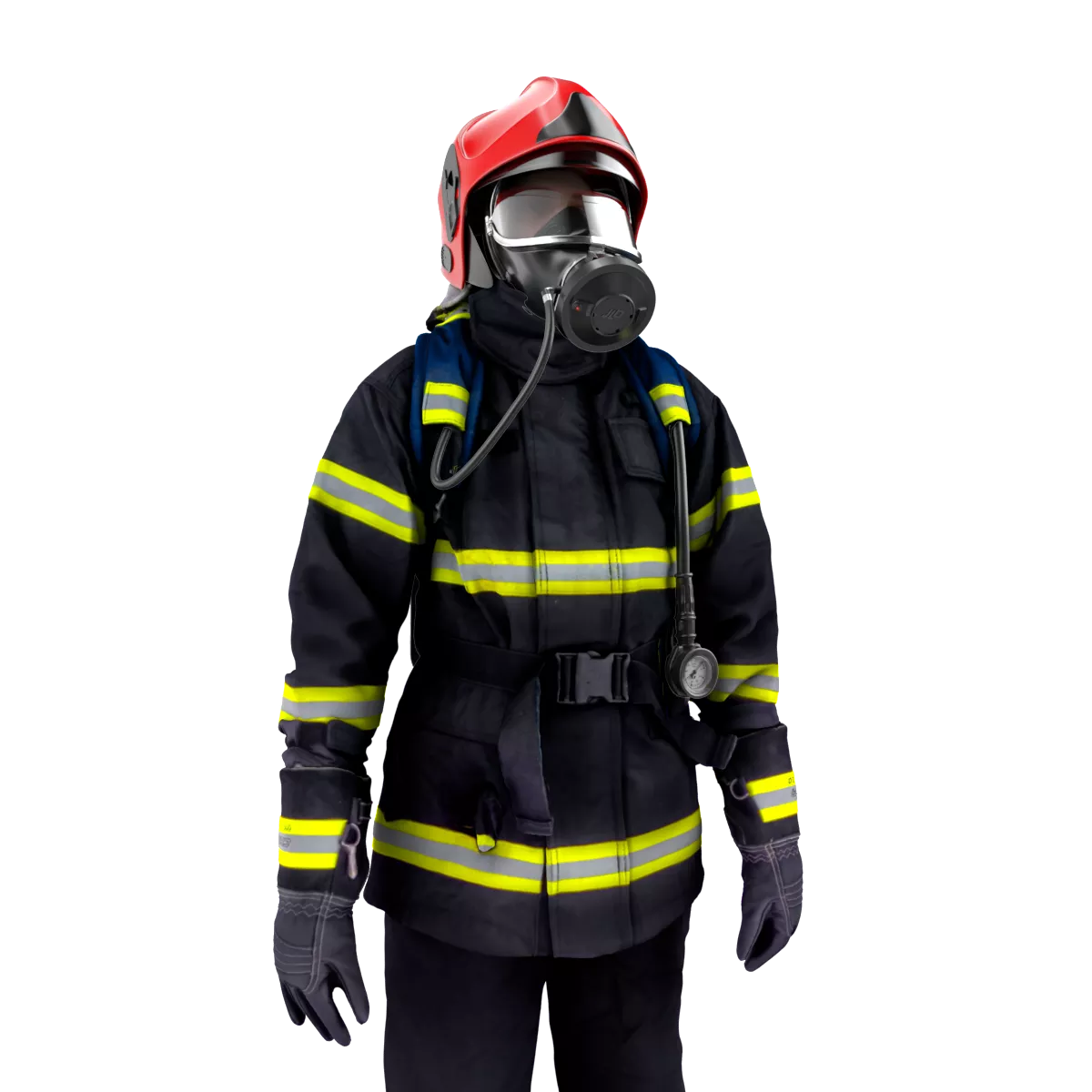

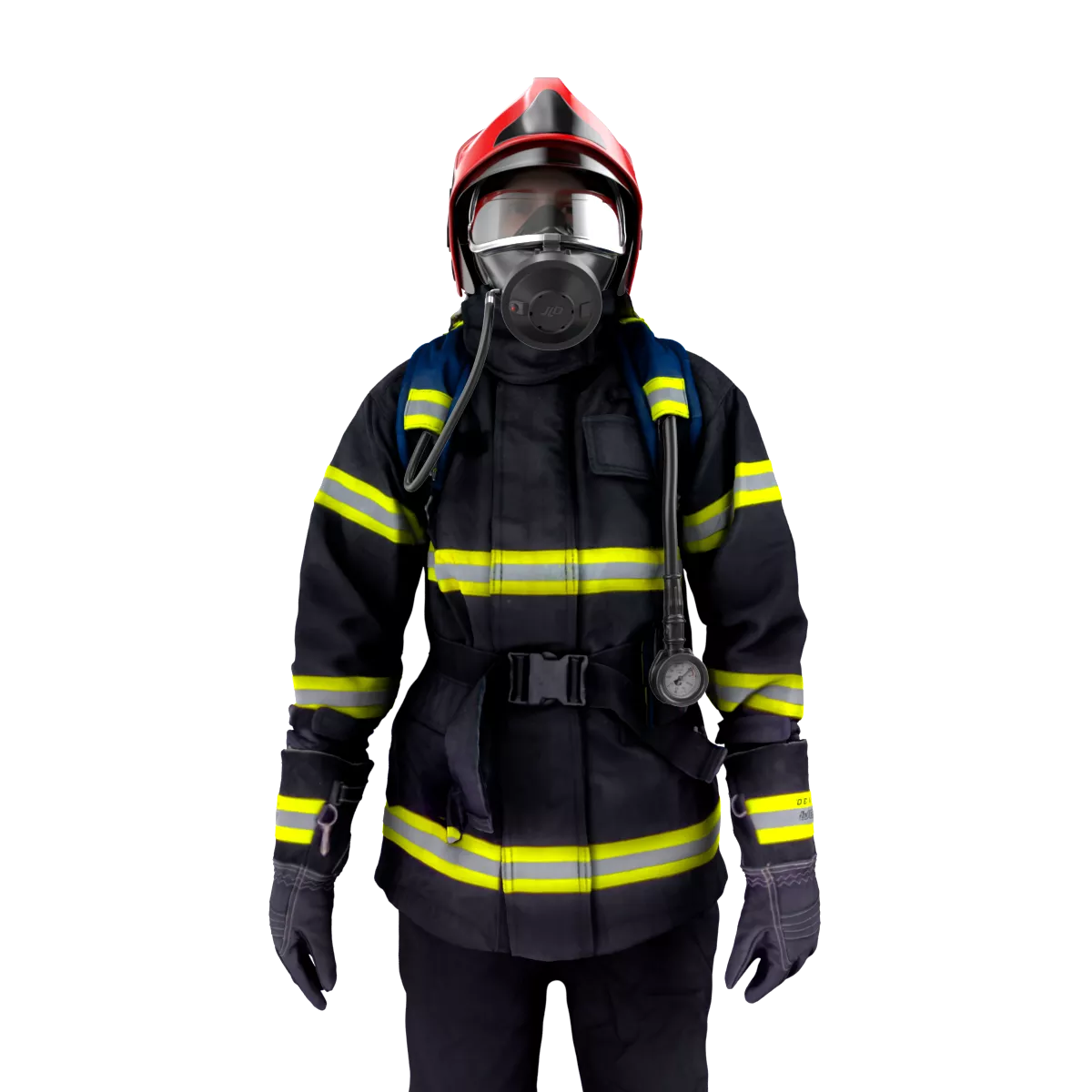

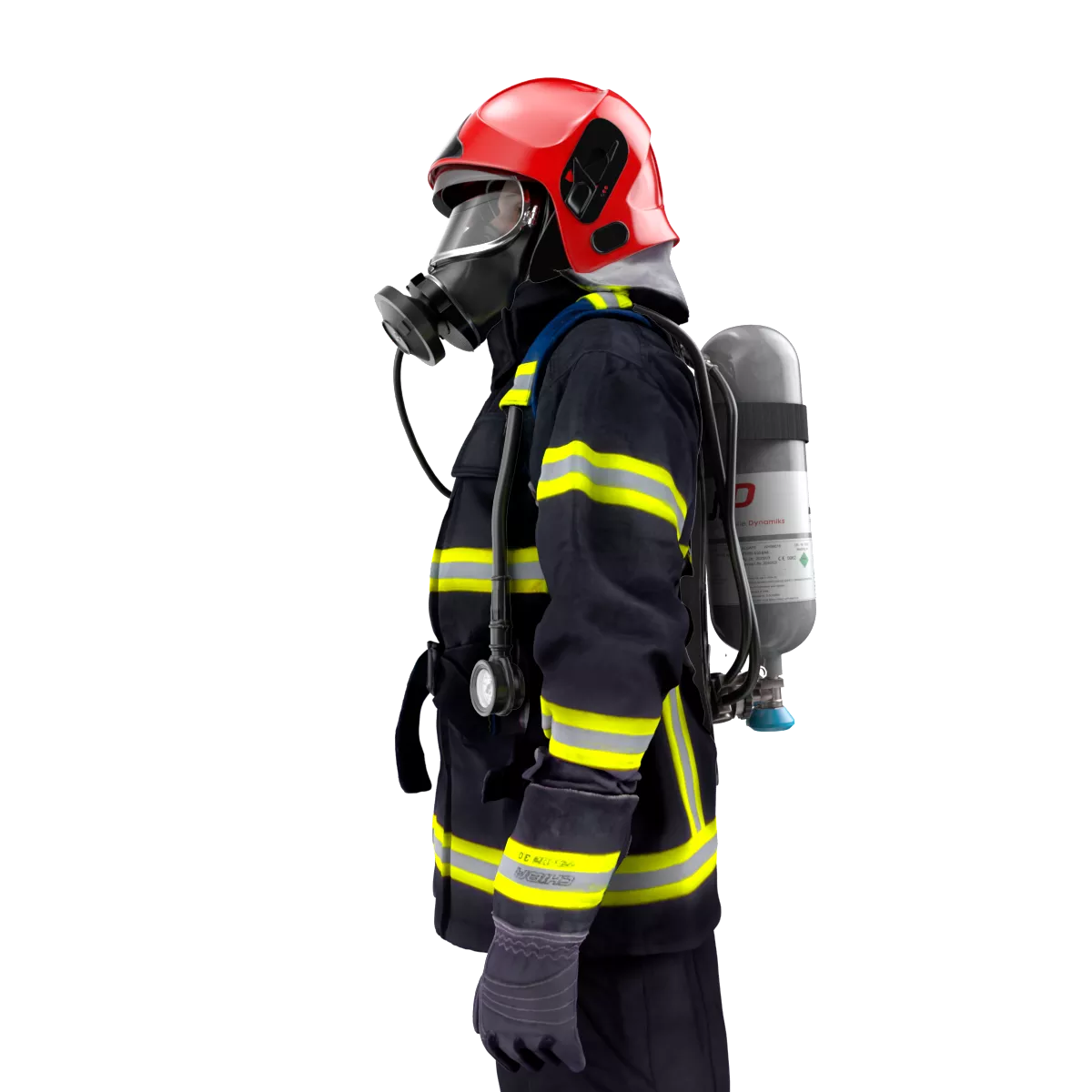

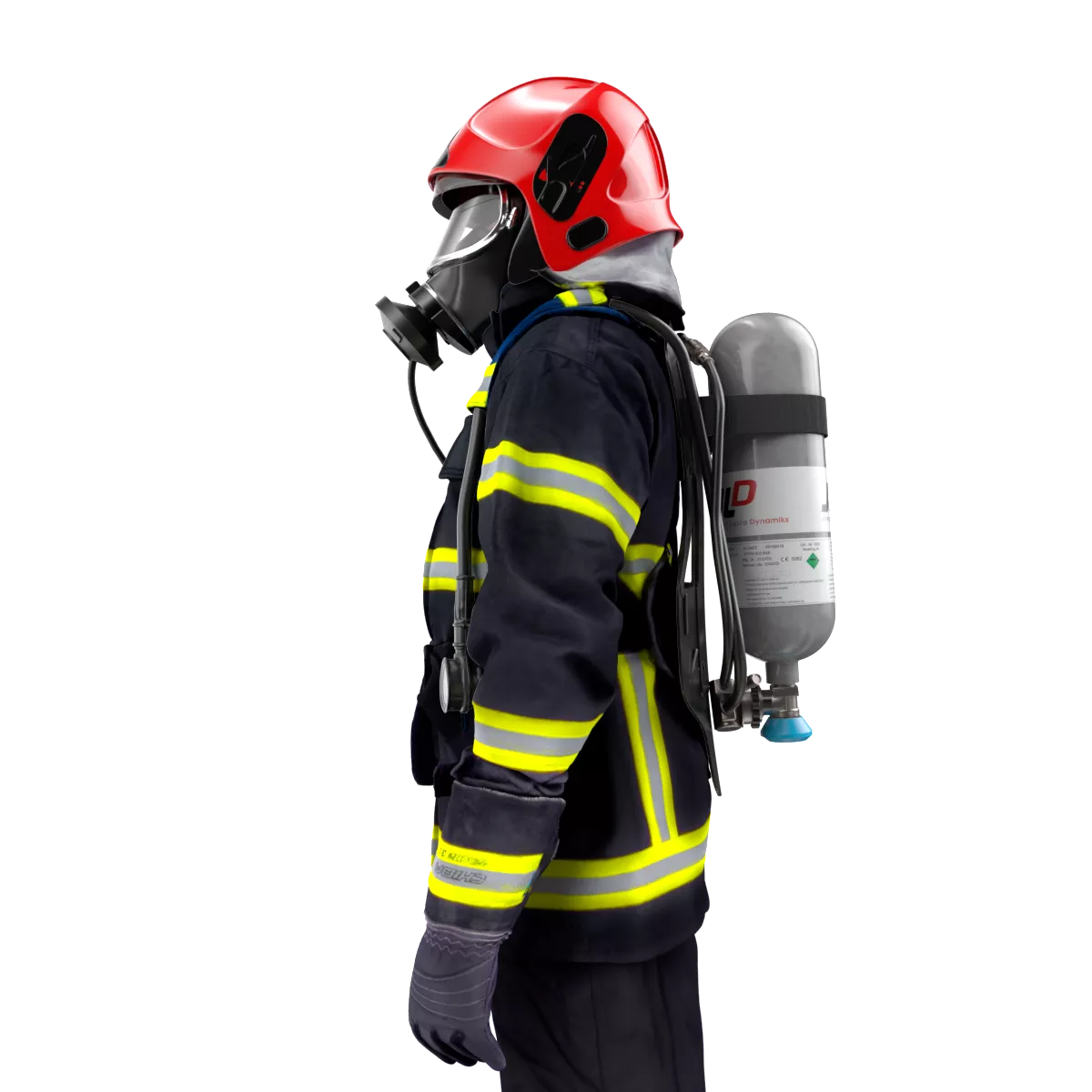

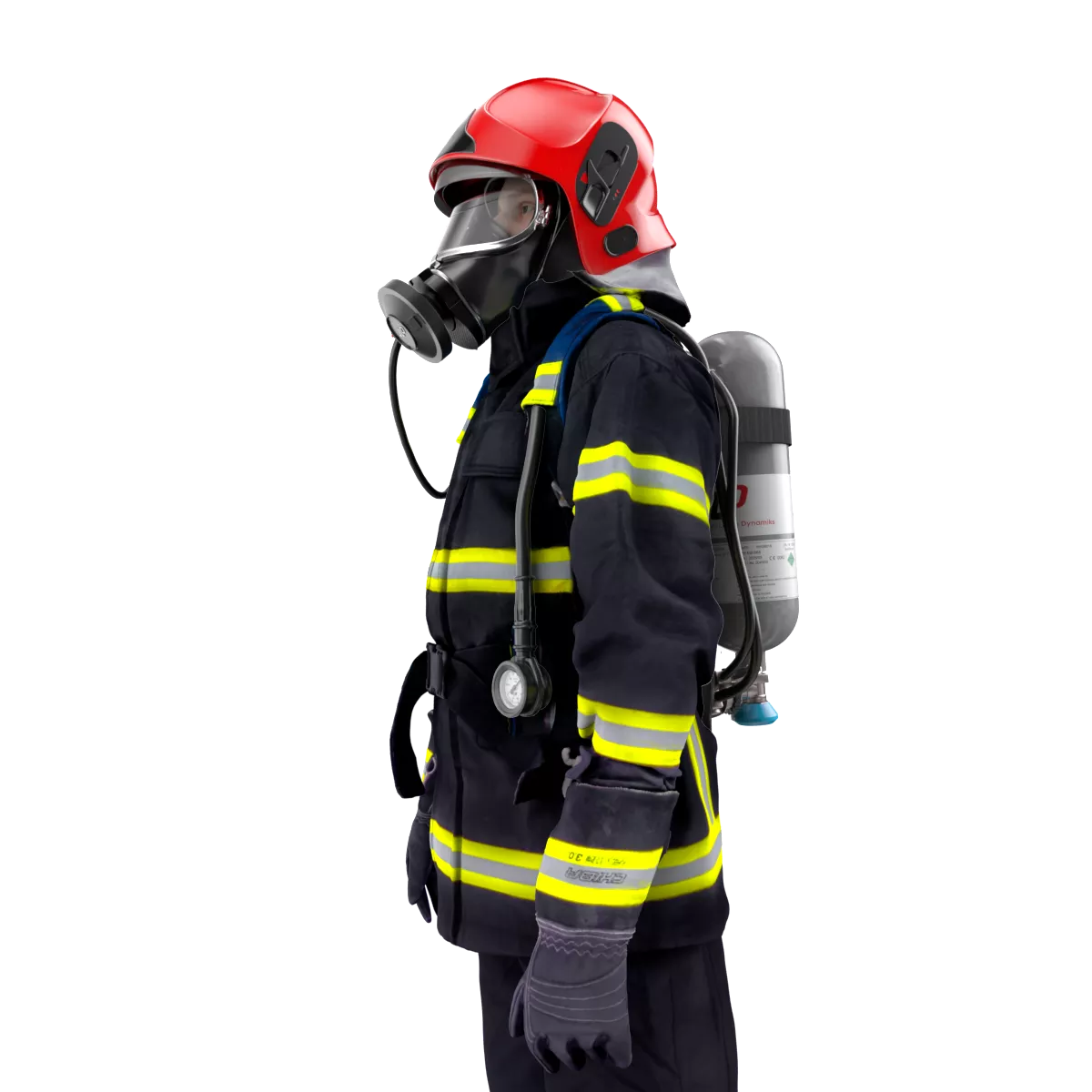

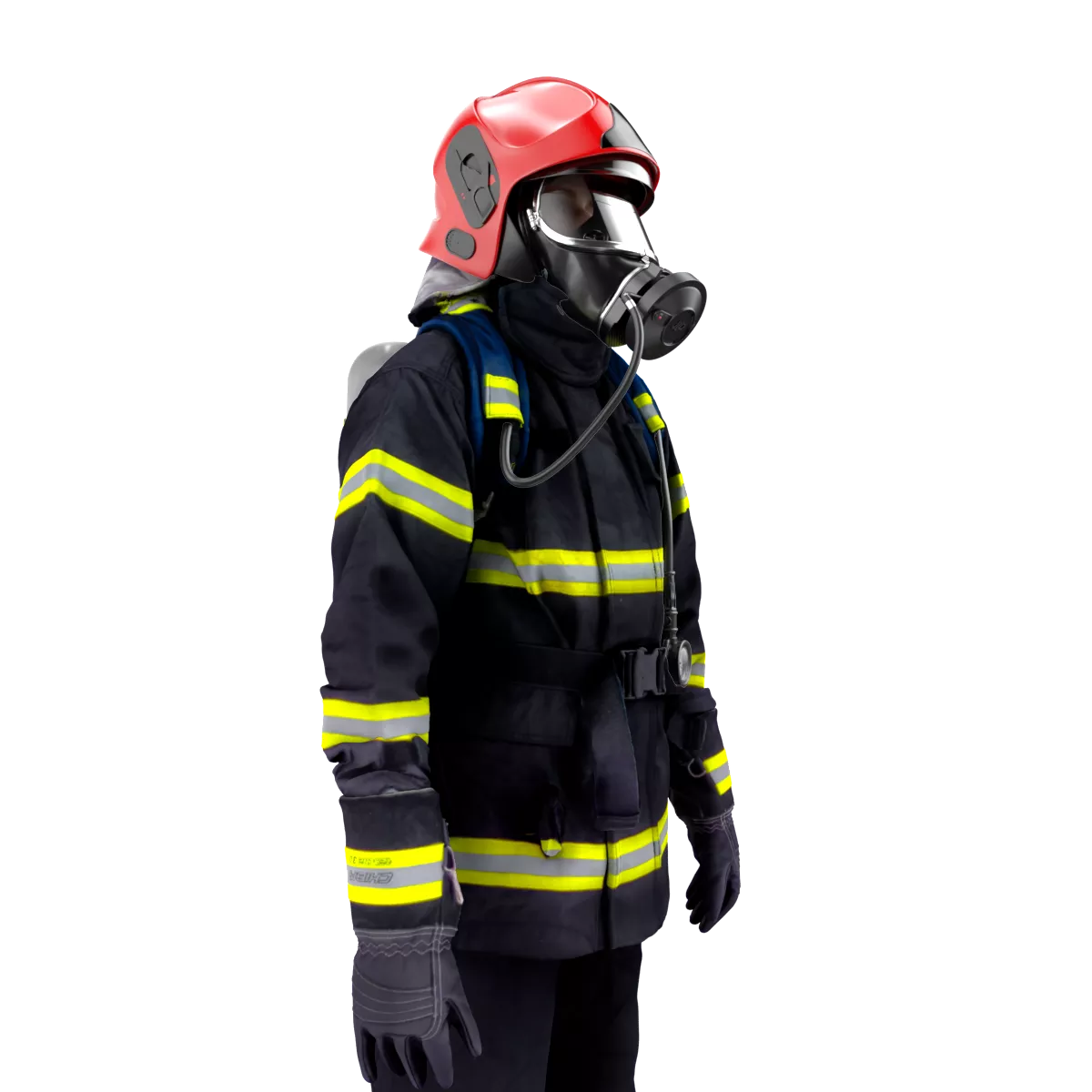

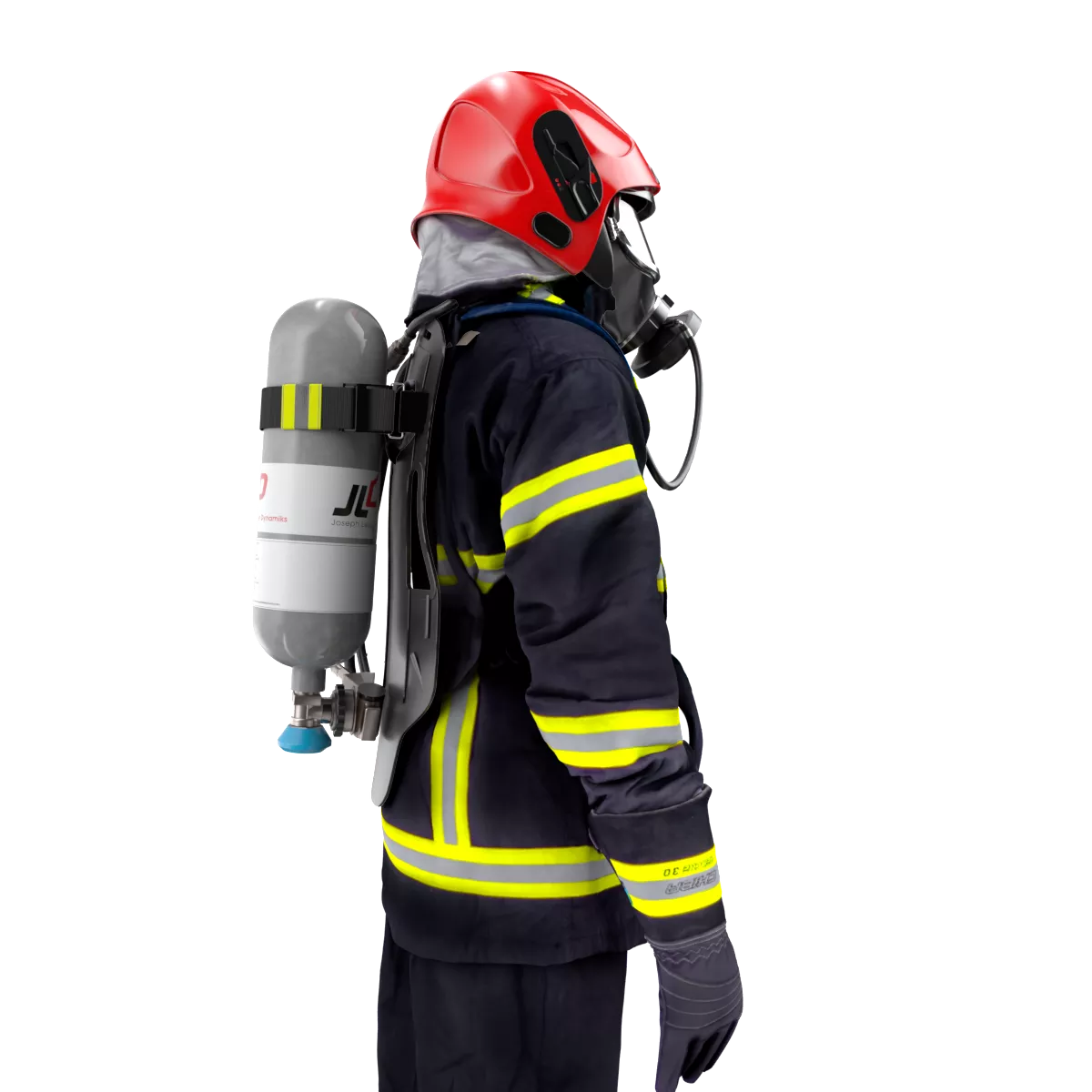

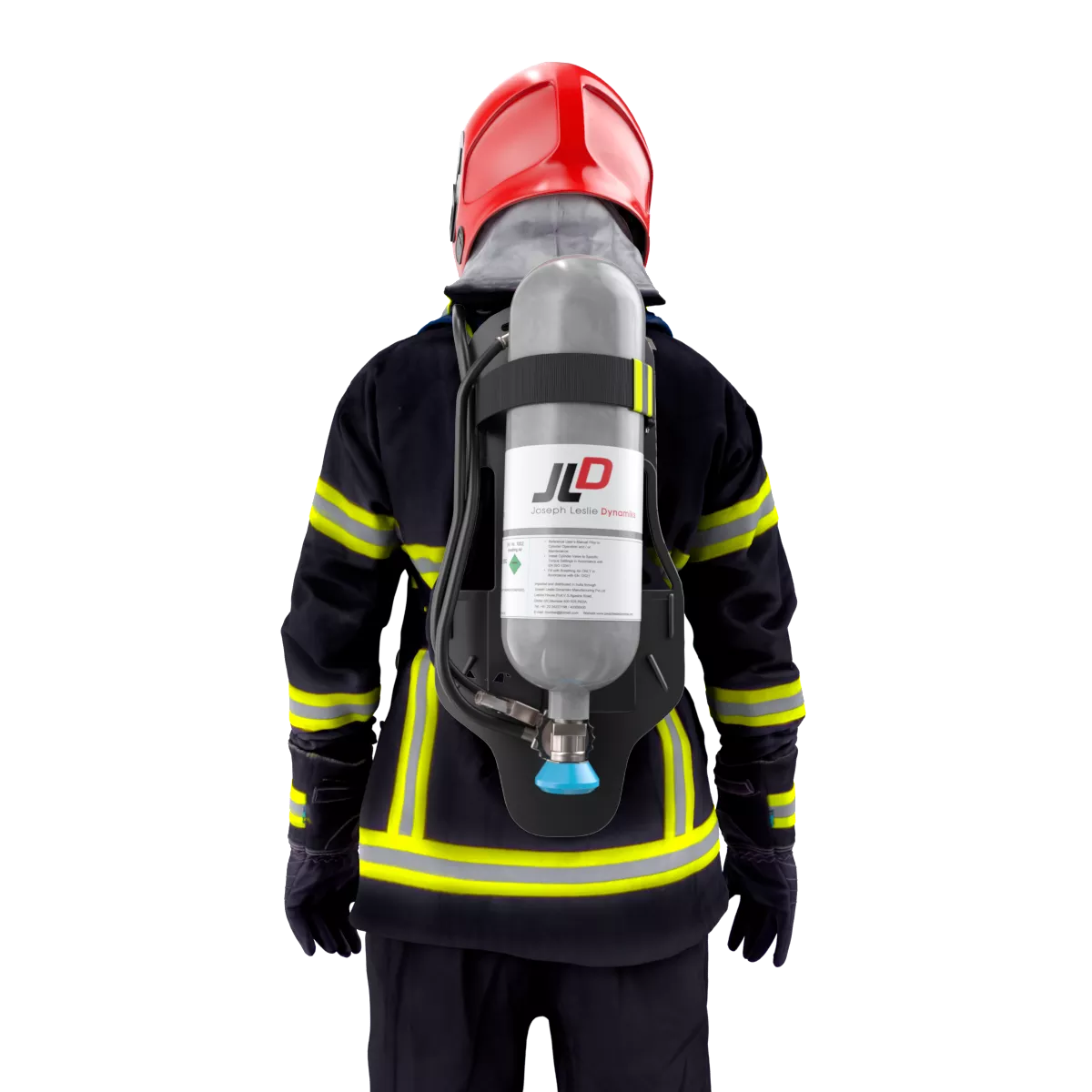

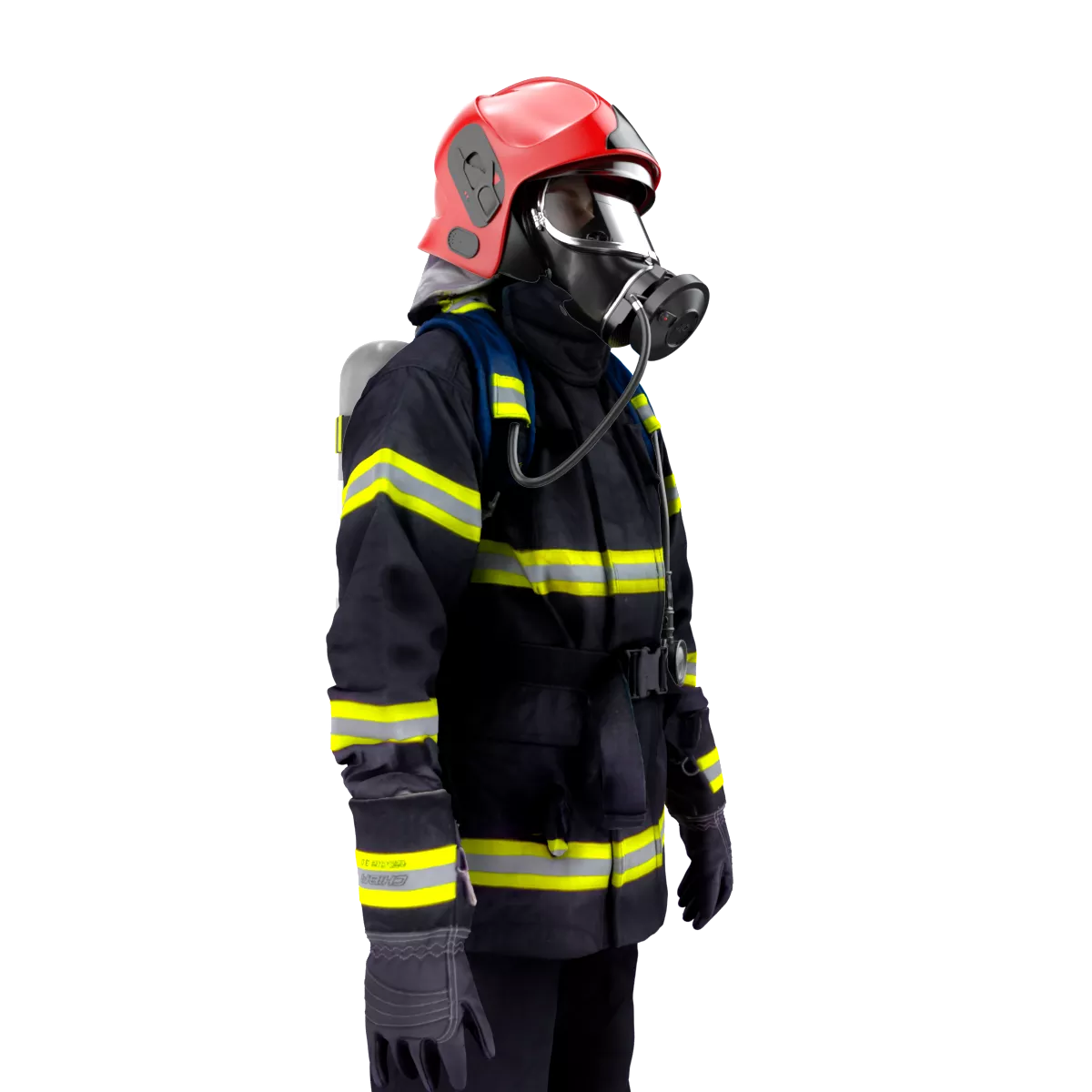

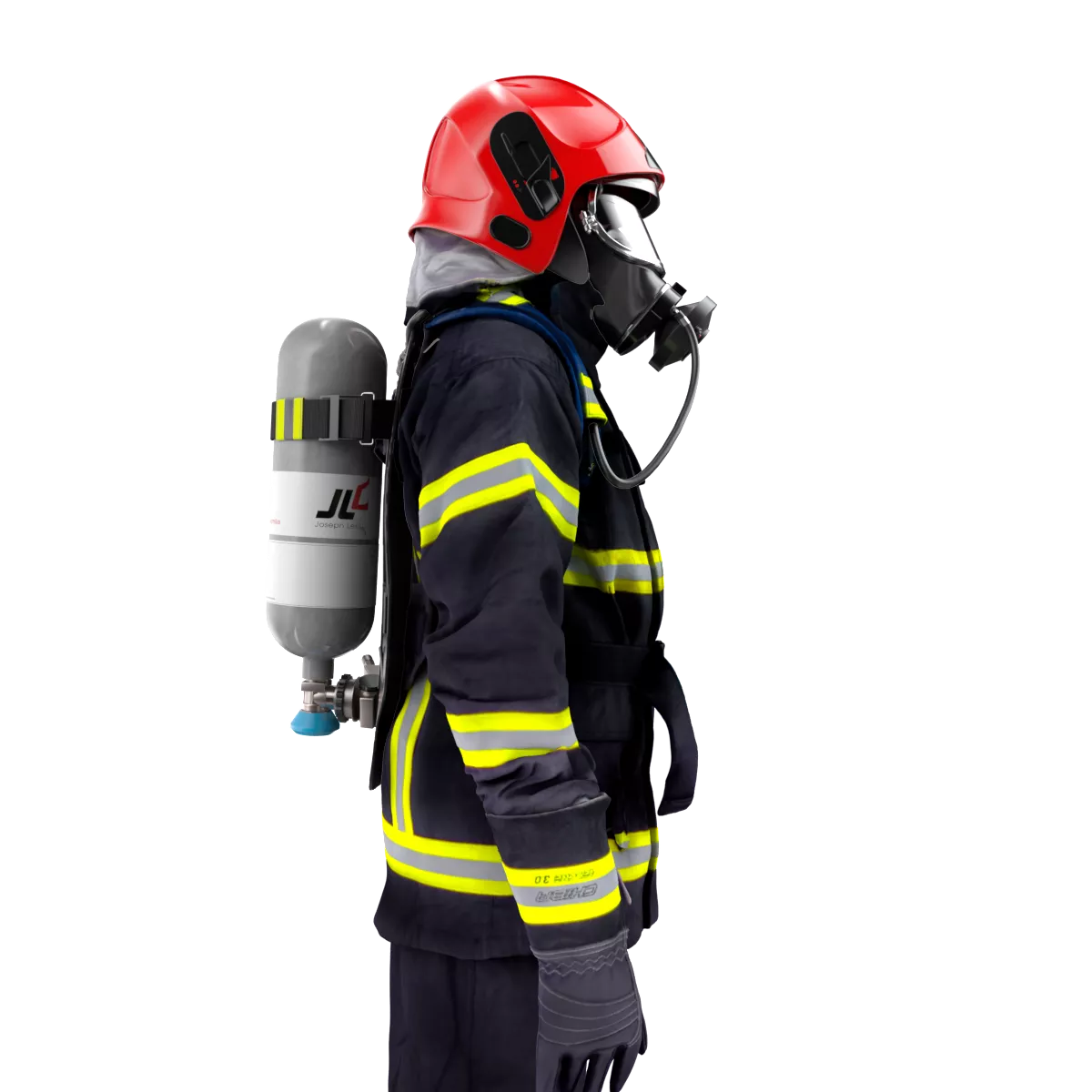

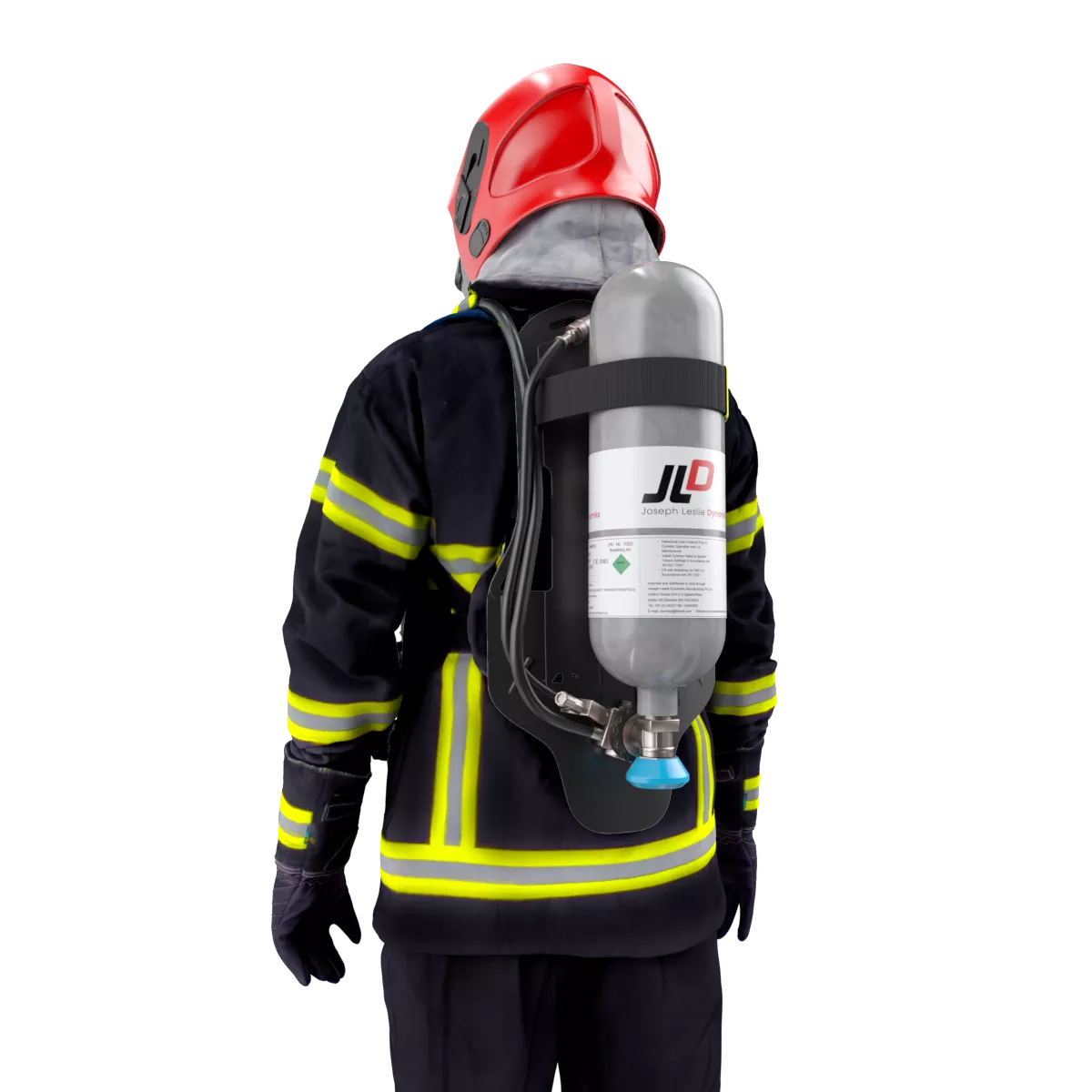

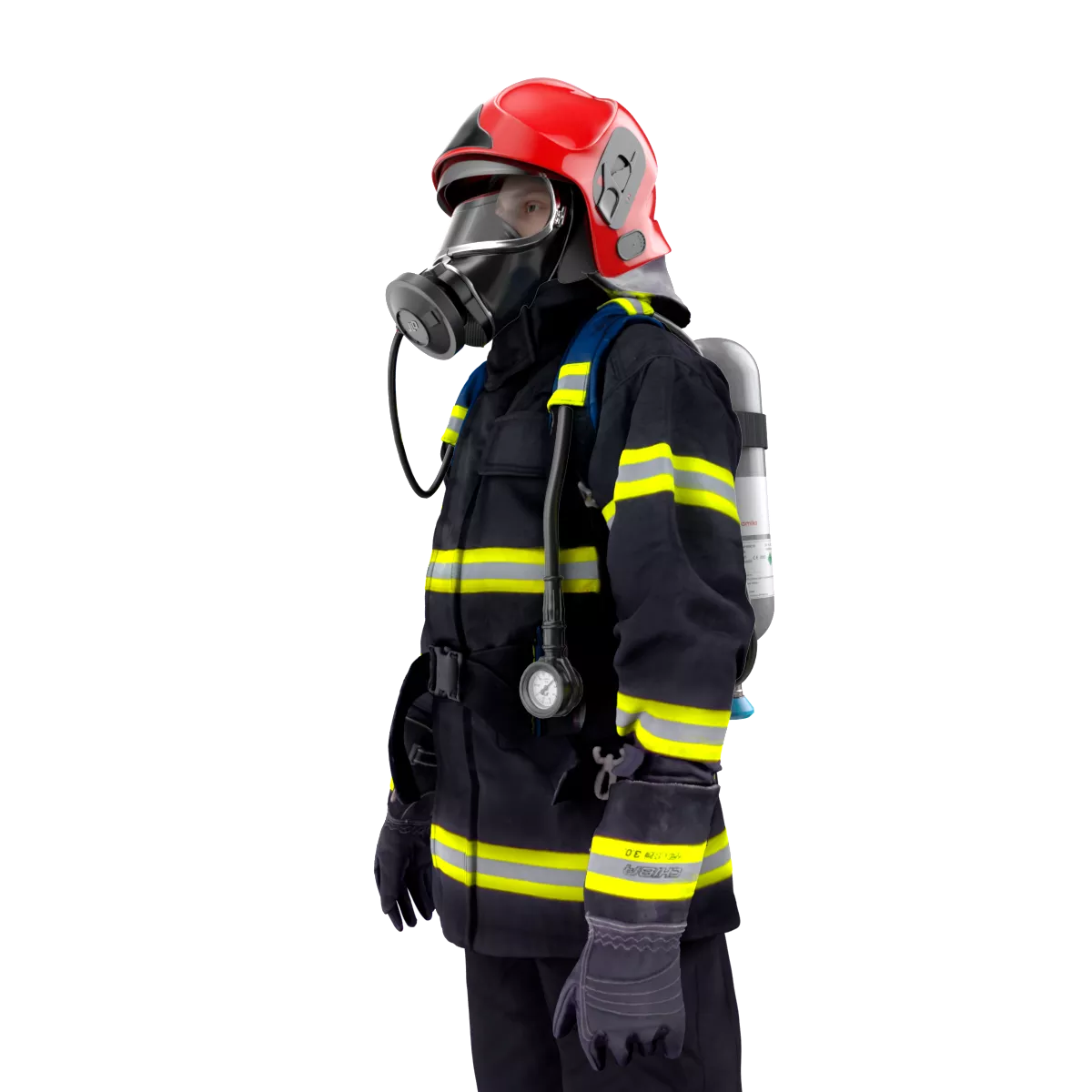

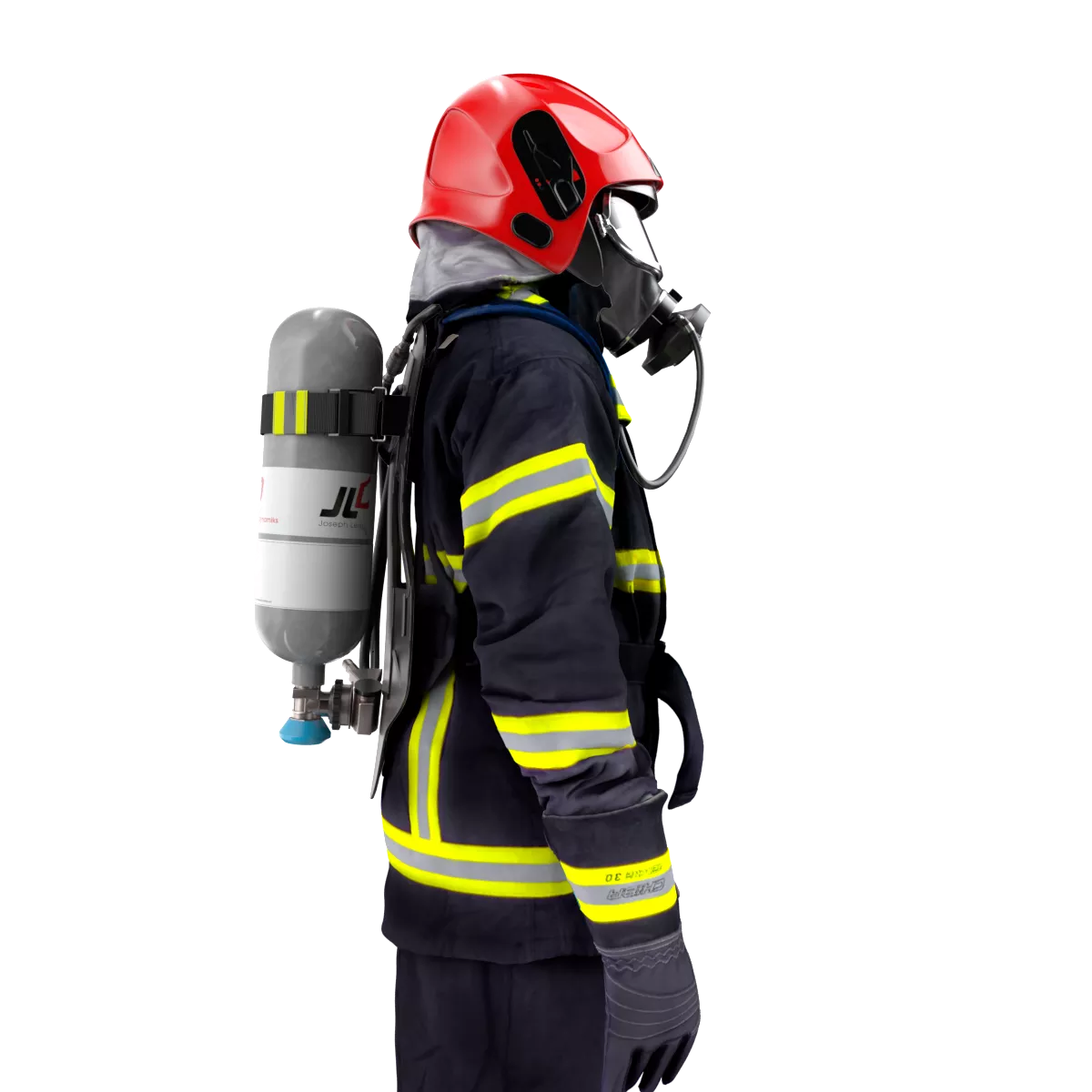

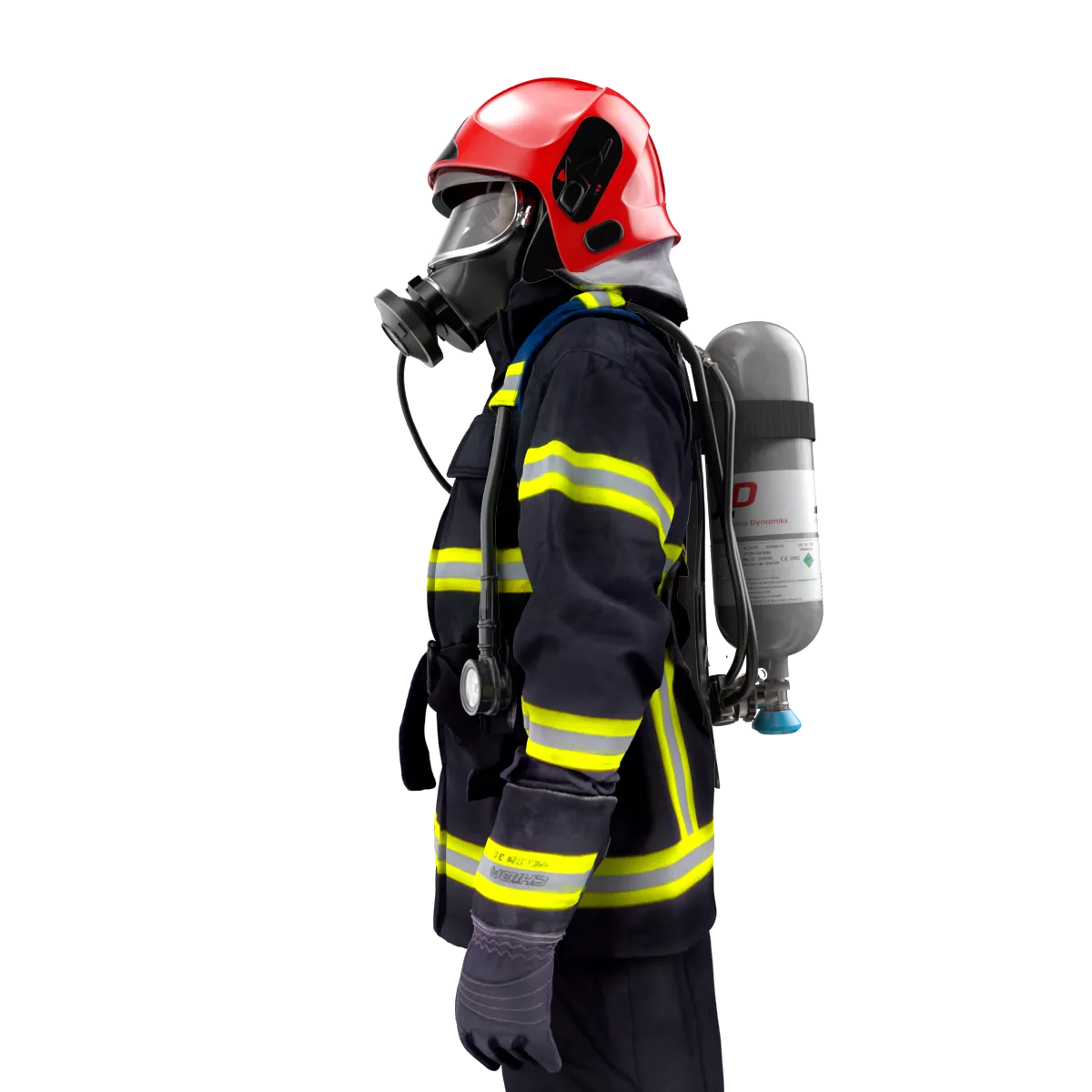

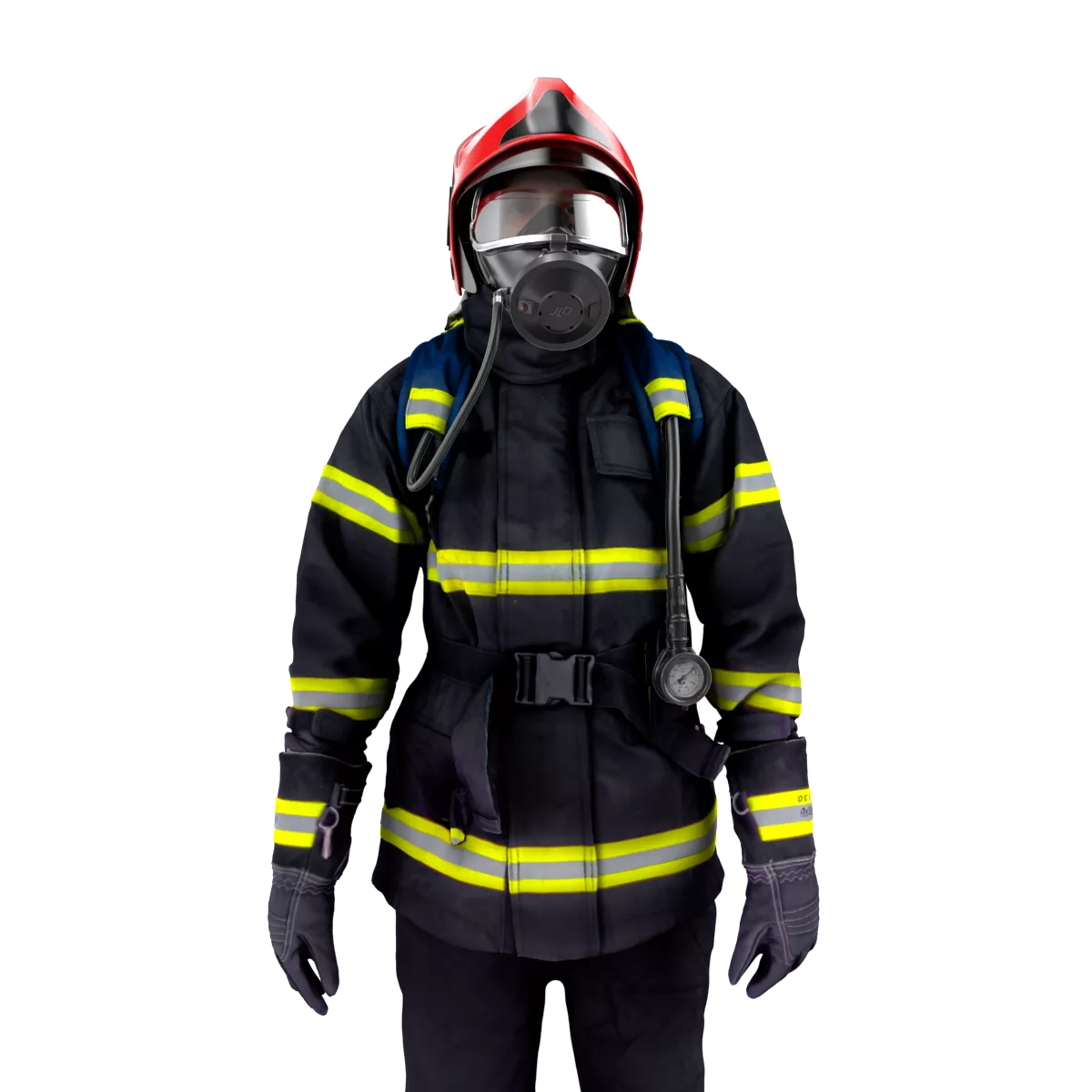

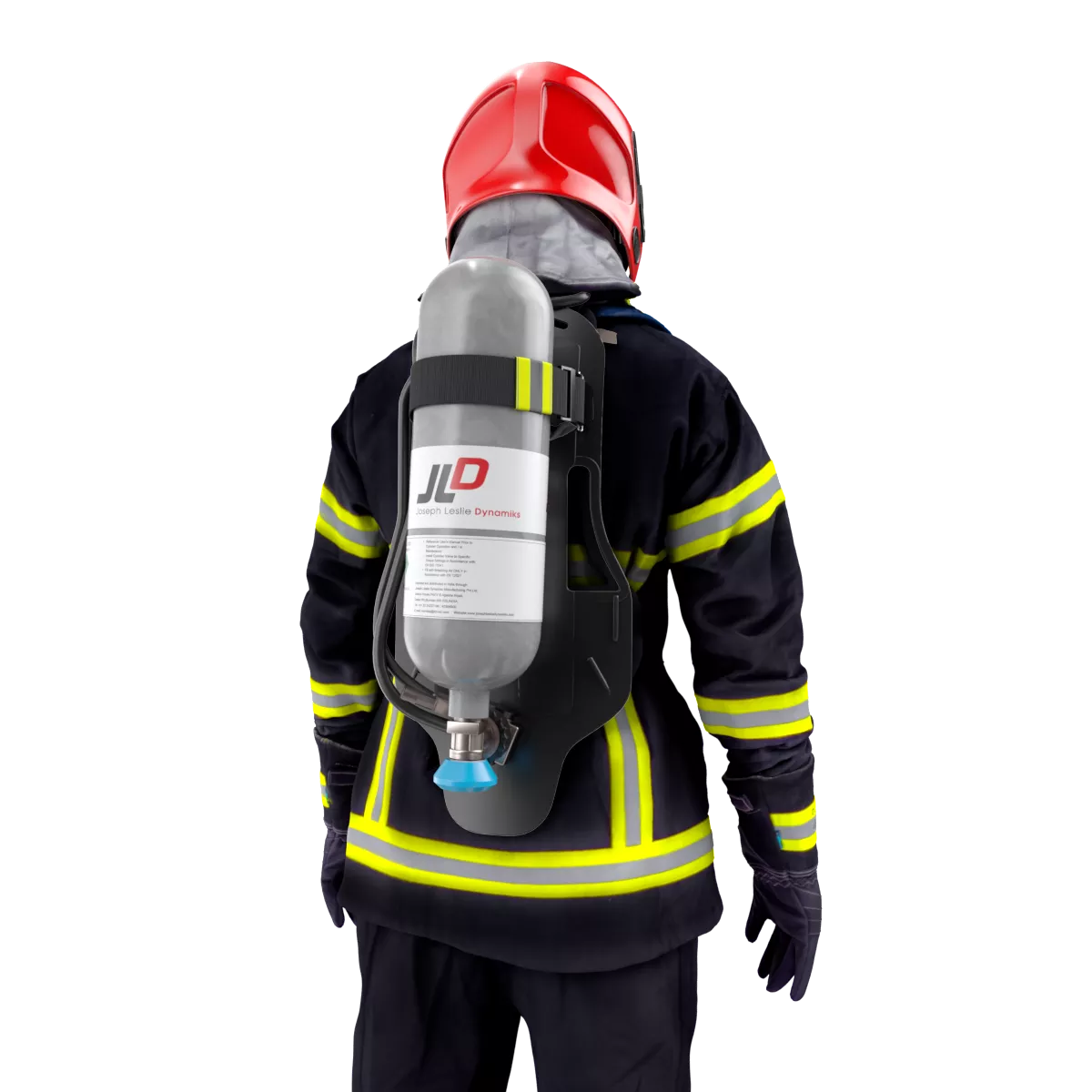

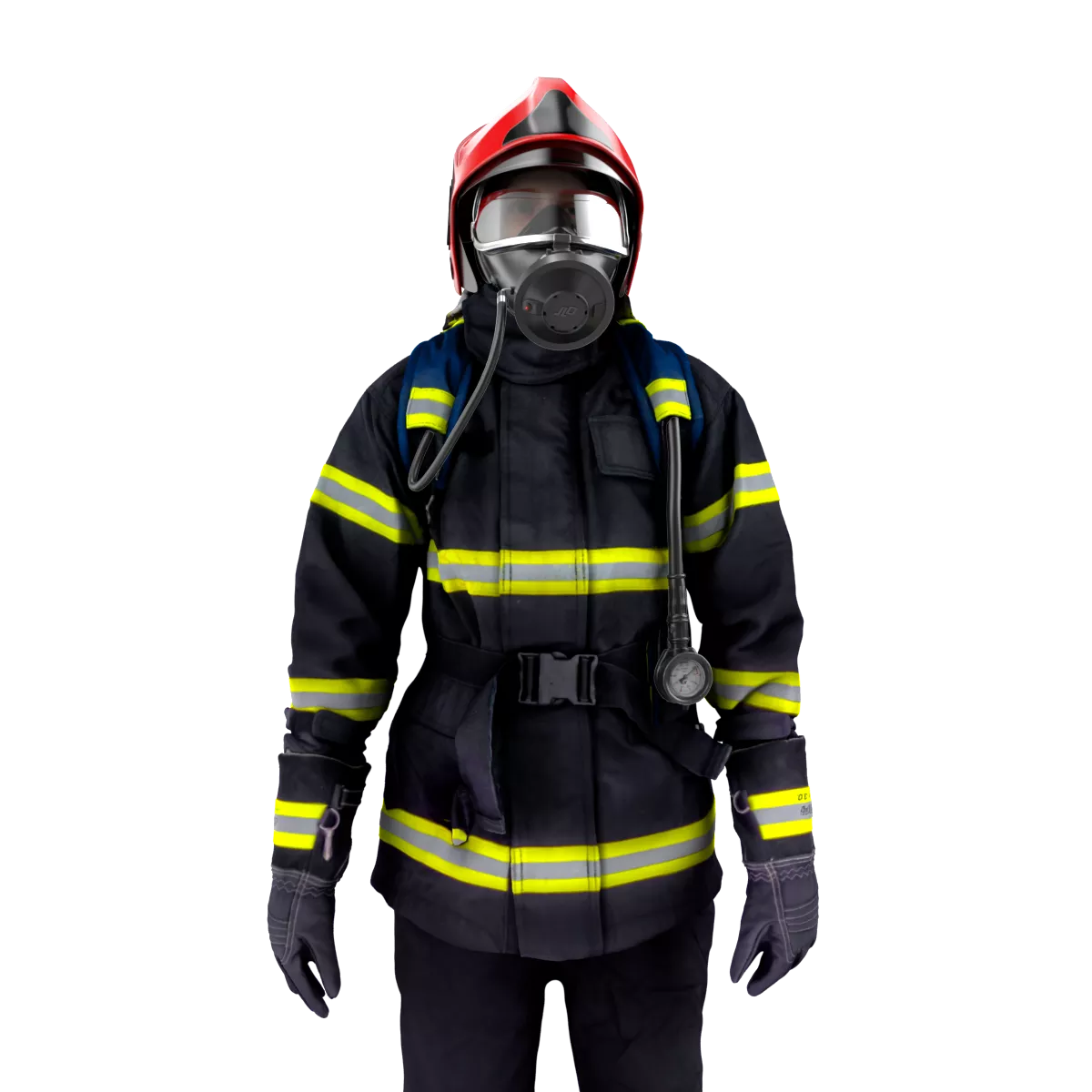

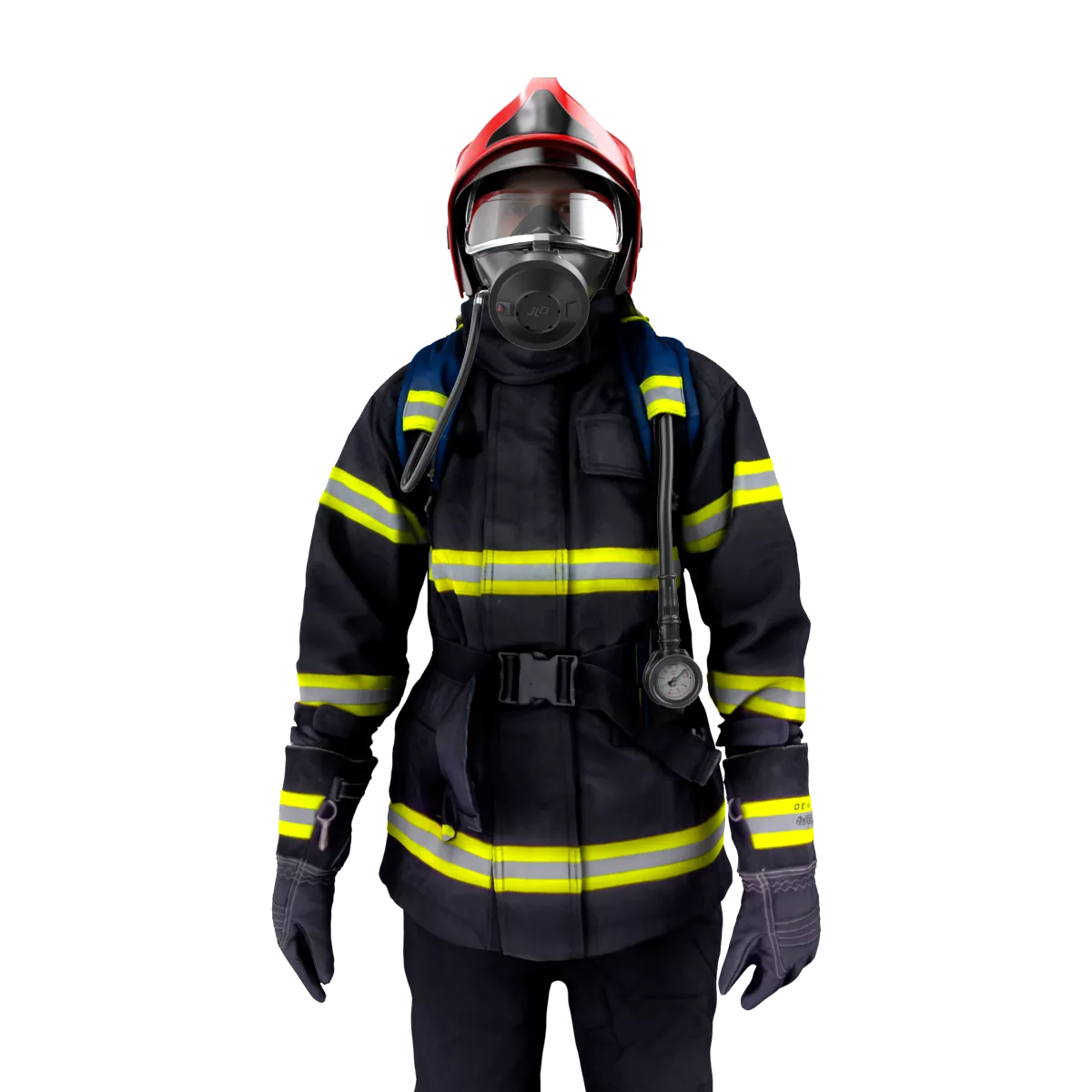

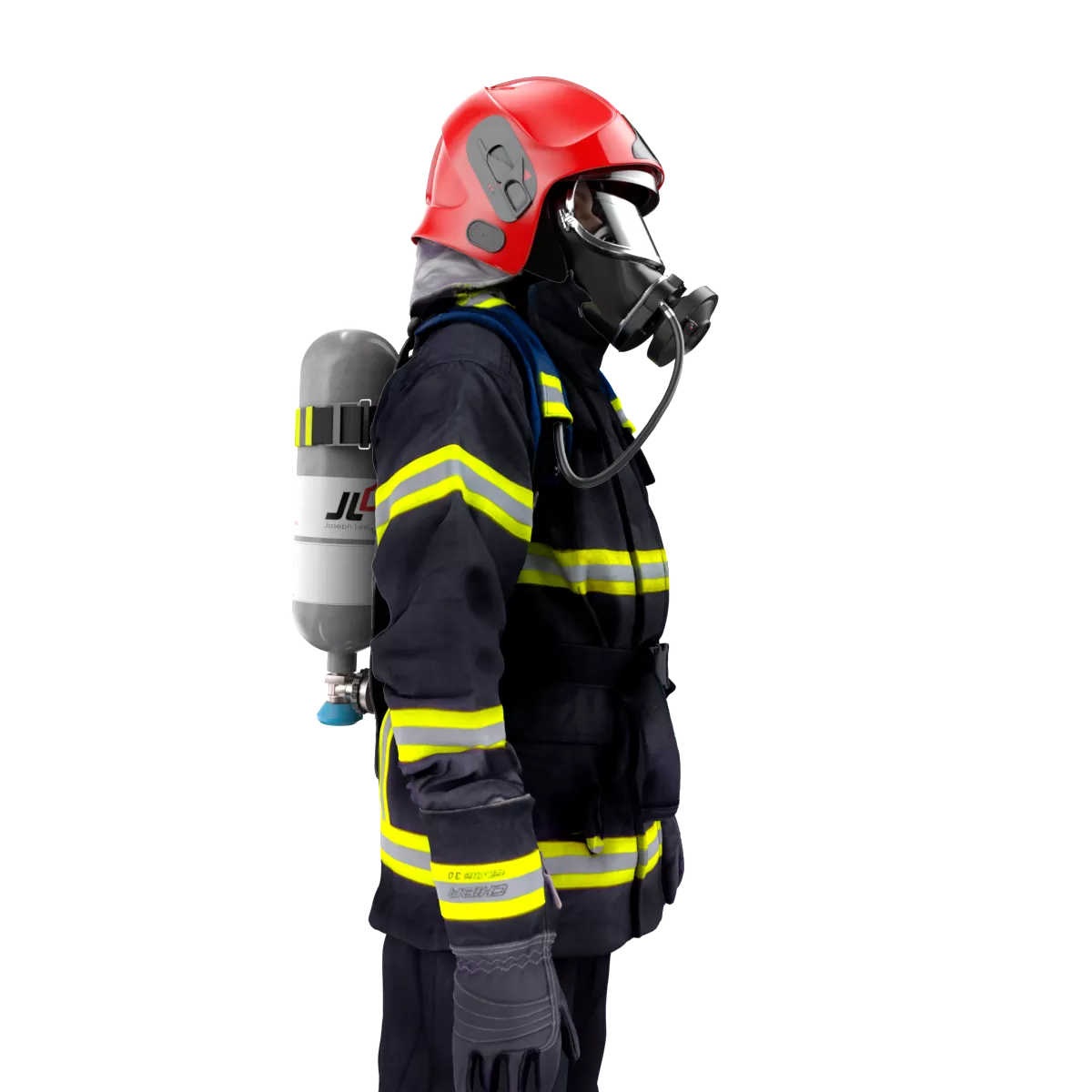

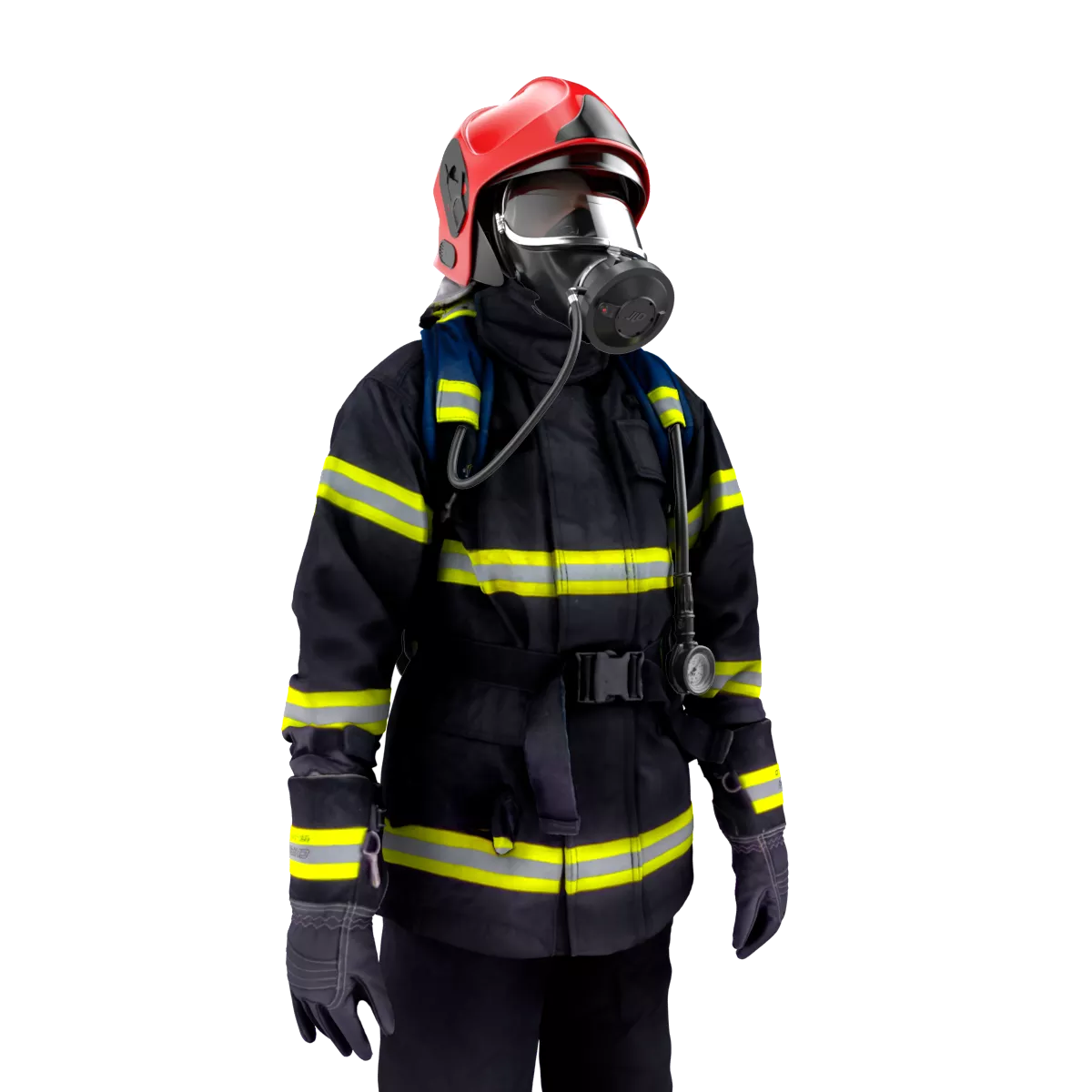

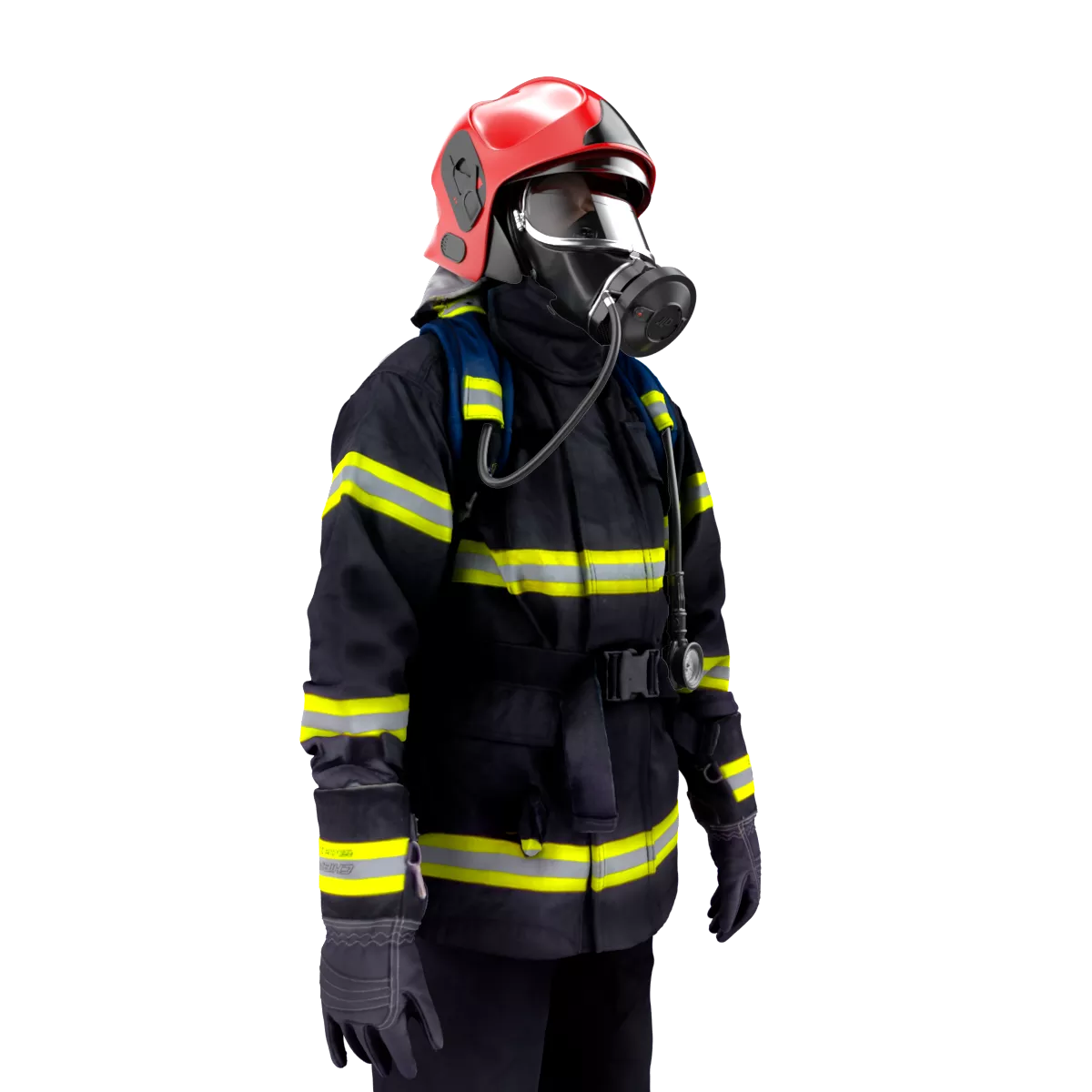

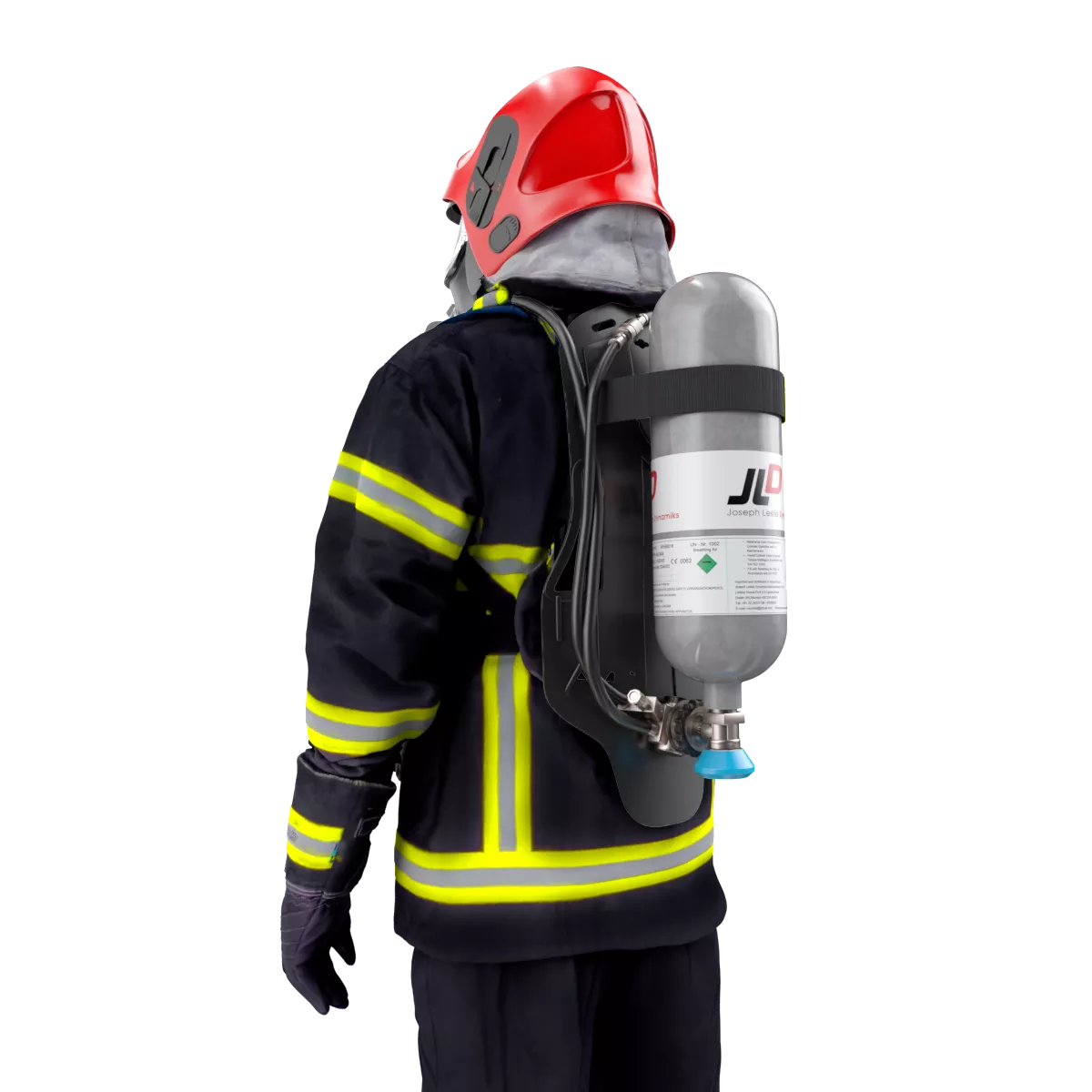

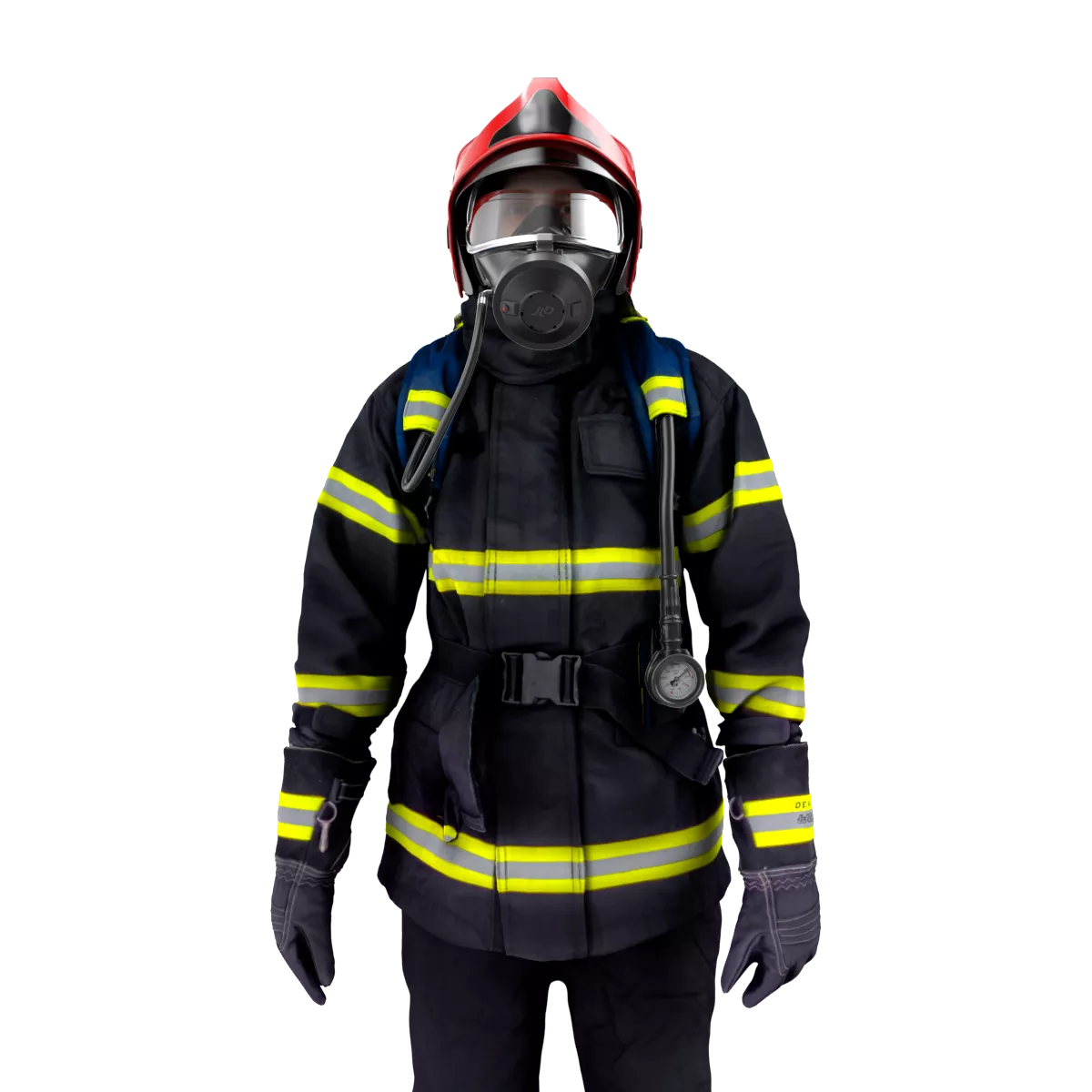

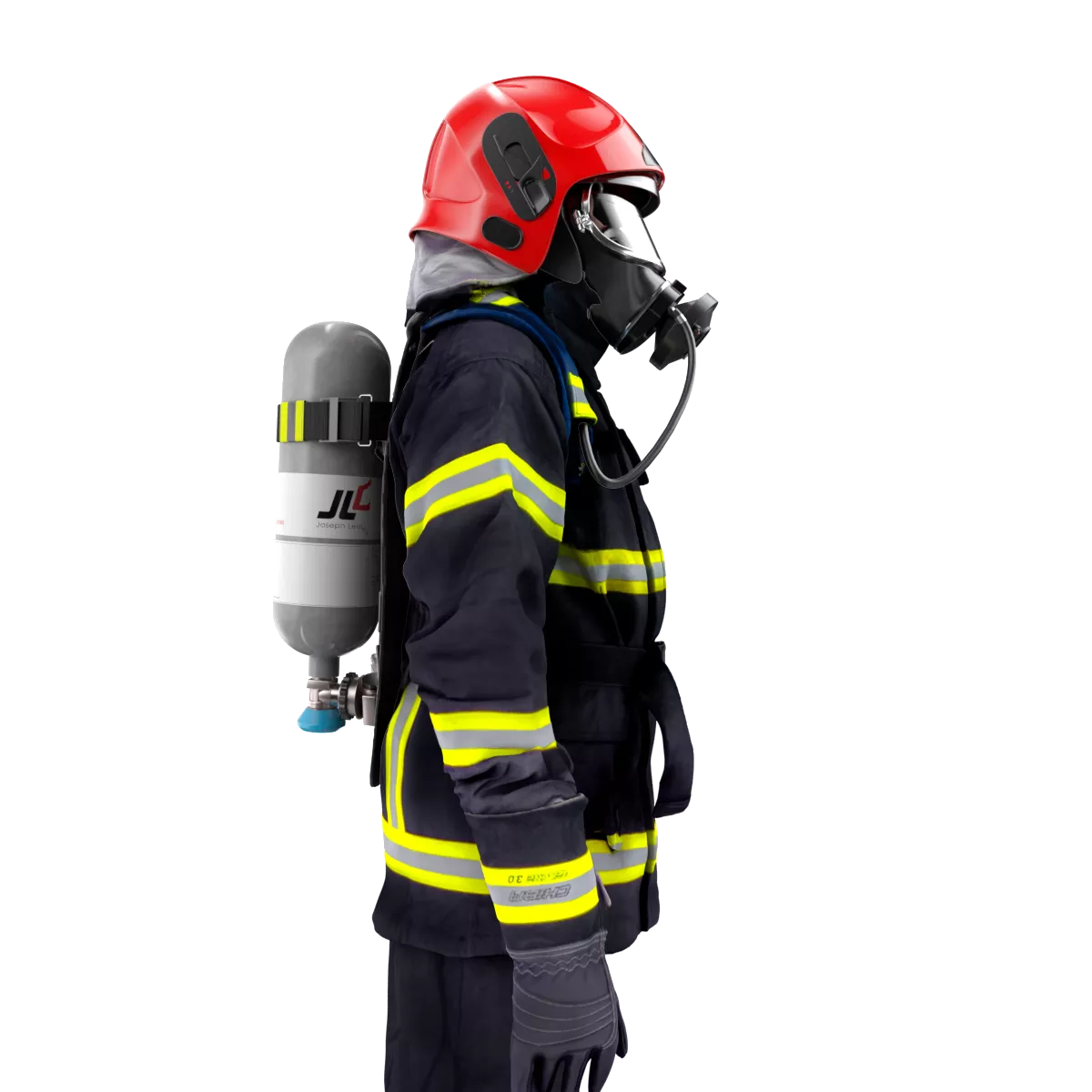

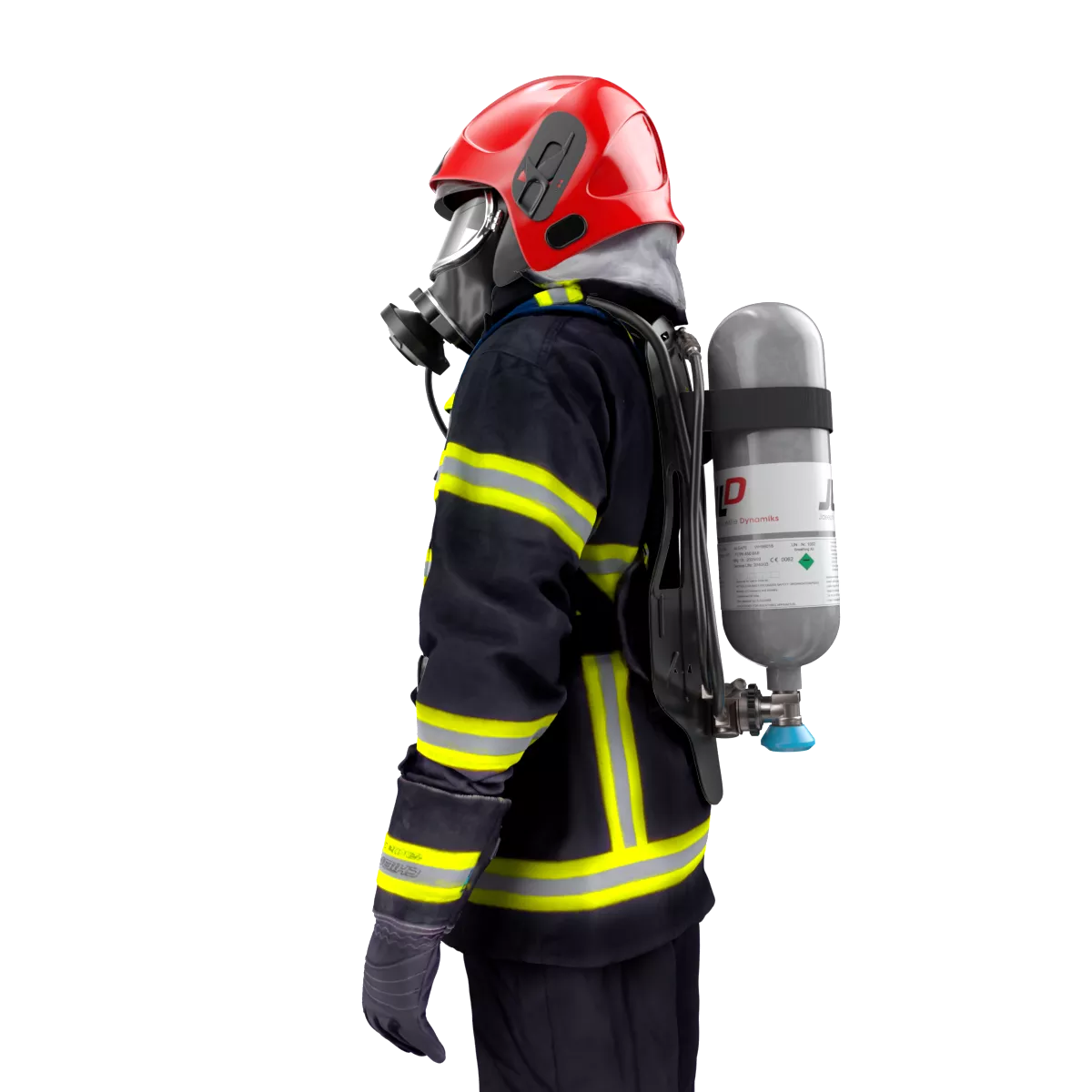

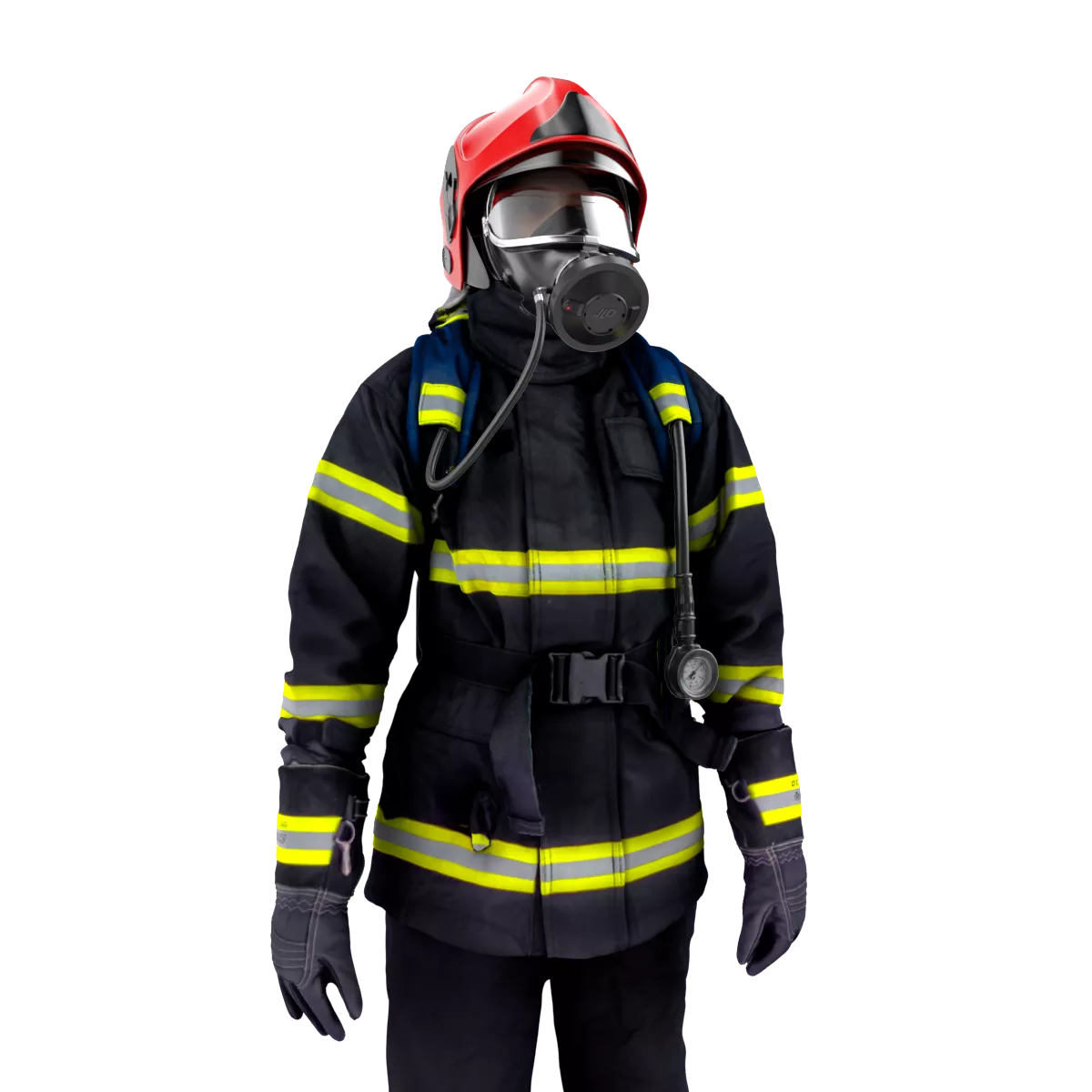

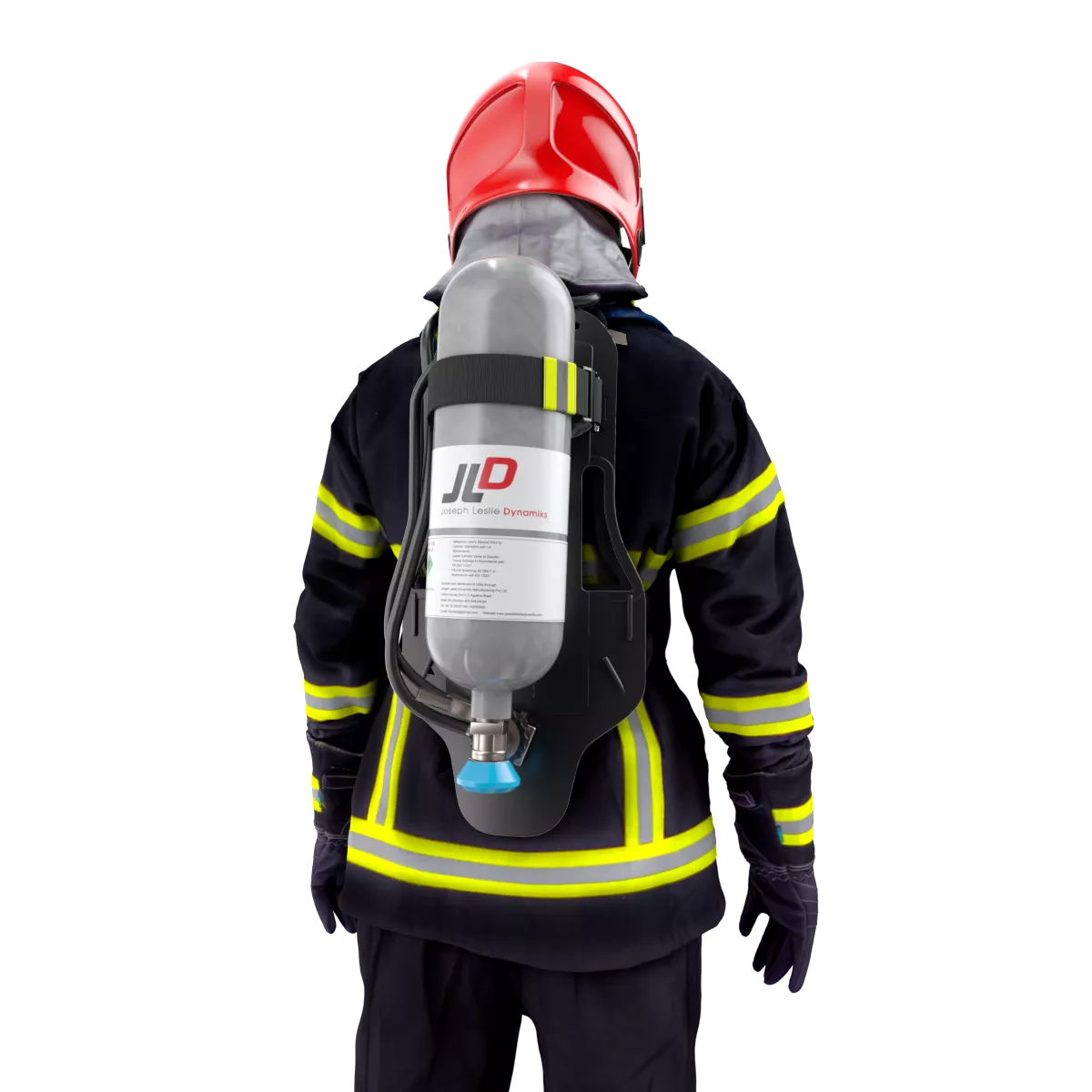

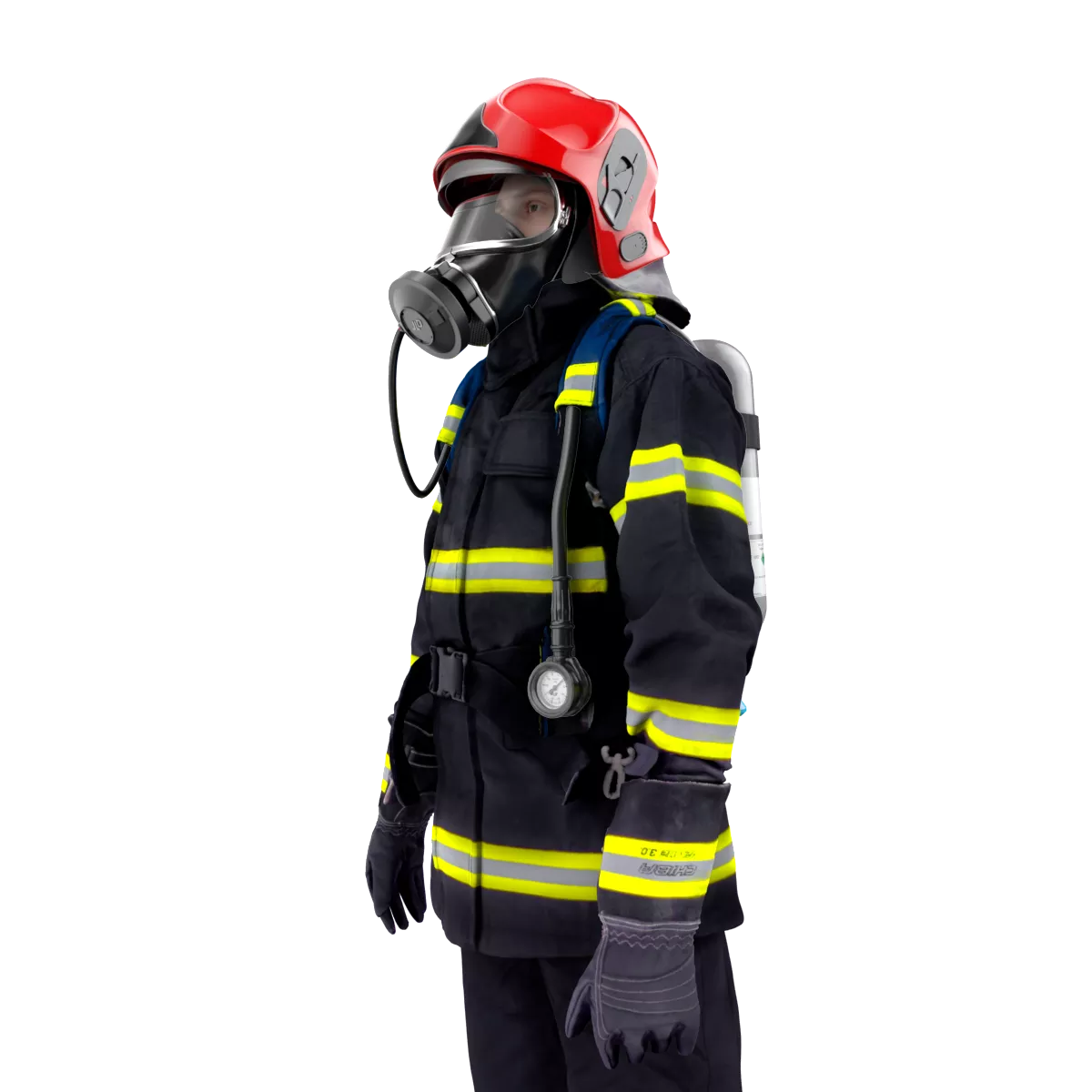

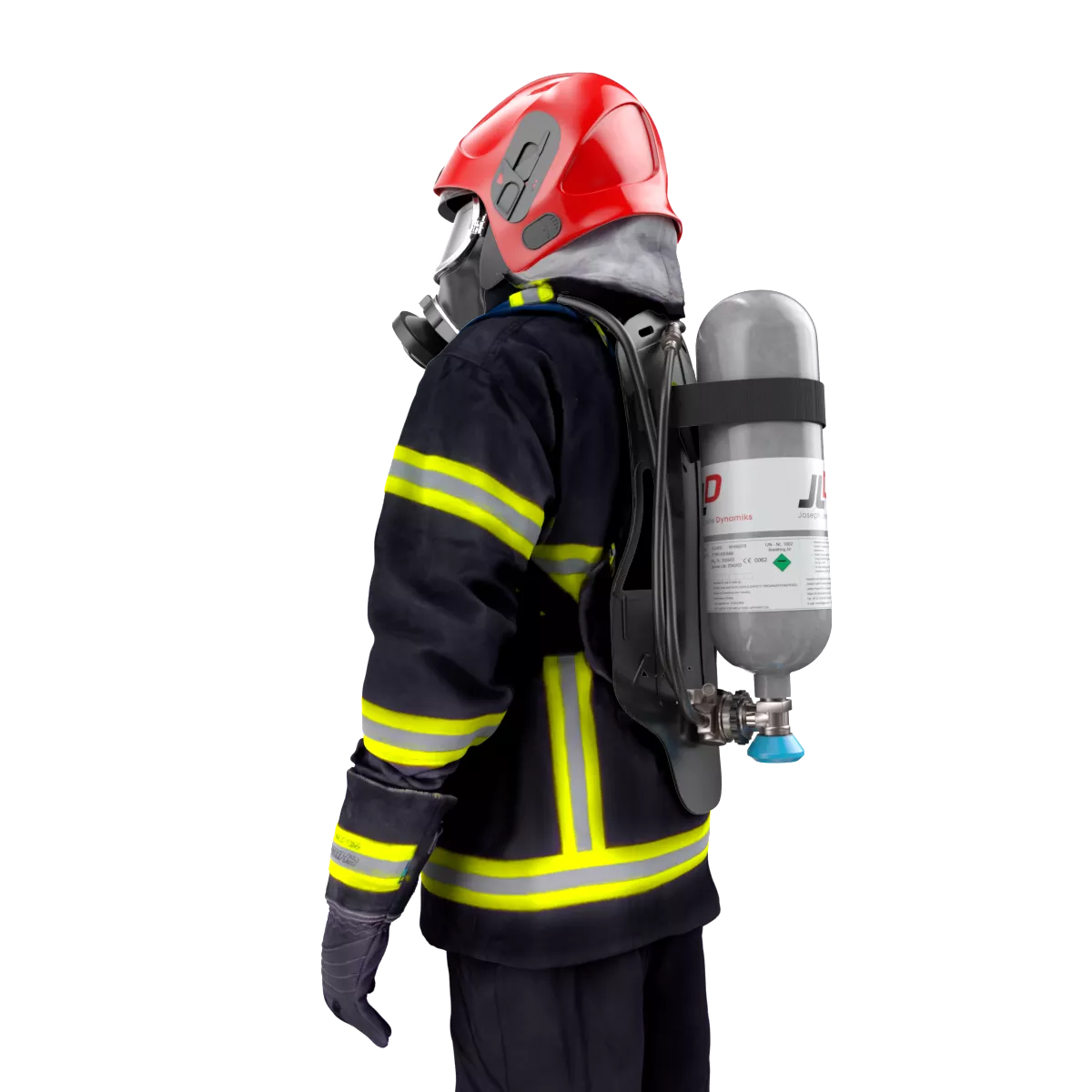

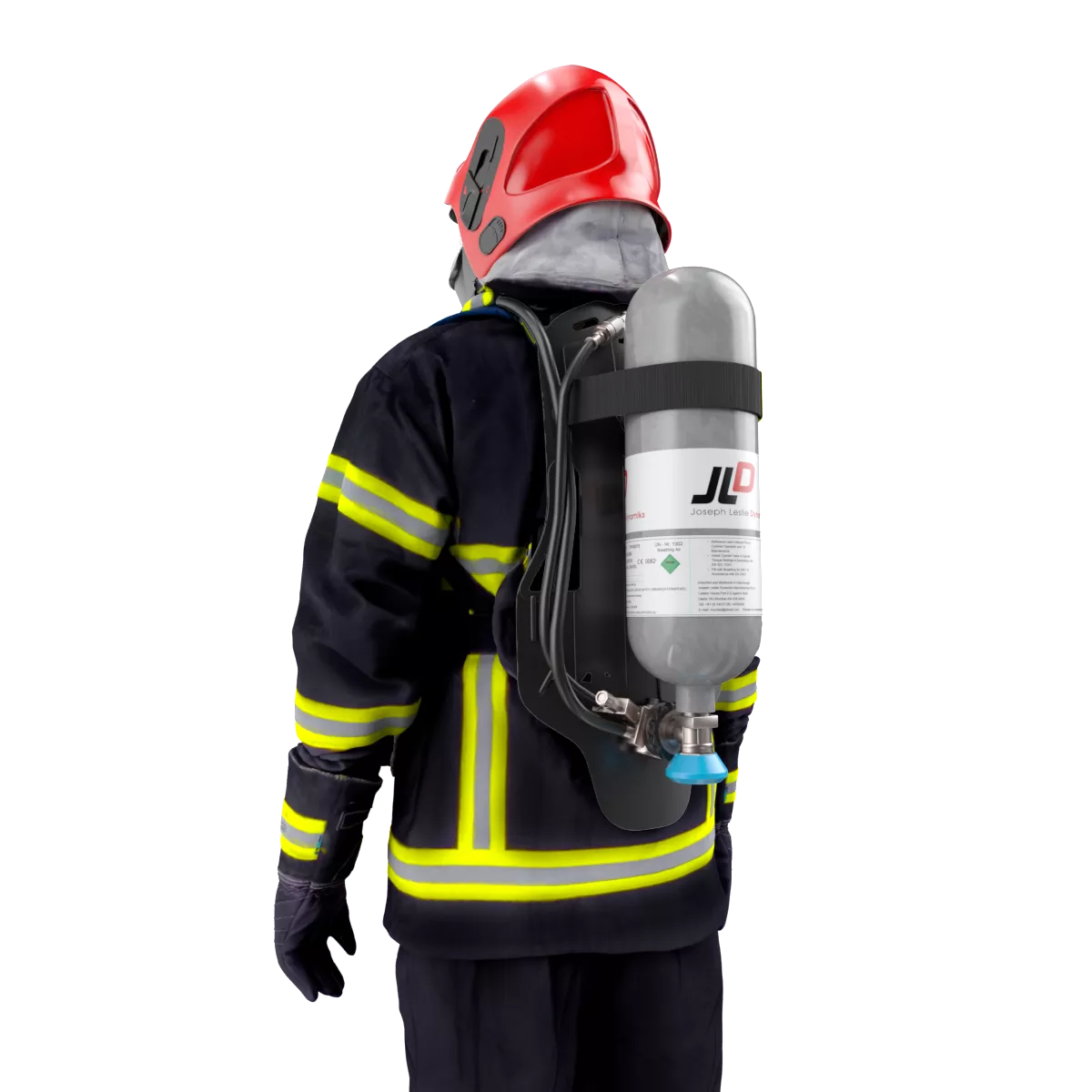

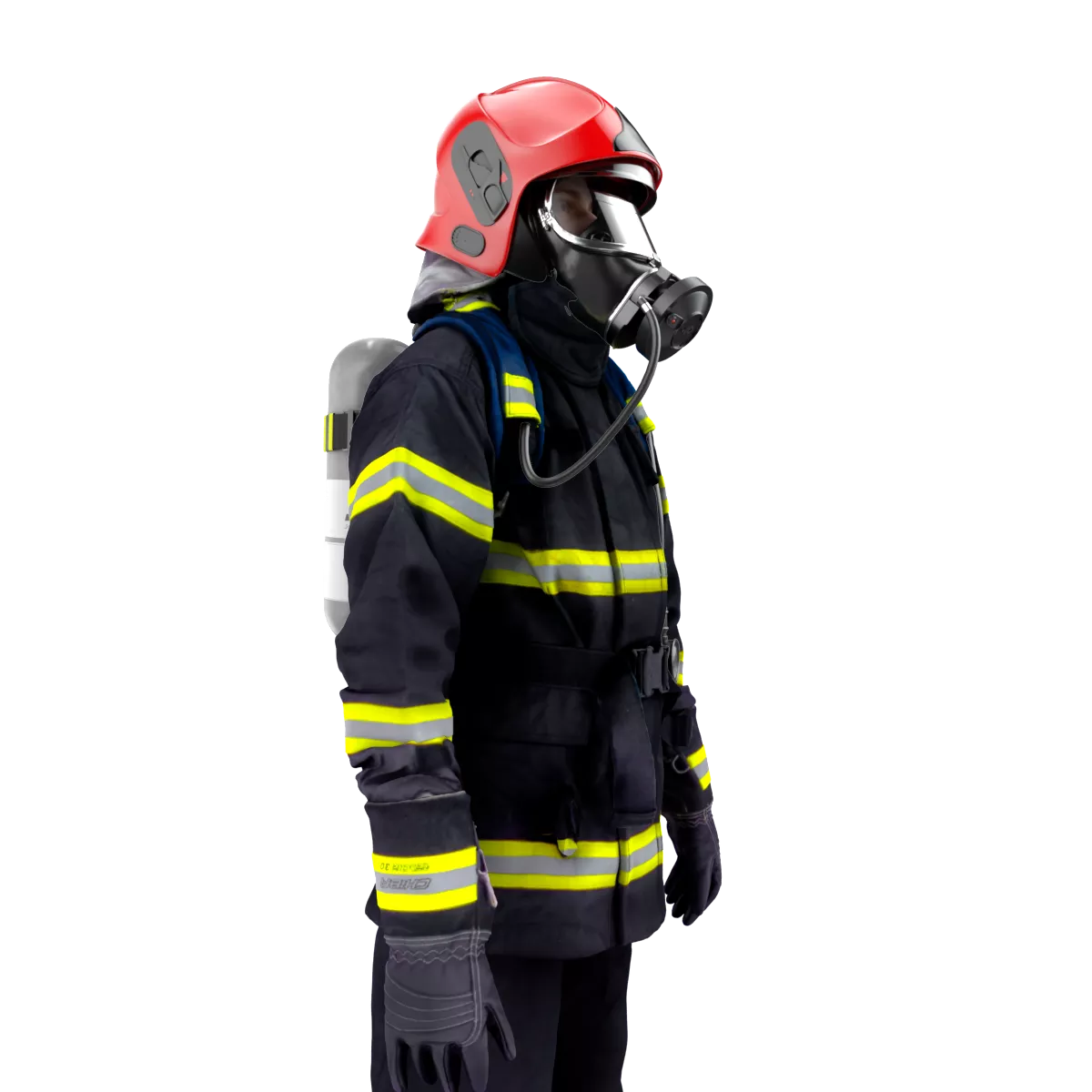

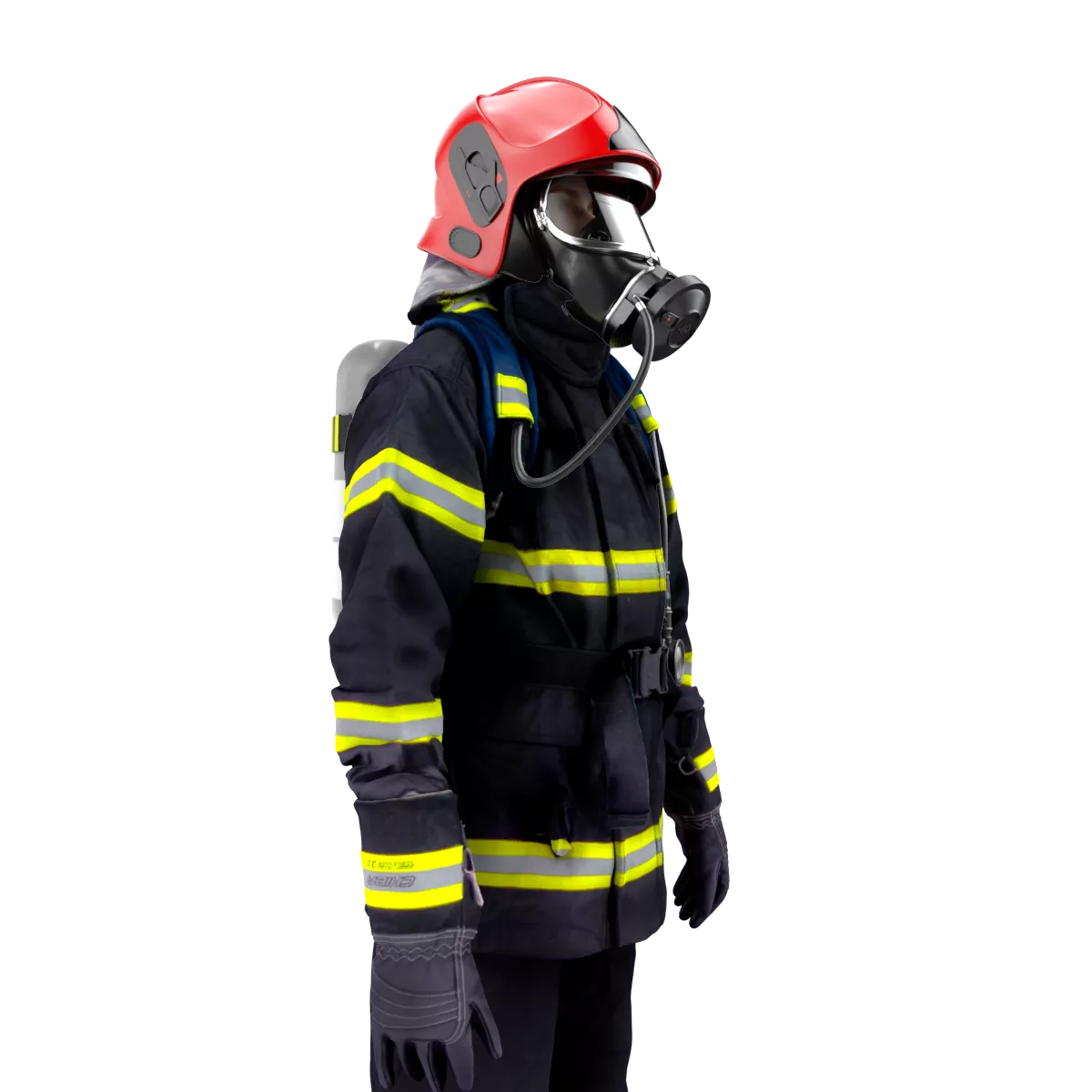

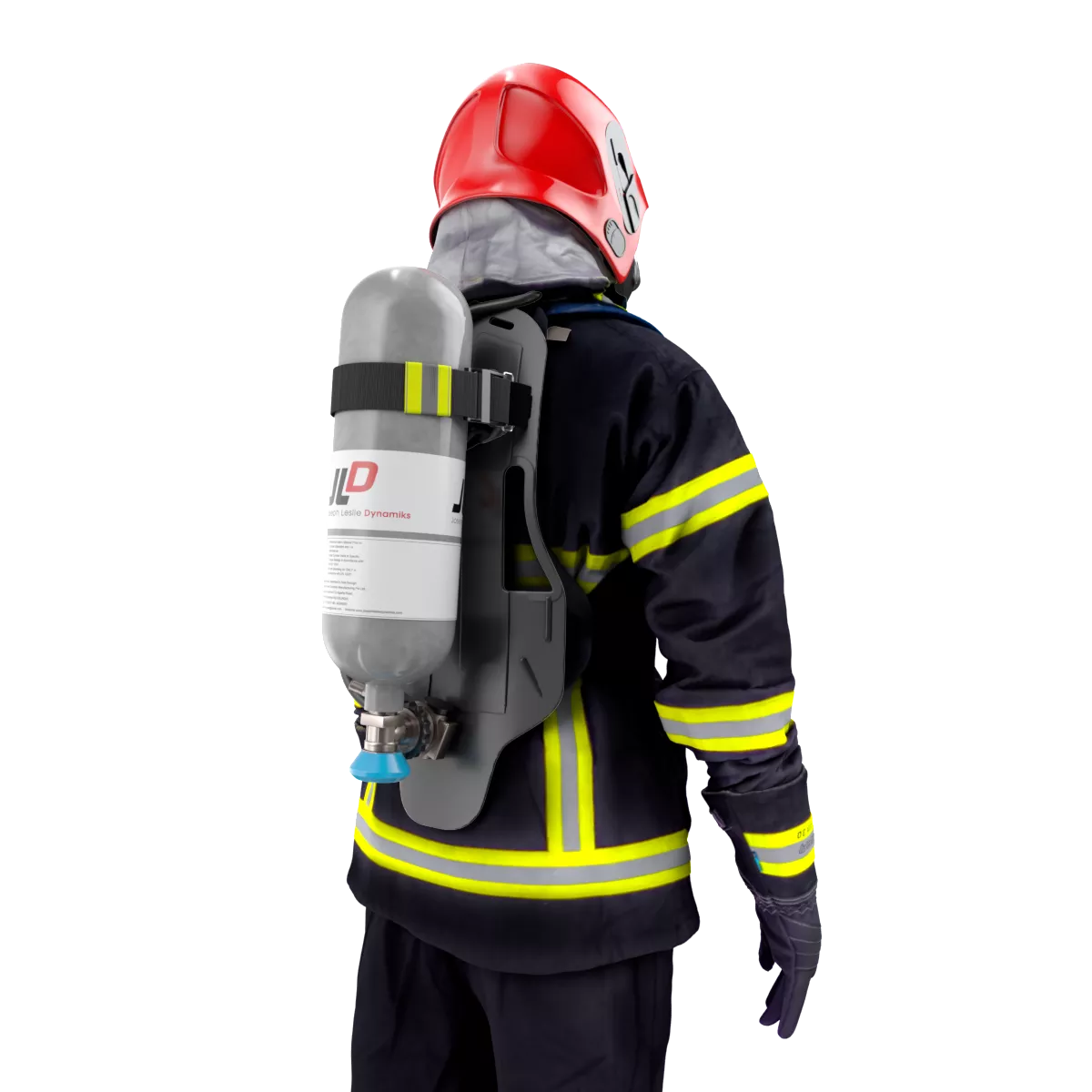

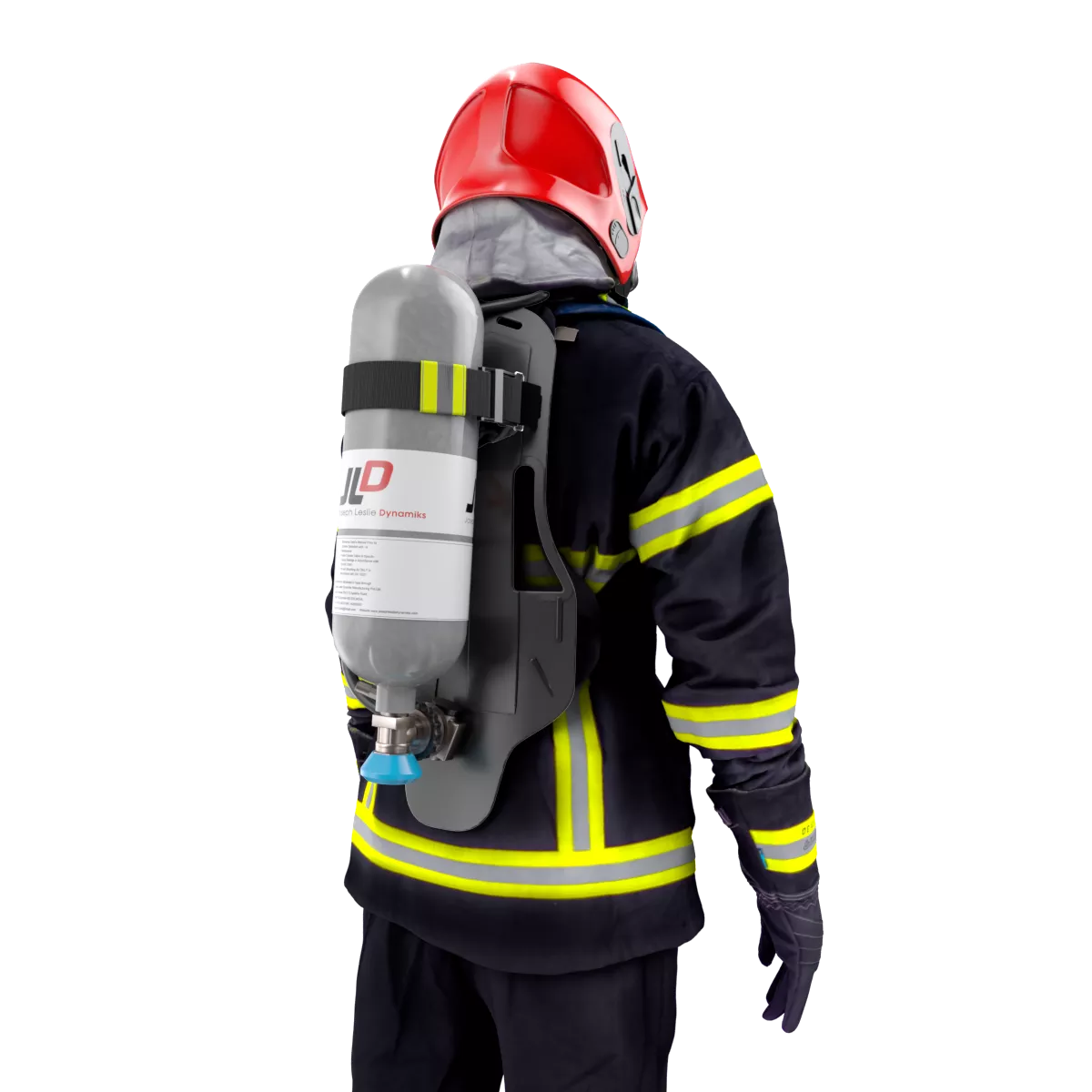

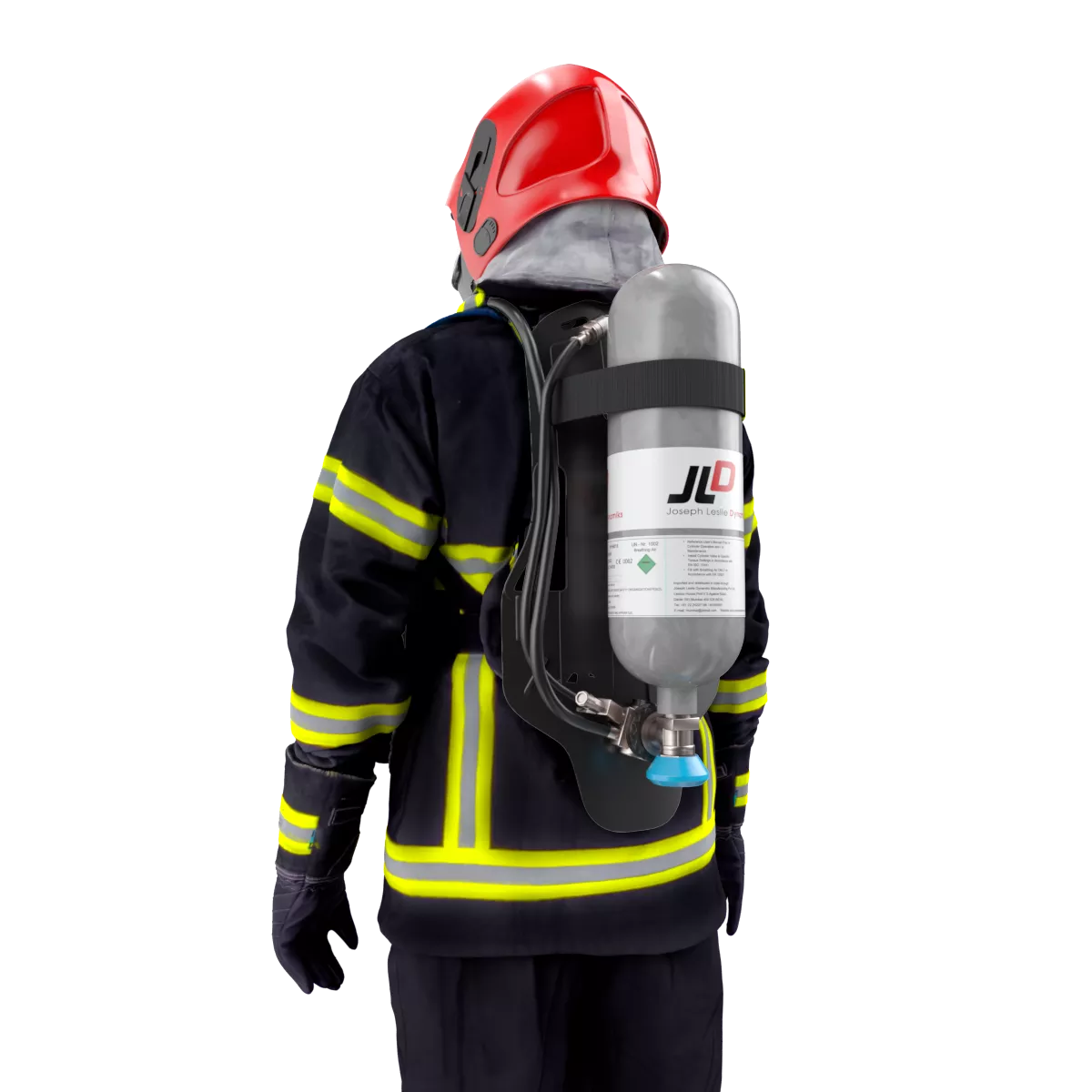

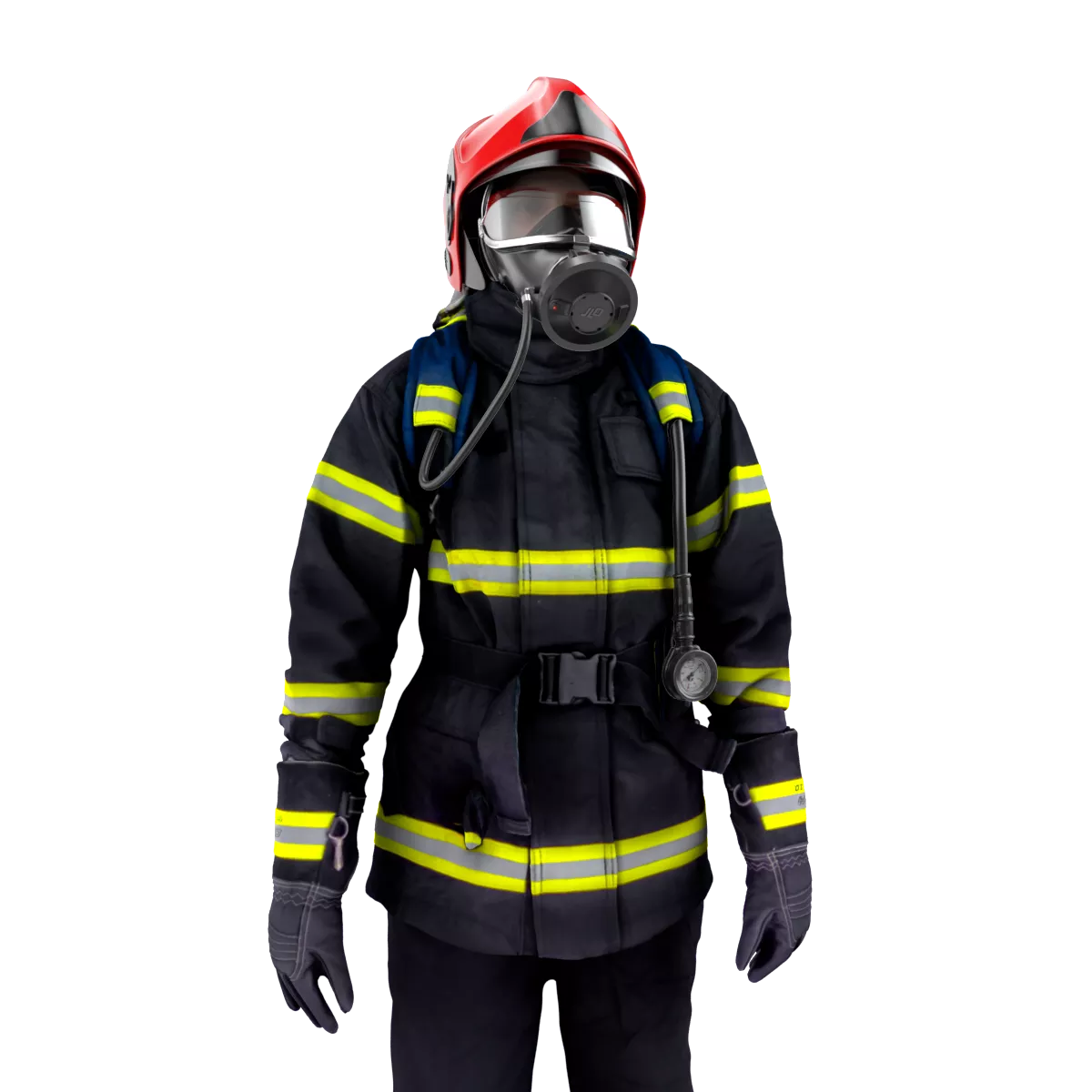

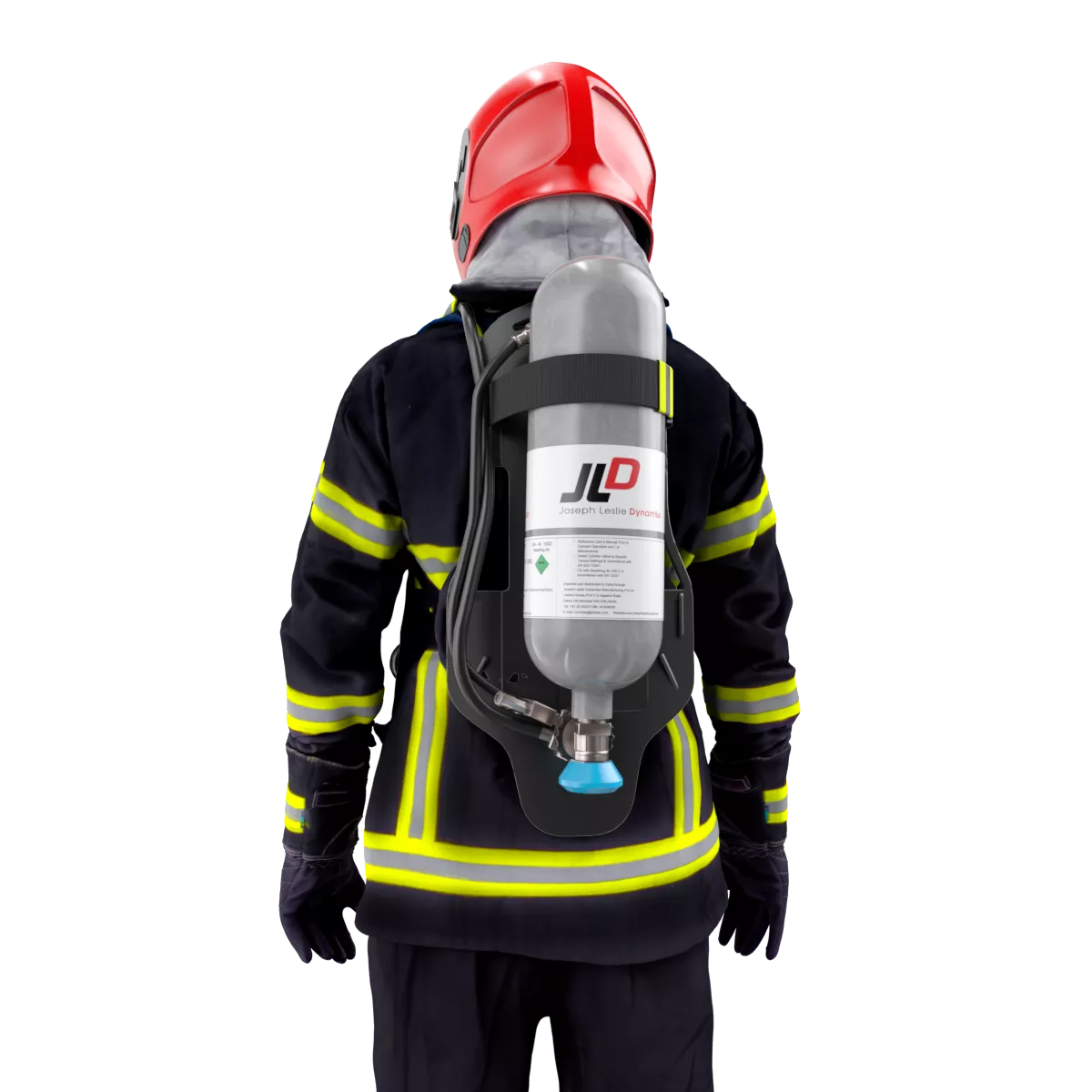

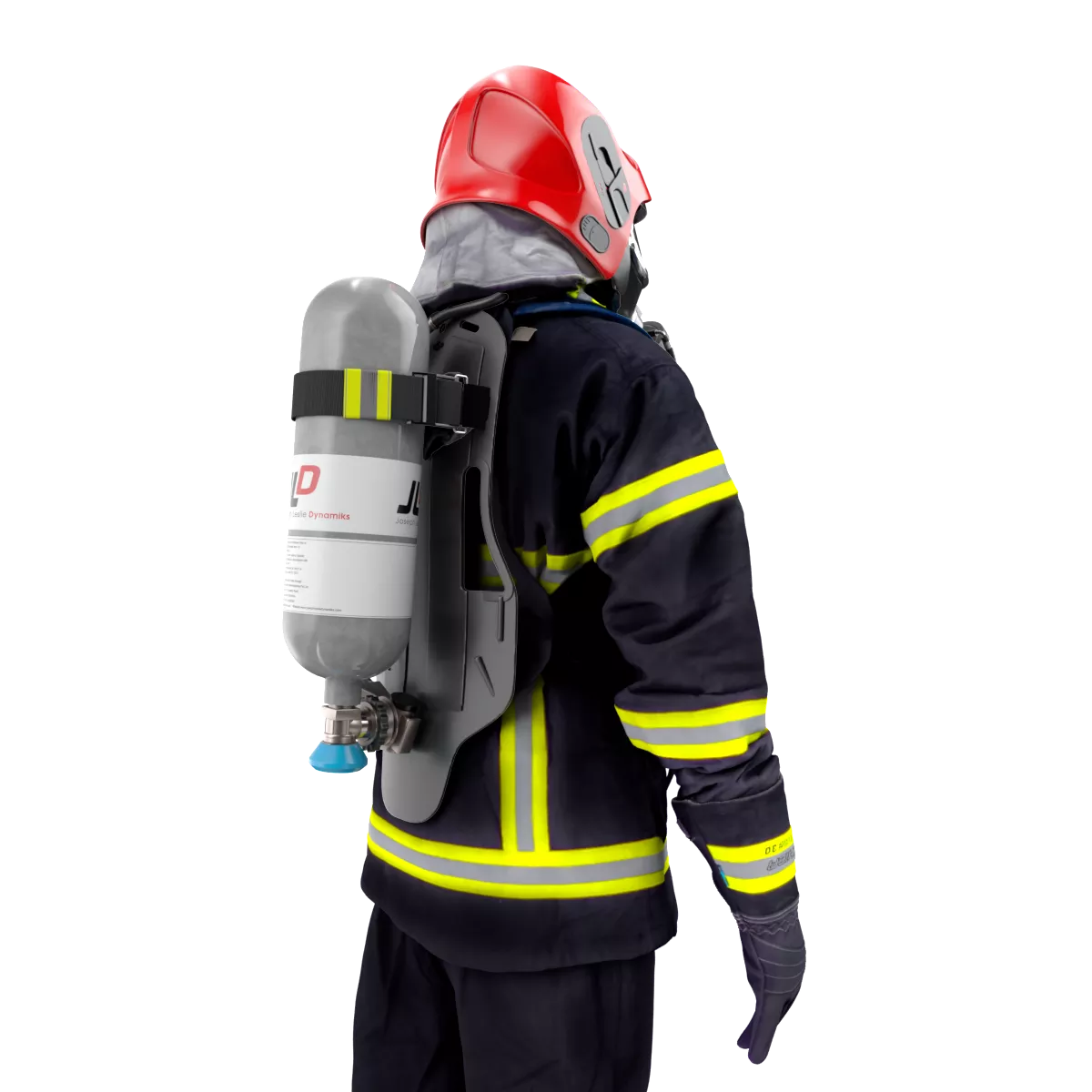

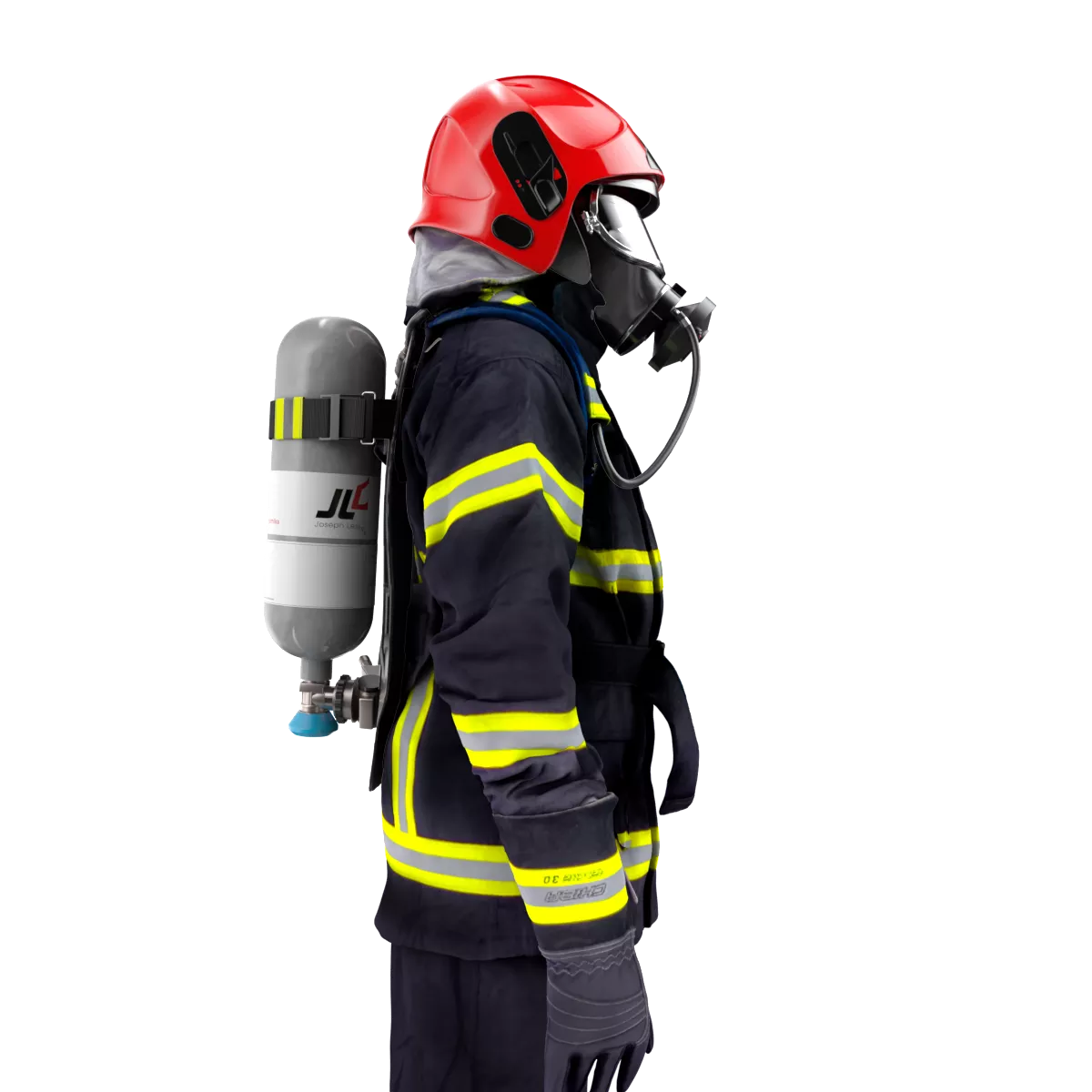

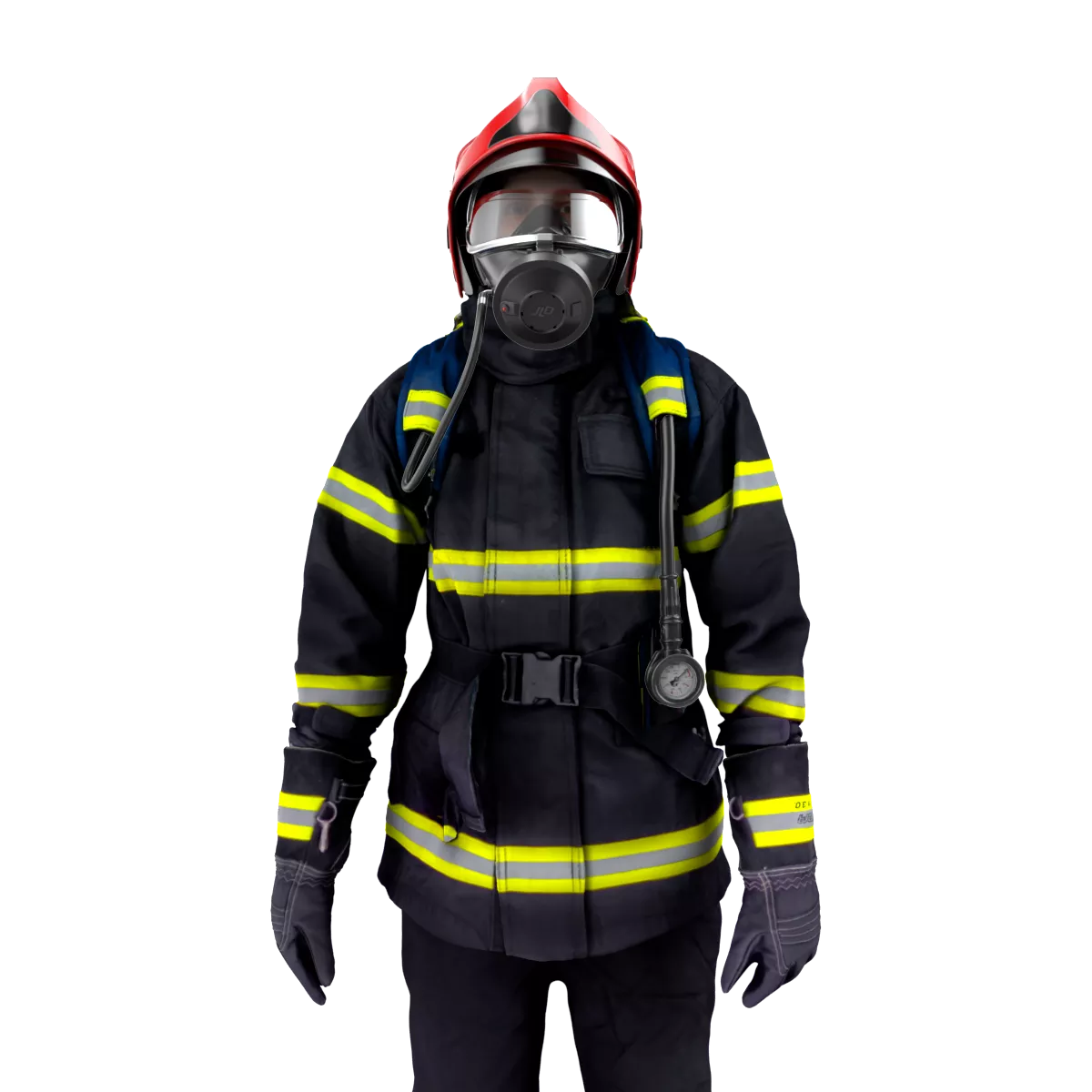

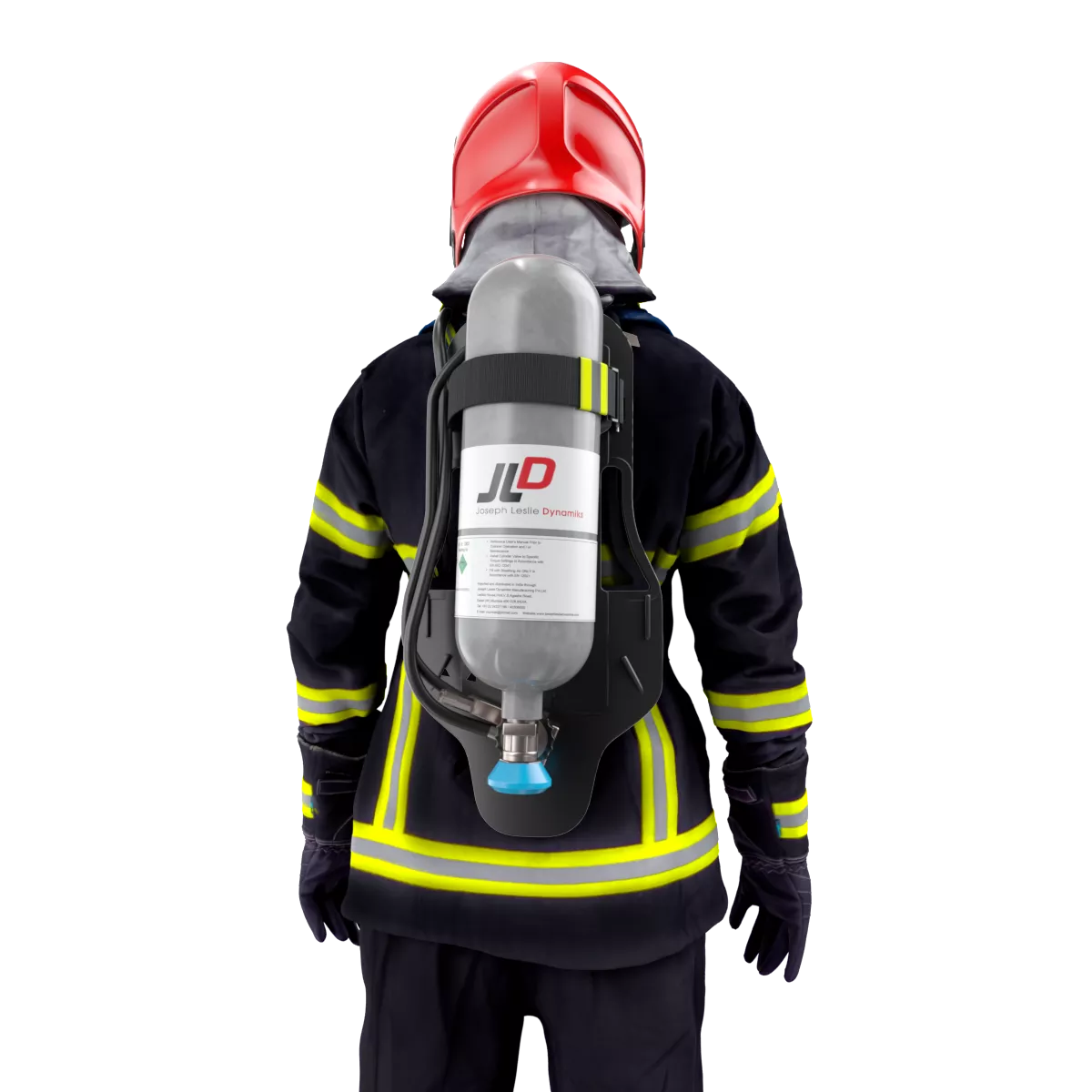

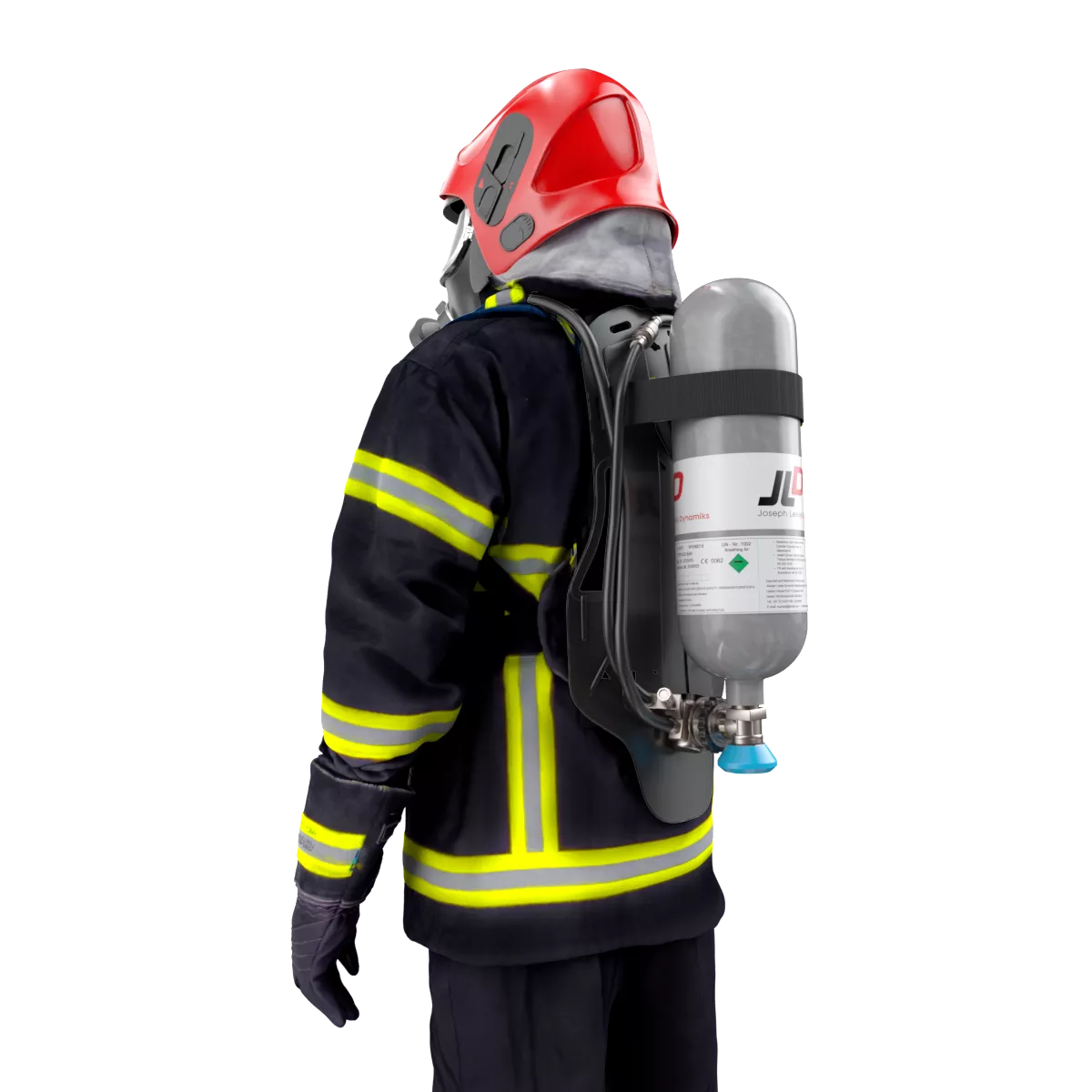

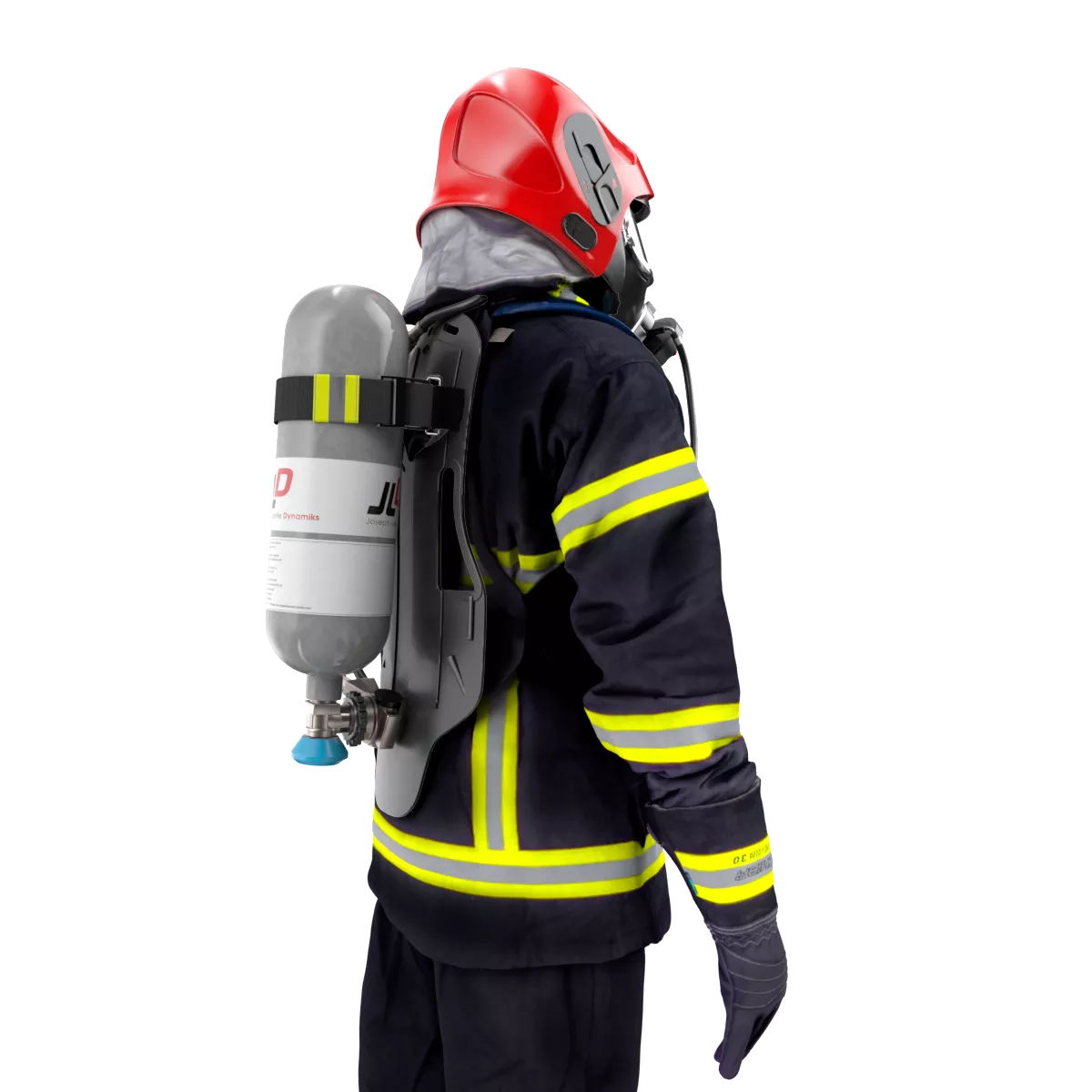

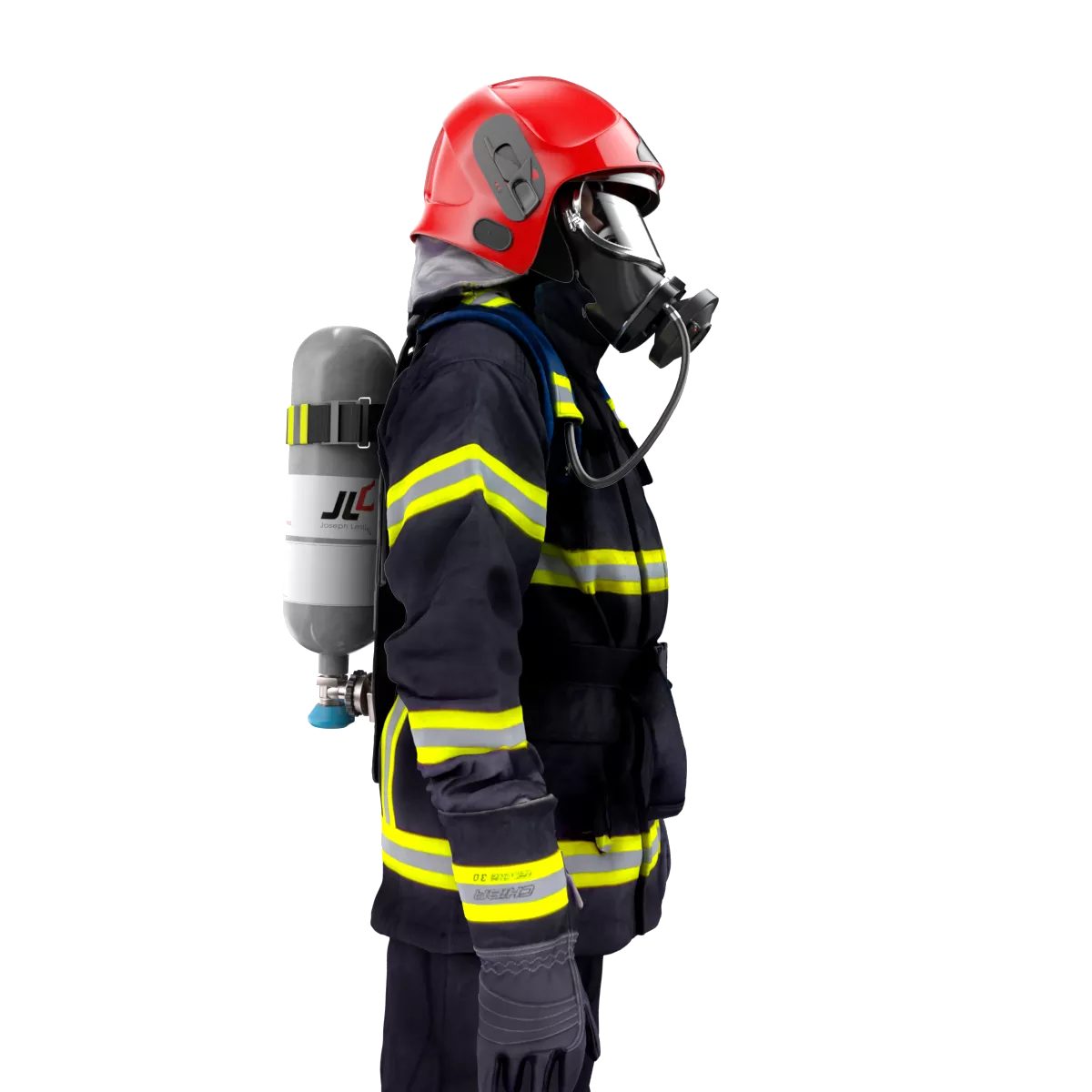

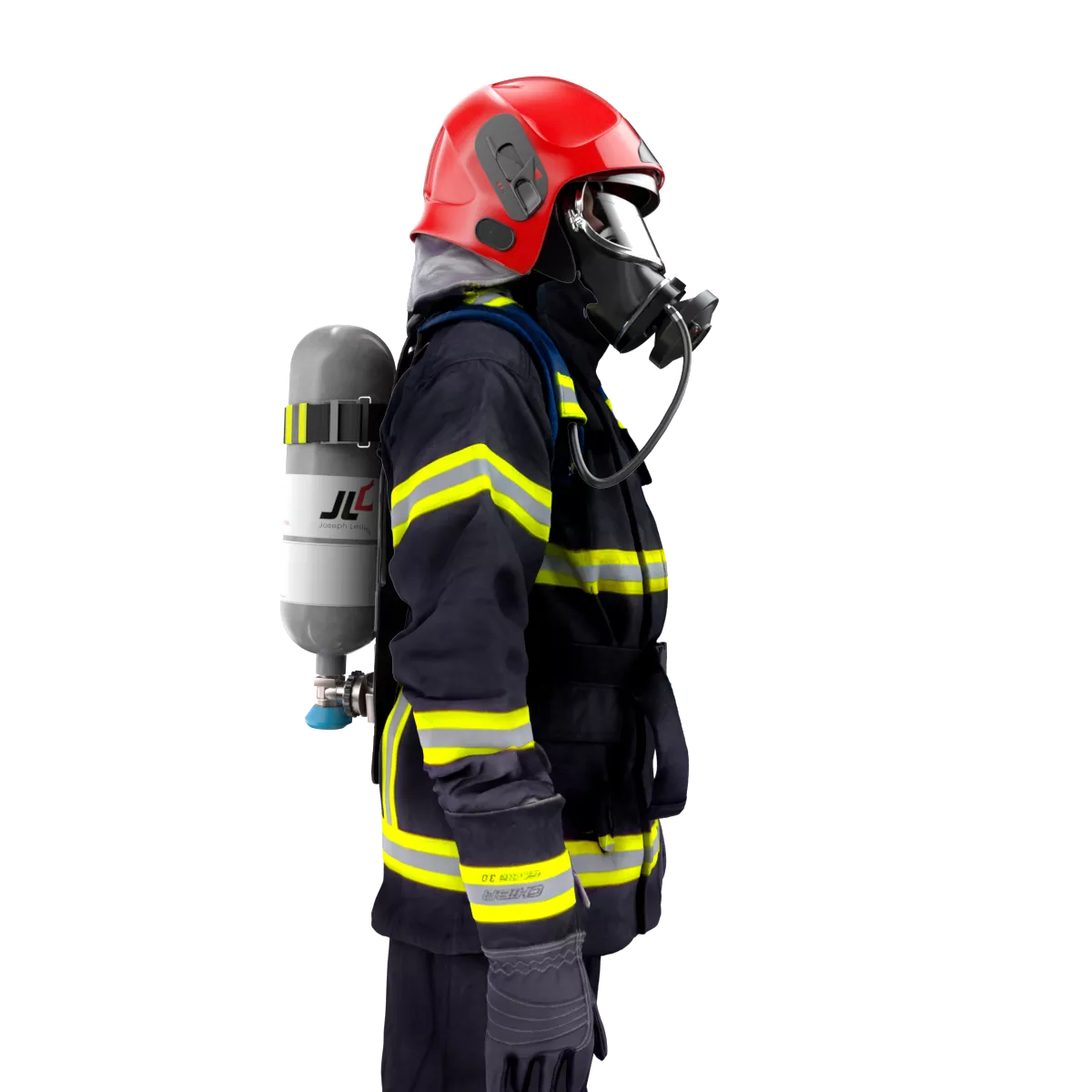

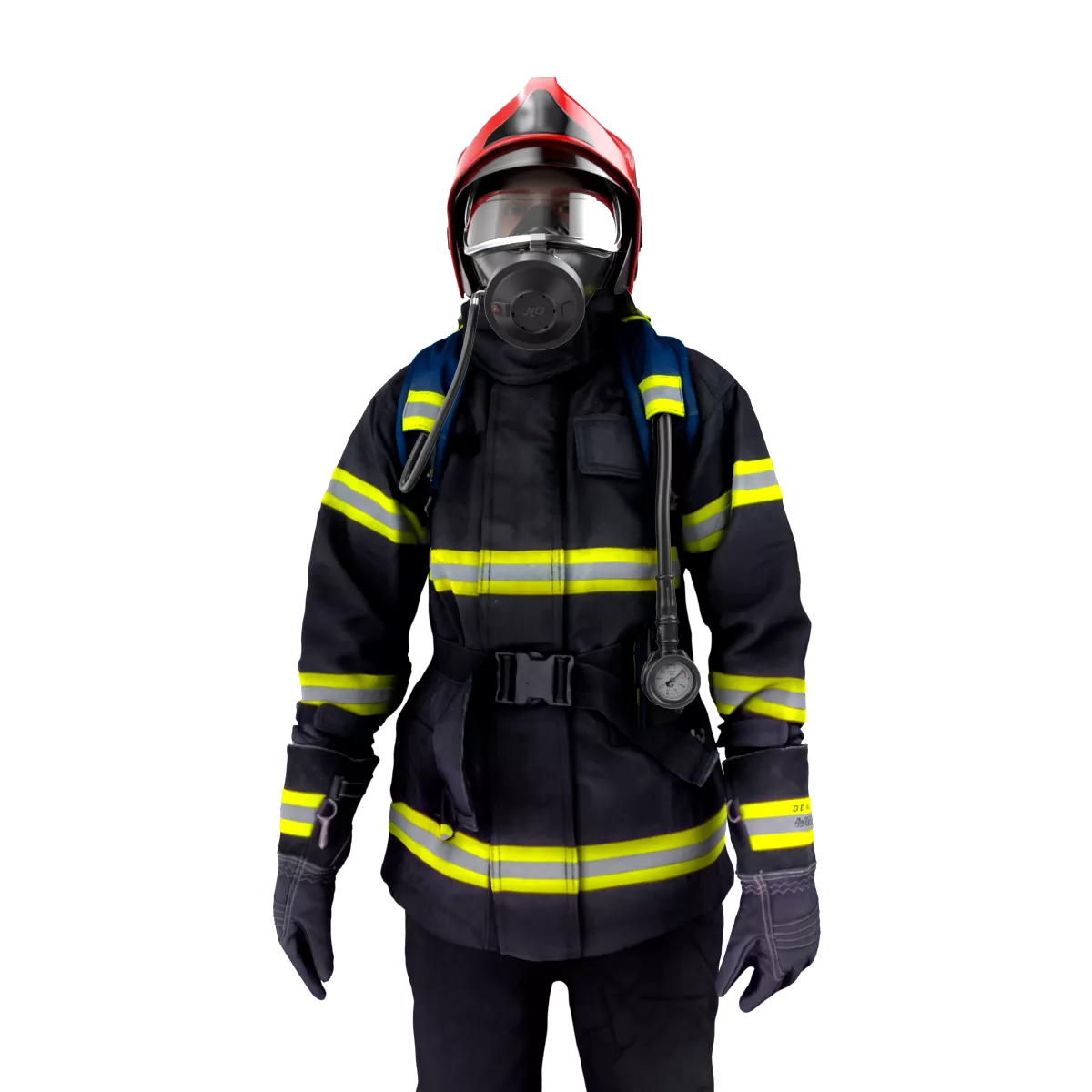

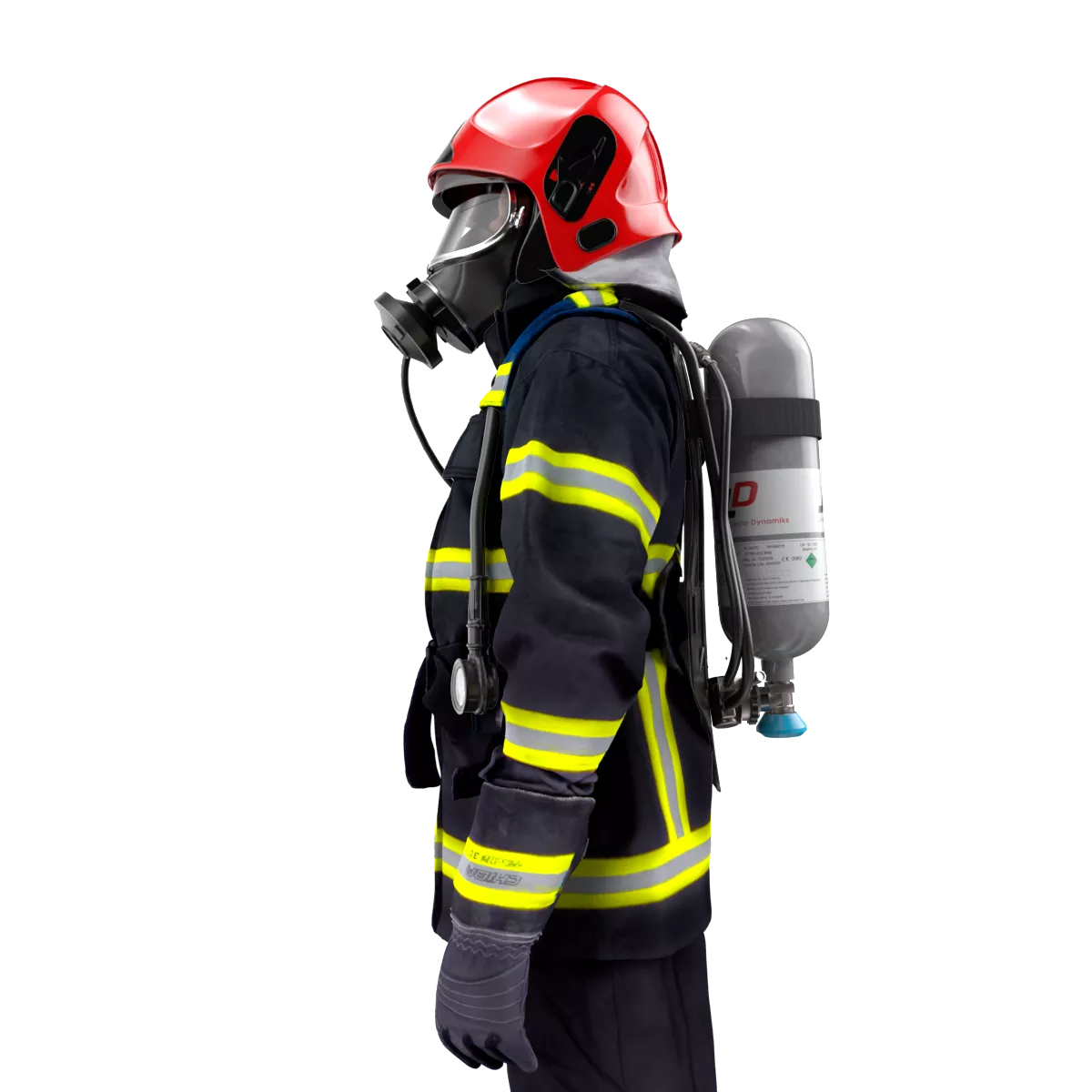

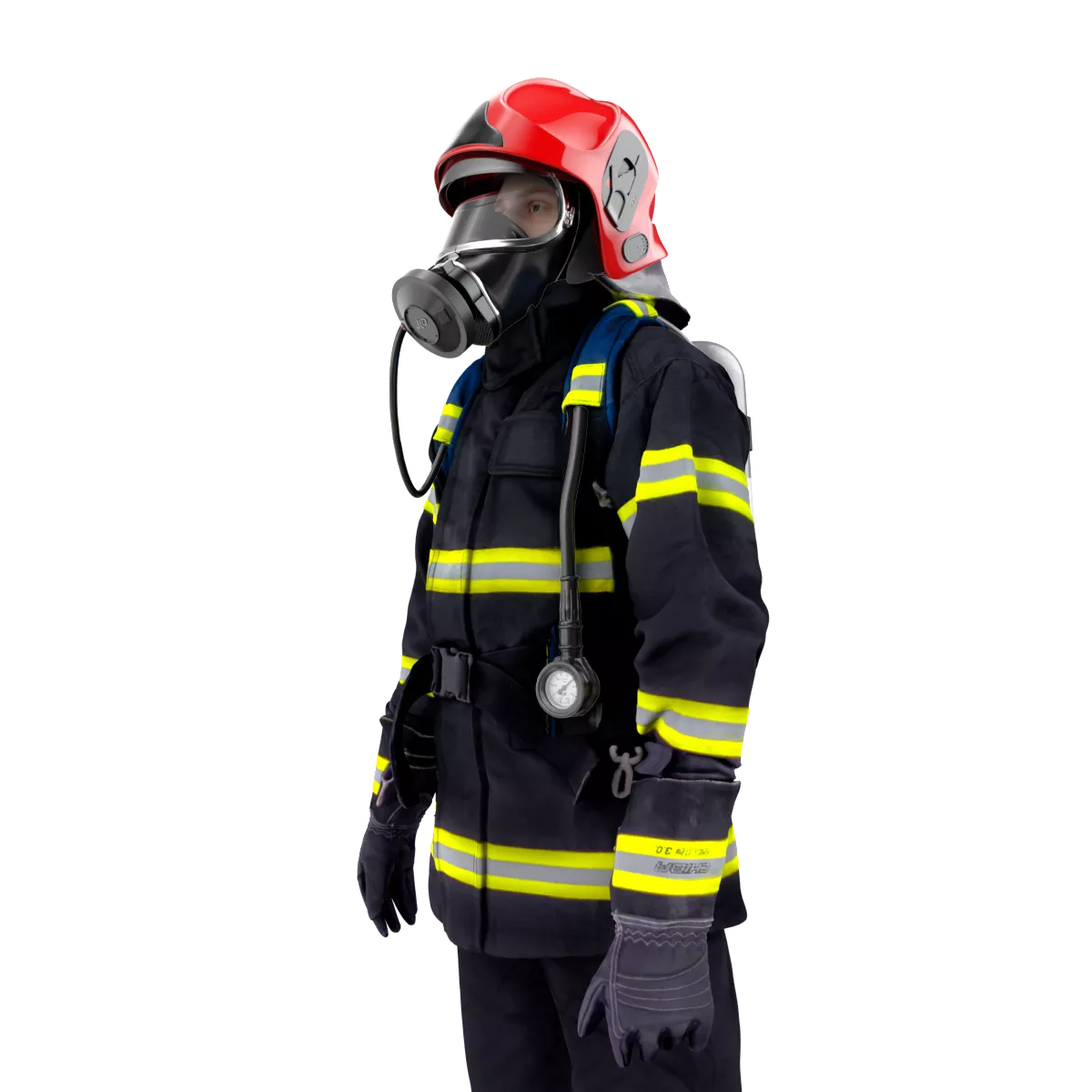

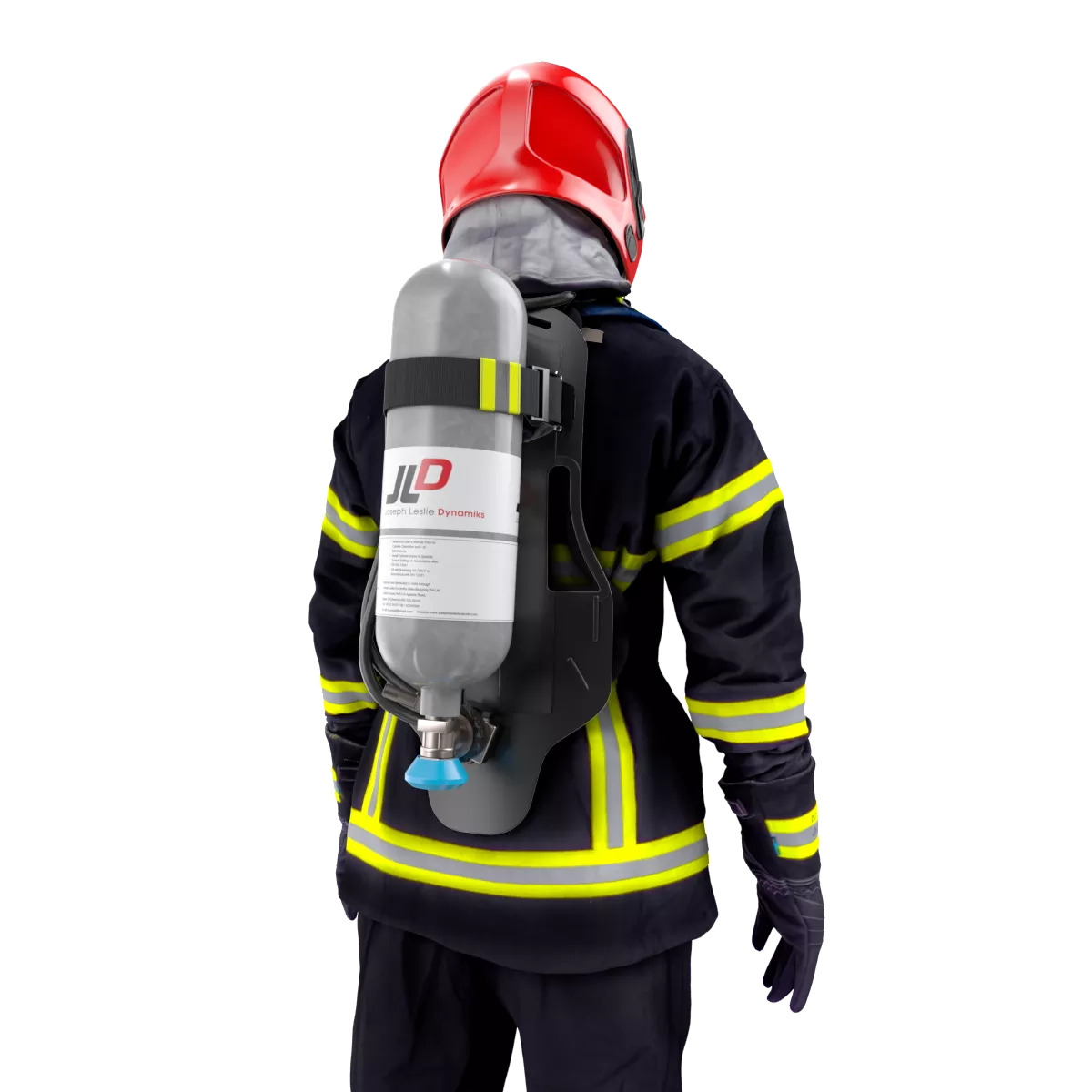

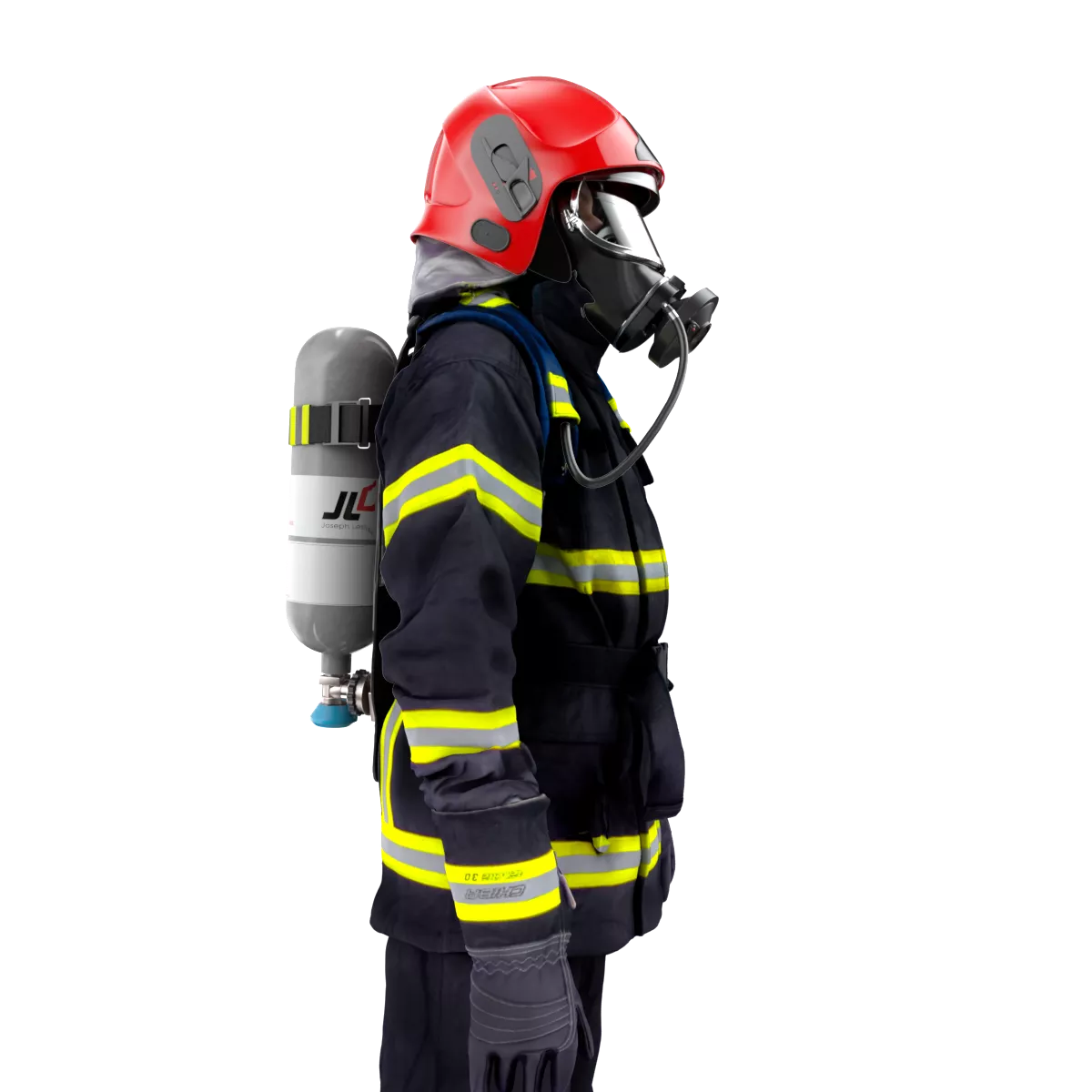

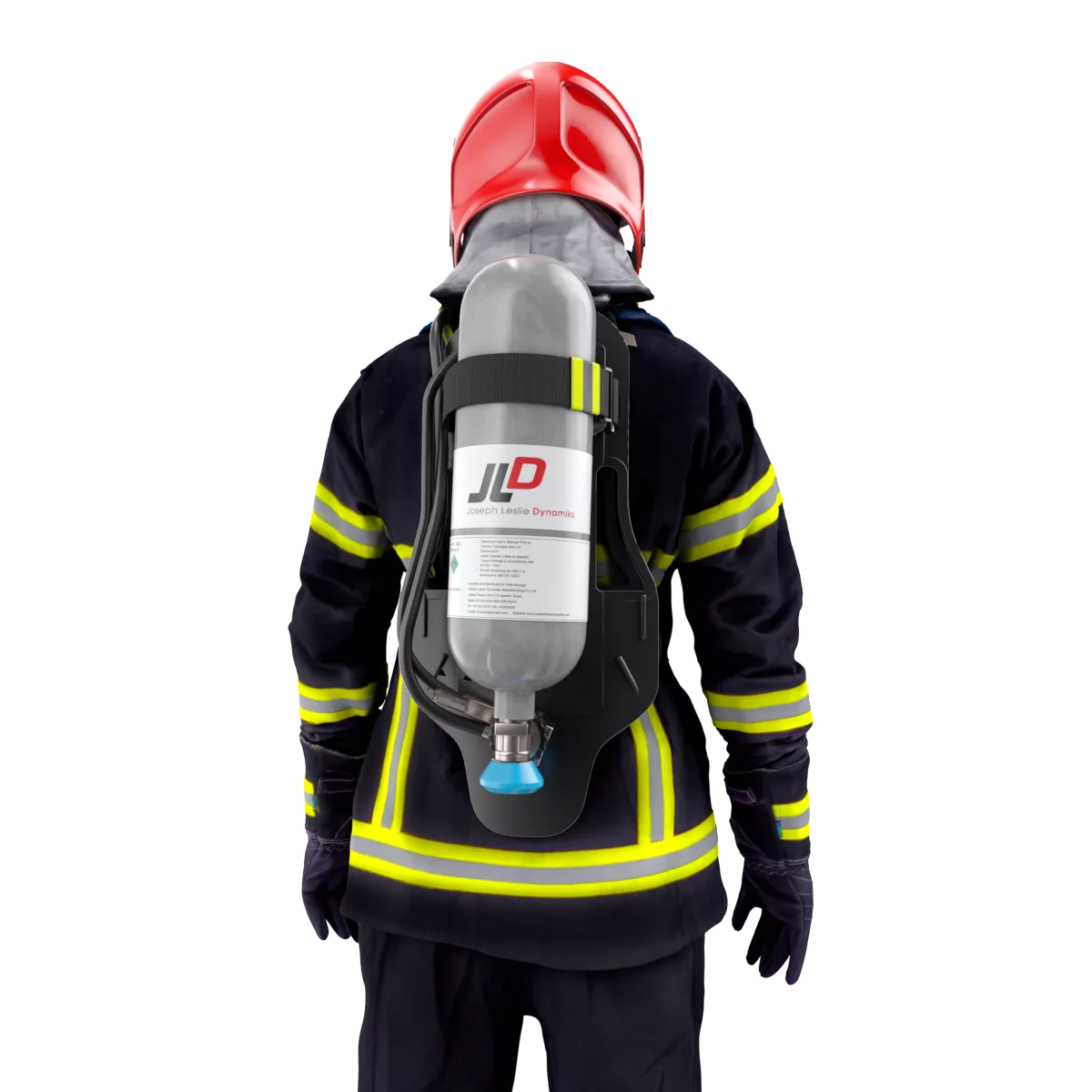

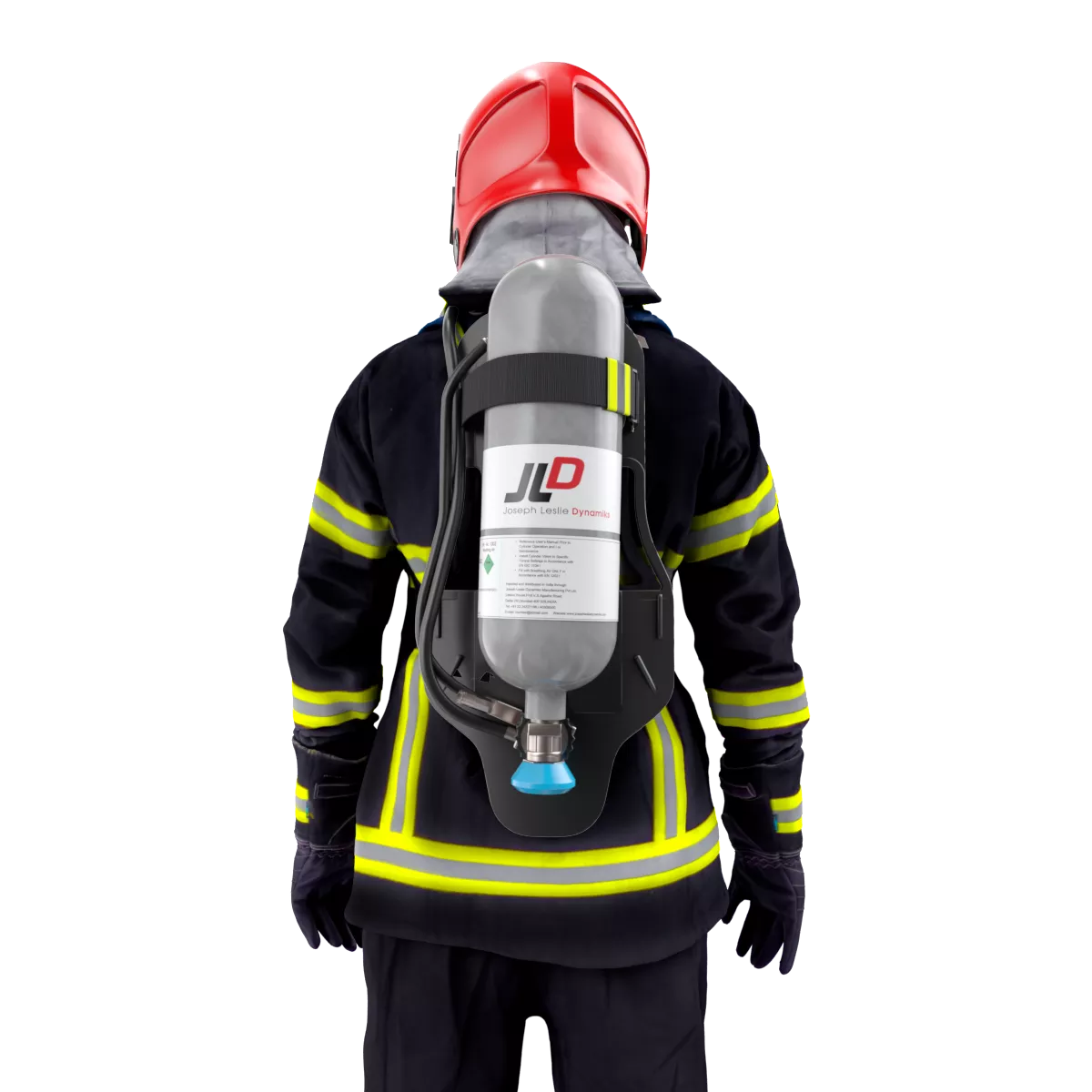

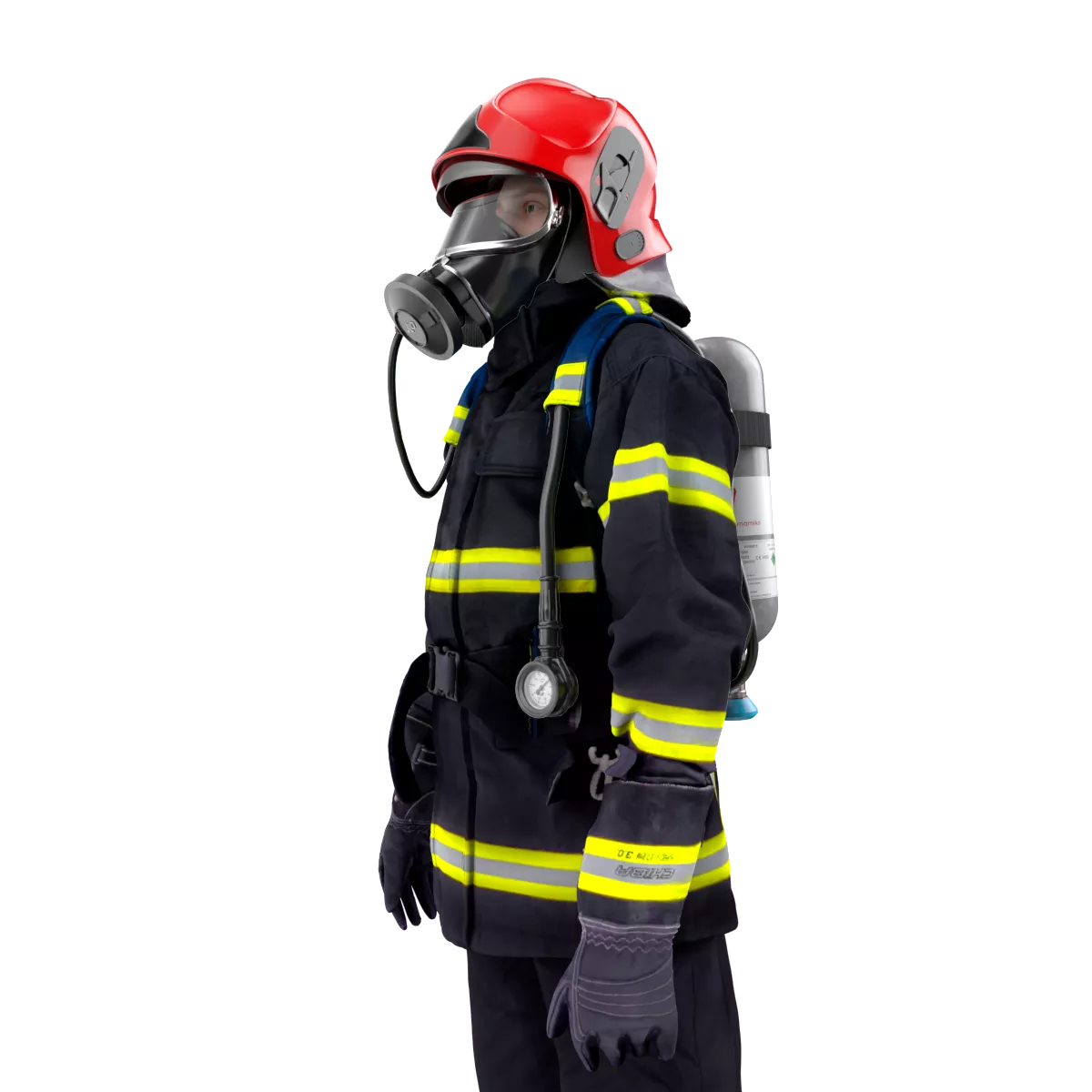

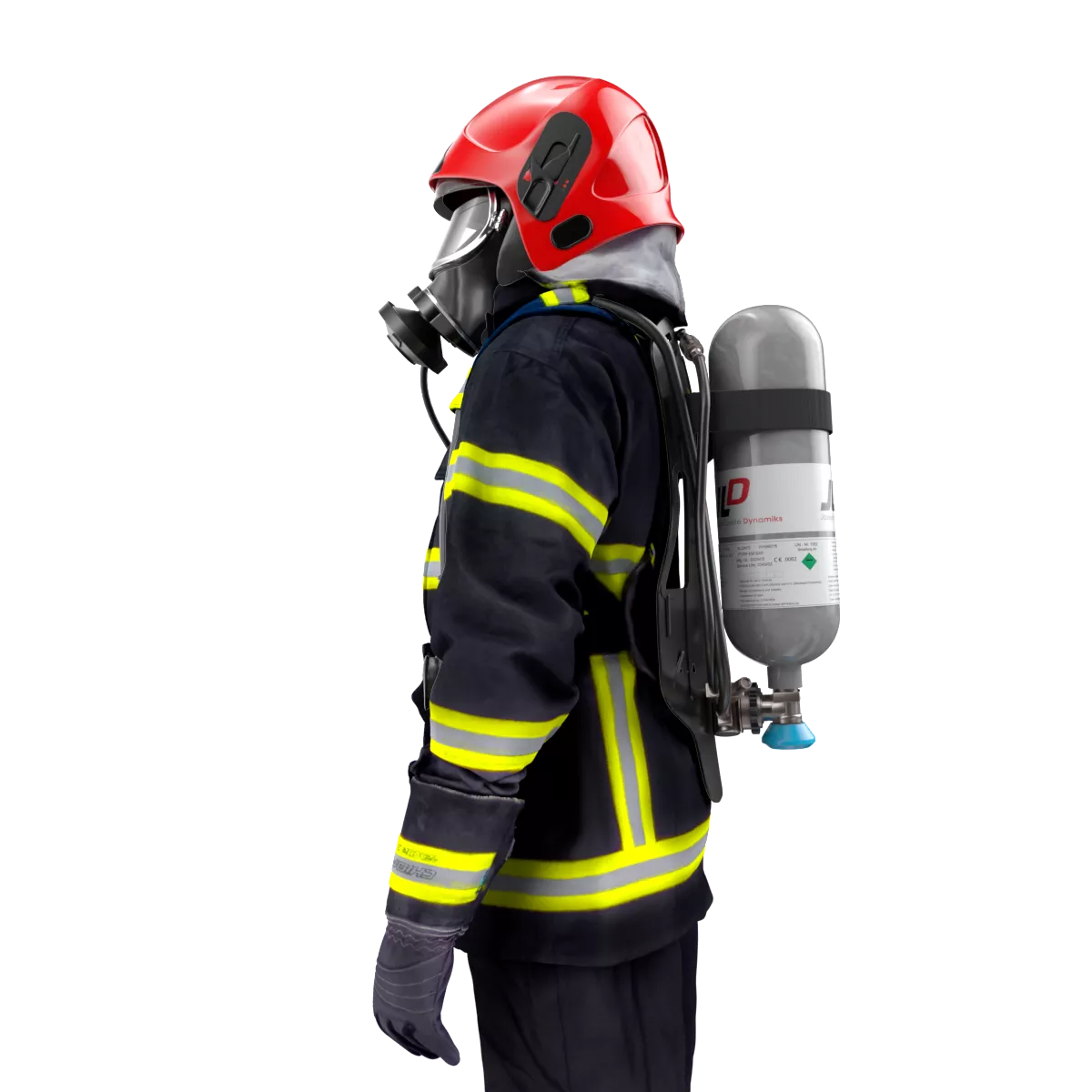

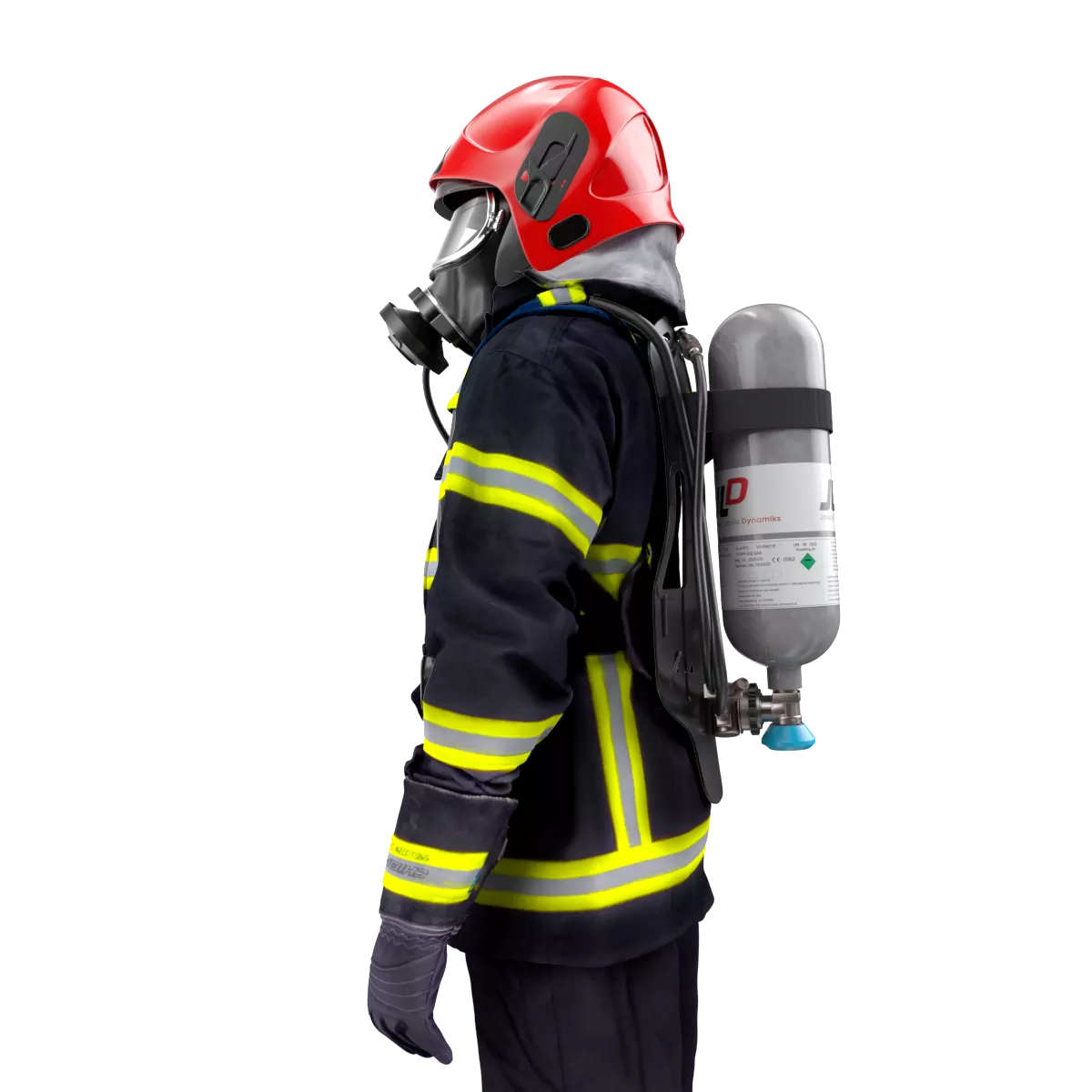

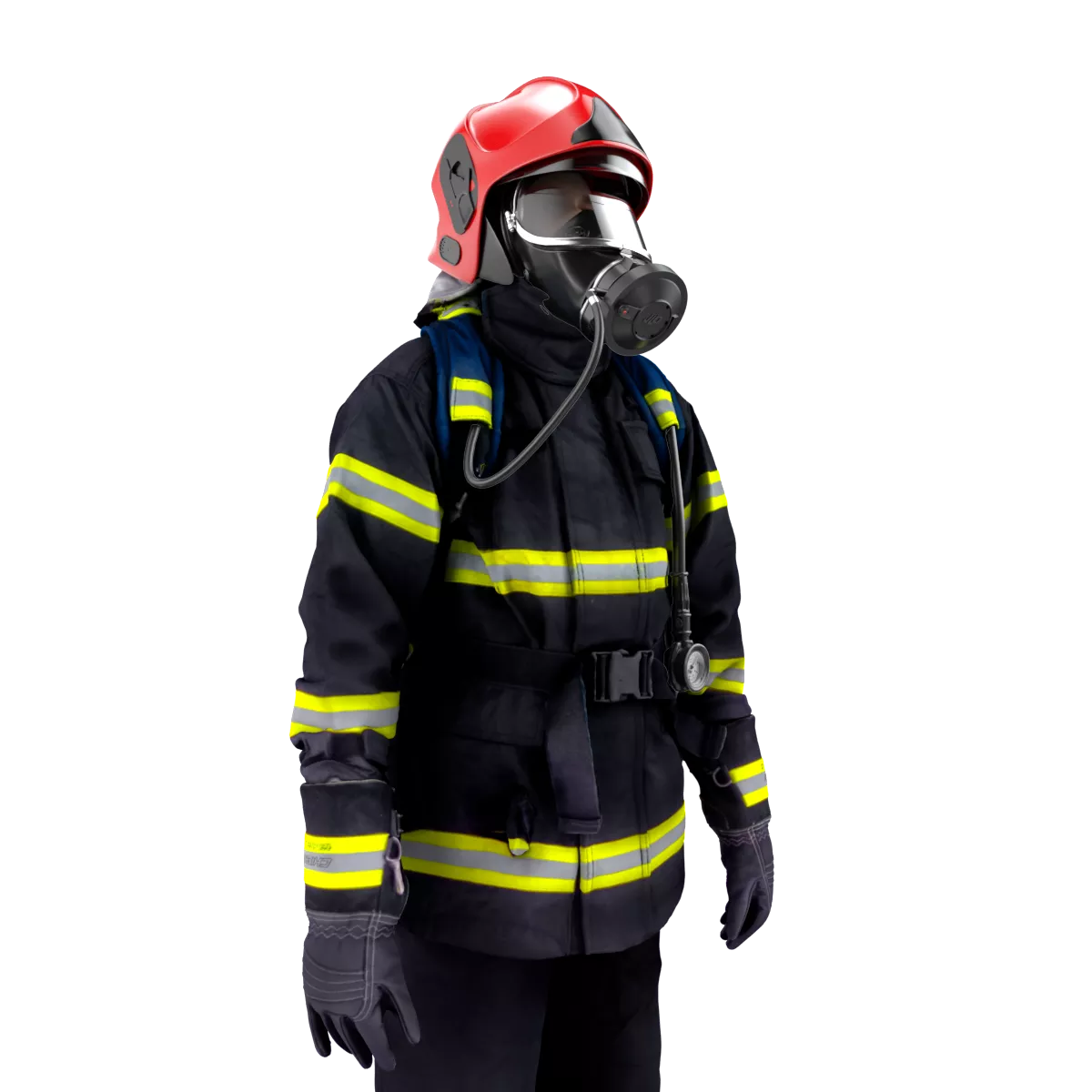

The CABA 9500 is a high-performance, cost-effective breathing apparatus meticulously designed for environments that are Immediately Dangerous to Life and Health (IDLH). Engineered for unwavering reliability in low-oxygen atmospheres containing fire, smoke, and toxic gases, this complete set seamlessly combines robust pneumatic performance with user comfort. It features a fully ergonomic universal backplate and a "first-breath" activated positive pressure system, ensuring a stable, life-sustaining air supply under the most demanding and critical conditions.

Salient Features

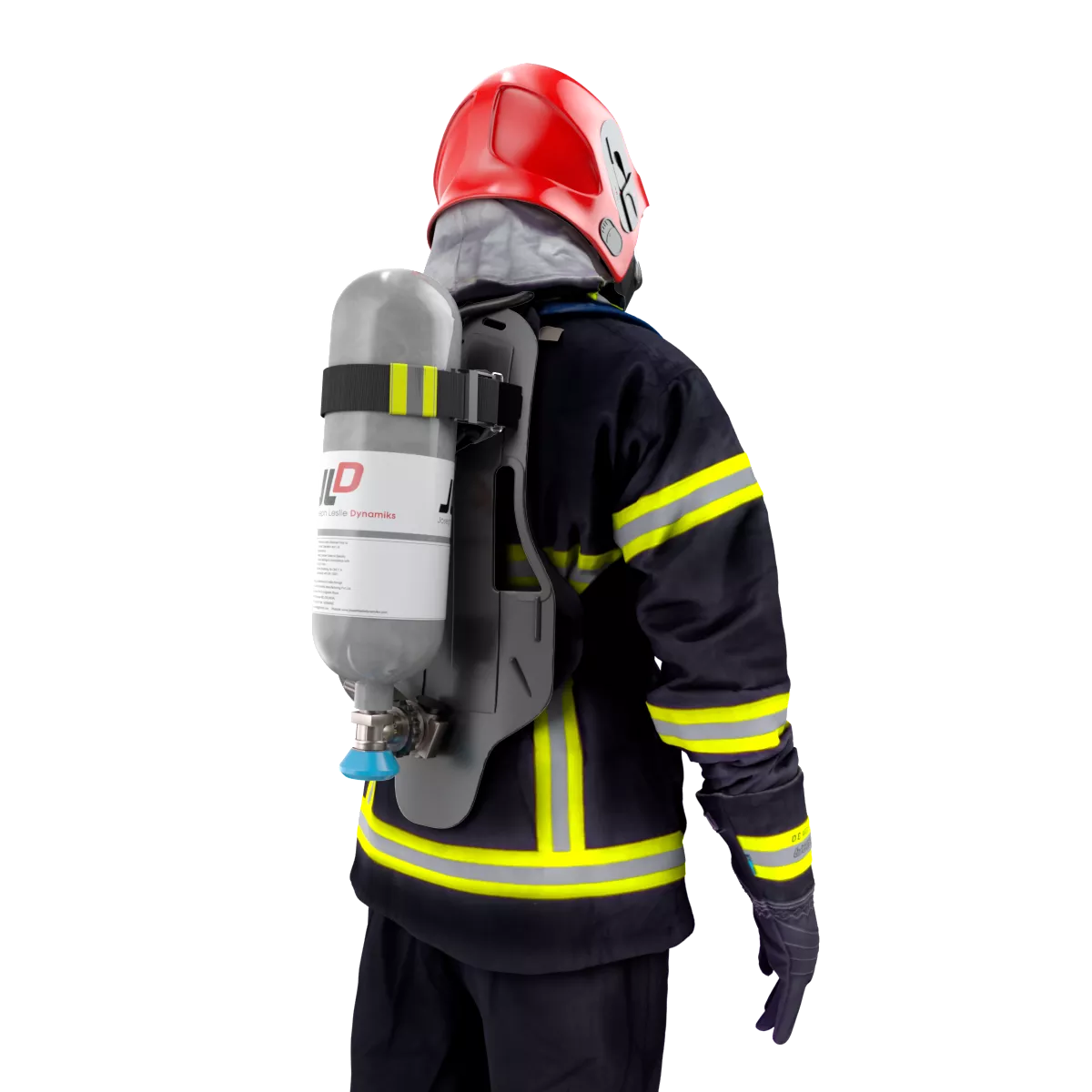

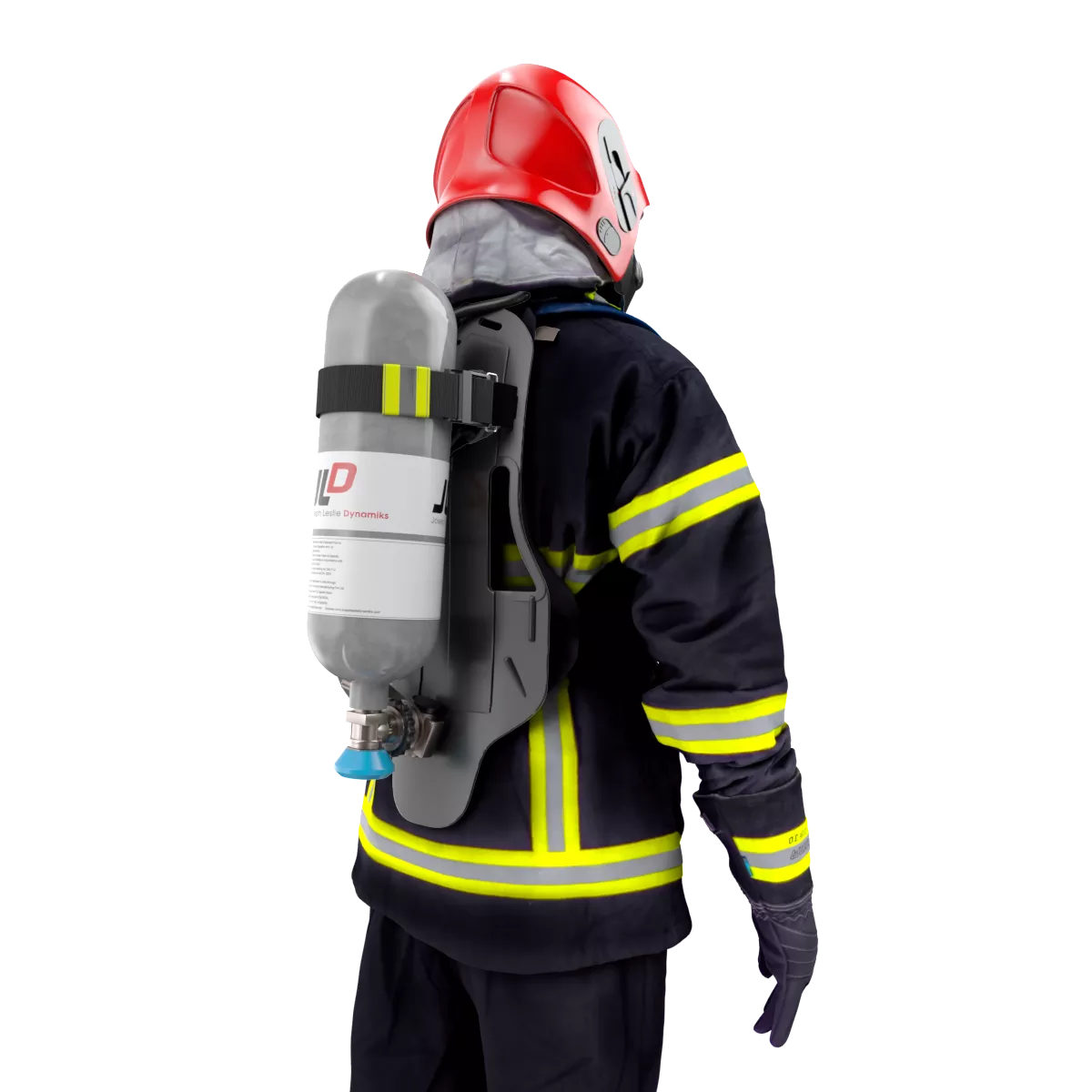

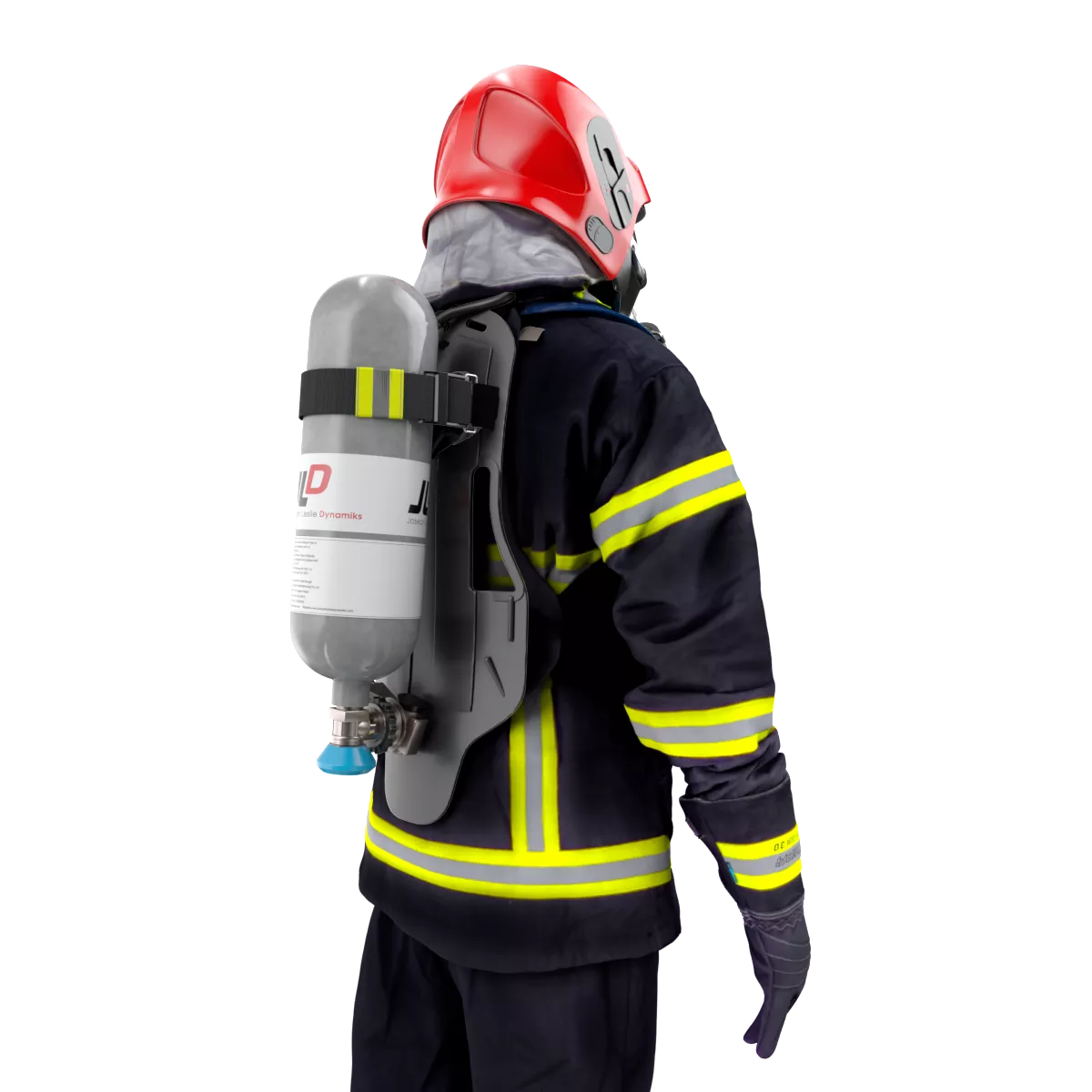

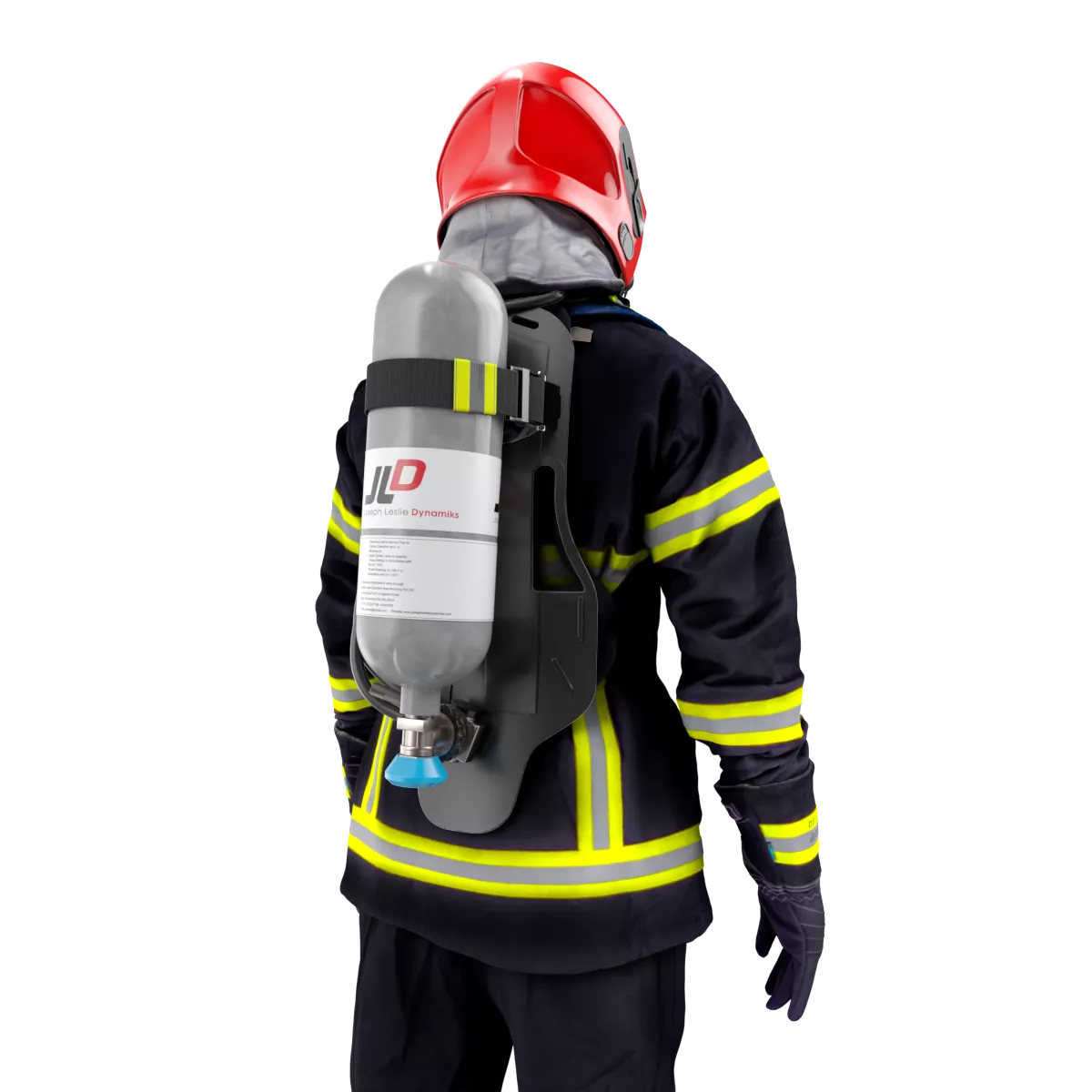

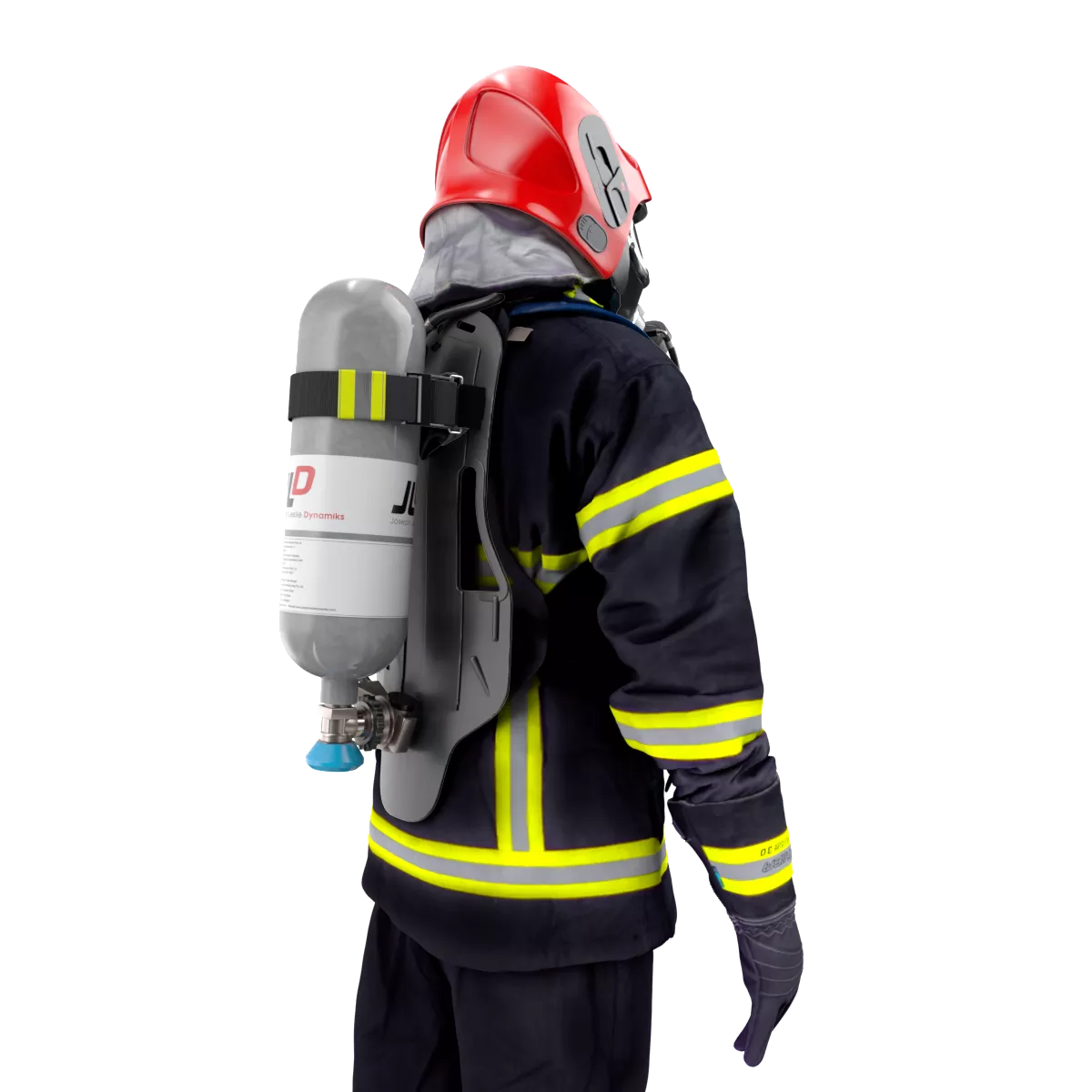

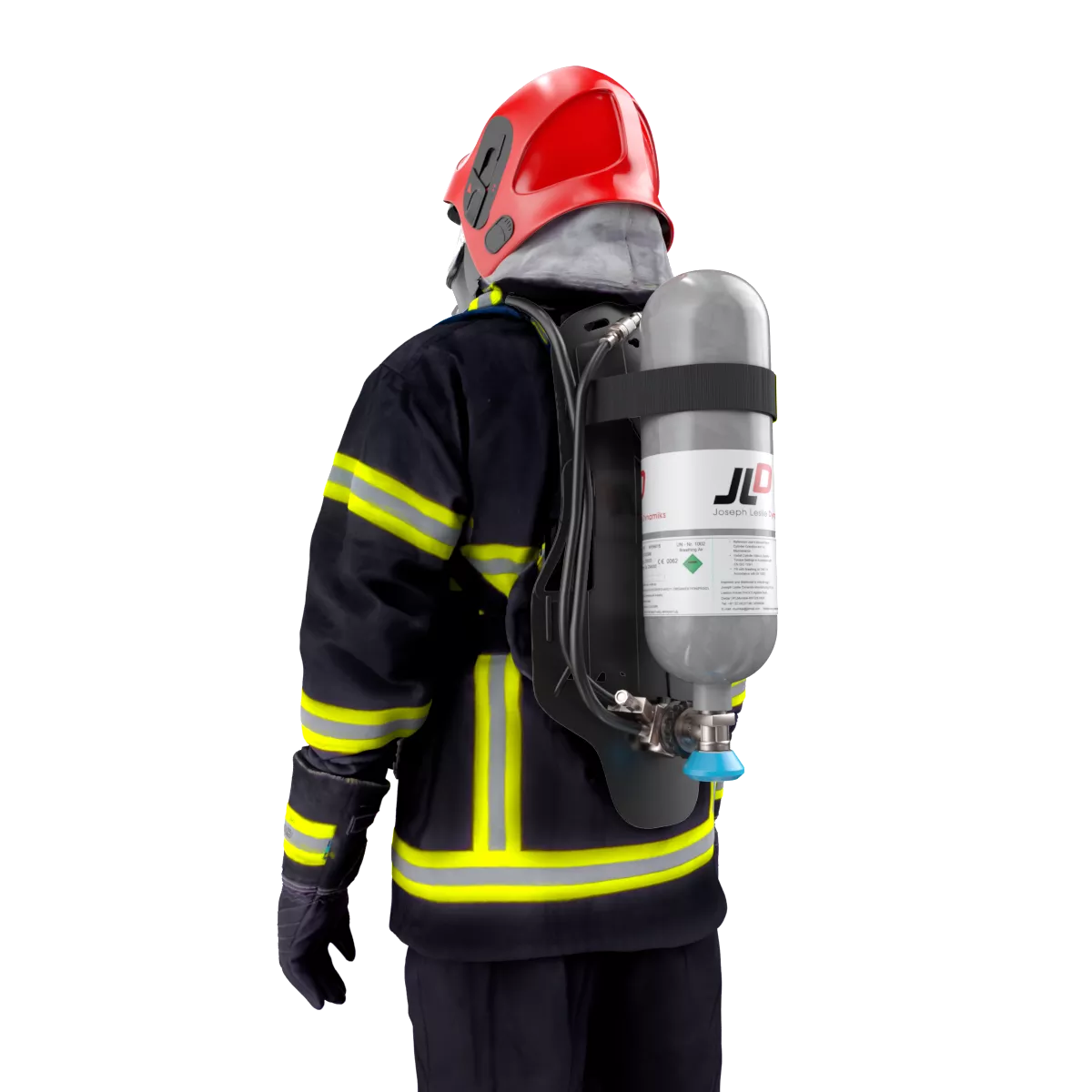

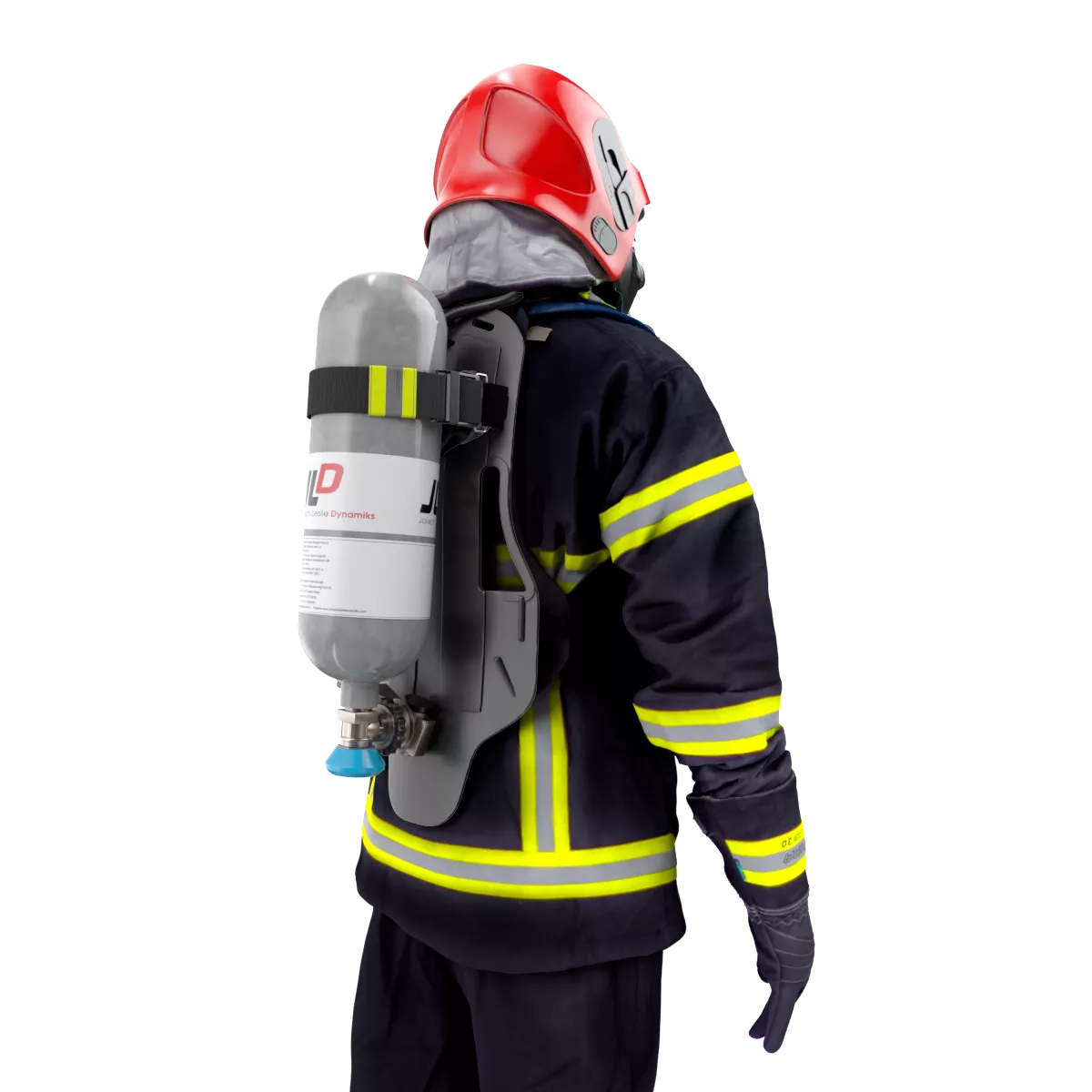

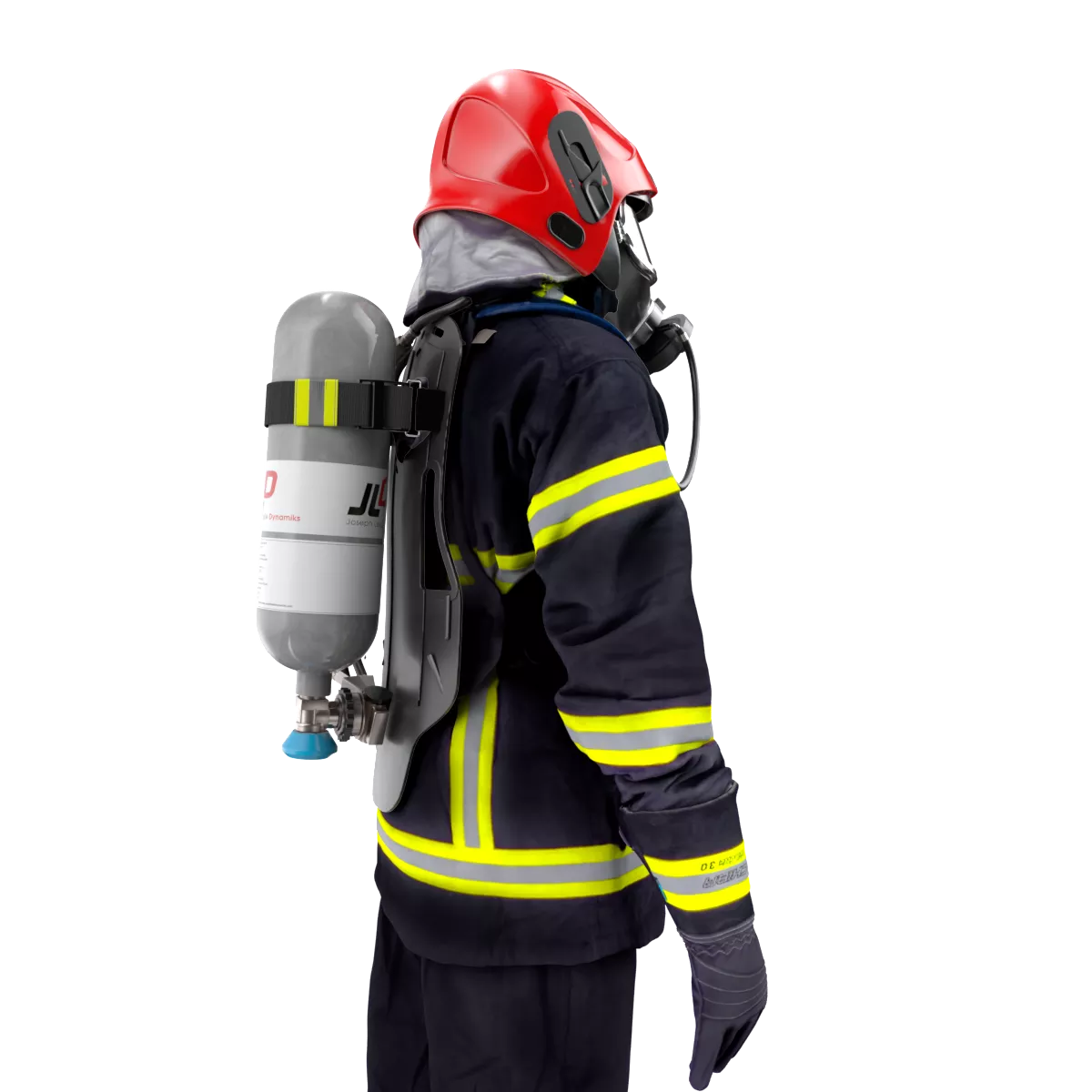

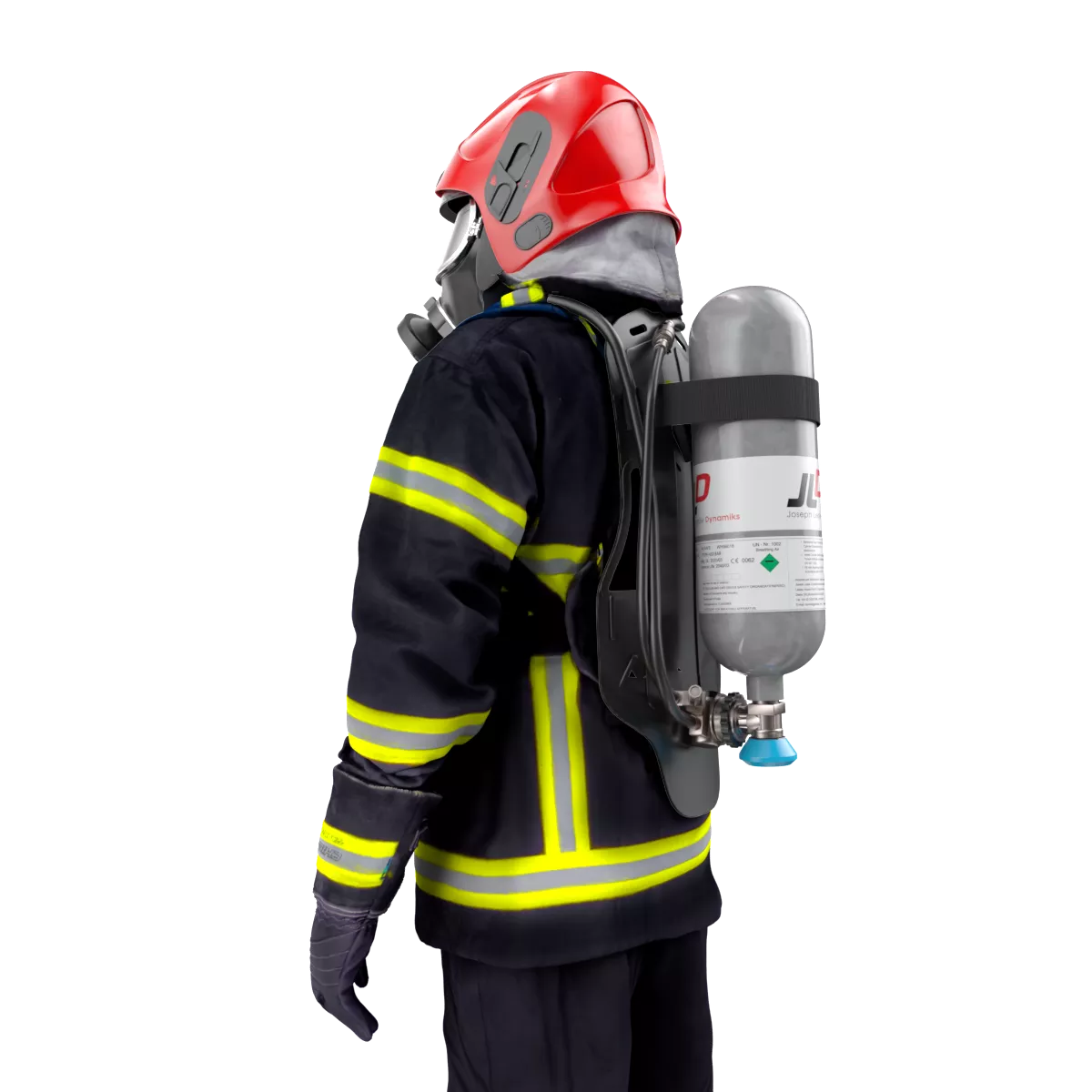

• Back Plate and Body Harness: Made of non-metallic, antistatic, impact-, chemical-, and fire-resistant materials, orthopedically designed and manufactured in conformity with EN 137:2006 Type 2 standards. Water-resistant, non-conductive, anti-static, chemical- and impact-resistant, with resistance to temperature and flammability as per EN 137 (latest revision).

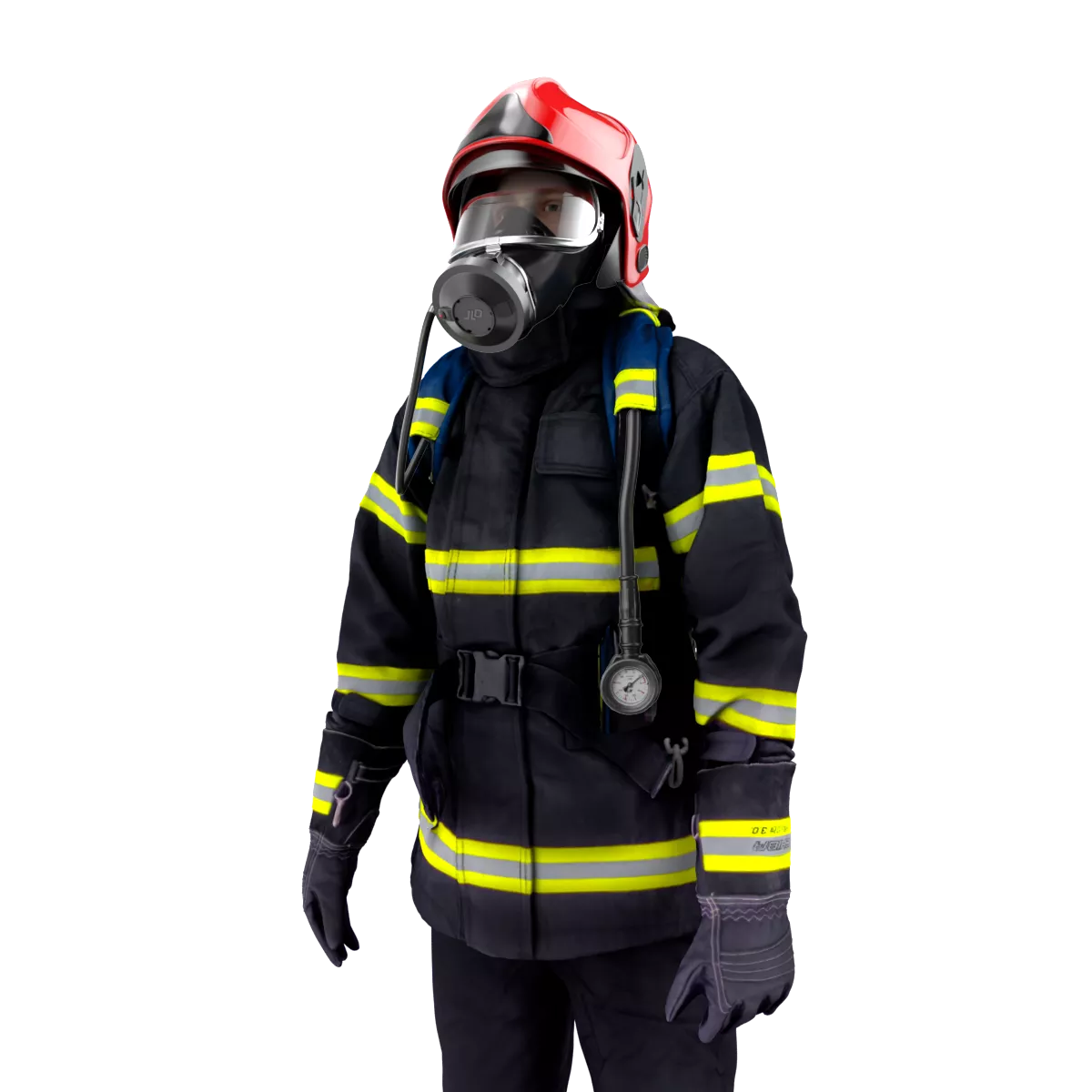

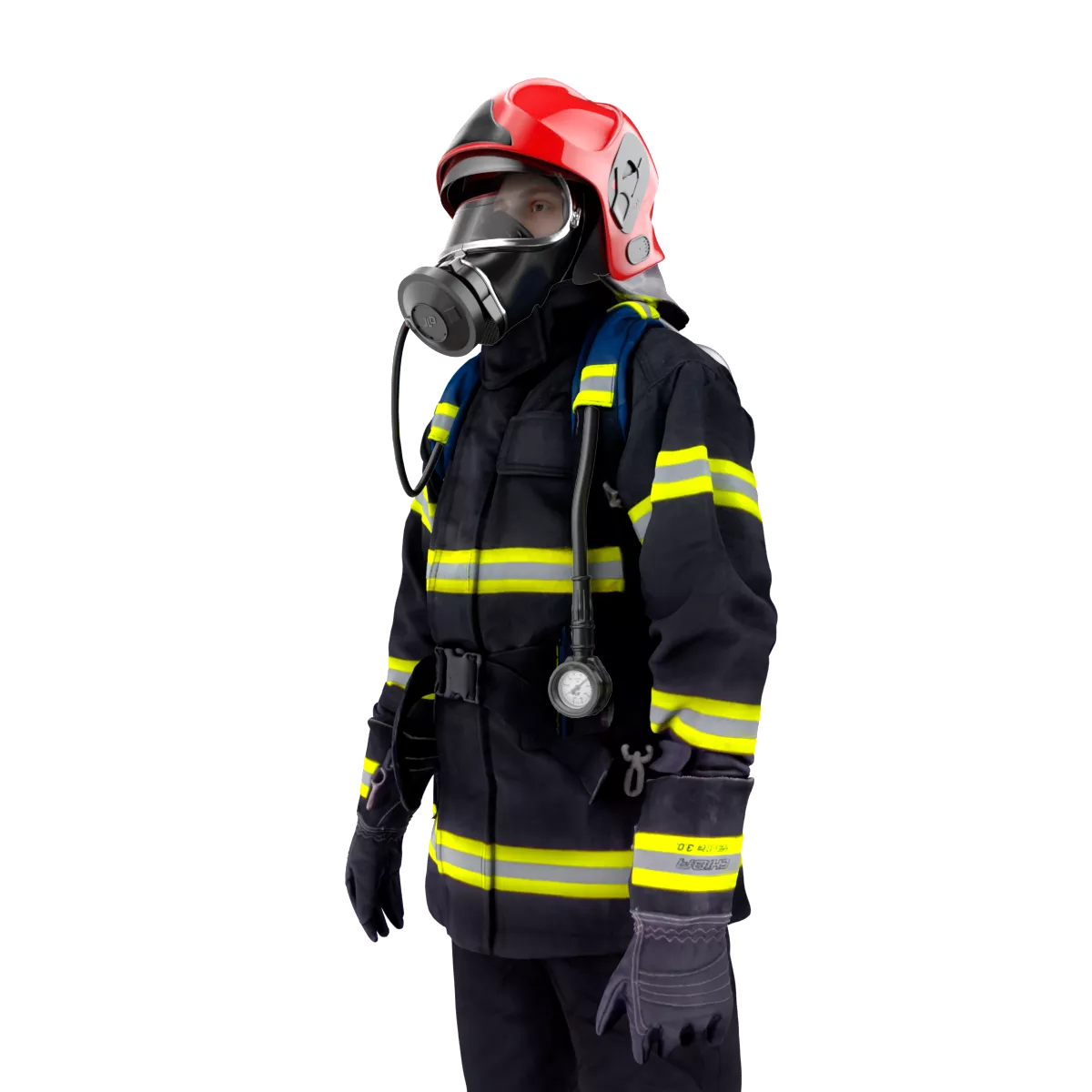

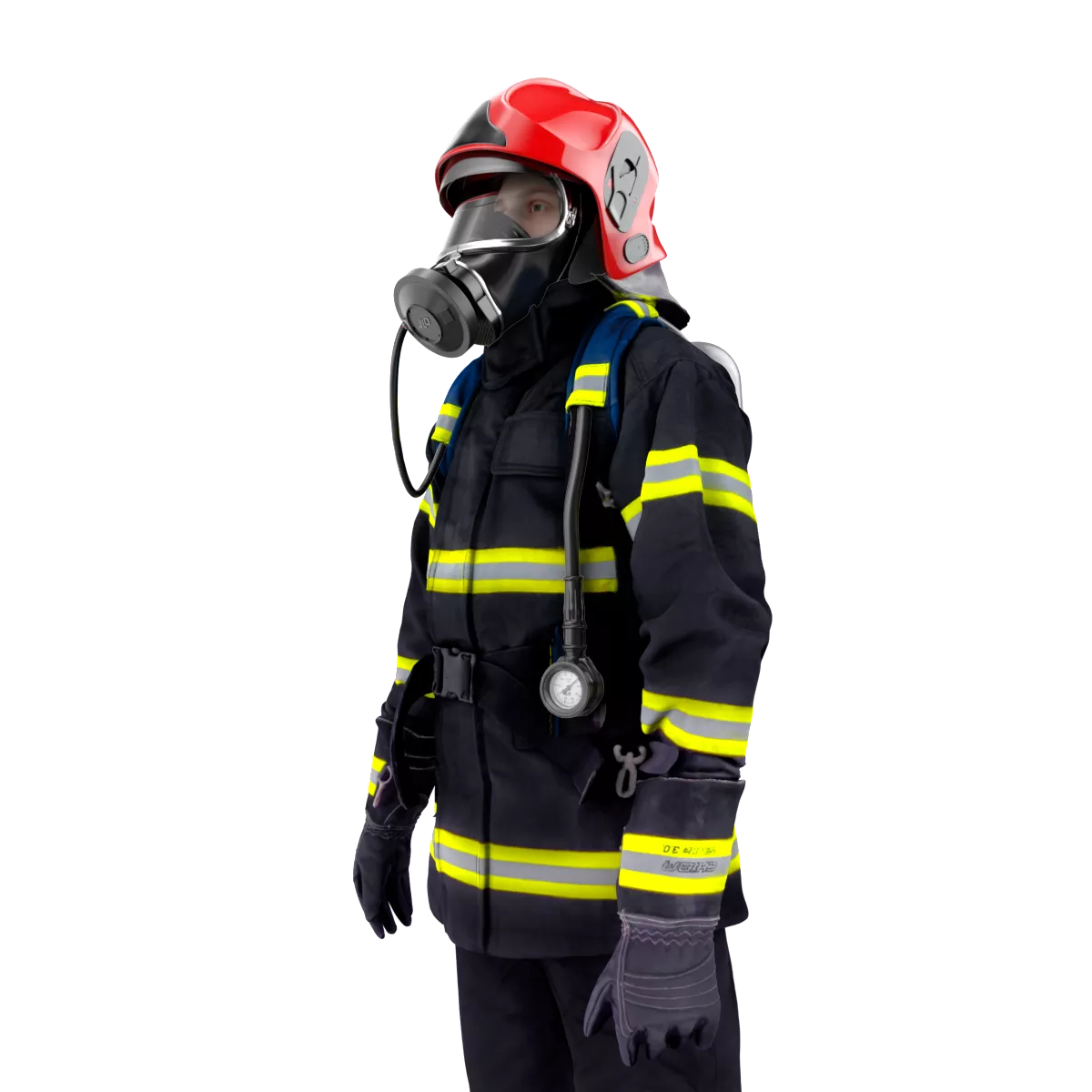

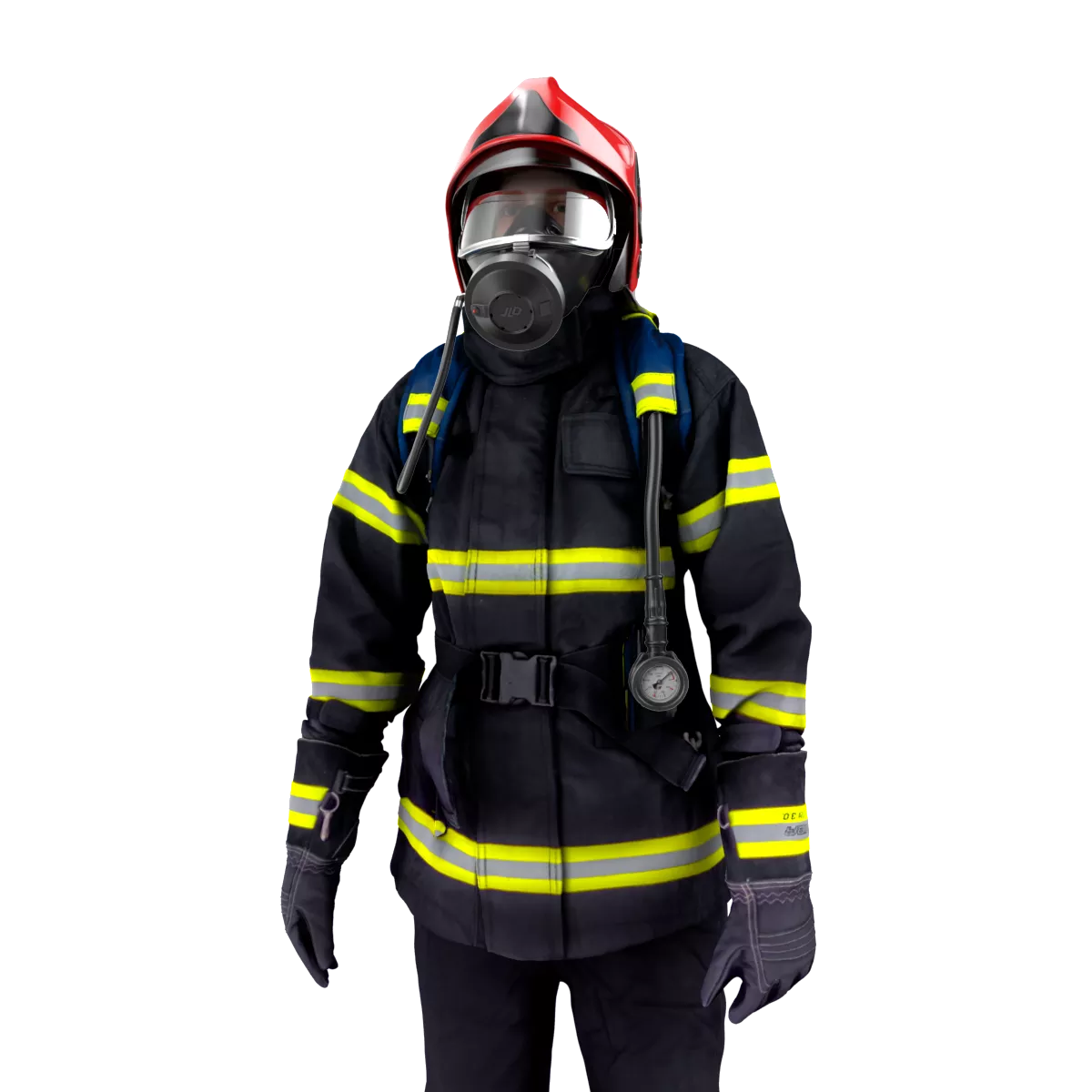

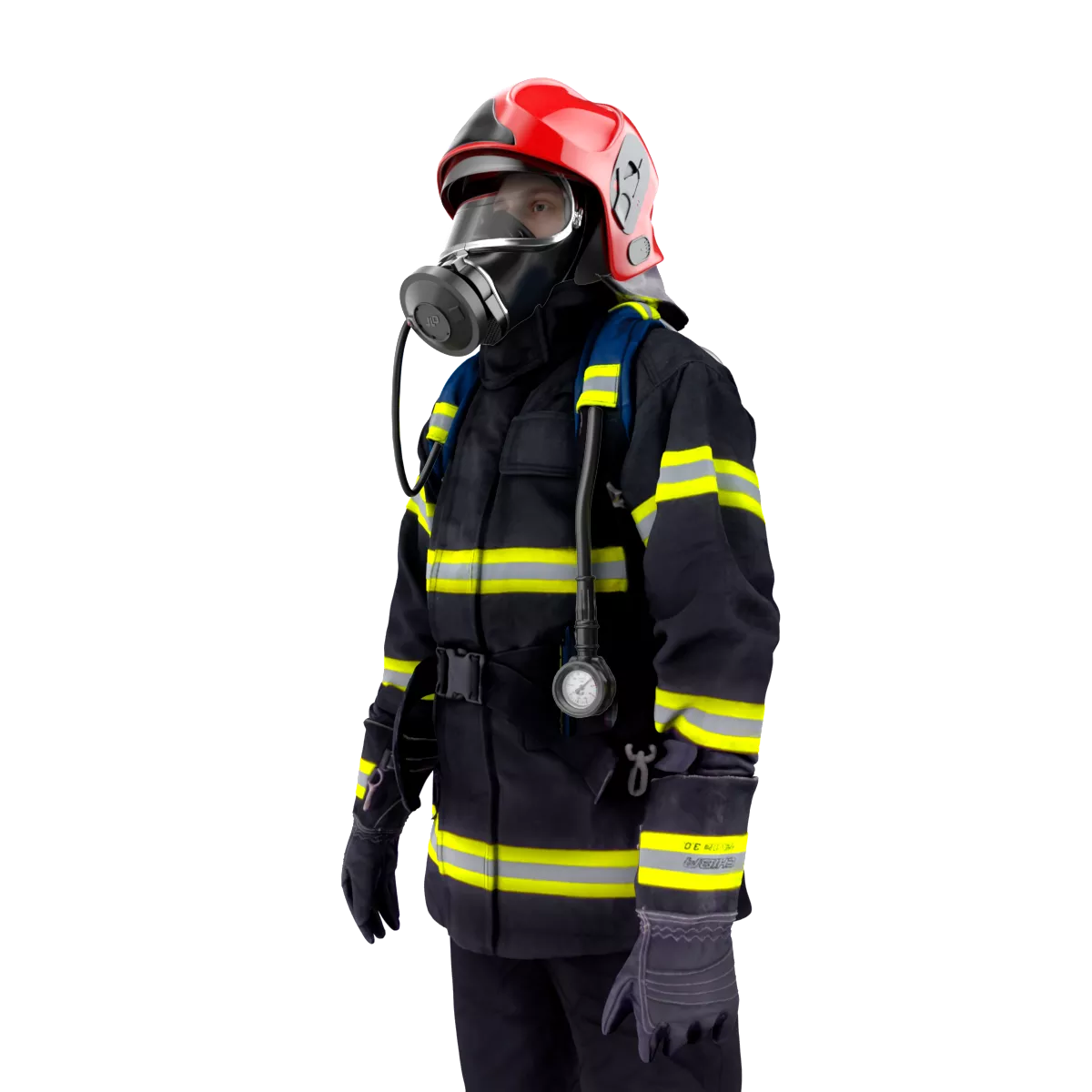

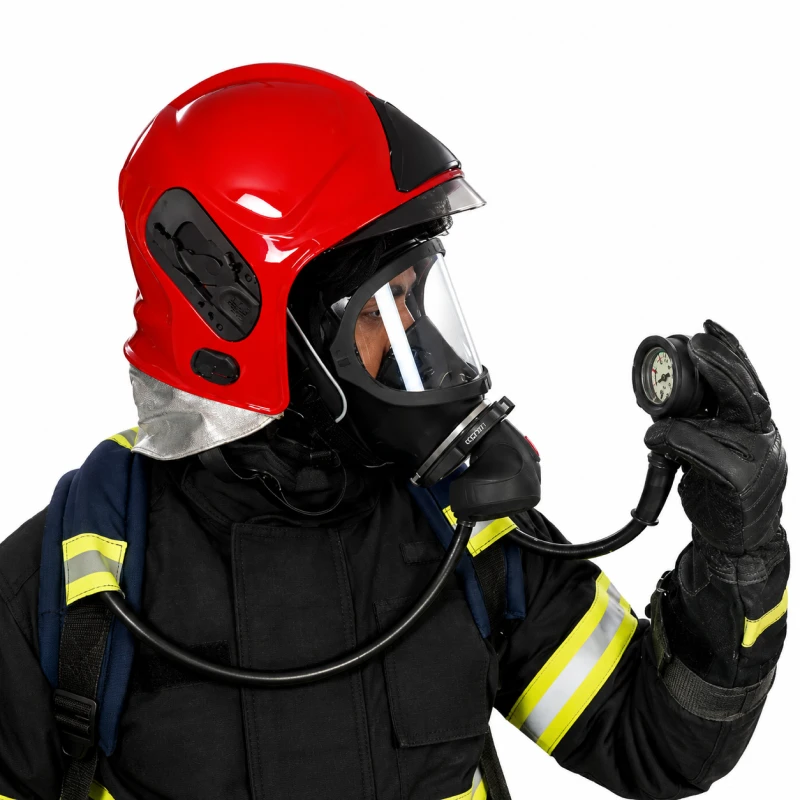

• Analog Pressure Gauge: Range of 0–350 bar. The design enables the wearer to estimate pressure within 10 bars. Features a photoluminescent dial and lens with heat and impact resistance, mounted on the shoulder strap with suitable protection against damage. Integrated with the warning whistle in a streamlined hose without any manifold block.
• First Stage Reducer: Small, sturdy, and tamper-proof first-stage reducer for 300 bar pressure. Capable of delivering 1000 LPM at 300 bar and a minimum of 500 LPM at cylinder pressure as low as 20 bars without adjustment. Incorporates a unique safety pressure relief valve in the outlet supply. Fully automatic with an internal flow restrictor limiting airflow to less than 25 LPM to the HP supply hose. Easily detachable from the back plate.
• Whistle Assembly: Activates when 80% of air is consumed and produces a sound exceeding 90 dB. Air loss caused by the warning signal does not exceed 5 litres/min from signal activation to a pressure of 10 bar. Fully integrated with the gauge and hose, positioned on the shoulder in front of and close to the user’s ear.
• Demand Valve (Second Stage Reduction): Tilt valve demand valve with 4–10 mbar activation pressure. Maintains positive pressure at 10 bar cylinder pressure or 300 LPM air supply. Includes a reset button to close airflow through the demand valve, allowing face mask removal without loss of cylinder air. Connected to the face mask with a front-side plug-in connection and positioned to avoid obstruction while crawling.

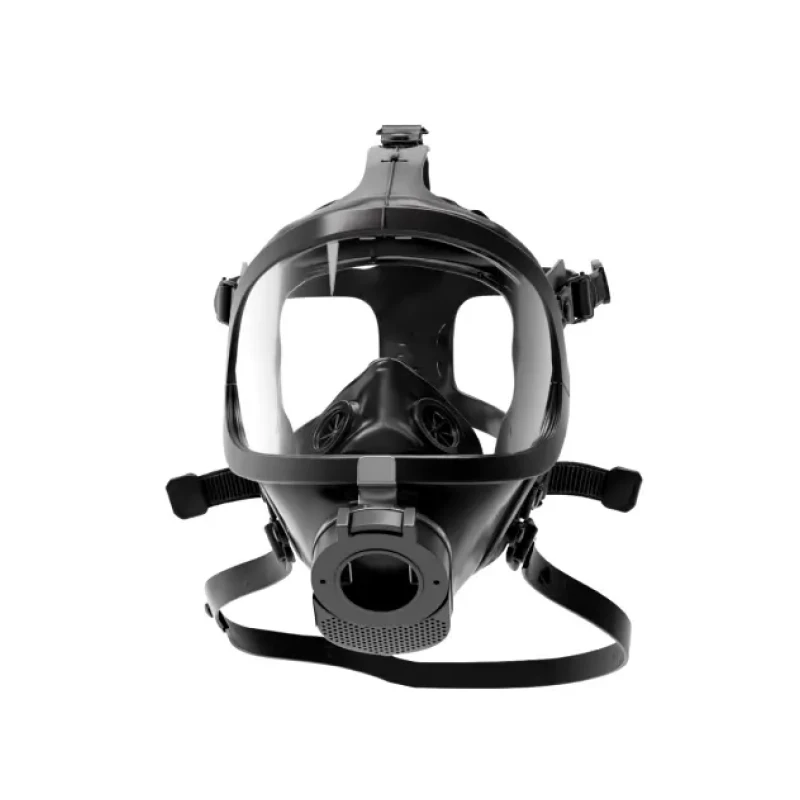

• Full Face Mask: Approved to EN 136:1998 Class 3+. Made from high heat- and chemical-resistant EPDM material, featuring a double reflex face seal, polycarbonate visor, 5-finger headband, spring-loaded exhalation valve, and speech diaphragm for enhanced communication. The inner mask is made of silicone material, and the neck strap is flame-retardant neoprene.

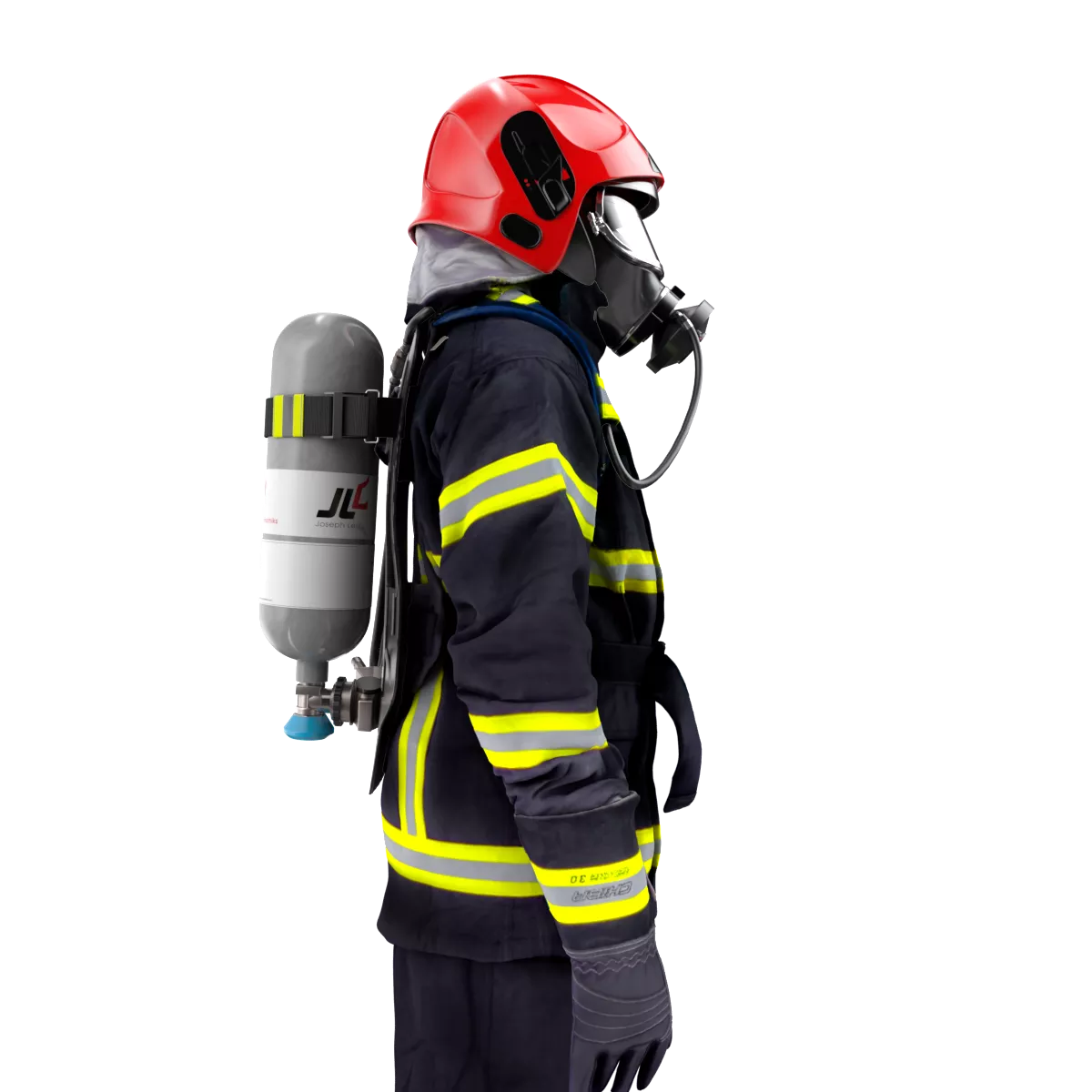

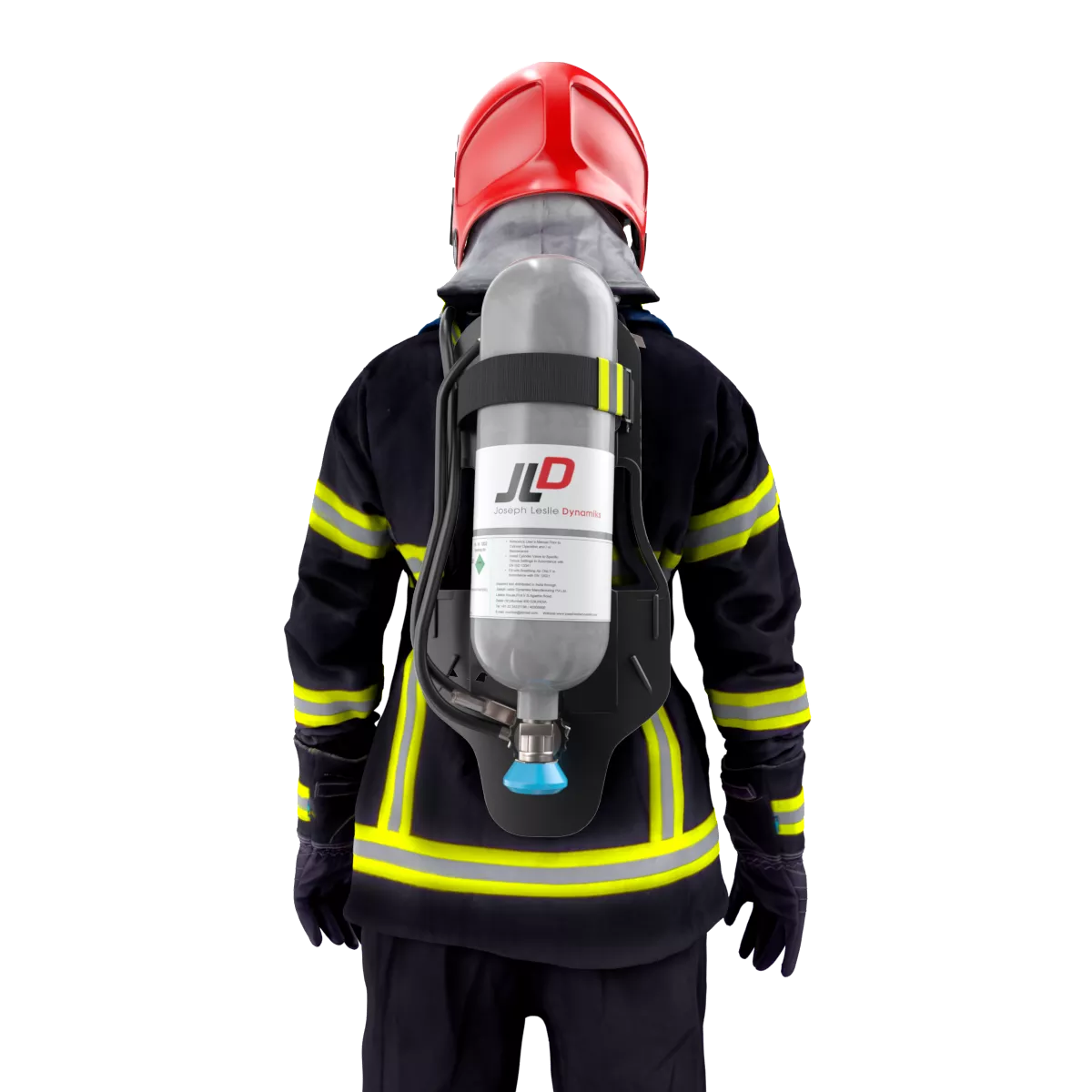

• Cylinder: Choice of steel or lightweight carbon composite cylinder (4.7 / 6 / 6.8 / 9 litres × 300 bar capacity).
• Digital cum Mechanical Pressure Gauge (Optional): Automatic Distress Signal Unit (ADSU) integrated with the pressure gauge, comprising digital and analog display. Capable of detecting cessation of body movement and activating an automatic audio-visual alarm, with manual activation also possible. Includes manual distress signalling, visual and acoustic warnings and alarms. The distress alarm generates a minimum sound of 102 dB(A) measured at 250 mm. Features easy push-button operation and cylinder pressure display. ATEX Certified to Ex ia IIC T4.
• Second Man Connection / “Y” Manifold for Additional Connections (Optional): Provides suitably placed “Y” manifold to facilitate receiving air from a different source and supplying air for an additional face mask.
• Waist Belt Padding (Optional): Constructed from high-abrasion, puncture-resistant, and flame-retardant materials. Designed with an orthopaedic contoured shape to fit the lumbar region, effectively transferring weight to the hips to reduce shoulder fatigue. Incorporates reflective or photoluminescent materials for enhanced visibility in low-light conditions.

Approvals

• SCBA Set Approval: EN 137:2006 Type 2 (Open Circuit Compressed Air)
• Full Face Mask Approval: EN 136:1998 CL3+
• Regulatory Compliance: PPE Regulation 2016/425, Module B & Module D
• Cylinder Certification: PESO (Petroleum & Explosives Safety Organization) Approved Cylinders and Valves
• Electronics: The optional DMA1 Digital Gauge is ATEX Certified for safe use in explosive environments.
