Thermal Imaging Camera

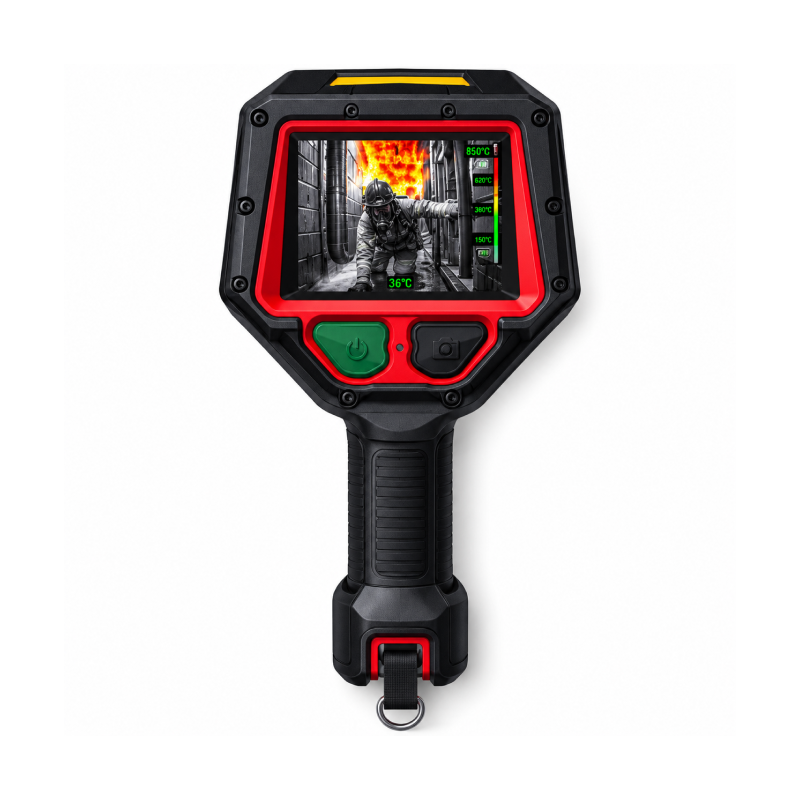

Designed with firefighters for firefighters, the NFPA Certified AttackPRO+ thermal imaging camera offers an unmatched combination of image quality, durability, and price.

With its high resolution and wide field of view, AttackPRO+ is the new decision-making weapon of choice for captains and commanding officers. Mixed-gain pixel technology eliminates the visual confusion and delay of switching between high-gain and low-gain modes. AttackPRO+ lets you clearly see the fire and the crew, all in one detailed image.

The kit includes the AttackPRO+ camera, 2 batteries, and a charging dock.

Salient Features

  • Mixed Gain with SV1 Image Optimization: See the hottest and coolest regions of the scene simultaneously without freezing or switching gain modes; details enhanced with SV1.
  • Survey Mode: Optimized for lower temperature scenes to help identify hot spots and hidden threats during size-up and overhaul.
  • Durable, Waterproof Design: Built with an IP67 rating and 2 meter drop resistance for reliability in harsh conditions.
  • Wide, 57-Degree Field of View: Easily scan a large area to identify hazards or victims in seconds.
  • Long-Lasting Rechargeable Battery: Provides greater than 6 hours of continuous thermal imaging.
  • Decision Making on Command: Direct firefighters, water, and resources with expedited tactical precision.
  • Robust Decision Making TIC: Equip every commanding officer with an affordable decision-making TIC.
  • 300 Lumen Integrated Flashlight: LED flashlight available at the touch of a button.
  • Search and Rescue: Find victims and enable self-rescue faster with a reliable personal TIC.
  • Execute 360° Size-ups & Overhaul Faster: When seconds count, a decision-making TIC saves time and lives.

Approvals

  • NFPA

For More Details:

Enquire now arrow

×
Sr.No Parameter Specification
1 Thermal Sensor 320x240 (76,800 pixels)
2 Detection Distance 12 inches to 1,000 feet
3 Field of View 57° Horizontal x 42° Vertical
4 Temperature Range -4°F to 1,022°F (-20°C to 550°C)
5 Thermal Sensitivity <35 mK with SV1
6 Frame Rate >25 Hz FastFrame
7 Display 3.5" Color with Corning Gorilla Glass
8 Operating Temperature -4°F to 131°F (no time limit); up to 302°F (max 15 min); up to 500°F (max 5 min)
9 IP Rating IP67 Waterproof
